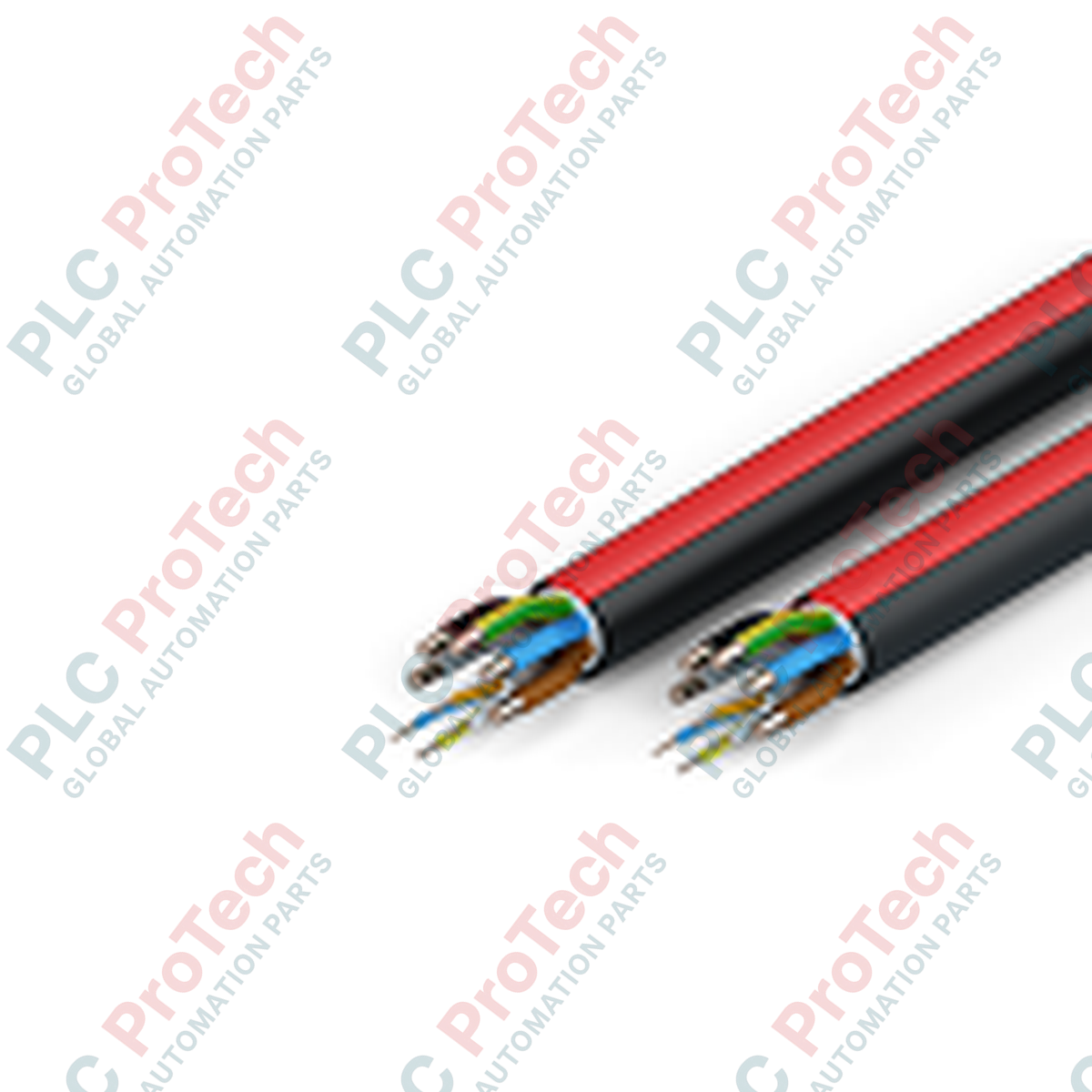

BECKHOFF ZB7304-R003 EtherCAT P kabeli

SKU ZB7304-R003

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: ZB7304-R003
Origin Germany
Product Type: Sanoat kabellari
Payment: T/T, Western Union
Weight: 50.0 kg
Dimensions: 1 x 4 x 0.34 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Tavsif

BECKHOFF ZB7304-R003 — aloqa va quvvat uzatishni yagona kabel infratuzilmasiga birlashtirish uchun ishlab chiqilgan maxsus EtherCAT P kabeli. EtherCAT P texnologiyasidan foydalanadigan sanoat avtomatlashtirish tizimlari uchun mo‘ljallangan ushbu kabel yuqori tezlikdagi ma’lumot uzatishni quvvat ta’minoti liniyalari bilan birlashtirib, qurilmalarni samarali ulash imkonini beradi. U uzluksiz harakat talab qilinadigan murakkab sharoitlar uchun ishlab chiqilgan bo‘lib, avtomatlashtirilgan mashinalar va harakatni boshqarish tizimlarida ishonchli ishlashni ta’minlaydi.

Mustahkam poliuretan tashqi qobig‘iga ega ZB7304-R003 zavod pollarida ko‘p uchraydigan mexanik yeyilish, moylar va atrof-muhit omillariga yuqori chidamlilikni ta’minlaydi. Uning konstruksiyasi kabel tashuvchilar va robotlashtirilgan o‘rnatmalar kabi dinamik yo‘naltirish qo‘llanmalariga mos bo‘lib, mexanik zo‘riqish ostida signal yaxlitligi va quvvat uzatilishini saqlaydi.

Xususiyatlari

Bitta kabelda EtherCAT aloqasi va quvvat uzatishning birlashtirilishi
Uzluksiz harakat va dinamik qo‘llanmalar uchun kabel zanjiriga mos
Mexanik va kimyoviy himoyani kuchaytiruvchi chidamli PUR (poliuretan) tashqi qobiq
Yuqori tezlikdagi sanoat Ethernet aloqa standartlari uchun ishlab chiqilgan
Qurilmalarni ishonchli quvvat bilan ta’minlash uchun o‘lchamlari moslashtirilgan integratsiyalangan quvvat o‘tkazgichlari

Qo‘llanilishi

Quvvat va ma’lumotlarni birlashtirishni talab qiladigan EtherCAT P avtomatlashtirish tarmoqlari
Avtomatlashtirilgan ishlab chiqarish va materiallarni tashish tizimlarida kabel zanjiri orqali yo‘naltirish
Harakatni boshqarish va servo yuritmalarni o‘zaro ulash
Takroriy mexanik bukilishga duchor bo‘ladigan sanoat mashinalari o‘rnatmalari

Texnik xususiyatlar

Umumiy ma’lumotlar

Parametr	Spetsifikatsiya
Ishlab chiqaruvchi	BECKHOFF
Aniq model	ZB7304-R003
Mahsulot turi	EtherCAT P kabeli

Kabel konstruksiyasi va xususiyatlari

Parametr	Spetsifikatsiya
Ko‘ndalang kesim (Ethernet)	1 x 4 x 0.34 mm² (AWG 22)
Ko‘ndalang kesim (quvvat)	5 x 4.0 mm² (taxminan AWG 12)
Kabelning tashqi diametri	15.0 mm ± 0.2 mm (0.5906" ± 0.0118")
Qobiq materiali	PUR (poliuretan)
Qobiq rangi	Qora (RAL 9005 ga o‘xshash), qizil chiziqli (RAL 3020 ga o‘xshash)
Qo‘llashga yaroqliligi	Kabel zanjiri uchun mos

O‘rnatish bo‘yicha ko‘rsatmalar

O‘rnatishdan oldin BECKHOFF ZB7304-R003 detal raqami tizim muhandislik hujjatlariga mos kelishini tekshiring.
Kabelni yotqizish yoki uchlarini ulashdan oldin barcha ulangan quvvat manbalari va EtherCAT P qurilmalari to‘liq kuchlanishdan uzilganligiga ishonch hosil qiling.
Kabel qobig‘i va o‘tkazgichlarini tashish paytida yuzaga kelgan shikastlanishlar yoki sirt kesiklari bor-yo‘qligini tekshiring.
Kabel zanjiri (drag-chain) o‘rnatmalari uchun talab qilinadigan belgilangan minimal bukilish radiuslari va mexanik yo‘naltirish ko‘rsatmalariga rioya qiling.
Konnektorlar va klemma nuqtalariga tushadigan zo‘riqishning oldini olish uchun kabelni ikkala uchida ham tegishli tarzda mahkamlang.
Avtomatlashtirish segmentini quvvatlantirishdan oldin uzluksizlik va aloqa sinovlarini o‘tkazing.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the BECKHOFF ZB7304-R003?

The BECKHOFF ZB7304-R003 is an EtherCAT P cable designed to transmit both high-speed Ethernet communication and power simultaneously through a single cable assembly.

Is the BECKHOFF ZB7304-R003 suitable for moving cable carriers?

Yes, the BECKHOFF ZB7304-R003 is drag-chain suitable, making it engineered for dynamic applications and repetitive movement in industrial machinery.

What are the conductor cross-sections for the BECKHOFF ZB7304-R003?

The BECKHOFF ZB7304-R003 features an Ethernet cross-section of 1 x 4 x 0.34 mm² (AWG 22) and a power cross-section of 5 x 4.0 mm² (approx. AWG 12).

What material is used for the outer jacket of the BECKHOFF ZB7304-R003?

The BECKHOFF ZB7304-R003 utilizes a polyurethane (PUR) outer jacket designed to provide robust mechanical and chemical protection in industrial environments.
