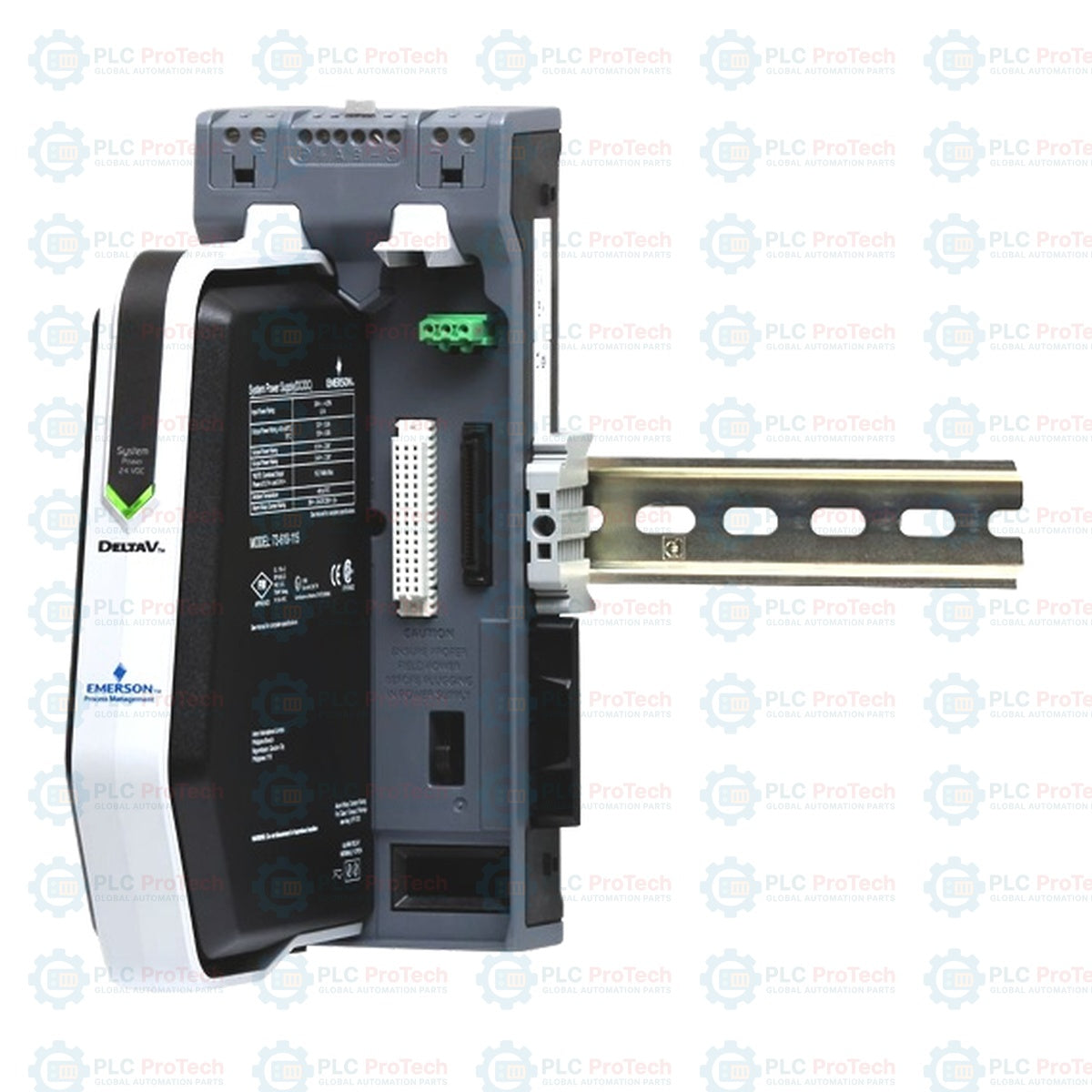

Emerson SE5009 DeltaV S-seriyali DC/DC tizim elektr ta’minoti bloki

SKU SE5009

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Emerson
Product No.: SE5009
Country of origin:United States
Product Type: DC dan DC ga elektr ta’minoti bloklari
Payment: T/T, Western Union
Weight: 850g
Dimensions: 85 mm x 210 mm x 140 mm (W x B x Ch)
Shipping port: Xiamen
Warranty: 12 months

Tavsif

Emerson SE5009 — DeltaV S-series taqsimlangan boshqaruv platformasi uchun mo‘ljallangan modulli 24 VDC tizim quvvat manbai. 24 VDC zavodning umumiy quvvat manbaiga bevosita ulanadigan ushbu qurilma tashqi kabellarsiz DeltaV kontrollerlari va tegishli I/O interfeyslariga mahalliy tizim quvvatini ta’minlaydi. Modul DeltaV quvvat/kontroller tashuvchilariga o‘rnatilib, ichki quvvat shinalarini quvvatlantiradi hamda kontrollerga 5 VDC quvvat va I/O quyi tizimiga 12 VDC da 8,0 A gacha quvvat yetkazib beradi. Yuklamani taqsimlash va modulli kengaytirish imkoniyatlariga ega SE5009 tizim zaxiraliligini qo‘llab-quvvatlaydi hamda kirish kuchlanishi o‘zgarib turganda barqaror chiqish quvvatini saqlaydi.

Xususiyatlari

Ichki quvvat shinasi ulanishlari orqali DeltaV S-series quvvat/kontroller tashuvchilariga bevosita ulanadi
Tartibga solingan chiqishni ta’minlagan holda 24 VDC kirish quvvatida +/- 20% o‘zgarishni qabul qiladi
I/O interfeysining lokal shinasiga 12 VDC da 8,0 A gacha va kontrollerga 5 VDC da 2,0 A gacha quvvat yetkazib beradi
Yuklamani taqsimlash va 1 dan N gacha tizim quvvatining zaxiraliligini qo‘llab-quvvatlaydi
Tizim quvvati va maydon quvvati o‘rtasida to‘liq elektr izolyatsiyasini ta’minlaydi
Platadagi LED indikatorlari doimiy tok kirishi holati va chiqishdagi nosozlikni aniqlashni ko‘rsatadi
O‘rnatilgan normal holatda ochiq signal relesi chiqishi kirish yoki quvvat manbai nosozligida holatini o‘zgartiradi
Ichki sug‘urta bilan himoyalangan kirish va ishga tushish tokini yumshoq ishga tushirish orqali cheklash

Qo‘llanilishi

DeltaV S-series boshqaruv tizimi quvvat taqsimoti
Taqsimlangan boshqaruv tizimi (DCS) jarayonlarni avtomatlashtirish shkaflari
Uzluksiz jarayon sanoatlari uchun tizim quvvatining uzluksizligi

Buyurtma ma’lumotlari

Tavsif	Model raqami
24 VDC tizim quvvat manbai	SE5009

Texnik xususiyatlar

Parametr	Spetsifikatsiya
Ishlab chiqaruvchi	Emerson
Model	SE5009
Seriya	DeltaV S-series
Mahsulot turi	DC dan DC ga tizim quvvat manbai
Kirish kuchlanishi	24 VDC +/- 20% da 6,1 A
Ishga tushish toki	24 VDC kirish diapazonida 5 ms davomida maksimal 20 A cho‘qqi qiymat
Chiqish quvvati nominali (-40–60 °C)	+12 VDC da 8,0 A, +5 VDC da 2,0 A (+5 VDC chiqishlarining jami quvvati 10 W)
Chiqish quvvati nominali (60–70 °C)	+12 VDC da 6,0 A, +5 VDC da 2,0 A (+5 VDC chiqishlarining jami quvvati 10 W)
Kirishni himoyalash	Ichki saqlagichli, almashtirib bo‘lmaydi
Ortiqcha kuchlanishdan himoya	Chiqish 110–120% darajada himoyalangan
Ushlab turish vaqti	To‘liq yuklama va minimal kirish kuchlanishida chiqish 5 ms davomida nominal qiymatning 5% chegarasida qoladi
Ishlash harorati	-40 dan 60 °C gacha (-40 dan 140 °F gacha) — quvvat pasaytirilmasdan; 60 dan 70 °C gacha (140 dan 158 °F gacha) — quvvat pasaytirilgan holda
Saqlash harorati	-40 dan 70 °C gacha (-40 dan 158 °F gacha)
Nisbiy namlik	5–95%, kondensatsiyasiz
Havodagi ifloslantiruvchi moddalar	ISA-S71.04-1985 havodagi ifloslantiruvchi moddalar G3 sinfi
Zarba	11 ms davomida 10 g, yarim sinus to‘lqini
Tebranish	5 Hz dan 13,2 Hz gacha 1 mm cho‘qqidan cho‘qqigacha, 13,2 Hz dan 150 Hz gacha 0,7 g
O‘rnatish	2 kenglikdagi quvvat/boshqaruv tashuvchi qurilmasining istalgan uyasi, VerticalPlus 4 kenglikdagi tashuvchi qurilmasining quvvat uyasi, 4 kenglikdagi quvvat tashuvchi qurilmasining istalgan uyasi
Tizim uchun zarur shartlar	DeltaV v11.3 yoki undan keyingi versiya; S-seriyali gorizontal tashuvchi qurilmalar bilan mos

Ulanishlar/interfeyslar

Ulagich kontakti	Funksiya
Asosiy quvvat	DC kirish, 2 simli
Signal kontakti	2 simli, odatda ochiq rele (30 VDC da 2,0 A, 250 VAC da 2,0 A)

O‘rnatish bo‘yicha yo‘riqnomalar

DeltaV S-seriyali quvvat/boshqaruv tashuvchi qurilmasini standart T-tipli DIN-reykaga o‘rnating.
Quvvat manbai modulini tashuvchi qurilmadagi mos quvvat uyasiga mahkam joylashtiring.
Asosiy 24 VDC kirish simlarini S-seriyali tashuvchi qurilmaning quvvat klemmalariga ulang.
Quvvat holati relesini almashtirish uchun 2 simli signal kontaktlari klemmalarini monitoring qurilmalariga ulang.
Atrof-muhit harorati chegaralariga yaqin ishlaganda issiqlik sharoitlarini boshqarish uchun korpus ichidagi havo oqimi yetarli bo‘lishini ta’minlang.
Xavfli joylarda o‘rnatishda 1-sinf 2-bo‘lim (12P5402) yoki 2-zona (12P5404) o‘rnatish yo‘riqnomalariga amal qiling.

Muvofiqlik va sertifikatlar

CE: EMC-EN 61326-1
FM: I-sinf, 2-bo‘lim, A, B, C, D guruhlari, T4 (FM 3600, FM 3611 standartlari)
cFM: I-sinf, 2-bo‘lim, A, B, C, D guruhlari, T4
CSA: CSA-C22.2 No. 213-M1987, CSA-C22.2 No. 1010-1
ATEX: II 3G Ex nA IIC T4 Gc (ATEX 94/9/EC, EN 60079-0, EN 60079-15 standartlari)
IEC-Ex: II 3G Ex nA IIC T4 Gc (EN 60079-0, EN 60079-15 standartlari)
Dengiz: IACS E10, ABS loyihani baholash sertifikati, DNV-GL dengiz sertifikati

FAQ

Quvvat manbai kontroller va kirish/chiqish interfeyslariga qanday ulanadi?

Modul ichki quvvat shinalariga ega S-seriyali tashuvchilarga ulanadi va tashqi kabellarsiz kontroller hamda kirish/chiqish interfeyslarini bevosita quvvat bilan ta’minlaydi.

Yuqoriroq ish haroratlarida chiqish quvvati nima bo‘ladi?

-40 °C dan 60 °C gacha 12 VDC chiqish 8,0 A gacha tokni ta’minlaydi. 60 °C dan 70 °C gacha 12 VDC chiqish toki 6,0 A gacha kamayadi, 5 VDC chiqish esa 2,0 A bo‘lib qoladi.

Moduldagi LED holat indikatorlari nimani bildiradi?

Yashil LED doimiy tok kirish quvvati berilganini va ichki himoya tizimi sozligini bildiradi. Qizil LED 5 VDC chiqishlari ruxsat etilgan chegaradan tashqarida ekanini bildiradi.

Ichki avariya relesi kontaktining nominal ko‘rsatkichi qanday?

Odatda ochiq bo‘lgan avariya relesi kontakti 30 VDC da 2,0 A yoki 250 VAC da 2,0 A uchun mo‘ljallangan.
