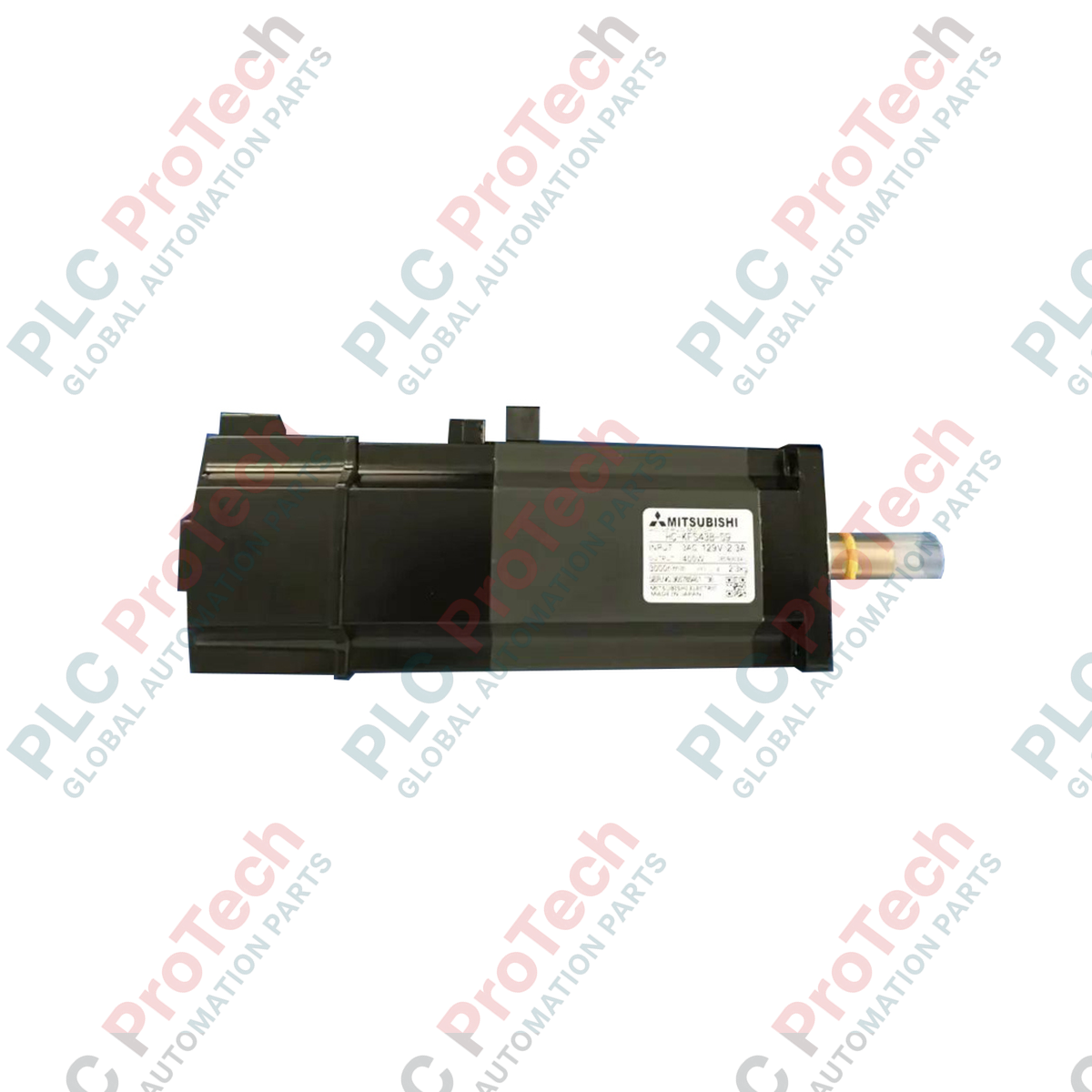

Mitsubishi Electric HC-KFS43B-S9 MELSERVO J2-Super AC Servo Motor

Description

Optimized for dynamic high-speed positioning within the MELSERVO J2-Super architecture, the Mitsubishi Electric HC-KFS43B-S9 is a low-inertia, high-performance AC servo motor. Engineered with an integrated 24VDC electromagnetic safety holding brake and a high-resolution absolute/incremental encoder, this motor delivers precise position feedback and reliable performance in demanding start-stop profiles. The special -S9 designation indicates a specialized shaft adaptation or customized industrial physical specification, ensuring precise integration into compatible mechanical drivetrains.

Key Features

• Low-Inertia Rotor Design: Facilitates high-frequency deceleration and acceleration cycles without sacrificing tracking accuracy.
• High-Resolution Feedback: Employs a dual-purpose absolute and incremental encoder providing 131,072 pulses per revolution for smooth low-speed operation.
• Integrated Safety Brake: Fitted with a 24VDC spring-loaded holding brake designed to secure vertical or heavy-inertia loads during power-down states.
• Industrial-Grade Enclosure: Built to withstand typical industrial floor conditions with robust electrical connections and high-grade thermal dissipation.

Applications

• Packaging and Labeling Machinery: Multi-axis positioning and fast-cycle sealing stations.
• Vertical Axis Operations: Z-axis positioning where mechanical load holding is required during emergency stop conditions.
• Material Handling Systems: Automated sorting and precise gantry transfer axes.
• Semiconductor Manufacturing: Smooth, low-vibration wafer handling and transport units.

Technical Specifications

Connections and Interfaces

Alternative Models & Compatibility

The HC-KFS43B-S9 serves as a specialized replacement for standard HC-KFS43B units. Standard units may require mechanical modifications to match the custom shaft or mounting tolerances specific to the -S9 sub-variant. This motor is electrically and programmatically fully compatible with the MR-J2S-40A, MR-J2S-40B, and MR-J2S-40CP servo drives. Utilizing the original MR-J2S drive parameters ensures automatic motor profile detection without manual phase mapping.

Application Pitfalls & Engineering Notes

To avoid rapid thermal breakdown, ensure the motor is mounted to a solid metallic frame (minimum dimensions equivalent to a 250mm x 250mm x 6mm aluminum plate) to act as a heat sink. Continuous operation at high speeds inside unventilated enclosures can raise the internal temperature of the motor winding beyond safe limits. Furthermore, do not use the integrated 24VDC safety brake for dynamic braking or load stopping; it is rated strictly as a holding brake. Using it to stop rotating loads will cause rapid wear on the friction plates and early system failure.

Commissioning & Wiring Tips

When interfacing with MR-J2S series drives, configure an external surge-absorbing diode across the brake control relay contacts to suppress high-voltage spikes generated by the inductive brake coil. Always route the encoder feedback cable separately from the 3-phase motor power lines (minimum separation distance of 30cm) to mitigate high-frequency EMI noise. Ensure the encoder cable shield is grounded only at the servo amplifier chassis side to prevent hazardous ground loop currents.

Installation Guidelines
