ABB PM867K01 3BSE076355R1 AC 800M Processor Unit HI

Description

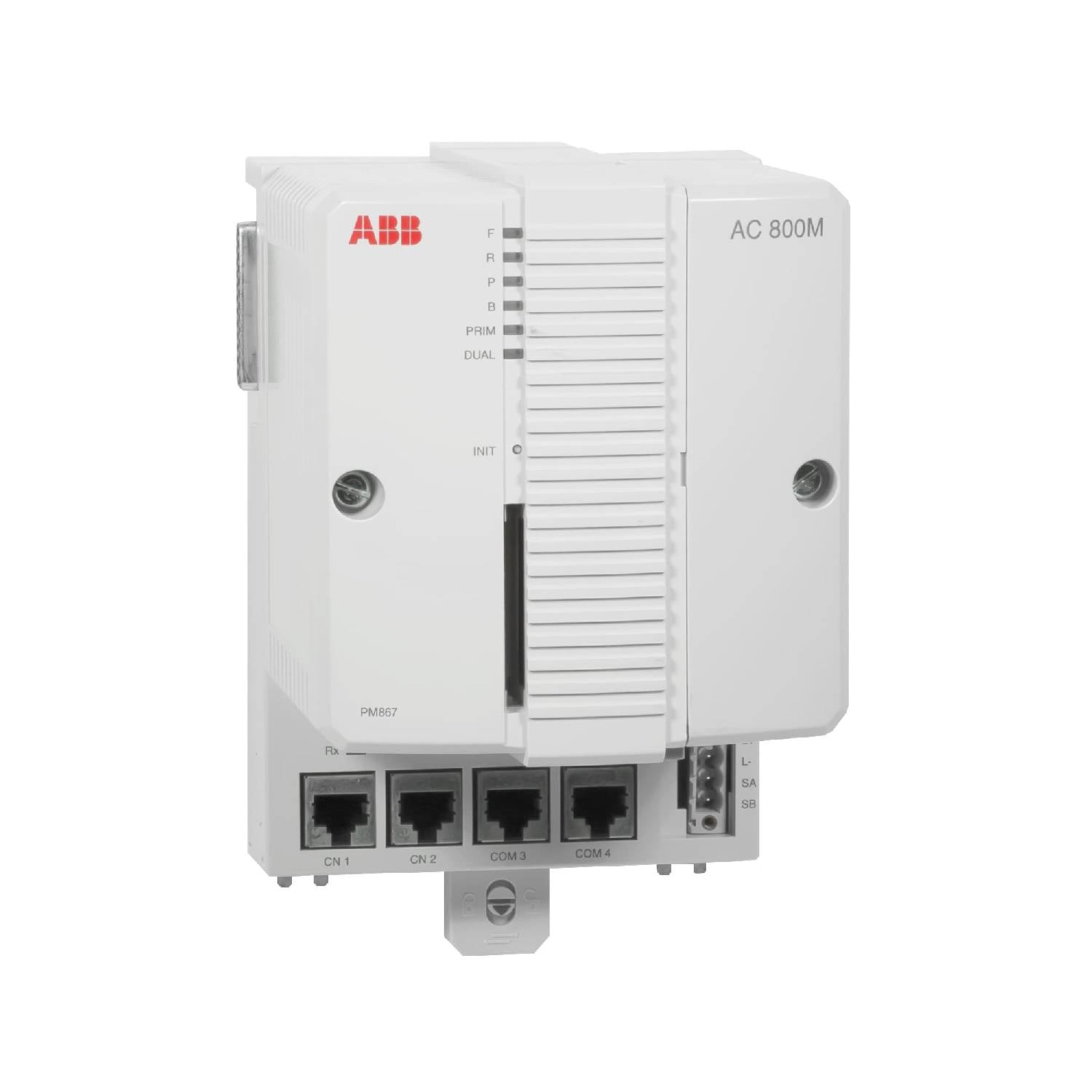

The ABB PM867K01 3BSE076355R1 is a high-integrity processor unit kit configured for the AC 800M controller platform within the ABB Ability System 800xA architecture. Engineered specifically for high-safety and critical control operations, this safety-certified controller is qualified up to Safety Integrity Level 3 (SIL3) when used in combination with an SM812 safety module. The core CPU board operates at a clock frequency of 133 MHz and contains 64 MB of onboard memory to deliver dependable, deterministic execution of automation logic.

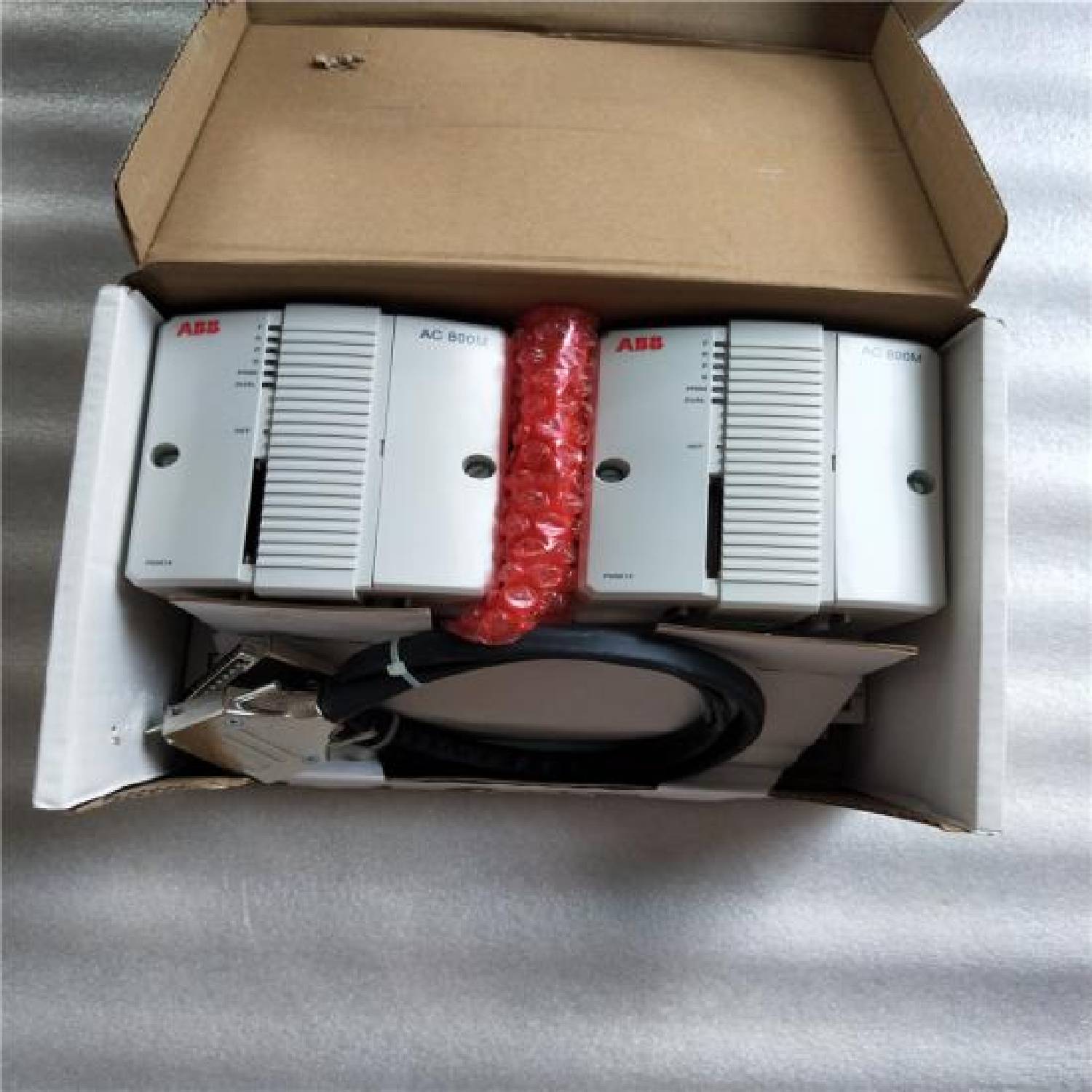

The complete commercial package includes the PM867 CPU, a TP830 baseplate, as well as dedicated termination hardware consisting of a TB850 CEX-bus terminator, a TB807 ModuleBus terminator, and a TB852 RCU-Link terminator. For reliable data preservation during power interruptions, the unit is outfitted with a specialized lithium battery for memory backup. This processor unit requires system configuration according to the official Safety Manual and is exclusively compatible with System 800xA version 6.0.2 and onwards.

Features

• High-integrity design certified for safety-critical installations up to SIL3 when properly paired.
• Comprehensive hardware package including CPU, baseplate, termination blocks, and memory backup battery.
• Microprocessor running at a clock frequency of 133 MHz with 64 MB of total memory capacity.
• Built-in communication interfaces via the baseplate, providing dual RJ45 Ethernet ports for redundant Control Network integration.
• Robust data retention capability via an integrated, replaceable 9 g lithium battery for non-volatile memory backup.

Applications

• Safety Instrumented Systems (SIS) and Emergency Shutdown (ESD)
• High-Integrity Industrial Process Control within System 800xA
• Redundant Control Network Implementations
• Power Generation and Hazardous Location Automation

Ordering Information

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Module Assembly: Mount the TP830 baseplate securely to the cabinet layout before joining the PM867 CPU unit to prevent alignment damage.
• Bus Termination: Install the included TB850, TB807, and TB852 terminators onto their respective CEX-bus, ModuleBus, and RCU-Link points to prevent communication signal reflection.
• Safety Configuration: Ensure implementation and software mapping strictly follow the instructions set forth in the official Safety Manual to maintain high-integrity certifications.
• Electrostatic Prevention: Always maintain ground contact or wear a verified ESD strap when handling the CPU module or replacing the backup battery.

Compliance and Certifications

• CE Mark: Yes
• Electrical Safety: EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201
• Hazardous Location: UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
• ISA Secure Certified: Yes
• TUV Approval: Yes (Certified SIL 2 and SIL 3)
• Marine Certificates: 开拓中 (ABS, BV, DNV-GL, LR)
• RoHS Compliance: EU RoHS, UAE RoHS, CN RoHS
• WEEE Compliance: DIRECTIVE/201219//EU
