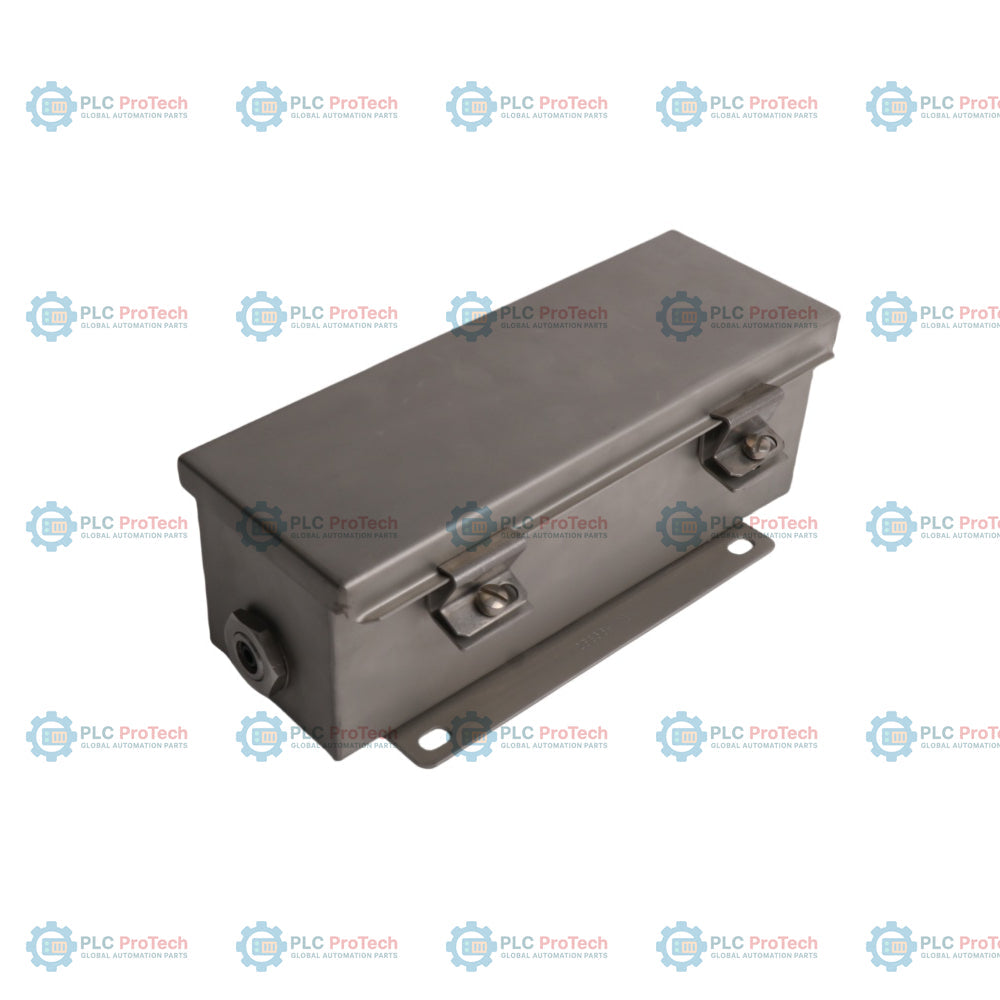

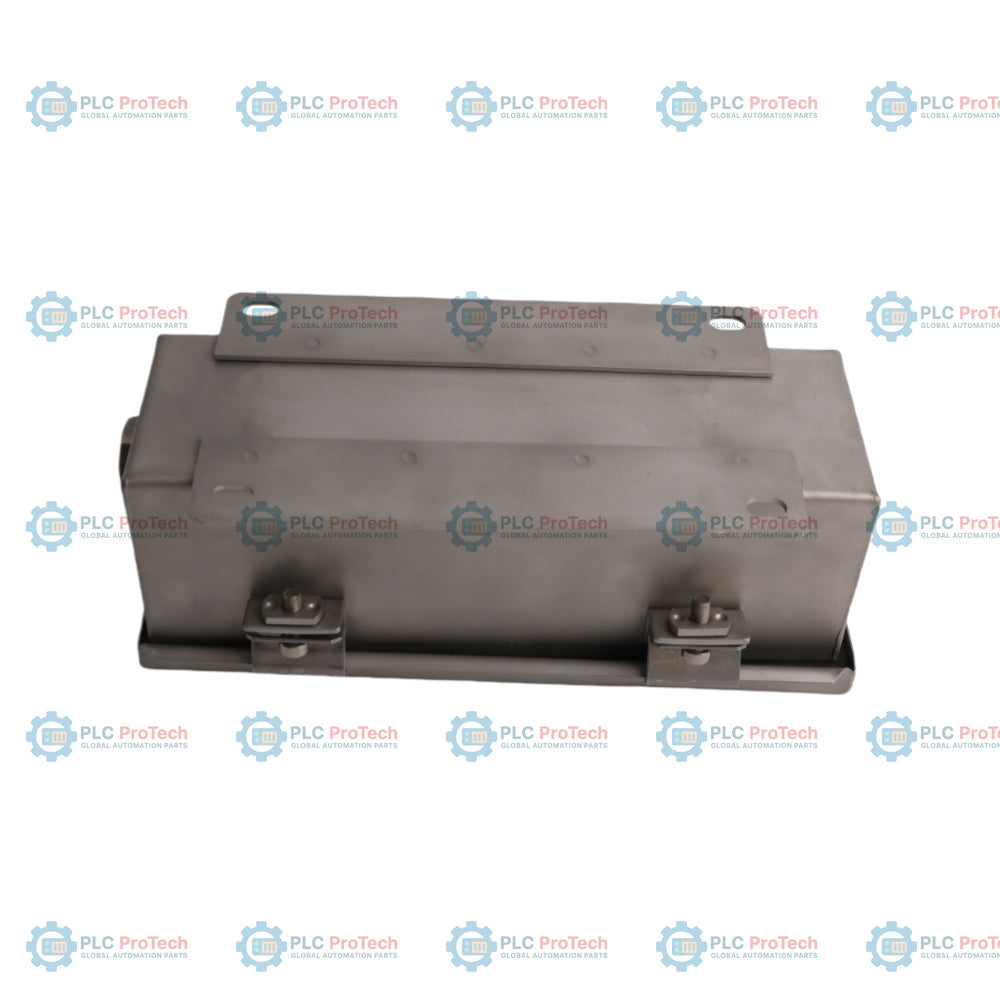

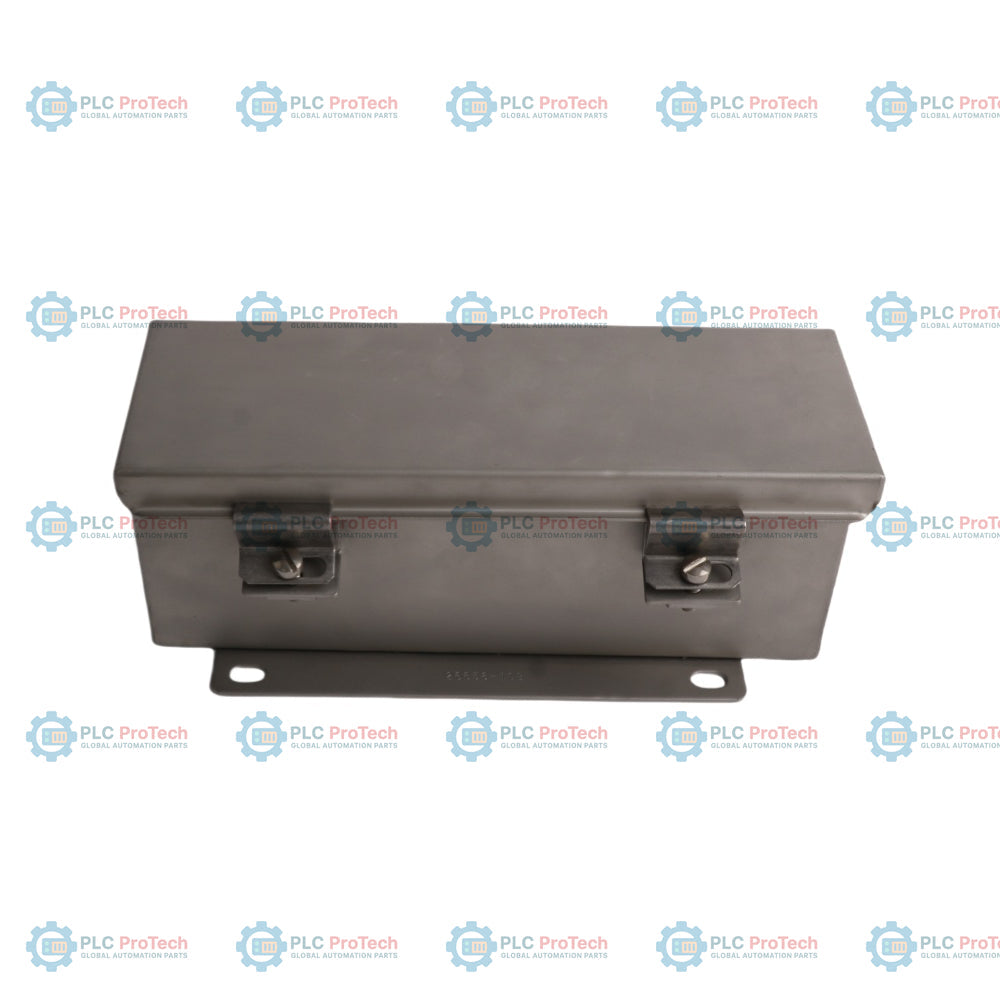

أنظمة محول تمدد الهيكل Bently Nevada 24765-01-00

Description

Designed for critical turbomachinery asset monitoring, the Bently Nevada 24765-01-00 Case Expansion Transducer System measures the relative thermal growth of machine housings during startup, operation, and shutdown cycles. This system provides vital mechanical growth data to prevent structural binding and alignment damage on large steam turbines, gas turbines, and industrial machinery. By utilizing a high-precision Linear Variable Differential Transformer (LVDT) mechanism, the device translates linear physical displacement into a proportional electrical signal compatible with continuous machinery protection systems.

Features

• Contactless LVDT design prevents mechanical wear and preserves long-term calibration accuracy.
• Heavy-duty, dual-spring-loaded plunger assembly maintains continuous physical contact with the machine casing.
• Hermetically sealed sensing elements ensure reliable operation in high-humidity, steam-exposed, and dusty environments.
• Direct compatibility with industry-standard Bently Nevada 3500/45 Position Monitors.
• Robust mounting structure engineered to withstand persistent high-amplitude industrial vibrations.

Applications

• Steam turbine casing expansion and thermal growth monitoring.
• Gas turbine structural casing displacement tracking.
• Large industrial process compressor thermal expansion measurement.
• Structural shifting and alignment monitoring in utility-grade power generation equipment.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The 24765-01-00 integrates with standard 3500/45 position monitor channels configured specifically for LVDT sensors. Ensure the monitor firmware supports the selected range option (-01, typically 1.0 inch). If upgrading an older mechanical dial-indicator casing setup, mechanical modification of the target foot plate on the machine foundation may be required to maintain parallel alignment.

Application Pitfalls & Engineering Notes

Mechanical binding is the most common failure mode for case expansion systems. If the mounting bracket flexes or is installed at an angle relative to the casing's actual direction of movement, the internal plunger can bind within its sleeve. Misalignments of more than 2 degrees can lead to measurement hysteresis and eventual shaft seizure during sudden thermal transitions.

Commissioning & Wiring Tips

Prior to final installation, use a physical calibration block to manually cycle the LVDT core and verify that the 3500 rack displays correct, linear voltage responses. Ensure that shielded, twisted-pair cable is used and that the shield is only terminated at the monitoring rack end. A floating shield at the sensor end prevents high-frequency ground loops caused by turbine frame grounding differentials.

Installation Guidelines
