وحدة سيمنز سيماتيك S7 S7-1500 6ES7515-2FM00-0AB0 رقمية

Description

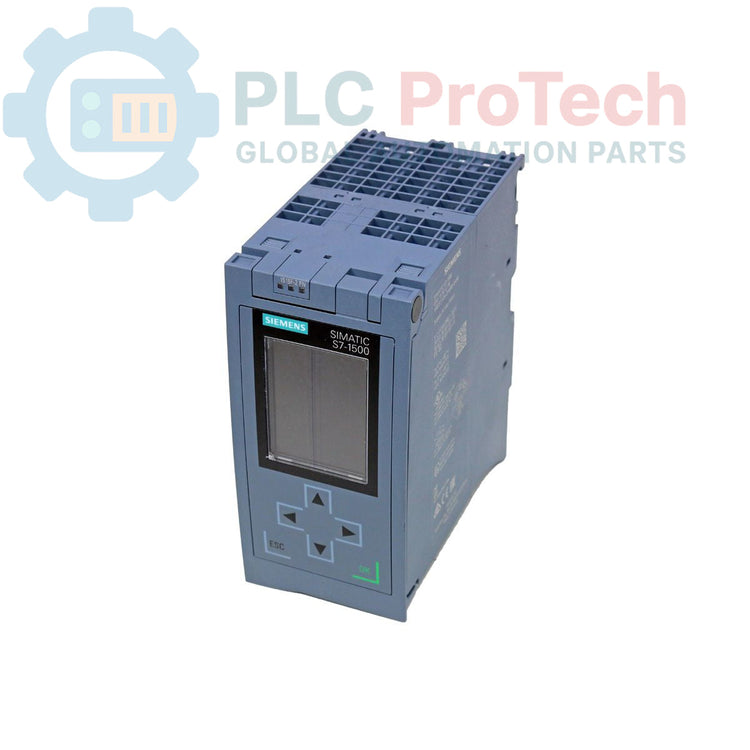

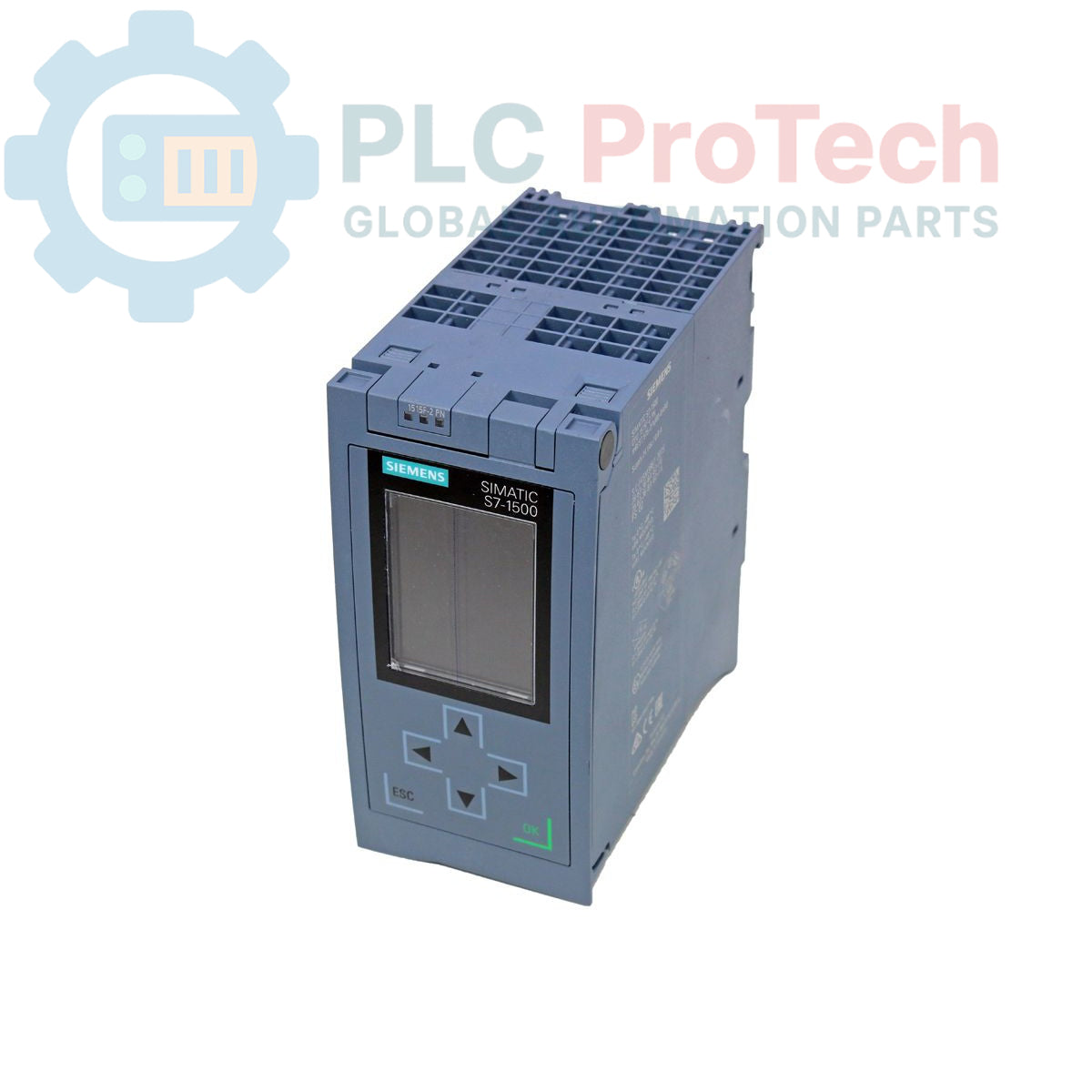

The Siemens 6ES7515-2FM00-0AB0 is a SIMATIC S7-1500F CPU 1515F-2 PN central processing unit, engineered for advanced automation and safety applications within industrial environments. This modular CPU provides a robust work memory of 750 KB for program storage and 3 MB for data, ensuring efficient and reliable processing of complex control tasks.

Equipped with versatile connectivity options, the 6ES7515-2FM00-0AB0 features a first interface with PROFINET IRT and an integrated 2-port switch, alongside a second dedicated Ethernet interface. This configuration facilitates seamless integration into production networks. With a high-speed bit performance of 30 ns, the unit is capable of precise control operations. Operation requires the use of a SIMATIC Memory Card.

Features

• SIMATIC S7-1500F CPU 1515F-2 PN
• 750 KB work memory for program
• 3 MB work memory for data
• First interface: PROFINET IRT with 2-port switch
• Second interface: Ethernet
• 30 ns bit performance
• Requires SIMATIC Memory Card for operation

Applications

The Siemens 6ES7515-2FM00-0AB0 is suitable for deployment in demanding industrial automation systems requiring high performance and integrated safety functions. Typical applications include:

• Manufacturing and process control systems
• Machine automation with integrated safety
• Complex control tasks requiring high-speed processing
• Networking within PROFINET IRT and standard Ethernet environments

Ordering Information

Technical Specifications

Connections / Interfaces

• Interface 1: PROFINET IRT with integrated 2-port switch
• Interface 2: Ethernet

Installation Guidelines

1. De-energize System: Ensure all power to the automation system and associated components is disconnected before beginning installation.
2. Mounting: Install the CPU module onto the designated SIMATIC S7-1500 rack or mounting rail, ensuring proper mechanical seating and latching.
3. Power Supply: Connect the 19.2-28.8V DC supply voltage to the appropriate terminals, observing correct polarity.
4. Memory Card: Insert a compatible SIMATIC Memory Card into the designated slot on the CPU. This card is required for operation.
5. Network Connections: Connect PROFINET and Ethernet cables to the respective integrated ports. Ensure proper cable routing and strain relief.
6. Grounding: Verify that the CPU and the entire rack system are properly grounded according to local electrical codes and manufacturer recommendations to ensure operational stability and safety.
7. Power-Up: Once all connections are secure and verified, re-energize the system. Observe LED indicators for proper initialization.
