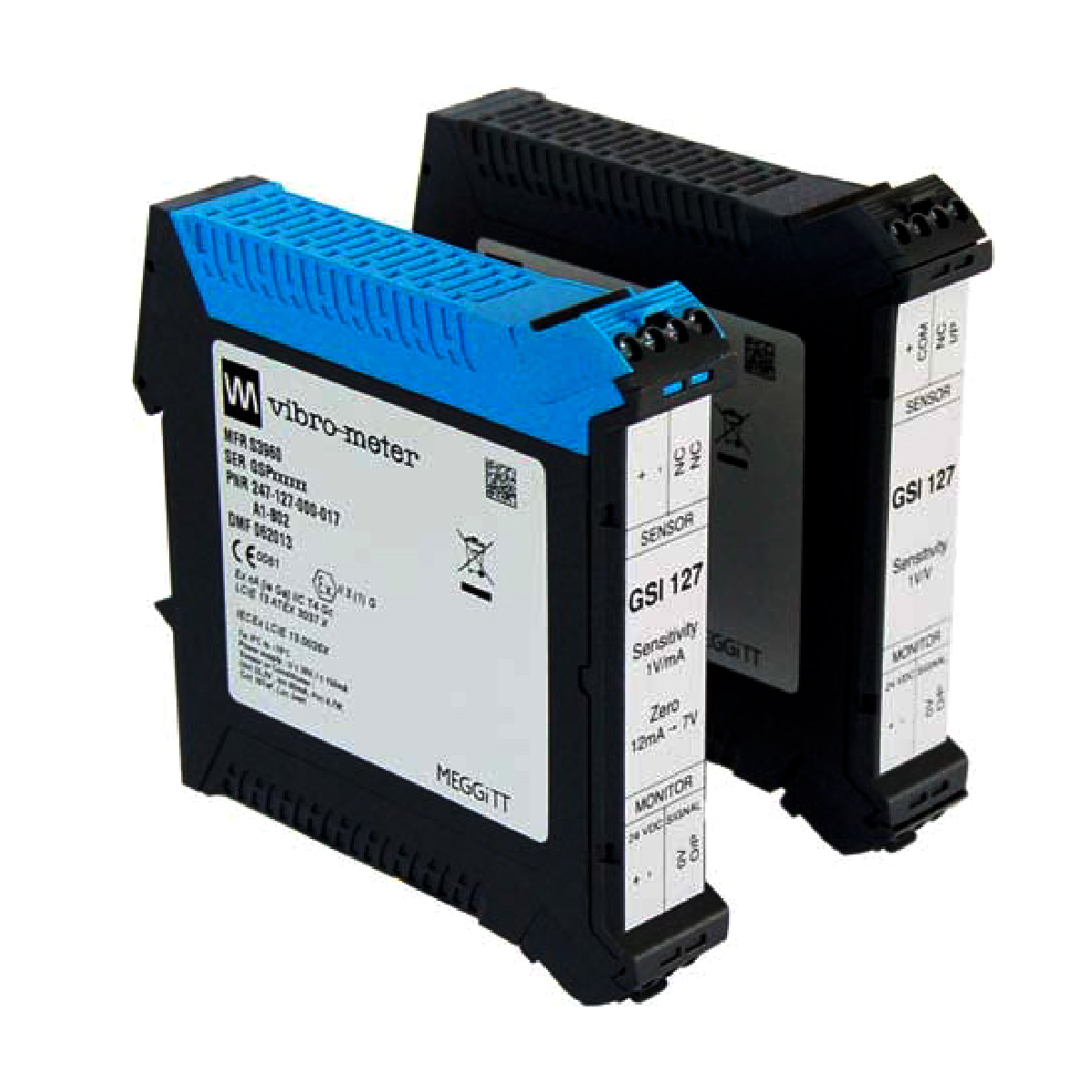

وحدة الفصل الجلفاني Vibro-Meter GSI127 244-127-000-017 A1-B02

Description

The GSI127 244-127-000-017 A1-B02 is a high-performance galvanic separation unit designed for electrical isolation and signal conditioning within industrial machinery vibration monitoring chains. This unit acts as a protective and signal-preserving link between field-side sensors or signal conditioners and the central monitoring system. It supports 2-wire current or 3-wire voltage transmission modes, delivering power to external devices while transferring dynamic vibration and pressure data across a secure galvanic isolation barrier. By preventing ground loops and filtering frame voltage noise, it ensures high-integrity signal transmission for critical machinery diagnostics.

Features

• High-Voltage Galvanic Separation: Provides 4 kVRMS isolation between the sensor side and the monitor side, alongside 50 VRMS isolation between the power supply and output signal.
• Universal Chain Compatibility: Designed to interface seamlessly with signal conditioners, charge amplifiers, and integrated electronics across multiple generations of equipment.
• Frame Voltage Rejection: Features high rejection of frame voltage to mitigate electrical noise in demanding industrial environments.
• Dual-Transmission Design: Accommodates both 2-wire constant-current and 3-wire voltage transmission methods.
• Hazardous Area Readiness: Ex certified for safe operation within potentially explosive atmospheres when matched with compliant field instrumentation.

Applications

• Power Generation: Deployed in safety protection and diagnostic monitoring systems for power generation turbines and large generators.
• Energy, Oil & Gas: Utilized in hazardous process areas to safely isolate field-mounted instrumentation from control room racks.
• Industrial Manufacturing: Continuous monitoring of critical rotating machinery, including heavy-duty motors, industrial pumps, and compressors.
• Aerospace Engineering: High-precision vibration analysis and monitoring for aircraft components and specialized test bench environments.

System Compatibility

The GSI127 is explicitly engineered to interface with a wide range of proprietary and industry-standard hardware components:

• Signal Conditioners & Charge Amplifiers: Fully compatible with IPC707 and older IPC704 electronics paired with CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors.
• Proximity Sensor Systems: Supports IQS9xx and heritage IQS4xx signal conditioners used alongside TQ9xx proximity probes.
• Integrated Sensors: Connects directly to CExxx piezoelectric accelerometers with attached/integrated electronics, and VE210 velocity sensors.
• IEPE Vibration Sensors: Interfaces with industry-standard constant-current voltage output sensors, such as the CE620, PV660, CE680, CE110I, and PV102.

Technical Specifications

Installation Guidelines

• DIN Rail Mounting: Securely snap the housing onto a standard 35 mm TH 35 DIN rail. Ensure the orientation allows sufficient ventilation.
• Sensor-Side Wiring: Connect the field-side signal conditioner or integrated transmitter (e.g., IPC707 or IQS9xx) to the top removable screw terminals.
• Monitor-Side Wiring: Route the output signal from the bottom terminals directly to the monitoring system or data acquisition rack (e.g., VM600 rack).
• Power Supply Restrictions: Apply a stable 24 VDC external supply line. For safety-related and critical protection applications, the sourcing power supply must feature a safe operating limit that does not exceed 60 VDC.
• Enclosure Protection: Because this standard version is intended for clean indoor environments, it should be housed within an appropriately rated industrial enclosure if deployed in areas subject to moisture, dust, or harsh environmental contaminants.

Compliance and Certifications

• Ex Certification: Certified for deployment in connection with potentially explosive atmospheres and hazardous process areas.
• Galvanic Isolation Standards: 4 kVRMS rated separation between input and output circuits; 50 VRMS isolation between the internally distributed power supply and output signal pathways.

FAQ

What does the GSI127 module actually do in a measurement chain?

The unit provides a secure electrical barrier that prevents high common-mode voltages and ground loops from damaging sensitive monitoring racks while letting vibration signals pass through uncorrupted.

Can I use this device directly with standard IEPE constant-current sensors?

Yes, it is natively compatible with standard constant-current voltage output sensors such as the CE620 and PV660.

Does this unit support both voltage and current transmission modes?

The module is designed to accommodate 2-wire current transmission or 3-wire voltage transmission configurations.

What is the significance of the 4 kVRMS specification?

This indicates the high-voltage galvanic separation strength built between the hazardous field sensor side and the safe monitor side.

What are the power requirements for this device?

It requires a nominal input of 24 VDC, accepting an operational input span anywhere between 18 VDC and 30 VDC.

Why does the installation note mention a 60 VDC power limit?

For safety-critical or machinery protection loops, limiting the power supply to 60 VDC prevents an upstream fault from overwhelming the safety barriers.

Is this device suitable for outdoor mounting?

This is a standard indoor-use version, meaning it requires an appropriate weatherproof industrial electrical enclosure if mounted outdoors.

What type of terminal blocks are utilized on the housing?

The module features removable screw-terminal connectors that simplify field installation and wire replacement.

Is this product still in active production by the OEM?

No, this unit has been officially discontinued by the manufacturer, but it remains fully supported for legacy machinery retrofits.

Can this unit handle high-frequency electrical noise from surrounding frames?

Yes, it offers a frame voltage rejection level of >= 60 dB at low frequencies (10 Hz to 400 Hz) and >= 30 dB up to 100 kHz.
