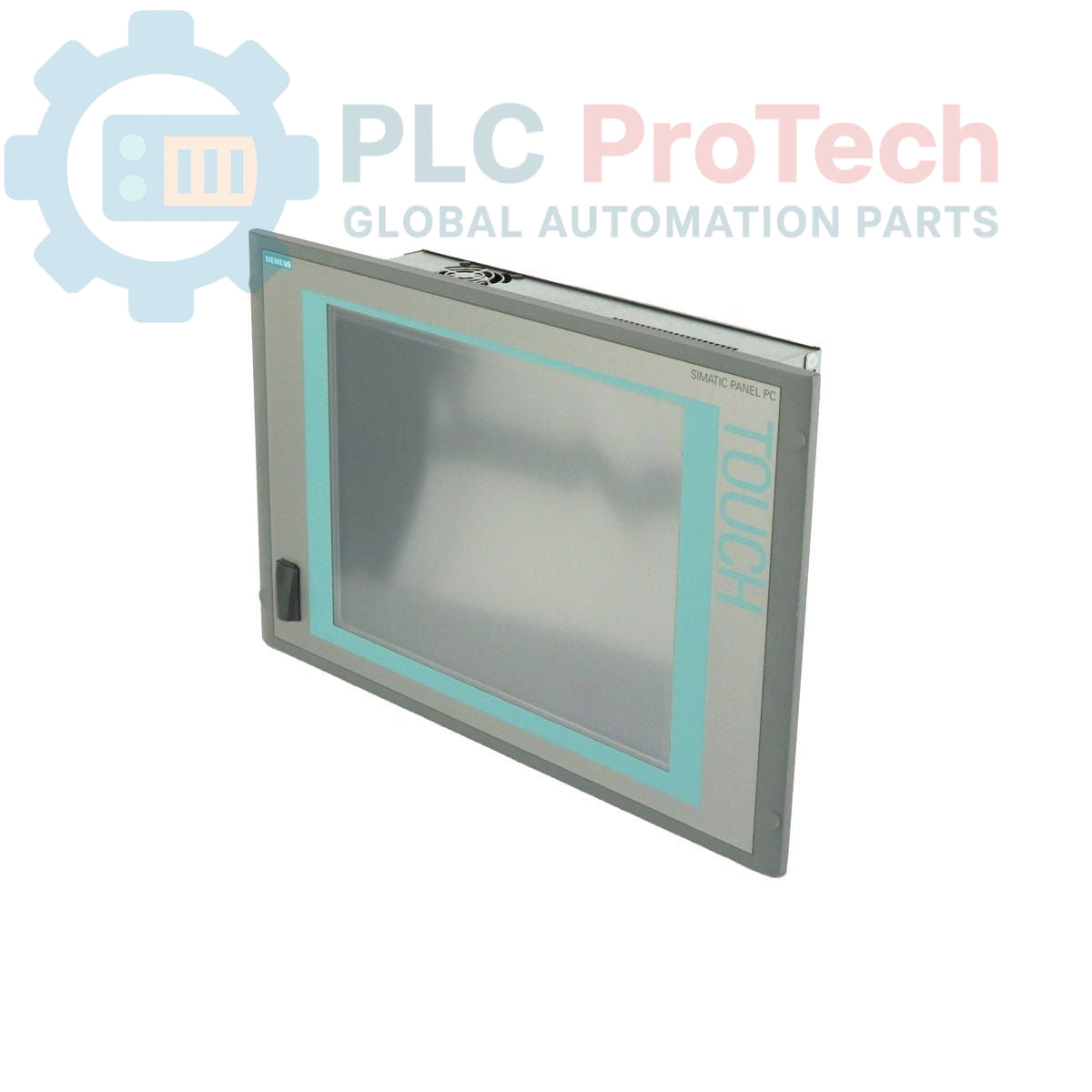

Siemens 6AV7885-2AK21-1DA8 SIMATIC HMI IPC 577C Panel PC

Description

This is a Siemens 6AV7885-2AK21-1DA8, a SIMATIC HMI IPC 577C series industrial panel PC designed for machine-level control and visualization tasks. The unit integrates a 15-inch touch display and is powered by an Intel Core 2 Duo 1.86 GHz processor with 2 GB of DDR3 RAM. It provides robust connectivity with dual 1 Gbit PROFINET (IE) ports, standard Ethernet, and multiple USB interfaces. The system is equipped with a 320 GB SATA HDD pre-installed with Windows XP Professional and includes a DVD RW drive for flexible data handling. A single PCI slot allows for hardware expansion.

Features

• 15-inch resistive touch screen display for operator interface
• Intel Core 2 Duo processor operating at 1.86 GHz
• 2 GB of DDR3 system memory
• 320 GB SATA Hard Disk Drive for primary storage
• Integrated DVD RW optical drive
• Dual 1 Gbit PROFINET (IE) interfaces for industrial networking
• Standard 10/100/1000 Mbps Ethernet port
• One available PCI slot for expansion cards
• Operates on a 24 V DC power supply
• Pre-installed with Windows XP Professional operating system

Applications

• Machine-level Human Machine Interface (HMI)
• Process visualization and control
• Data acquisition and logging systems
• Manufacturing Execution Systems (MES) terminals
• Industrial automation control panels

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Before starting, ensure the control cabinet and all related machinery are completely de-energized and locked out. Verify the absence of voltage.
2. 2 Prepare Panel Cutout: Verify that the panel cutout dimensions match the IPC 577C's mounting requirements. Ensure the mounting surface is clean, flat, and rigid enough to support the unit's weight.
3. 3 Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to ensure a proper seal and secure fit.
4. 4 Connect Protective Earth: Connect the main protective earth (PE) terminal on the unit to the cabinet's central grounding point using a low-impedance conductor of the appropriate gauge. This is critical for safety and noise immunity.
5. 5 Connect Power: Connect the 24 V DC power supply to the designated power input terminals, observing correct polarity. Use appropriately sized wiring for the load.
6. 6 Connect Interfaces: Connect PROFINET, Ethernet, USB, and any other required peripheral cables. Ensure all connectors are fully seated and secured. Route cables to prevent strain and interference.
7. 7 Final Check and Power-Up: After a final inspection of all connections, remove locks/tags and re-energize the cabinet. The Panel PC will boot, and commissioning can proceed.
