Beckhoff ER2809-0021 EtherCAT Box 16-channel Digital Output Module

Beckhoff ER2809-0021 EtherCAT Box 16-channel Digital Output Module

Nur noch 10 Artikel auf Lager verfügbar
  • Hersteller: BECKHOFF

  • Produkt-Nr.: ER2809-0021

  • Herkunftsland:Deutschland

  • Produkttyp: EtherCAT Box Modules

  • Zahlung: T/T, Western Union

  • Gewicht: 500g

  • Versandhafen: Xiamen

  • Garantie: 12 Monate

Menge
Vollständige Details anzeigen

Description

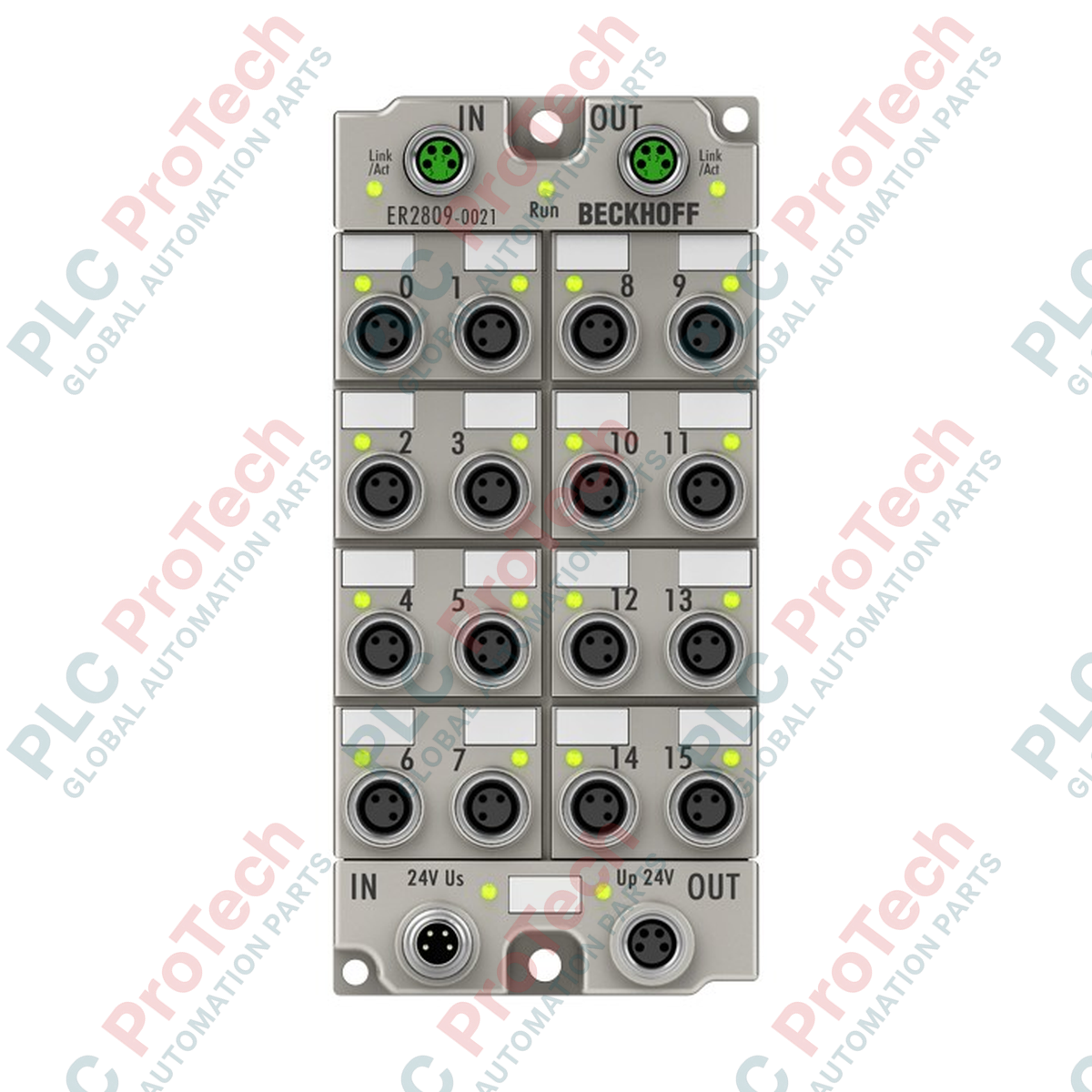

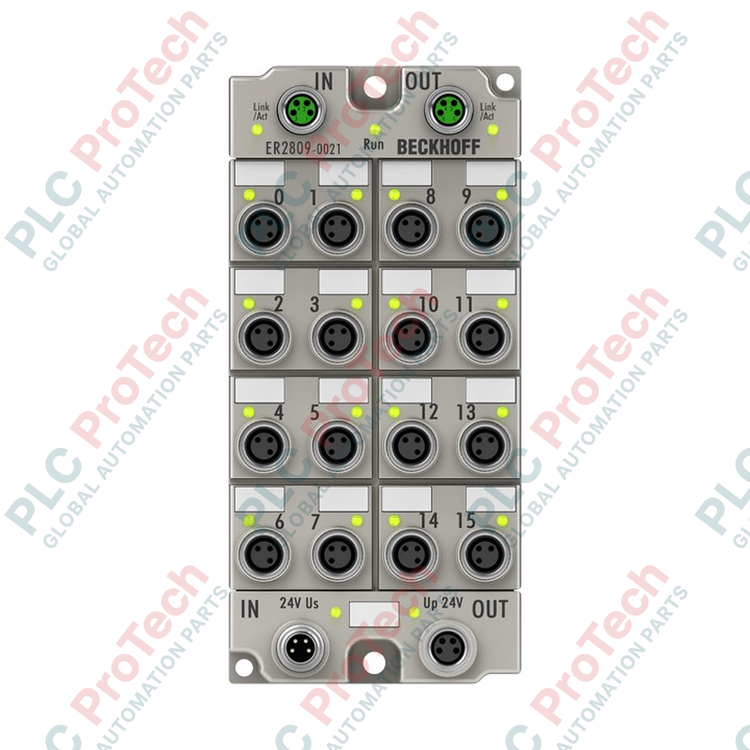

Decentralized automation architectures requiring high channel density at the machine level benefit directly from the Beckhoff ER2809-0021 EtherCAT Box. This field-mountable I/O device processes up to 16 digital output signals, distributing 24 V DC control commands directly to ohmic, inductive, and lamp loads. Housed in a robust, zinc die-cast casing, the module bypasses the need for protective electrical cabinets, establishing reliable IP67 protection directly on the machine frame. Integrated short-circuit protection and electrical isolation ensure robust system safety during transient events.

Product Features

  • 16 Digital Output Channels: Highly consolidated signal density for complex field-level actuator arrays.
  • Individually Short-Circuit Proof: Each output provides individual current limiting to shield downstream components from electrical faults.
  • Industrial M8 Interfaces: Features 3-pin, A-coded output connection points and dual-channel M8 EtherCAT interface sockets.
  • Heavy-Duty Die-Cast Housing: Designed with a zinc alloy casing to withstand severe mechanical impact and abrasive industrial conditions.
  • IP65/66/67 Submersible Rating: Complete ingress protection against moisture, cooling lubricants, and particulate contamination.

Applications

  • Modular machine building and automated assembly lines with decentralized field layouts.
  • Robotic end-of-arm tooling and mechanical material handling setups.
  • High-vibration manufacturing environments, conveyor systems, and packaging machinery.

Technical Specifications

Parameter Value / Specification
Manufacturer Beckhoff
Model Number ER2809-0021
Protocol EtherCAT
Bus Interface Connection 2 x M8 socket, shielded, screw type
Number of Digital Outputs 16
Output Connections M8 x 1, 3-pin, A-coded
Permitted Load Types Ohmic, inductive, lamp load
Nominal Output Voltage 24 V DC (-15% / +20%)
Max. Output Current 0.5 A per channel (individual short-circuit proof), max. 4 A total sum
Switching Times (Typical) TON: 60 us, TOFF: 300 us
Short-Circuit Current Limit Max. 1.5 A
Current Consumption (US Logic) Typical 130 mA
Auxiliary Power Current (UP) Typical 20 mA + load current
Power Supply Connections Feed: 1 x M8 male socket, 4-pin; Downstream: 1 x M8 female socket, 4-pin
Electrical Isolation 500 V (control voltage / auxiliary voltage to fieldbus)
Operating Temperature -25 to +60 degC
Storage Temperature -40 to +85 degC
Vibration/Shock Resistance Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity/Emission Conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating IP65/66/67 (conforms to EN 60529)
Approvals & Markings CE, UL
Unit Weight Approx. 450 g
Shipping Weight 2.0 kg

Connections & Interfaces

Interface Type Connector Configuration Functional Description
EtherCAT Input / Output M8 socket, 4-pin, shielded Dual shielded port topology for direct daisy-chain fieldbus coupling.
Power Supply Feed M8 male connector, 4-pin Accepts 24 V DC system power (US) and 24 V DC auxiliary load power (UP).
Power Downstream M8 female socket, 4-pin Power forwarding connection to downstream EtherCAT Box modules.
Digital Outputs M8 x 1, 3-pin, A-coded Individual actuator signal delivery and return loop.

Empirical Engineering Insights

Alternative Models & Compatibility

The ER2809-0021 utilizes a die-cast zinc housing designed to substitute plastic-housed EP2809 equivalents directly. When upgrading plastic EP components to the zinc ER line, verify mechanical clearances, as the die-cast housing has minor physical envelope variations and increased physical weight. Software configurations in TwinCAT remain fully backward-compatible; swapping modules does not require rebuilding standard EtherCAT network topologies or logic tasks.

Application Pitfalls & Engineering Notes

A common operational failure stems from thermal compounding. While each channel supports up to 0.5 A, the maximum cumulative load across all channels cannot exceed 4 A. Operating all 16 channels at full rating simultaneously will trigger thermal shutdown or permanent circuit trace degradation. When deploying inside sealed, unventilated zones or under high ambient solar loads, construct an external thermal pathway or stagger actuator execution to manage steady-state thermal accumulation.

Commissioning & Wiring Tips

To minimize electrical interference and downstream communication dropouts, ensure the EtherCAT network cables use shielded M8 connectors, with the shield coupled continuously to the machine chassis ground. Separate your 24 V DC system supply (US) from the auxiliary power supply (UP) loop; doing so allows emergency-off circuits to de-energize UP load circuits while maintaining communication and diagnostic functions on the US logic loop.

Installation Guidelines

CRITICAL WARNING: Prior to commencing installation, mechanical mounting, or wiring adjustments, ensure all high-voltage and low-voltage field power supplies (US and UP) are physically disconnected. Verify that capacitors and residual circuit elements are fully discharged. Failure to isolate power systems can cause electrical shock, component damage, or unexpected industrial machinery movement.
1

Mount the module directly to a flat, vibration-resistant machine frame surface using standard M3 bolts or DIN rail adaptors.

2

Establish the machine frame ground reference by securing a low-impedance grounding strap to the integrated ground contact on the module body.

3

Connect the shielded M8 EtherCAT communication cables to the IN and OUT ports, checking that the screw collars are torqued correctly to seal against fluid ingress.

4

Attach the M8 power distribution cable to feed logic power (US) and output circuit power (UP), then secure all remaining 16 M8 sensor/actuator channel leads.

What is the total continuous current rating for the ER2809-0021 module?

The module allows a total cumulative load current of 4 A across all 16 channels combined, while each individual output channel supports up to 0.5 A.

What is the key advantage of the ER series housing over the EP series?

The ER series features a zinc die-cast housing designed for heavy mechanical loading and high physical abuse environments, whereas the EP series uses a light-weight plastic housing.

How are system logic and actuator load power paths separated inside the device?

The control logic and sensors run on the US power circuit (130 mA typical), while the physical outputs utilize the separate UP auxiliary circuit, separated by 500 V electrical isolation.

Are the individual output channels protected against short circuits?

Yes, each channel is individually short-circuit proof, limiting peak short-circuit current to a maximum of 1.5 A during fault conditions.
