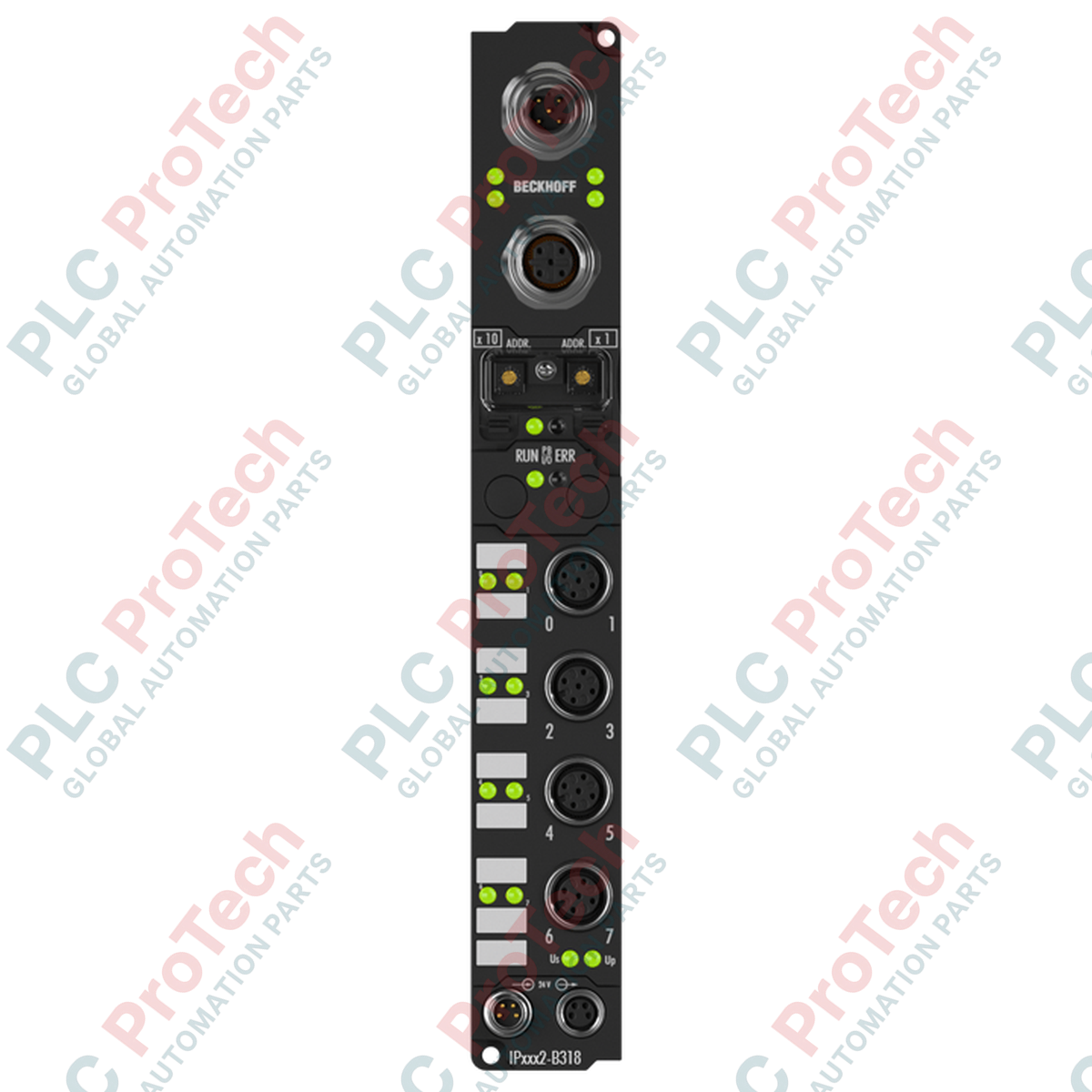

Beckhoff IP3112-B318 Fieldbus Box

Description

Integrating decentralized field signals directly into PROFIBUS DP architectures, the Beckhoff IP3112-B318 functions as a highly robust Fieldbus Box designed for harsh operational environments. This module enables direct connection of physical industrial sensors and actuators without the need for an additional protective control cabinet. Operating seamlessly on PROFIBUS systems, it supports dynamic configuration options and handles data rates up to 12 Mbaud with automatic detection. The fully sealed housing delivers excellent dust and water ingress protection, making it suitable for direct machine mounting in heavy manufacturing environments.

Features

• Direct integration with PROFIBUS DP networks supporting DP-V1 extensions.
• Automatic detection of communication transmission rates up to 12 Mbaud.
• Standardized B-coded M12 physical bus interface with integrated T-connector.
• Rugged housing rated for IP65, IP66, and IP67 protection classes.
• M8 power supply connectors supporting simple daisy-chaining to downstream modules.
• Flexible configuration possibilities via KS2000 software or directly through the main controller.

Applications

• Cabinet-free automation architectures in automotive production lines.
• Material handling, sorting, and conveyor systems requiring localized physical inputs.
• Heavy industrial plants subject to high vibration, moisture, and fine particulates.
• Process industries requiring decentralized data collection over extended distances.

Technical Specifications

Connections and Interfaces

Alternative Models & Compatibility

The IP3112-B318 belongs to the Beckhoff Fieldbus Box family. It is physically and electrically drop-in compatible with standard PROFIBUS DP networks utilizing B-coded M12 cabling. Parameters can be assigned using the standard GSD configuration file provided by the manufacturer or the specialized KS2000 configuration tool interface. Ensure firmware versions in your master controller support standard DP-V1 acyclic read/write data records for diagnostic access.

Application Pitfalls & Engineering Notes

When daisy-chaining multiple IP-series modules using the M8 power distribution interfaces, calculate total cumulative current draw meticulously. The M8 connectors are rated for a maximum total feed current of 4 A. Exceeding this thermal threshold will cause permanent damage to the internal power plane. To prevent voltage drops across complex topologies, execute a fresh power feed loop injection whenever the maximum sensor load approaches 4 A.

Commissioning & Wiring Tips

Always utilize shielded twisted-pair copper cabling specifically rated for PROFIBUS DP transmission (typically 2 x 0.25 mm2 with a characteristic impedance of 150 ohms). To guarantee structural integrity of the IP67 seal rating, tighten all M8/M12 connectors using a calibrated torque wrench set to exactly 0.4 Nm for M8 and 0.6 Nm for M12. Unused connector sockets must be capped using certified industrial sealing plugs.
