Hersteller: BECKHOFF
Produkt-Nr.: IP5109-B310
Herkunftsland:Deutschland
Produkttyp: Fieldbus I/O Modules
Zahlung: T/T, Western Union
Gewicht: 500g
Abmessungen: 180 x 110 x 60 mm
Versandhafen: Xiamen
Garantie: 12 Monate

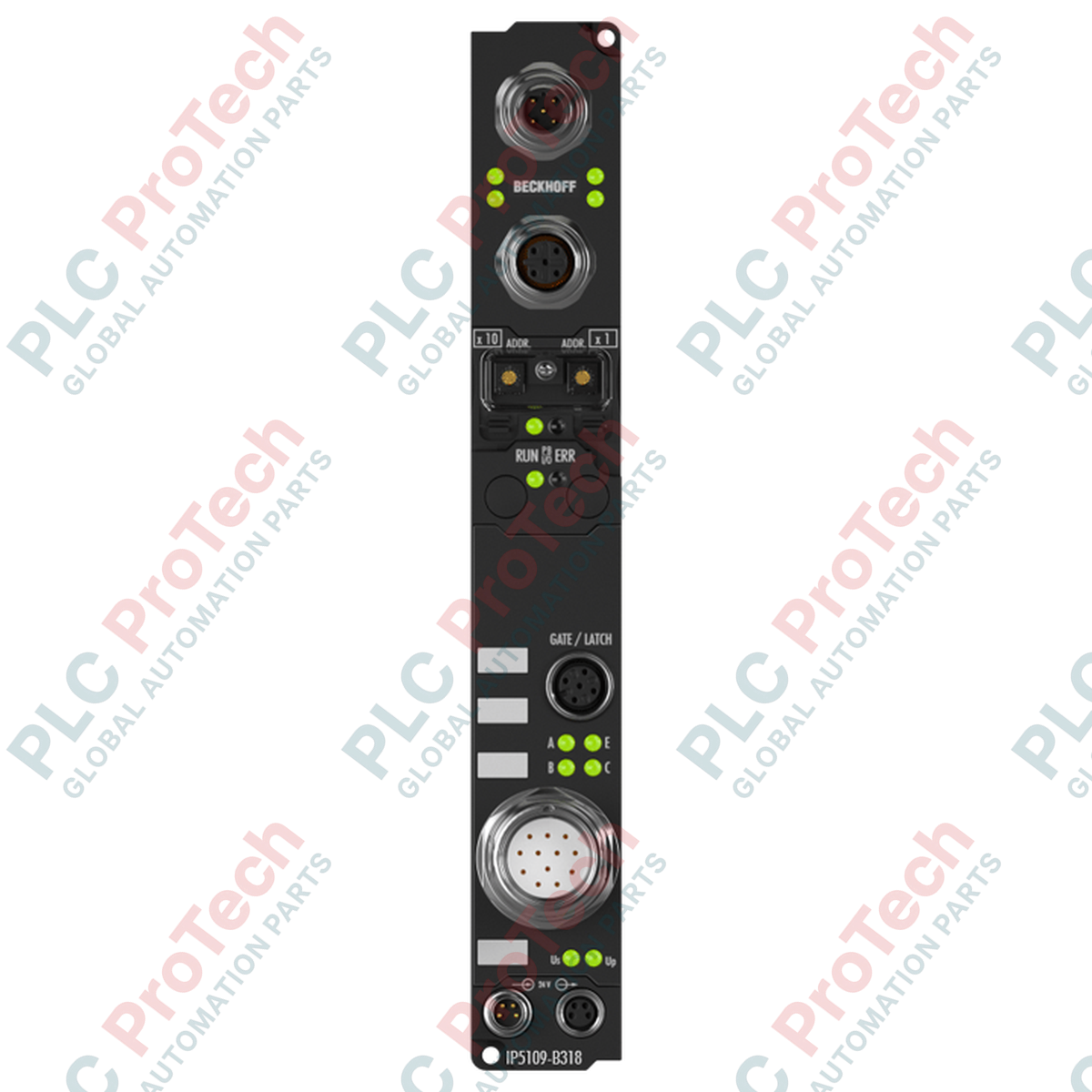

Decentralized field-level installation is highly simplified using the Beckhoff IP5109-B310, which connects digital field devices directly to PROFIBUS DP networks without the need for an intermediate control cabinet. This machine-mountable I/O unit utilizes robust connection technologies to distribute control and load voltages efficiently across harsh industrial environments. The Beckhoff IP5109-B310 supports automatic network baud rate detection up to 12 Mbaud, permitting fast integration into existing fieldbus topologies while maintaining IP67-rated environmental isolation.
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Beckhoff |
| Model / SKU | IP5109-B310 |
| Protocol | PROFIBUS DP (DP-V1 extensions supported) |
| Data Transfer Rate | Automatic detection up to 12 Mbaud |
| Control Voltage Supply | 24 V DC (-15% / +20%) |
| Box Supply Current | 85 mA + current consumption of sensors (max. 0.5 A) |
| Data Transfer Medium | Shielded copper cable, 2 x 0.25 mm2 |
| Electrical Isolation | Control voltage/fieldbus: No; Control voltage/inputs-outputs: Subject to I/O type |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Protection Rating | IP65 / IP66 / IP67 (conforms to EN 60529) |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Standards | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Approvals | CE, UL |
| Shipping Weight (Calculated) | 2.0 kg |
| Package Dimensions (Calculated) | 180 x 110 x 60 mm |
| Connection Type | Physical Interface |
|---|---|
| PROFIBUS Bus Interface | 1 x M12 socket, 5-pin, B-coded |
| Power Feed Connection | 1 x M8 male socket, 4-pin |
| Downstream Power Connection | 1 x M8 female socket, 4-pin |
The IP5109-B310 operates as a standard PROFIBUS DP slave box. If you are migrating older legacy systems, ensure that your PROFIBUS DP Master configuration file (GSD) matches this exact hardware configuration to prevent network initialization conflicts. For environments transitioning to modern Ethernet-based protocols, consider migrating to Beckhoff's EtherCAT EP series modules, which will require updated physical cabling and network topology adaptations.
Avoid running power cables adjacent to communication lines without proper shielding. Even with its built-in EMC protections (EN 61000-6-2), high electrical noise generated by nearby variable frequency drives (VFDs) can degrade the data integrity of PROFIBUS networks. Additionally, ensure that the unused M8 and M12 ports are capped with compliant protective covers to maintain the unit's IP67 water-tight rating.
When configuring the network, keep the fieldbus termination rules active. If this box is placed at the absolute end of a PROFIBUS segment, a physical termination resistor must be installed on the downstream loop. Use the Beckhoff KS2000 configuration software tool to configure the I/O parameters and monitor live diagnostic structures prior to mapping active variables to the host PLC program.
Isolate all electrical power sources before making or breaking any electrical connections to the IP5109-B310 Fieldbus Box. Failure to completely de-energize active control and load power supplies before mating or unmating the M12 or M8 connectors can lead to severe electric arc flashover, permanent component damage, or unexpected industrial machinery movement.
Securely mount the module directly onto a flat, vibration-damped structural element of the machine using appropriate hardware fasteners.
Connect the 5-pin B-coded M12 PROFIBUS cable to the bus interface port and manually tighten the threaded collar to its recommended torque rating.
Connect the incoming 24 V DC control voltage supply to the 4-pin M8 male socket. If daisy-chaining multiple boxes, link the downstream M8 female socket to the next unit's feed input.
Verify all connector seals are correctly positioned. Perform basic testing via the KS2000 platform before routing active commands through your main control network.
