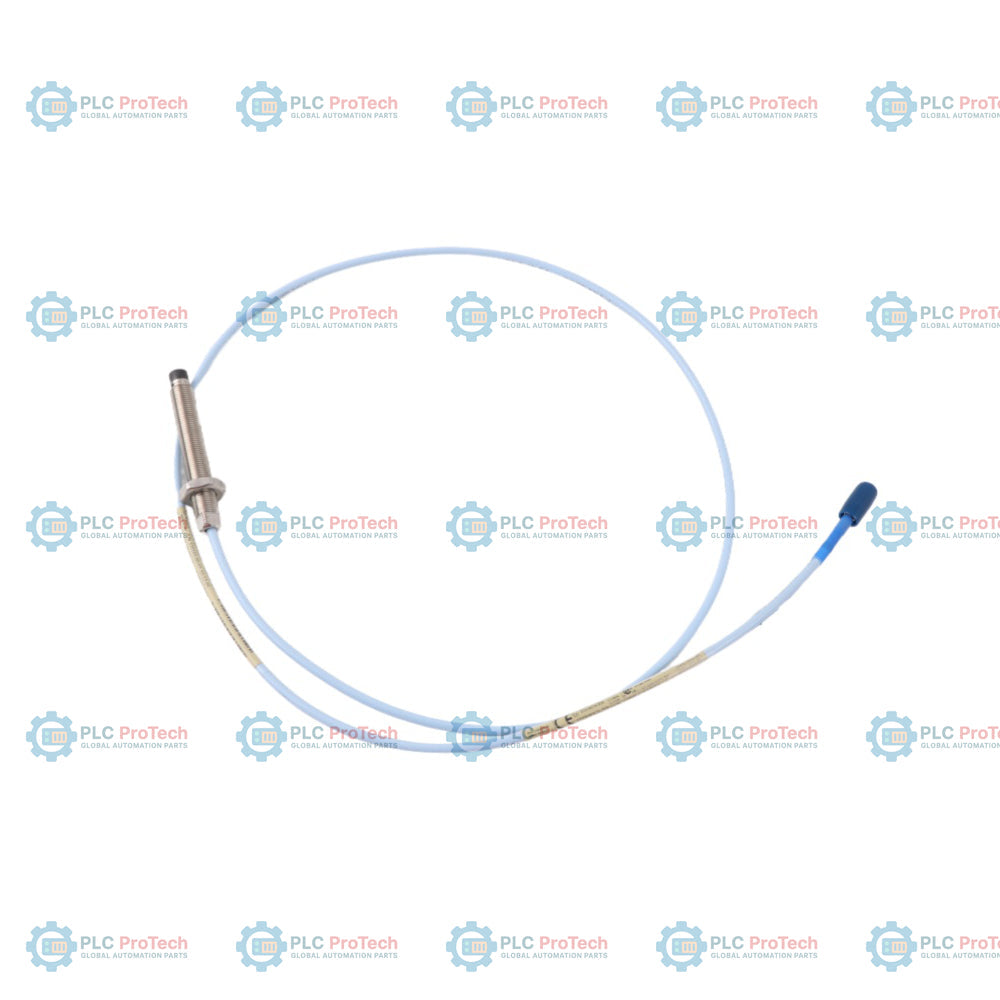

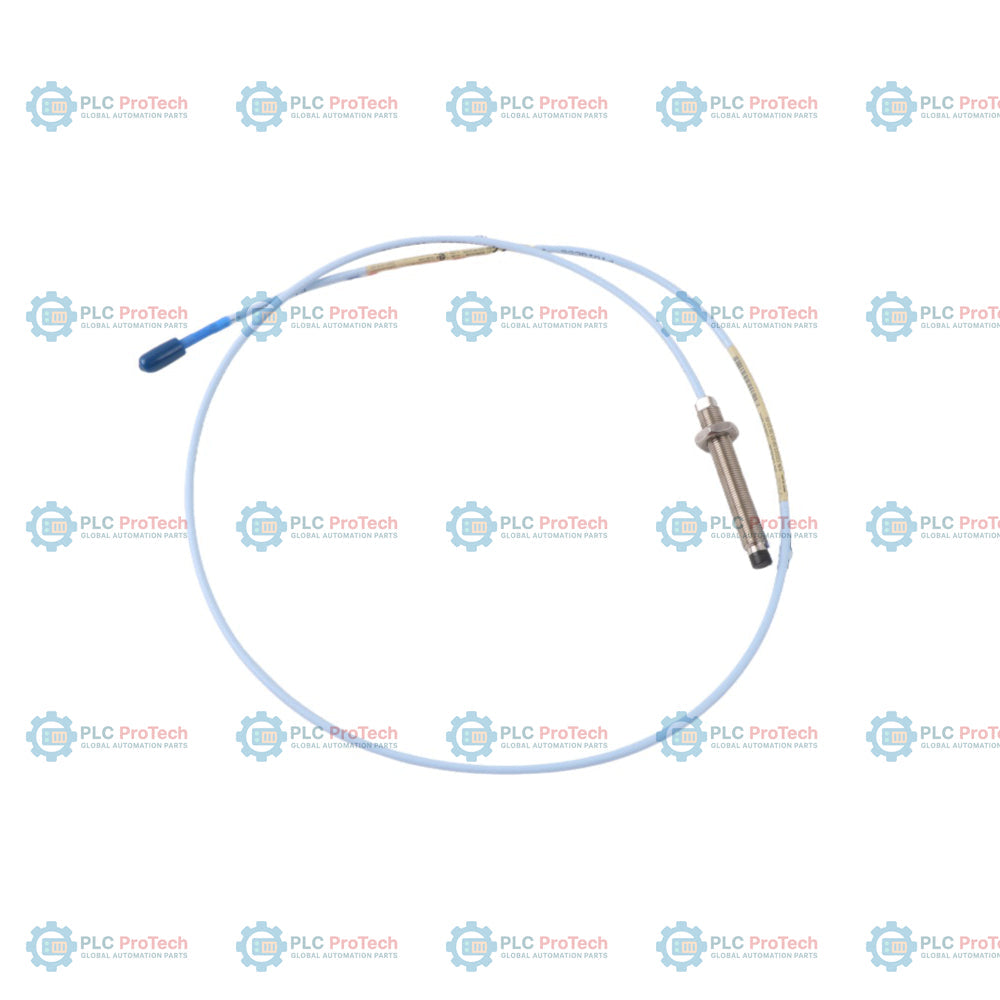

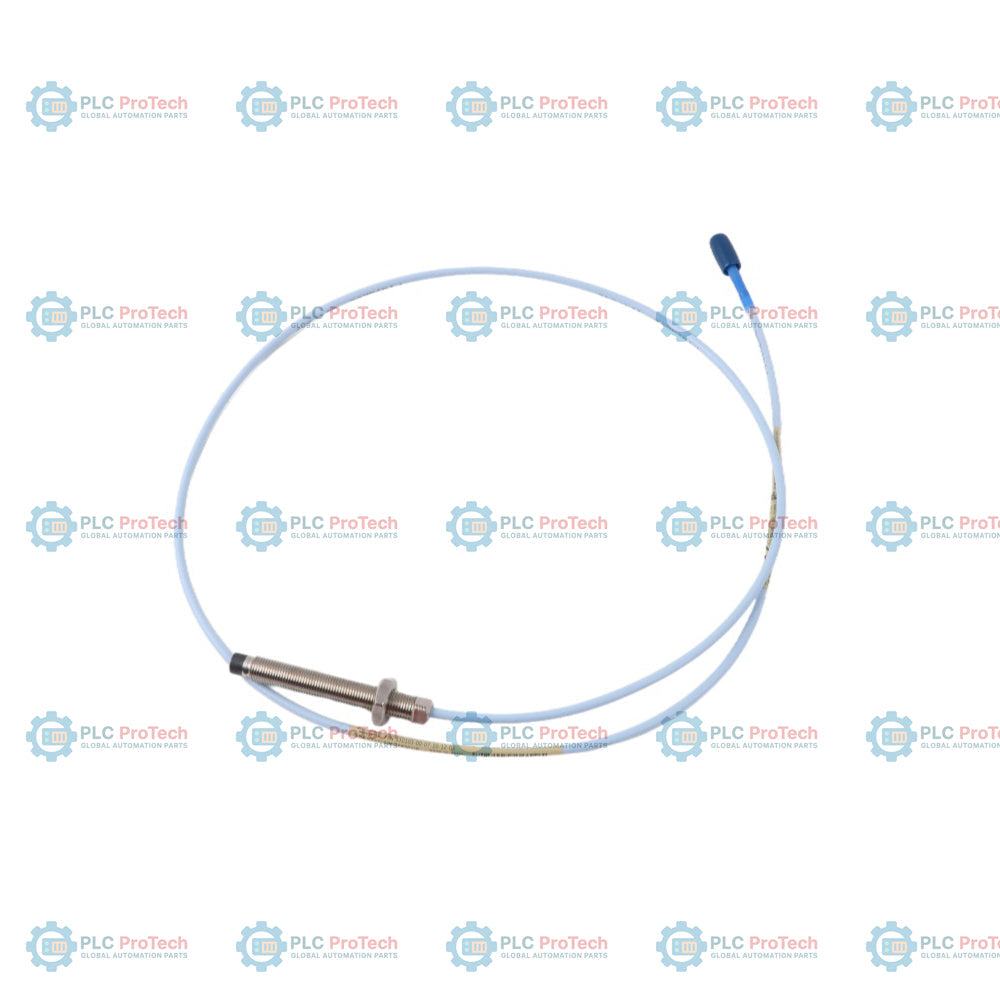

Bently Nevada 330103-00-07-10-01-05 3300 XL 8 mm Proximity Probe

Description

330103-00-07-10-01-05 is a Bently Nevada 3300 XL 8 mm proximity probe featuring a metric M10 x 1 thread, an unthreaded length of 0 mm (Option 00), an overall case length of 70 mm (Option 07), a 1.0 m total length (Option 10), standard cable with a miniature coaxial ClickLoc connector and connector protector (Option 01), and CSA, ATEX, and IECEx hazardous area approvals (Option 05).

This specific metric-threaded configuration without armor contrasts with the 330104 armored series, offering a lighter and more flexible routing profile. The inclusion of a ClickLoc connector protector (Option 01) shields the coaxial connection from environmental contaminants, while Option 05 permits deployment in hazardous environments globally.

Features

• Metric M10 x 1 thread design matches standard metric mechanical installation taps.
• Option 00 specifies a 0 mm unthreaded section, meaning the probe casing is fully threaded for maximum depth adjustment.
• Option 07 provides a 70 mm overall case length for specific projection depth requirements.
• Option 10 supplies a 1.0 m standard coaxial cable length to complete the transducer loop with standard extension cables.
• Option 01 integrates a miniature coaxial ClickLoc connector along with a pre-installed fluorosilicone connector protector.
• Option 05 provides native compliance with CSA, ATEX, and IECEx international hazardous area certifications.
• PPS (polyphenylene sulfide) tip material provides structural protection in industrial fluid environments.
• AISI 303 or 304 stainless steel case construction offers mechanical durability.

Applications

• Hydroelectric, steam, and gas turbine rotor vibration monitoring.
• Centrifugal compressor shaft position and radial vibration tracking.
• Industrial gearbox input and output shaft movement monitoring.
• Large electric motor and generator fluid-film bearing shaft position measurement.
• Keyphasor reference and speed measurement systems.

Ordering Information

Technical Specifications

Installation Guidelines

• Thread engagement limit is 15 mm maximum for M10 x 1 threads to prevent binding.
• Maintain minimum 25.4 mm (1.0 in) cable bend radius when routing the standard coaxial cable.
• Finger-tighten the gold-plated ClickLoc coaxial connectors, then slide the connector protector in place.
• Insulate probe-to-extension-cable connections with the provided connector protector to shield against moisture, conductive dirt, and turbine oil.
• Set the probe gap to approximately 1.27 mm (50 mils) or -9 Vdc for radial vibration and position applications.

Compliance and Certifications

• CSA (Intrinsically Safe and Non-Incendive)
• ATEX (Group II 1 G Ex ia IIC T4/T5 Ga)
• IECEx (Ex ia IIC T4/T5 Ga)
• CE Mark compliant
• RoHS compliant
