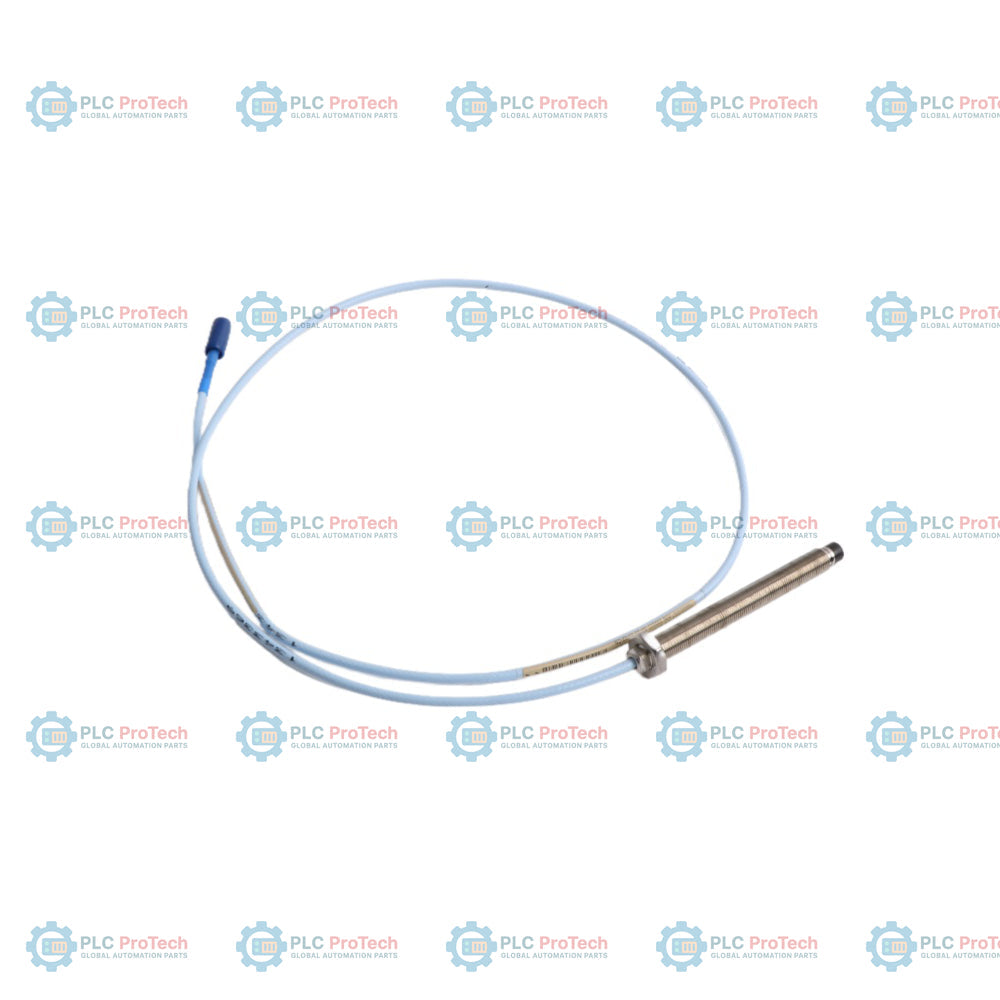

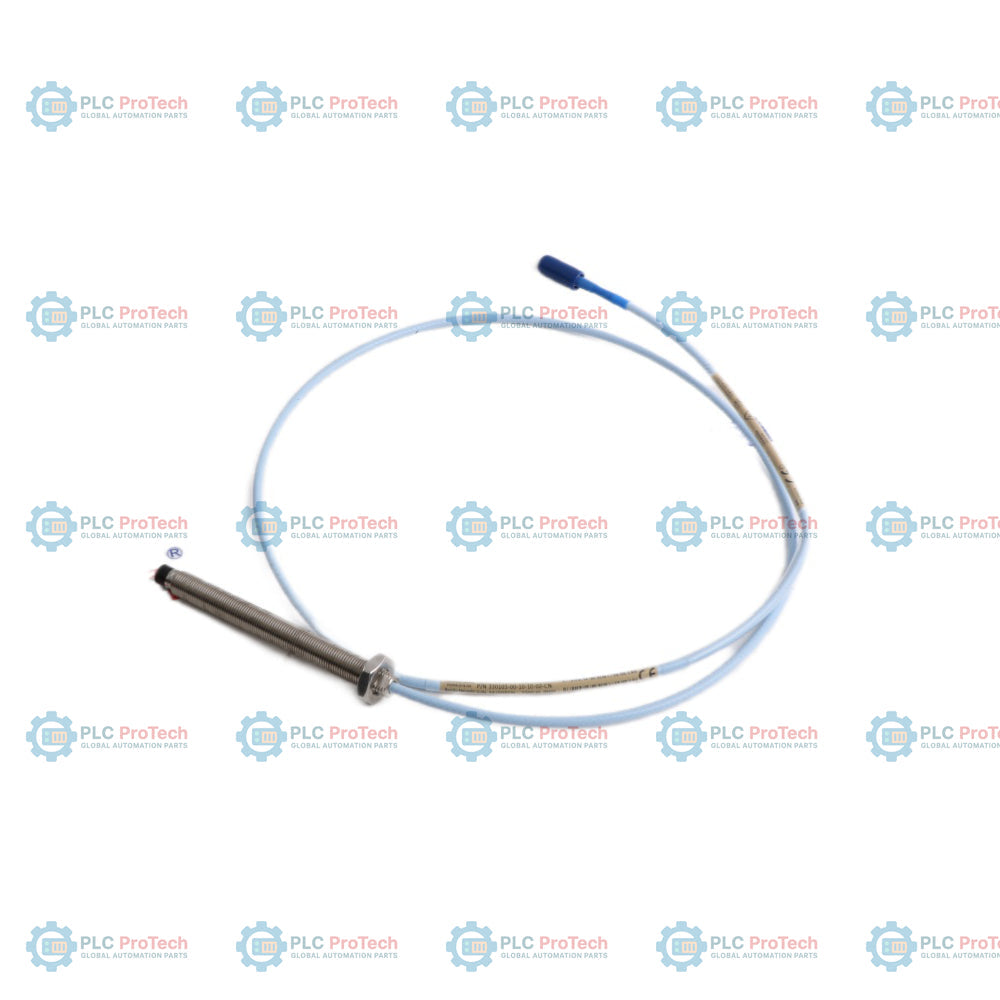

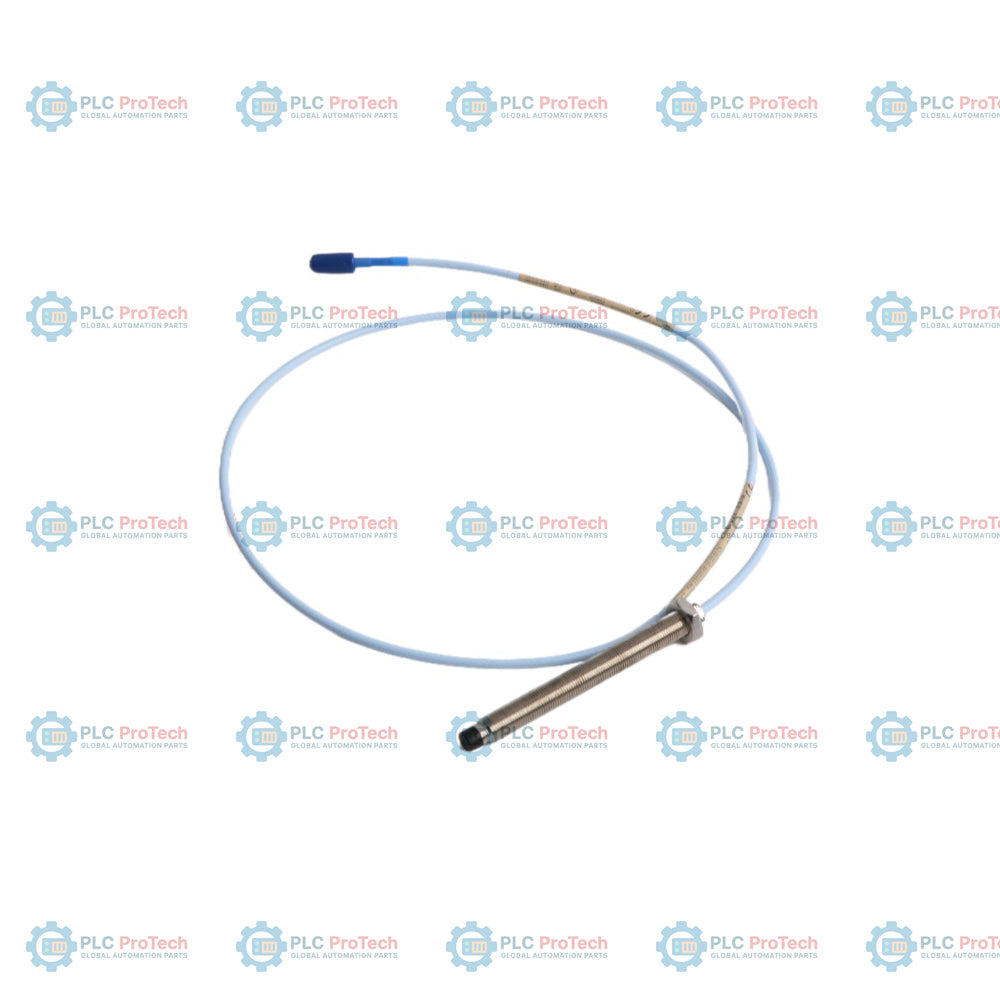

Bently Nevada 330103-00-10-15-02-05 3300 XL 8 mm Proximity Probe

Description

Option 00 (0 mm unthreaded length) and Option 10 (100 mm overall case length) define this metric M10 x 1 threaded proximity probe configuration — 330103-00-10-15-02-05, a 3300 XL 8 mm proximity probe without armor.

This configuration incorporates a 1.5-meter (4.9 ft) standard coaxial cable terminated with a miniature ClickLoc coaxial connector (Option 02) and is certified with CSA, ATEX, and IECEx hazardous area approvals (Option 05). Designed for non-contacting eddy-current displacement measurements, this M10 x 1 threaded probe pairs with a 3300 XL Proximitor sensor and an extension cable to form a complete 3300 XL 8 mm transducer system.

Features

• M10 x 1 metric thread configuration (base model 330103) without protective armor.
• 0 mm unthreaded length (Option 00) for fully threaded case installations.
• 100 mm overall case length (Option 10) for standard insertion depths.
• 1.5-meter (4.9 feet) total integrated cable length (Option 15).
• Miniature ClickLoc coaxial connector (Option 02) for standard coaxial extension cable connections.
• CSA, ATEX, and IECEx agency approvals (Option 05) for hazardous location environments.

Applications

• Shaft vibration and position monitoring in industrial rotating machinery.
• Axial radial displacement and thrust position measurements on gas and steam turbines.
• Casing expansion and shaft eccentricity tracking in power generation plants.
• Vibration monitoring on compressors, pumps, and gearboxes within petrochemical facilities.

Ordering Information

Technical Specifications

Installation Guidelines

Provide mechanical clearance and observe proper mounting torque for the M10 x 1 thread during installation. The maximum thread engagement length for this M10 x 1 case is 15 mm. Thread engagement exceeding this limit may cause binding. When routing the integrated 1.5-meter coaxial cable, maintain standard bend radii and protect the miniature ClickLoc coaxial connector from dirt and fluid exposure. Connect the probe to a compatible 3300 XL standard extension cable by turning the gold-plated click-type connectors finger-tight to secure the mechanical and electrical contact. Ensure the sensor is calibrated for an AISI 4140 steel target for accurate displacement measurements.

Compliance and Certifications

• CSA: Class I, Division 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
• ATEX: II 1 G Ex ia IIC T5...T1 Ga; II 3 G Ex nA IIC T5...T1 Gc
• IECEx: Ex ia IIC T5...T1 Ga; Ex nA IIC T5...T1 Gc; Ex ec IIC T5...T1 Gc
