Hersteller: Bently Nevada
Produkt-Nr.: 330709-000-090-10-02-00
Herkunftsland:Vereinigte Staaten
Produkttyp: 3300 XL 11 mm Proximity Probe
Strichcode: 8537101190
Zahlung: T/T, Western Union
Gewicht: 180g
Abmessungen: 50 mm x 100 mm x 100 mm (H x W x D)
Versandhafen: Xiamen
Garantie: 12 Monate

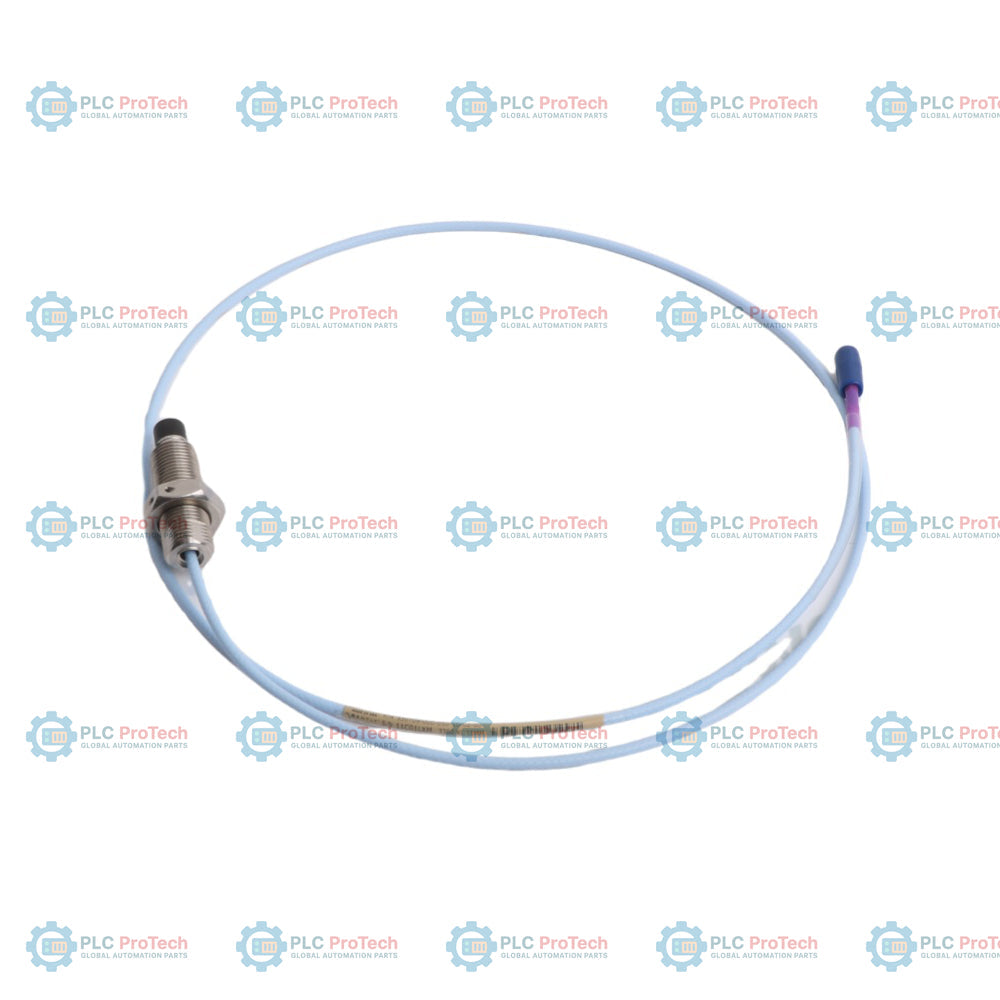

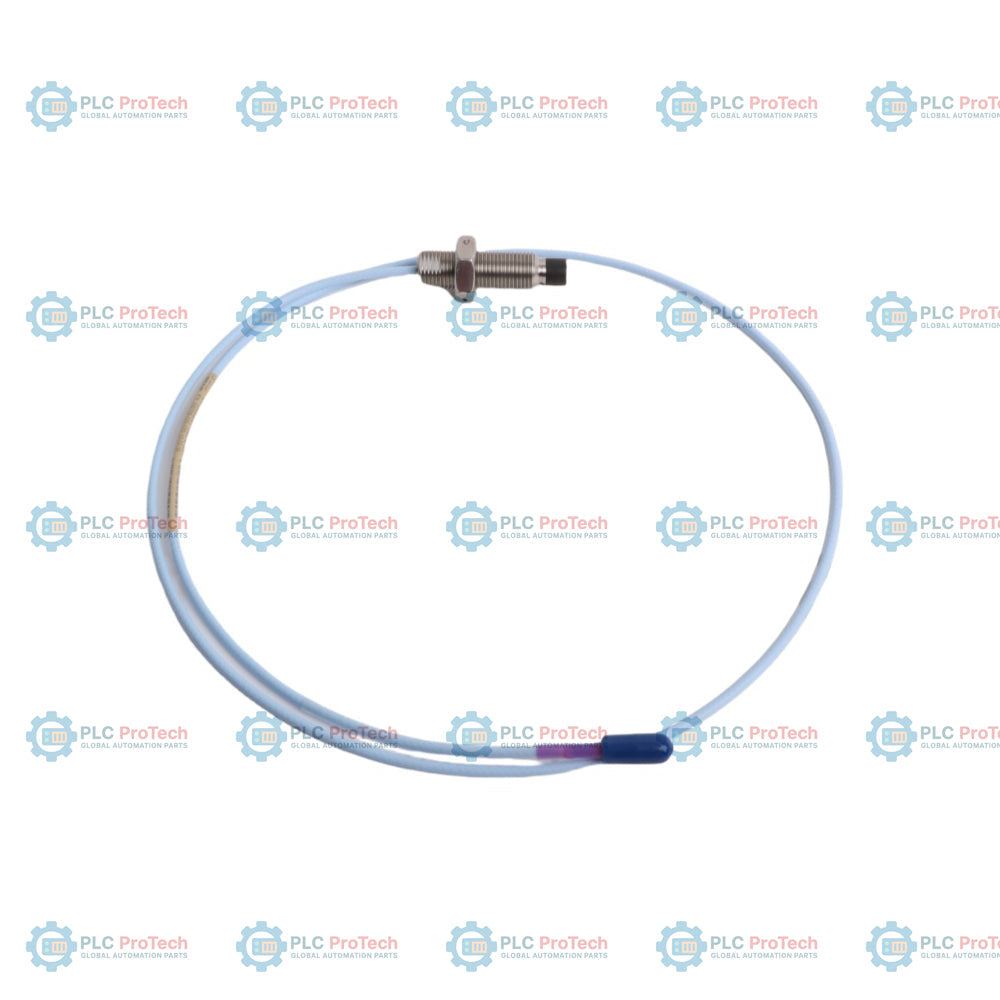

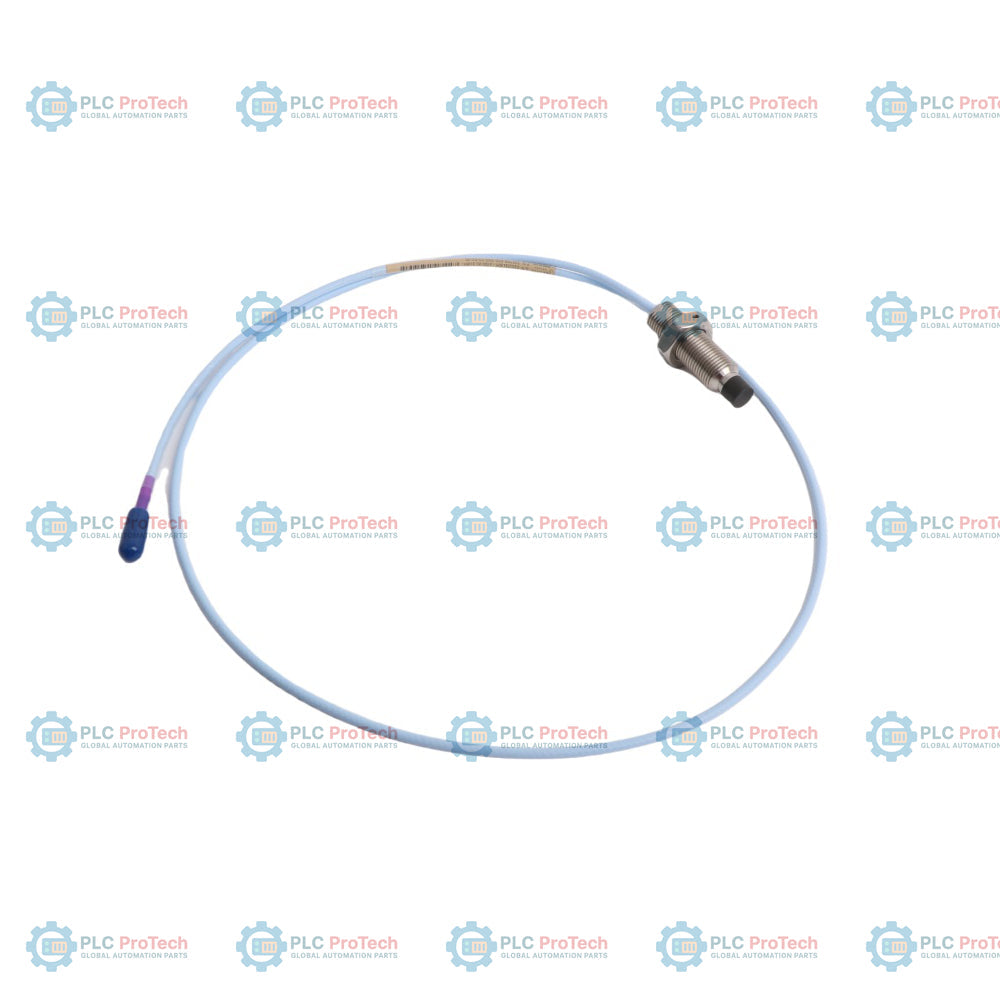

Unthreaded metric M16 x 1.5 steel probe body (Option 000) with a 90 mm overall case length (Option 090) and a 1.0 m total length (Option 10) specifies this 330709-000-090-10-02-00 configuration, a non-contacting 3300 XL 11 mm proximity probe.
This metric configuration features an M16 x 1.5 thread without protective armor, making it suitable for direct installation in threaded machine casings where physical conduit armor is not required. It employs standard FEP insulated triaxial cable rather than FluidLoc option variants, and is configured without optional hazardous area certifications (Option 00) for standard non-certified environments.
| Option / Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330709-000-090-10-02-00 | 3300 XL 11 mm Proximity Probe, M16 x 1.5 thread, without armor |
| AAA - Unthreaded Length | 000 | 0 mm (fully threaded) |
| BBB - Overall Case Length | 090 | 90 mm overall case length |
| CC - Total Length | 10 | 1.0 meter (3.3 feet) |
| DD - Connector & Cable Type | 02 | Miniature coaxial ClickLoc connector, standard cable |
| EE - Agency Approvals | 00 | Not required |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330709-000-090-10-02-00 |
| Transducer Family | 3300 XL 11 mm Proximity Transducer System |
| Tip Diameter | 11 mm |
| Thread Size | M16 x 1.5 (metric) |
| Unthreaded Length | 0 mm |
| Case Length | 90 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Armor Option | None |
| Cable Type | 75 ohm triaxial, fluoroethylene propylene (FEP) insulated |
| Connector Type | Miniature ClickLoc coaxial connector |
| Linear Range | 4.0 mm (160 mils), from approximately 0.5 to 4.5 mm (20 to 180 mils) |
| Scale Factor | 3.94 V/mm (100 mV/mil) +/-10% (with AISI 4140 steel target) |
| Recommended Gap Setting | 2.5 mm (100 mils) |
| Deviation from Best Fit Straight Line (DSL) | Less than +/-0.10 mm (+/-4 mils) at standard temperatures |
| Target Material Reference | AISI 4140 steel (31 mm diameter or larger recommended) |
| Minimum Shaft Diameter | 152 mm (6.0 in) |
| Probe Case Torque (Max Rated) | 63.3 N-m (560 in-lb) |
| Probe Case Torque (Recommended) | 21.1 N-m (187 in-lb) |
| Operating Temperature | -52 degC to +177 degC (-62 degF to +351 degF) |
| Storage Temperature | -52 degC to +105 degC (-62 degF to +221 degF) |
| Humidity Limit | 100% condensing, non-submersible (with protected connectors) |
| Tensile Strength (Max Rated) | 330 N (75 lb) probe case to probe lead |
Position the probe tip at the recommended gap setting of 2.5 mm (100 mils) from the target surface for optimum linear operation. When mounting, do not exceed the maximum rated case torque of 63.3 N-m (560 in-lb); the recommended installation torque is 21.1 N-m (187 in-lb) to prevent damage to the M16 x 1.5 metric threads. Ensure that all ClickLoc connections are kept clean and free from fluids. Finger-tighten the coaxial connectors, ensuring you do not exceed the maximum allowable torque of 0.565 N-m (5 in-lb). Maintain a minimum cable bend radius of 25.4 mm (1.0 in) along the entire run of the triaxial FEP insulated cable.
This configuration meets general product standards including the CE Mark (EMC Directive 2014/30/EU: EN 61000-6-2, EN 61000-6-4) and RoHS Directive 2011/65/EU. Under Agency Approval Option 00, specialized hazardous area approvals are not required or provided.
