Siemens 6AG2531-7KF00-4AB0 SIPLUS S7-1500 Analog-Eingangsmodul

Description

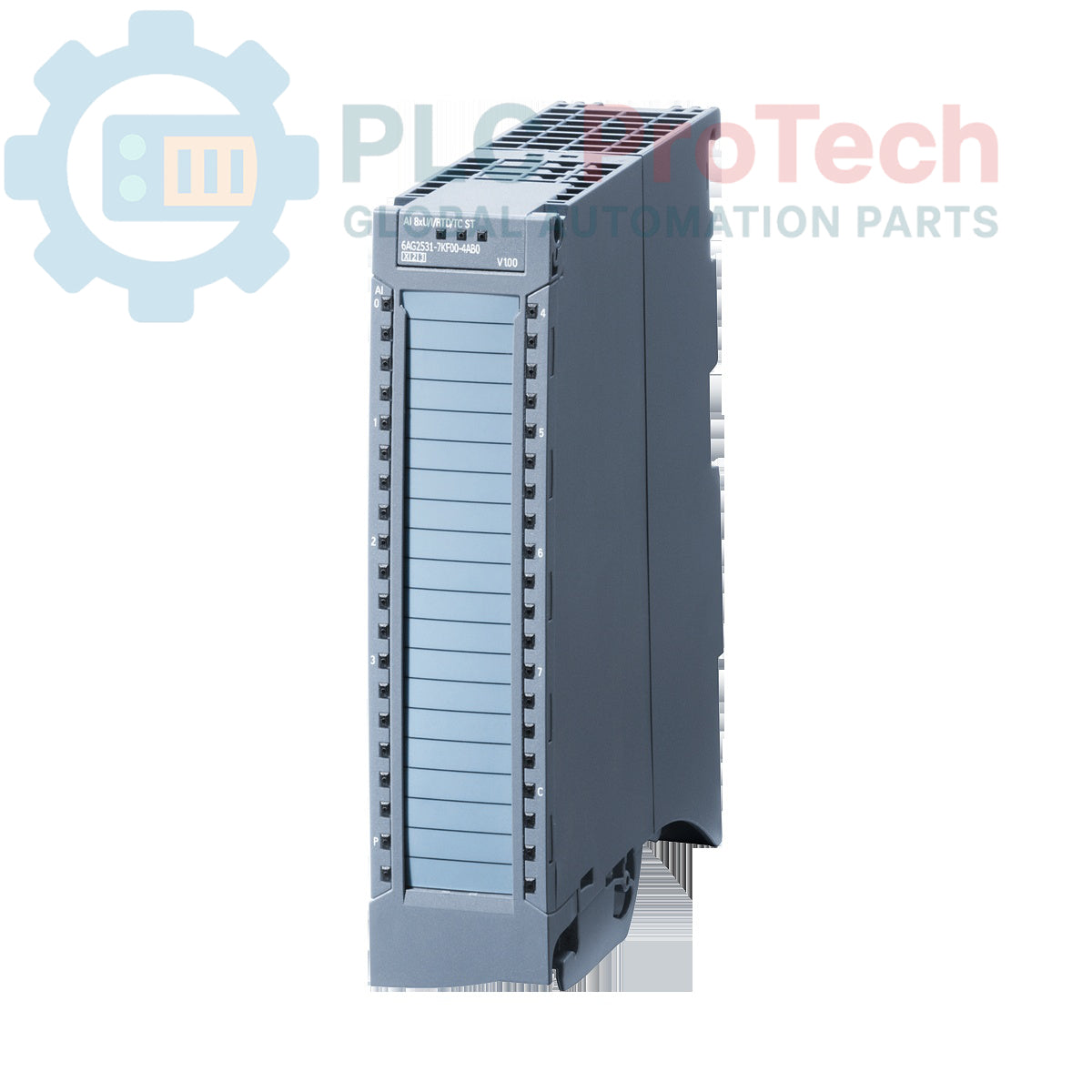

The 6AG2531-7KF00-4AB0 is a SIPLUS S7-1500 AI 8xU/I/RTD/TC TX rail analog input module, specifically designed for operation in extreme environmental conditions. Based on the standard 6ES7531-7KF00-0AB0 module, this unit features a protective conformal coating, allowing it to withstand harsh industrial settings with an operating temperature range from -40 Celsius to +70 Celsius (with short-term operation at +85 Celsius for 10 minutes). It provides high-precision data acquisition with 16-bit resolution and 0.3% accuracy, supporting 8 channels grouped for voltage, current, resistance (RTD), or thermocouple (TC) measurements.

Features

• Environmental Resilience: Conformal coating for TX rail applications (extended temperature range).
• Versatile Input Range: Supports U/I/RTD/TC signals.
• High Precision: 16-bit resolution with 0.3% accuracy.
• Channel Configuration: 8 channels in groups of 8; 4 channels designated for RTD measurement.
• Diagnostics: Integrated diagnostics and hardware interrupts for system monitoring.
• Included Accessories: Supplied with infeed element, shielding bracket, and shield terminal.

Technical Specifications

Installation Guidelines

• Mounting: Mount the module on the S7-1500 DIN rail. Ensure the infeed element is properly seated to provide power to the module.
• Shielding: Utilize the provided shielding bracket and shield terminal to ground cable shields correctly, reducing electromagnetic interference (EMI).
• Wiring: Connect inputs according to the specific sensor type (U, I, RTD, or TC). Note that 4 channels are reserved for RTD measurement configurations.
• Environmental Considerations: Due to its TX rail rating, this module is suitable for outdoor or non-climate-controlled industrial cabinets; however, ensure the module is protected from direct moisture ingress if installed outside of a rated enclosure.
