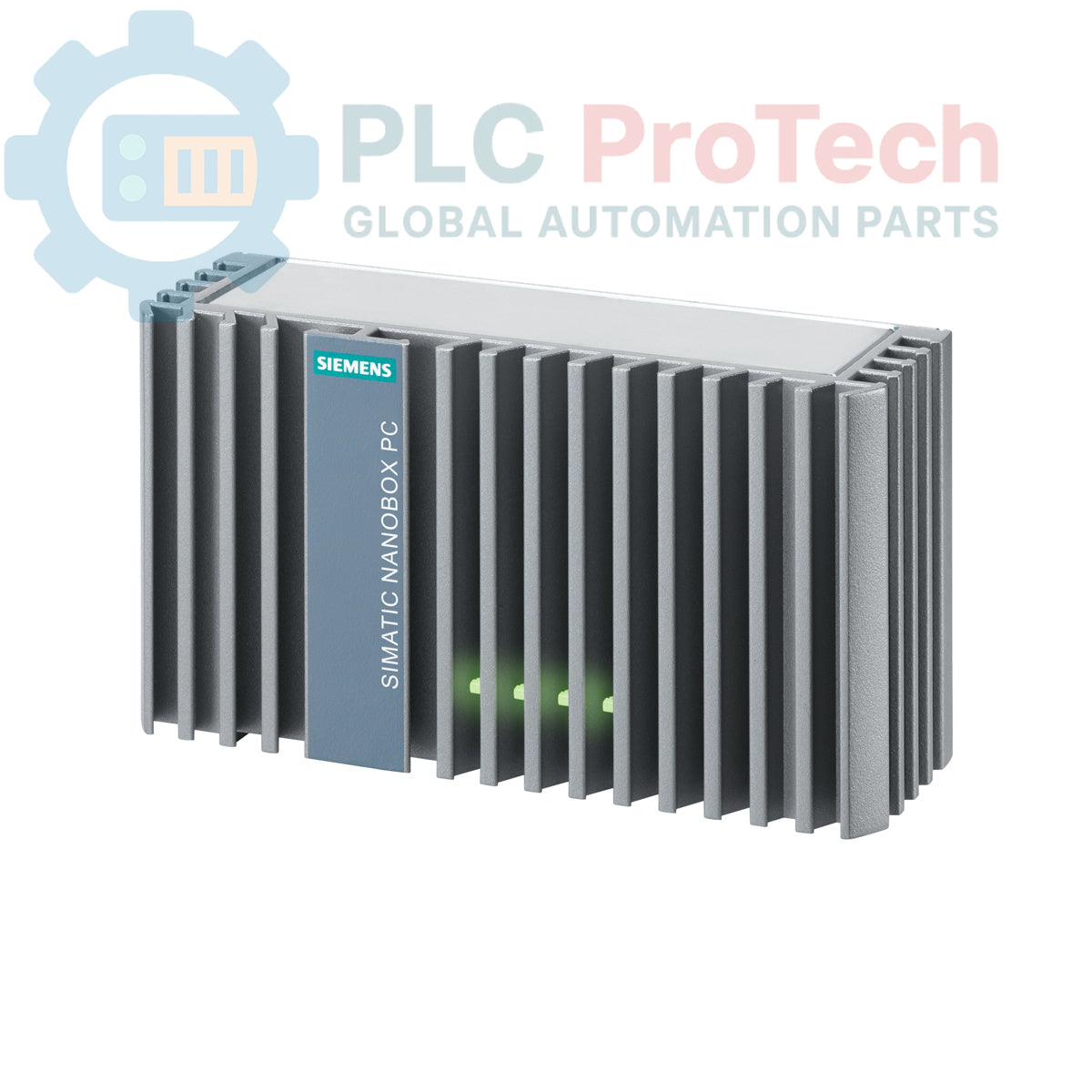

Siemens 6ES7647-8BA21-6BA1 SIMATIC IPC227E Nanobox-PC

The 6ES7647-8BA21-6BA1 is a SIMATIC IPC227E (Nanobox PC) designed for high-performance, compact industrial automation tasks. This maintenance-free embedded computer is equipped with an Intel Celeron N2807 dual-core processor and 4 GB of RAM. The unit is optimized for flexible integration, featuring multiple communication interfaces including two 10/100/1000 Mbit/s RJ45 Ethernet ports and various USB connections. Pre-installed with Windows 7 Ultimate (64-bit), this device is engineered for reliable, space-saving operation in industrial environments using DIN rail mounting.

Features

• Processor: Intel Celeron N2807 (2 Core/2 Thread)

• Memory: 4 GB RAM

• Storage: 80 GB SSD

• Communication: 2x 10/100/1000 Mbit/s Ethernet (RJ45)

• Interfaces: 1x DisplayPort, 1x USB 3.0, 3x USB 2.0, 1x CFast slot

• Operating System: Windows 7 Ultimate SP1, 64-bit (MUI: DE, EN, FR, ES, IT)

• Design: Compact Nanobox housing for DIN rail mounting

• Power Supply: 24V DC industrial power supply

Applications

• Embedded automation control

• Machine-level data acquisition

• Gateway applications

• HMI and visualization tasks in limited-space cabinets

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is installed on a standard DIN rail with sufficient space on all sides to allow for convective cooling.

• Grounding: Connect the device ground terminal to the protective earth of the cabinet to ensure electromagnetic immunity.

• Cabling: Use shielded RJ45 cables for Gigabit Ethernet connections. Secure all cables to prevent strain on the ports.

• Environment: Protect the device from vibration and shock exceeding industrial standards. Ensure that ambient temperatures remain within the specified operational range.

• Maintenance: Being a maintenance-free design, avoid opening the chassis. Ensure the CFast slot remains covered when not in use to prevent dust ingress.
