Siemens 6SC6100-0GC10 SIMODRIVE 650 Stromversorgungs- und Thyristorsteuerungsmodul

Description

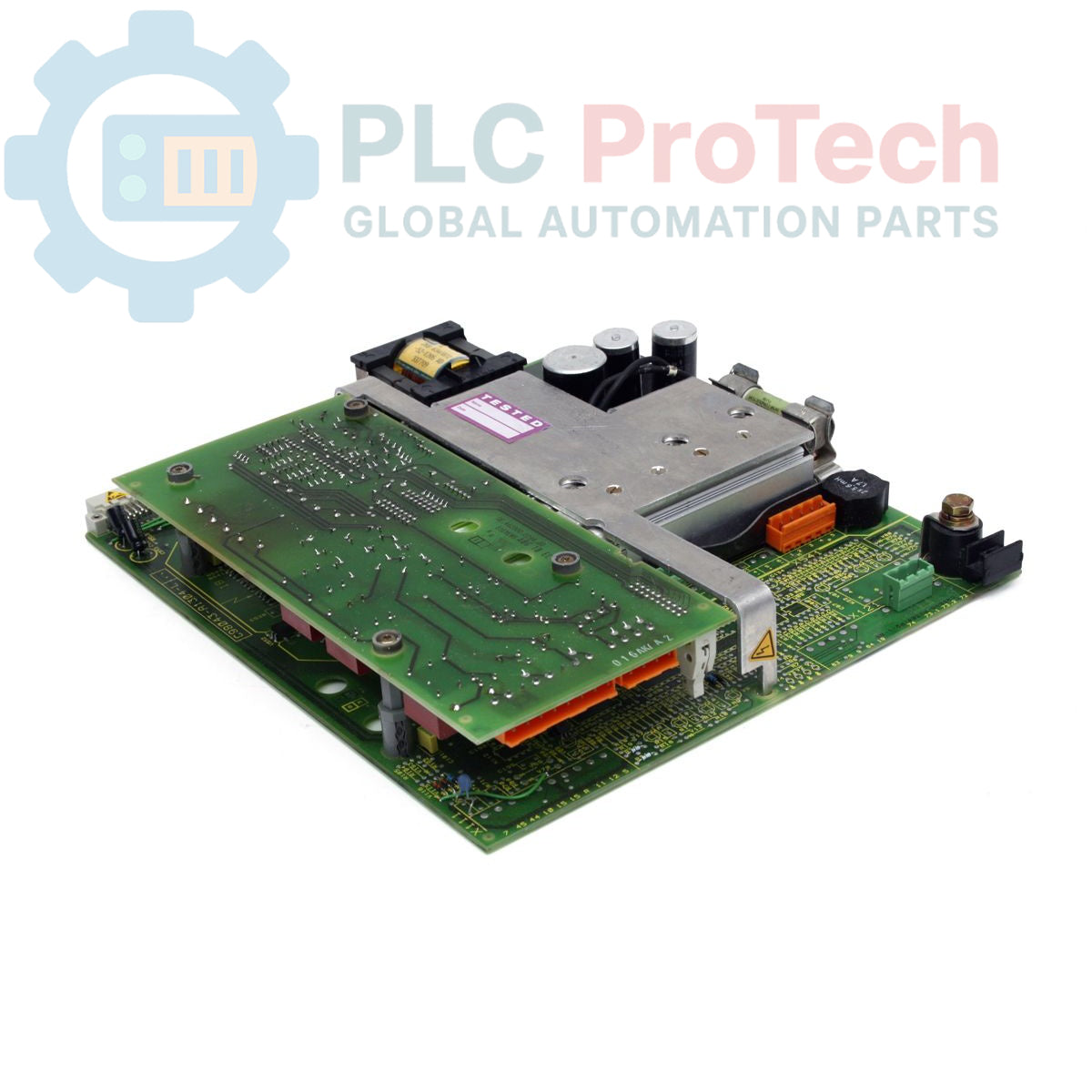

The 6SC6100-0GC10 is a dual-function printed circuit board (PCB) designed for SIMODRIVE 650 AC MSD (Main Spindle Drive) systems. This module integrates power supply regulation with essential thyristor control logic. It is responsible for managing the firing and switching operations of the thyristors within the drive, while simultaneously ensuring stable power distribution to the internal control electronics. By facilitating precise thyristor gating, this module allows for accurate speed and torque regulation of the main spindle motor, making it a vital component for high-performance machine tool spindle drives.

Features

• Integrated power supply and thyristor control logic
• Optimized for SIMODRIVE 650 AC MSD systems
• Compact PCB form factor for space-efficient integration
• Ensures precise thyristor gating for motor speed control
• Robust design for consistent industrial operation

Applications

• Main spindle drive (MSD) control for CNC machines
• Industrial motor speed and torque regulation
• Repair and maintenance of legacy SIMODRIVE 650 systems
• Automated industrial manufacturing spindle processes

Technical Specifications

Installation Guidelines

• Handling: As a PCB-based control module, utilize standard ESD (Electrostatic Discharge) mitigation protocols during handling and installation to prevent damaging the sensitive thyristor control circuitry.
• Mounting: Ensure the module is properly aligned and fully seated within the designated SIMODRIVE control rack slot. Verify that all connection pins are free from debris or oxidation.
• Testing: After installation, verify the thyristor firing signals and power supply output voltages against the drive system’s technical documentation before initiating motor rotation.
• Environment: Maintain the control cabinet environment within specified humidity and temperature ranges to avoid component degradation or short-circuit risks on the PCB surface.
