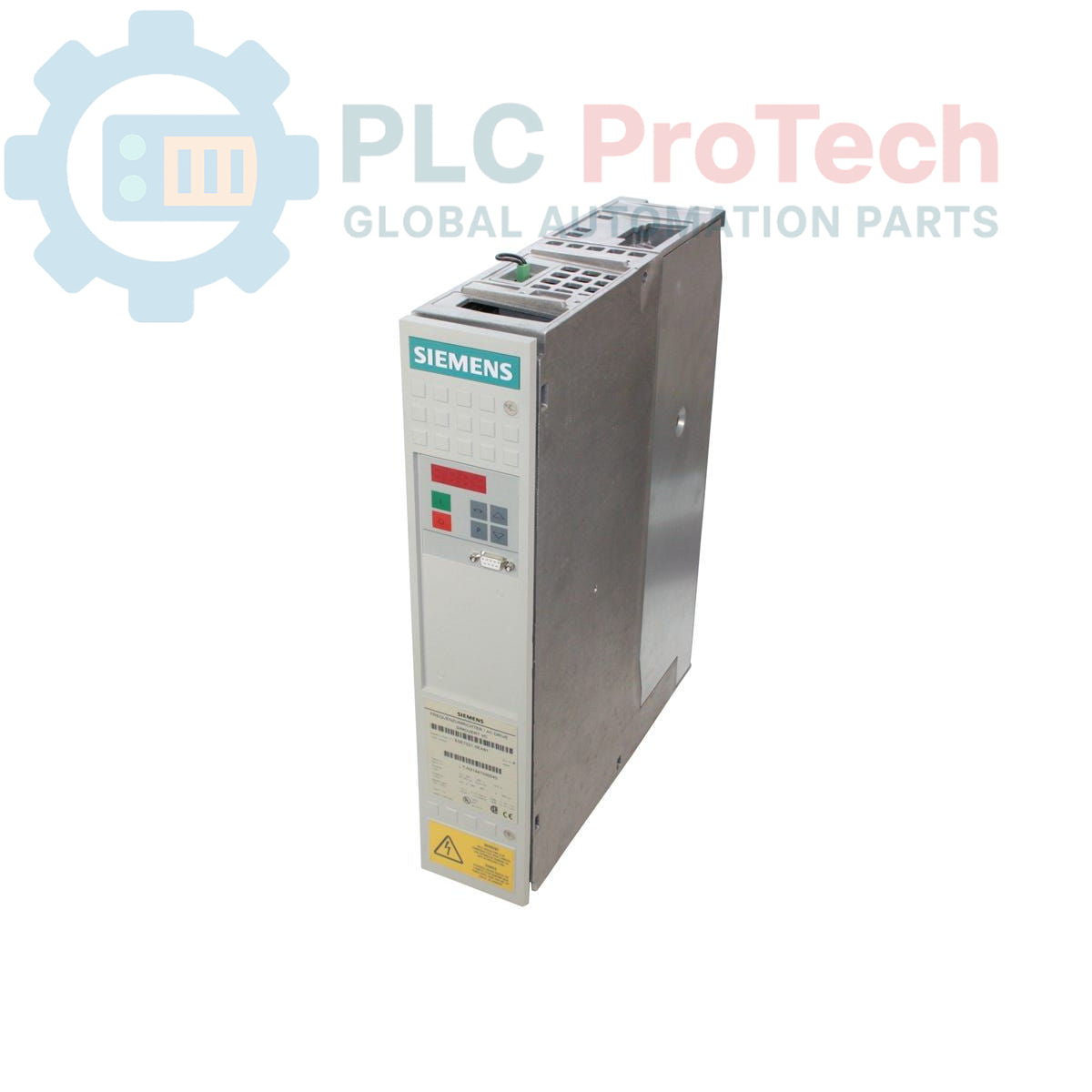

Siemens 6SE7016-1EA11 SIMOVERT MASTERDRIVES FC Kompakte Umrichtereinheit

Description

The 6SE7016-1EA11 is a SIMOVERT MASTERDRIVES FC converter compact unit engineered for the controlled operation of 3-phase AC induction motors. This base drive from Siemens is designed for integration into industrial automation systems, providing reliable speed and torque control for diverse production machinery.

The unit operates on a 3-phase input voltage range of 380 V to 460 V at 50/60 Hz. It is rated for a nominal power output of 2.2 kW and a current output of 6.1 A. Housed in an IP20-rated enclosure, the 6SE7016-1EA11 is suitable for cabinet-mounted applications. Its modular design supports the attachment of optional expansion modules to meet specific system requirements, ensuring compatibility with complex automation environments.

Features

• Compact, modular construction for cabinet integration
• 3-phase input voltage range: 380-460 V AC
• Nominal power rating: 2.2 kW
• Rated current output: 6.1 A
• IP20 ingress protection class
• Supports flexible expansion via option modules

Applications

• Pump and fan control systems
• Material handling and conveyor lines
• General industrial motor control applications
• Variable speed drive (VSD) system upgrades

Technical Specifications

Installation Guidelines

• Mounting: The unit must be mounted vertically inside a clean, dry, and ventilated control cabinet to prevent overheating.
• Ventilation: Ensure adequate airflow clearance around the drive according to technical requirements; avoid blocking air intake or exhaust vents.
• Grounding: Establish a solid protective earth (PE) connection to the device chassis to ensure personnel safety and reduce electrical noise.
• Cabling: Use shielded cables for motor and signal connections to maintain electromagnetic compatibility (EMC) within the cabinet.
• Environment: Protect the unit from conductive dust, oils, and moisture, as the IP20 rating does not provide resistance against these environmental hazards.
