Siemens 6SN1118-0DG11-0AA0 SIMODRIVE 611-D Steuereinheit

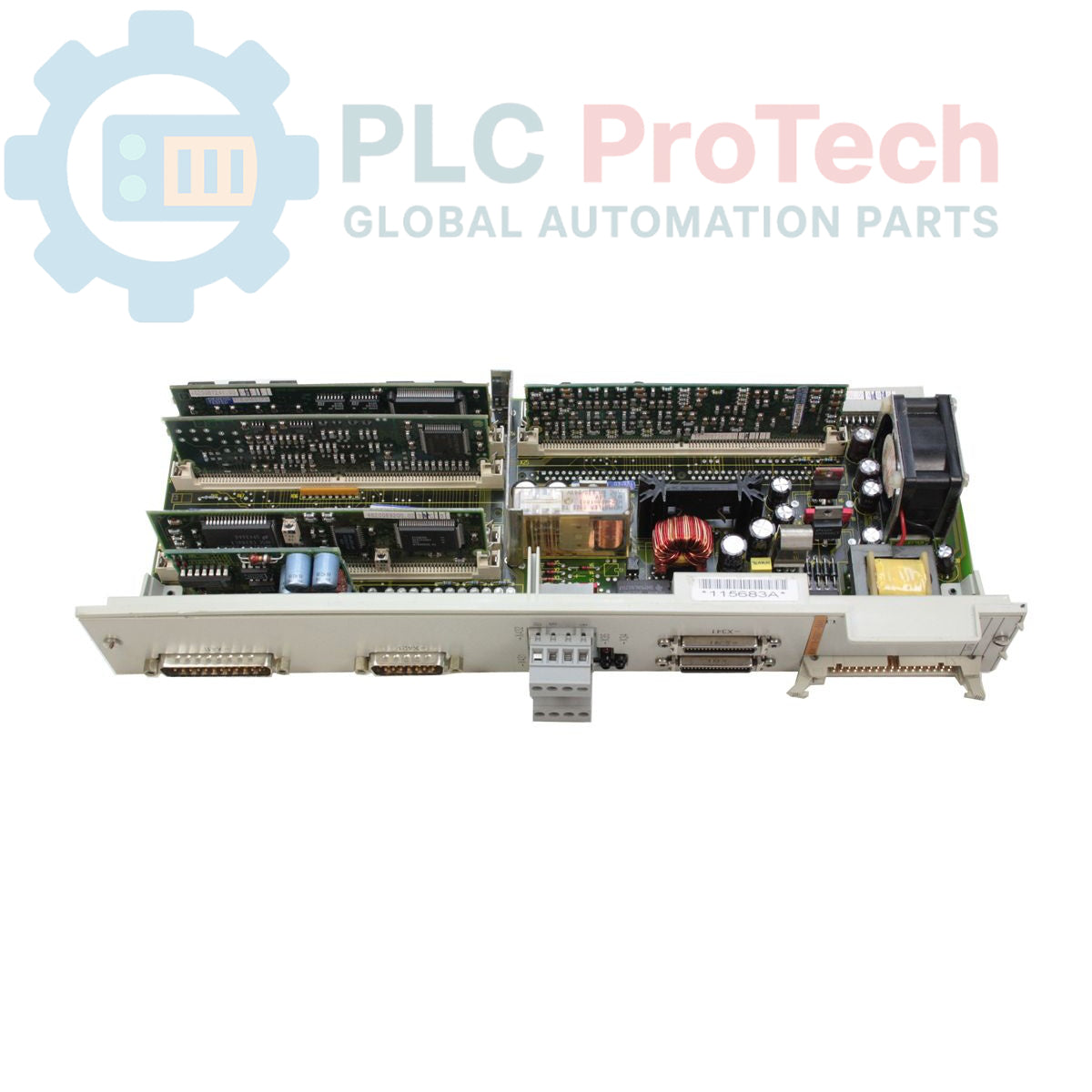

The 6SN1118-0DG11-0AA0 is a SIMODRIVE 611-D Control Unit designed for the high-precision management of a single digital drive axis. This module is engineered for integration into complex motion control systems, facilitating communication between the drive and the controller interface. It supports both FS (Feed System) and RS (Main Spindle) digital drive configurations, providing versatile operational capabilities for machine tools and industrial automation equipment. This specific model is configured for applications that do not utilize a direct measuring system, relying instead on integrated encoder feedback for positioning and speed control.

Features

• Drive Type: Digital 1-axis control unit
• System Compatibility: SINUMERIK SIMODRIVE 611-D series
• Interface Support: Compatible with FS (Feed System) and RS (Main Spindle) interfaces
• Measurement: Designed for operation without a direct measuring system
• Design: Compact, modular form factor optimized for standard SIMODRIVE rack mounting

Applications

• CNC machine tools (milling and turning)
• Industrial robotic motion control
• Multi-axis drive systems in manufacturing
• Retrofitting and maintenance of legacy SIMODRIVE 611-D setups

Technical Specifications

Installation Guidelines

• Rack Mounting: Ensure the unit is securely seated within the SIMODRIVE 611 modular drive rack to provide proper electrical connectivity to the backplane.
• Grounding: Verify that the drive rack is properly connected to a protective earth (PE) terminal to mitigate electromagnetic interference (EMI).
• Communication: Confirm that the digital bus connection (FS/RS) is fully engaged and locked to prevent signal instability during high-speed motion.
• Cooling: Maintain sufficient clearance around the drive rack to ensure adequate airflow, as excessive heat can impact the performance of control modules.
• Configuration: Since this unit operates without a direct measuring system, ensure that motor-side encoder feedback parameters are correctly configured in the NCU (Numerical Control Unit).
