برد فیبر نوری آلن-برادلی 80190-100-01-R

Description

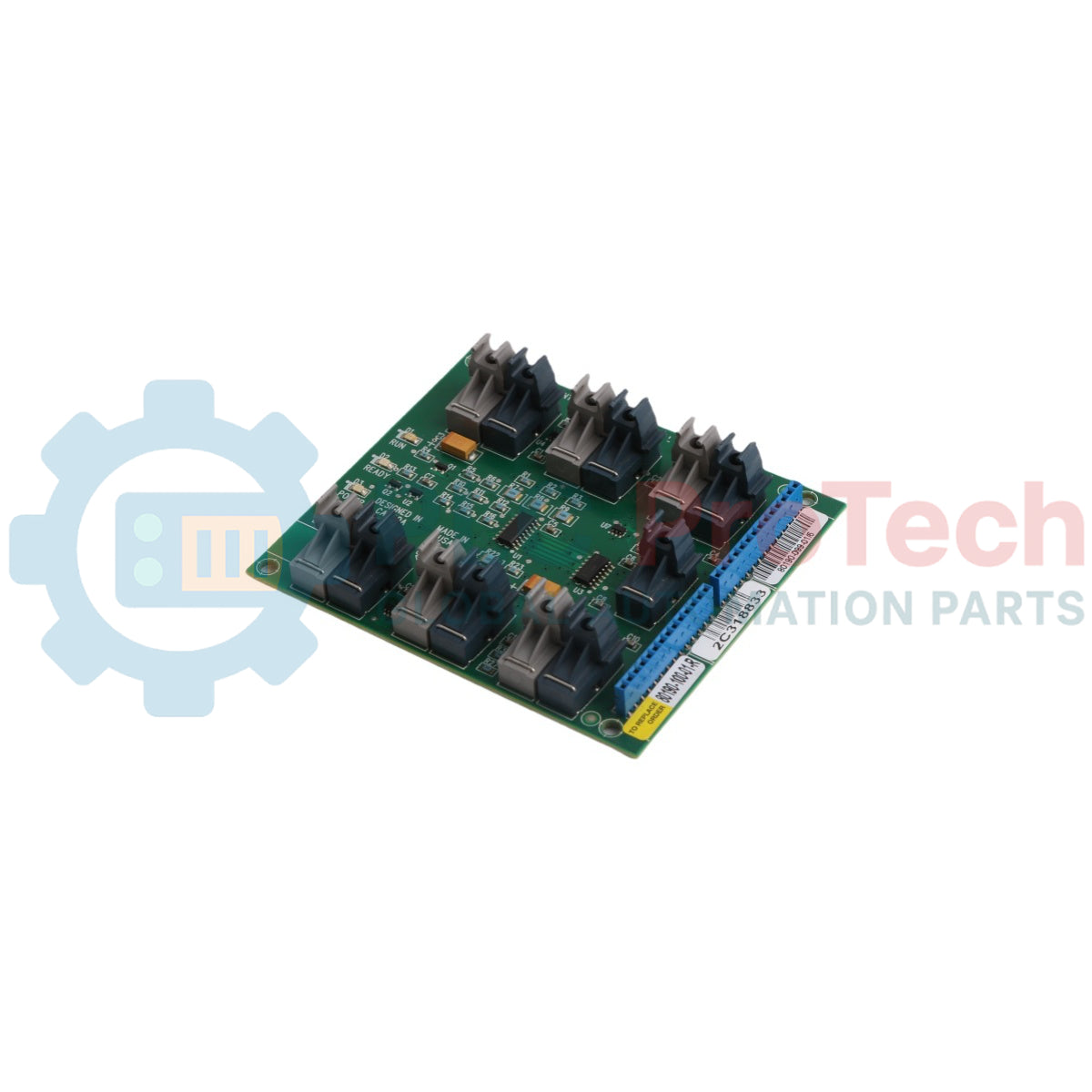

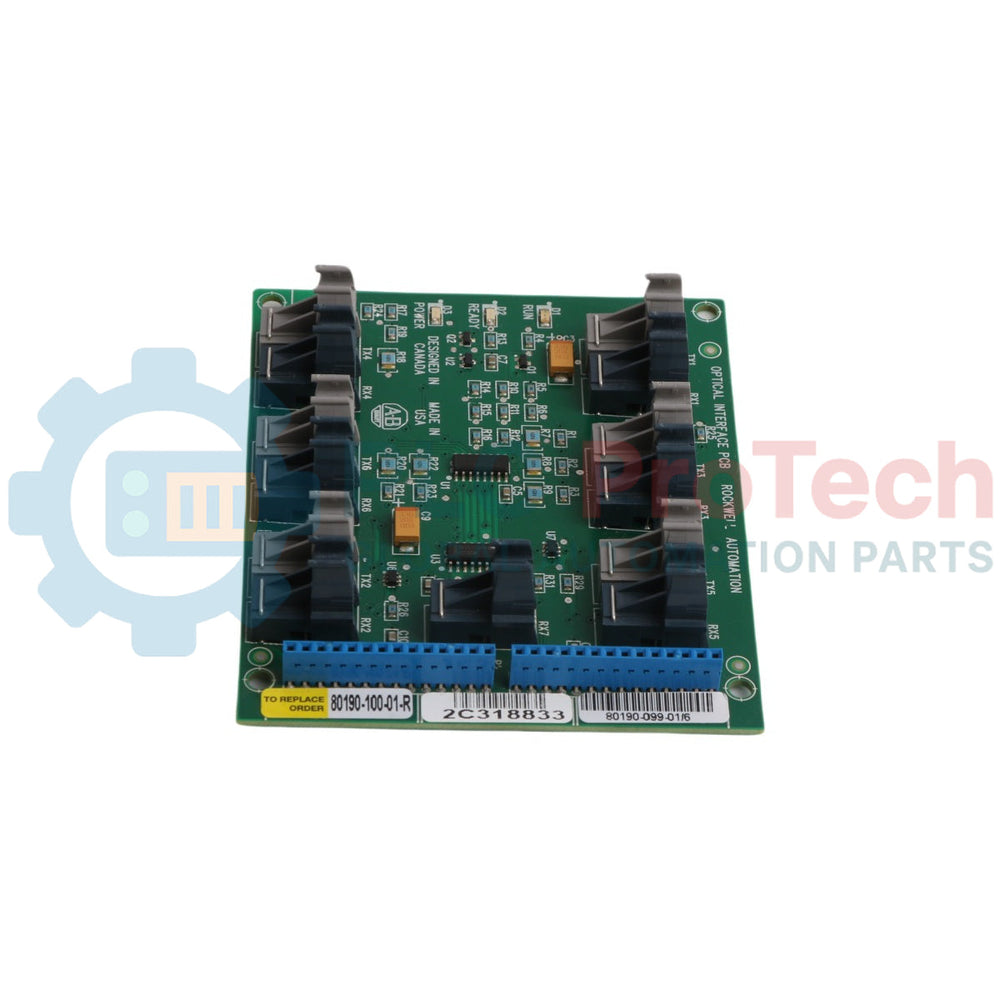

The Allen-Bradley 80190-100-01-R is an optical interface printed circuit board engineered by Rockwell Automation to provide robust power regulation and isolated fiber optic communication interfaces. The 80190-100-01-R serves as a dependable power conversion module that delivers a stable 24V DC output up to 10A from an adjustable input range of 100-240V AC. This hardware integrates multi-channel fiber optic transmitter and receiver paths alongside power regulation components, ensuring stable power delivery and transient-immune communication interfaces for demanding industrial automation applications.

Features

• Dual-function architecture supporting integrated 240W DC power regulation and optical communication links
• Onboard status diagnostics featuring dedicated RUN and READY light-emitting diodes
• Highly efficient input voltage adaptation protecting secondary control circuitry from primary AC spikes

Applications

• Industrial variable frequency drive systems
• Electro-optically isolated power distributions
• Process automation control networks

Technical Specifications

Installation Guidelines

• Electrostatic Discharge Protection: This assembly utilizes electrostatic sensitive devices; maintain strict ESD grounding rules throughout the physical installation process.
• Cooling/Ventilation: Mount the hardware within an appropriate industrial enclosure that complies with the -20 degC to 60 degC functional thermal bounds.
• Cable Routing: Fasten fiber optic terminations directly into the marked TX/RX ports while maintaining minimal bend radius profiles to mitigate optical transmission damping.

Compliance and Certifications

• CE
• UL
• RoHS compliant
