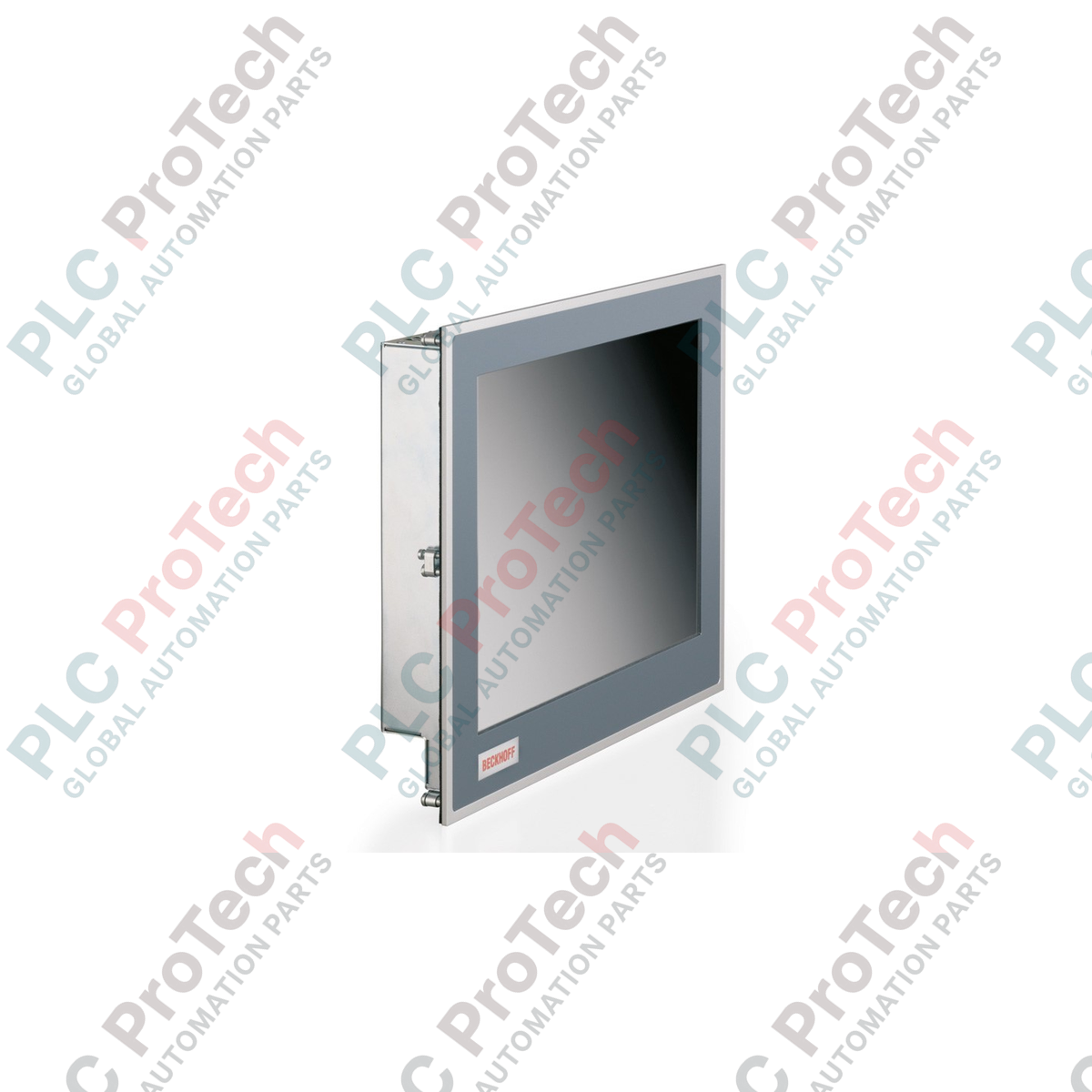

Beckhoff CP6231-0002-0070 CP62xx Economy Built-in Panel PC

Description

Designed to execute localized control, visualization, and monitoring tasks within demanding automated systems, the Beckhoff CP6231-0002-0070 integrates a 12-inch TFT display with a high-performance industrial PC core. This economy built-in Panel PC features a mechanical configuration with an aluminum front bezel and a robust sheet-steel rear cover, designed specifically for control cabinet installation. Equipped with an Intel Celeron G3900TE processor operating at 2.3 GHz and 4 GB of DDR4 RAM, the device provides reliable processing power for PLC, motion control, and HMI runtimes. It operates efficiently in environments ranging from 0 to 55 degC, delivering high physical durability and stable execution under constant industrial workloads.

Features

• Industrial 12-Inch Display: High-clarity TFT screen with an 800 x 600 resolution and an integrated single-touch resistive sensor.
• Efficient Dual-Core Processing: Intel Celeron G3900TE dual-core CPU clocked at 2.3 GHz, optimized for TwinCAT runtime applications.
• Robust IP-Rated Housing: Offers IP65 ingress protection on the front face when mounted correctly, and IP20 protection on the rear chassis.
• Simplified Mechanical Mounting: Utilizes integrated pull-out clamping levers to guarantee secure fastening within cabinet cutouts without loose fasteners.
• Rich Interface Suite: Onboard provision of four high-speed USB 3.0 ports, a legacy serial port, dual Gigabit Ethernet ports, and an external DVI monitor connection.

Applications

• Automotive manufacturing and assembly line supervisory control stations.
• Material handling, conveyor system monitoring, and automated warehousing terminals.
• Packaging machinery control loops and operator interface panels.
• Localized SCADA and database interface nodes on production floors.

Technical Specifications

Connections and Interfaces

Alternative Models & Compatibility

The Beckhoff CP6231 series maintains high physical mounting backwards-compatibility with previous generations of CP62xx built-in panel hardware. When upgrading from older platforms utilizing Intel Atom or Celeron processors of lower processing categories, confirm the physical control cabinet cutout dimensions match the standard 12-inch configuration. This unit is optimized for modern configurations; target licensing classes for TwinCAT runtime applications default to TwinCAT 3 performance class 50 (TC3: 50) due to the Celeron G3900TE core architecture.

Application Pitfalls & Engineering Notes

Operating this built-in Panel PC requires strict adherence to natural convection paths. Ensure the panel is mounted vertically within the cabinet cutout. Obstructing the integrated ventilation slots on the sheet-steel rear cover can result in localized hot spots, prompting the onboard thermal management system to throttle CPU clock speeds. For systems subjected to high vibratory profiles, use a solid-state CFast card or standard industrial SSD rather than a physical spinning hard disk to prevent drive-head write errors and subsequent file corruption.

Commissioning & Wiring Tips

During the commissioning stage, establish a low-impedance connection from the functional ground terminal block to the central machine ground. This grounding is critical to shunt electromagnetic noise, ensuring consistent touch-screen detection without erratic signal jumps. If integrating network redundancy or separate operational technology (OT) zones, the dual onboard RJ45 Gigabit Ethernet ports are mapped to separate independent network controllers and should be assigned static IP configurations on separate subnets to avoid route loop-backs.
