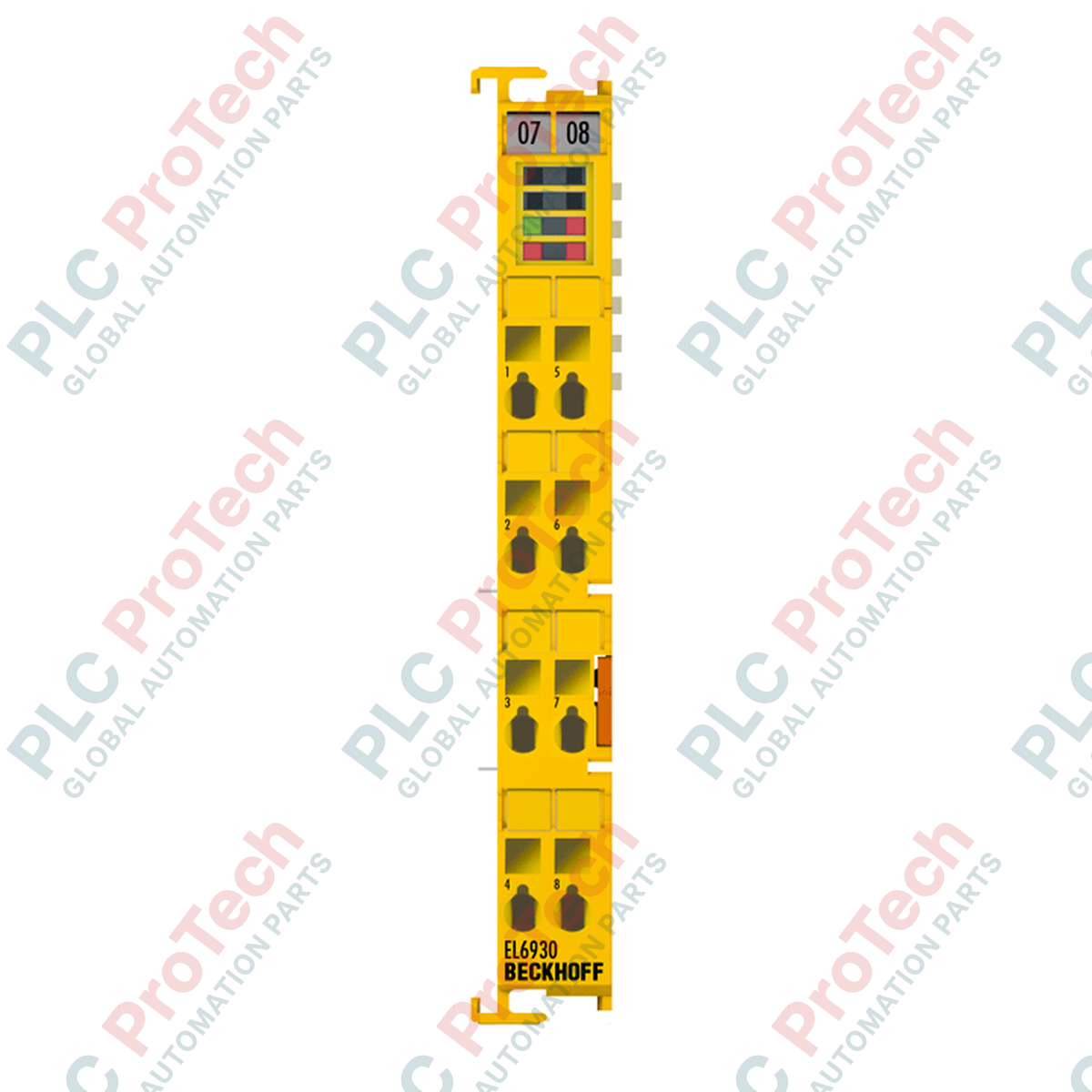

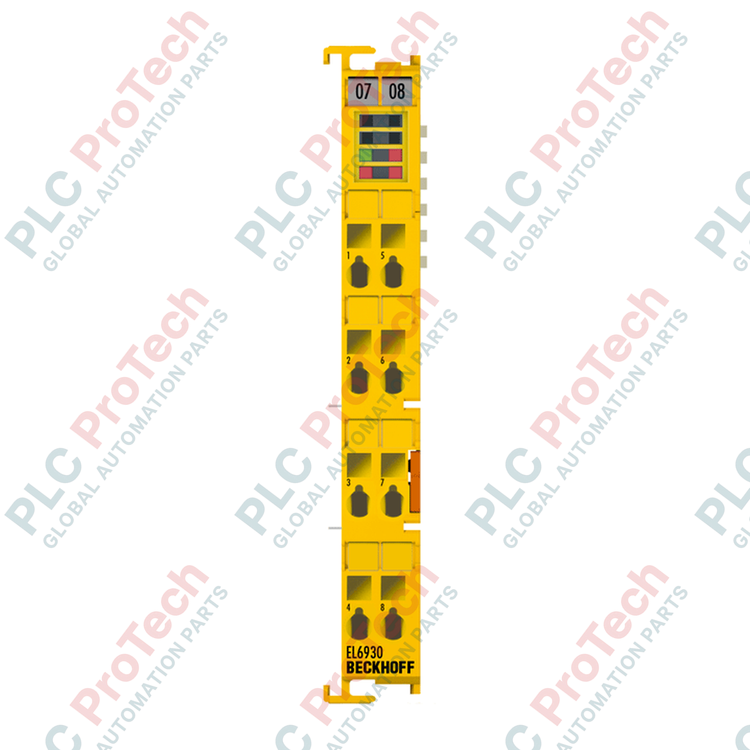

Beckhoff EL6930 TwinSAFE Logic EtherCAT Terminal

Description

Executing complex safety logic operations directly within the I/O system, the Beckhoff EL6930 serves as a high-performance TwinSAFE Logic terminal designed to establish reliable link units between safe input and output signals. By integrating safety protocols such as TwinSAFE/Safety over EtherCAT and PROFIsafe, this terminal permits distributed control architecture across standard industrial networks without sacrificing safety integrity. The unit is optimized for rapid industrial cycles, delivering predictable fault response times and high-density logic configuration within a compact 12 mm terminal form factor.

Features

• Multi-Protocol Safety Support: Native compatibility with Safety over EtherCAT (FSoE) and PROFIsafe communication standards.
• High-Integrity Certification: Qualified for use in applications demanding DIN EN ISO 13849-1:2008 (Category 4, PL e) and EN 61508:2010 (SIL 3) compliance.
• Rapid Processing Cycle: Achieves a typical cycle time of approximately 500 microseconds, scaleable to overall project size.
• Integrated Diagnostic LEDs: Front-facing LEDs provide direct visual feedback on run states, safe run modes, and operational errors.
• Flexible Wire Termination: Built-in spring-actuated clamp connection system facilitates solid and stranded wires.

Applications

• Distributed Safety Management: Interlinking local emergency stops, light curtains, and safety doors with distributed safe outputs.
• Multi-Axis Motion Control Safety: Safe monitoring of servo drives and robotic handling zones in complex packaging and assembly lines.
• Inter-Network Safety Bridging: Transporting safe digital signals between EtherCAT master controllers and secondary PROFIsafe nodes.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The EL6930 safety terminal represents an operational upgrade over legacy EL6900 modules. Note that when migrating legacy safety configurations to the EL6930 inside TwinCAT, you must re-verify the FSoE watchdog timings and confirm your current TwinCAT version supports the target safety project. The EL6930 acts strictly as a logical controller and contains no direct onboard safe I/O points; it must be paired with safety input (e.g., EL1904) and safety output (e.g., EL2904) terminals to function.

Application Pitfalls & Engineering Notes

To prevent thermal accumulation within dense electrical enclosures, the EL6930 must be mounted horizontally on the DIN rail. Vertical mounting impairs natural convective heat dissipation, which can lower the ambient operating limit of the module and potentially induce erratic safety logic faults. When calculating overall current distribution across the backplane, account for the 188 mA E-bus current consumption to prevent bus power dropouts on large terminal chains.

Commissioning & Wiring Tips

Ensure the physical F-Address matches the target software configuration set in the TwinCAT System Manager during commissioning. Use only high-integrity shielded cabling for the underlying EtherCAT network to prevent electromagnetic interference from triggering the safety watchdog. When wiring the spring-clamp terminals, utilize a standard flathead screwdriver for actuation and adhere strictly to the 8 to 9 mm stripping depth to guarantee robust electrical contact and protect against vibration-induced wire release.
