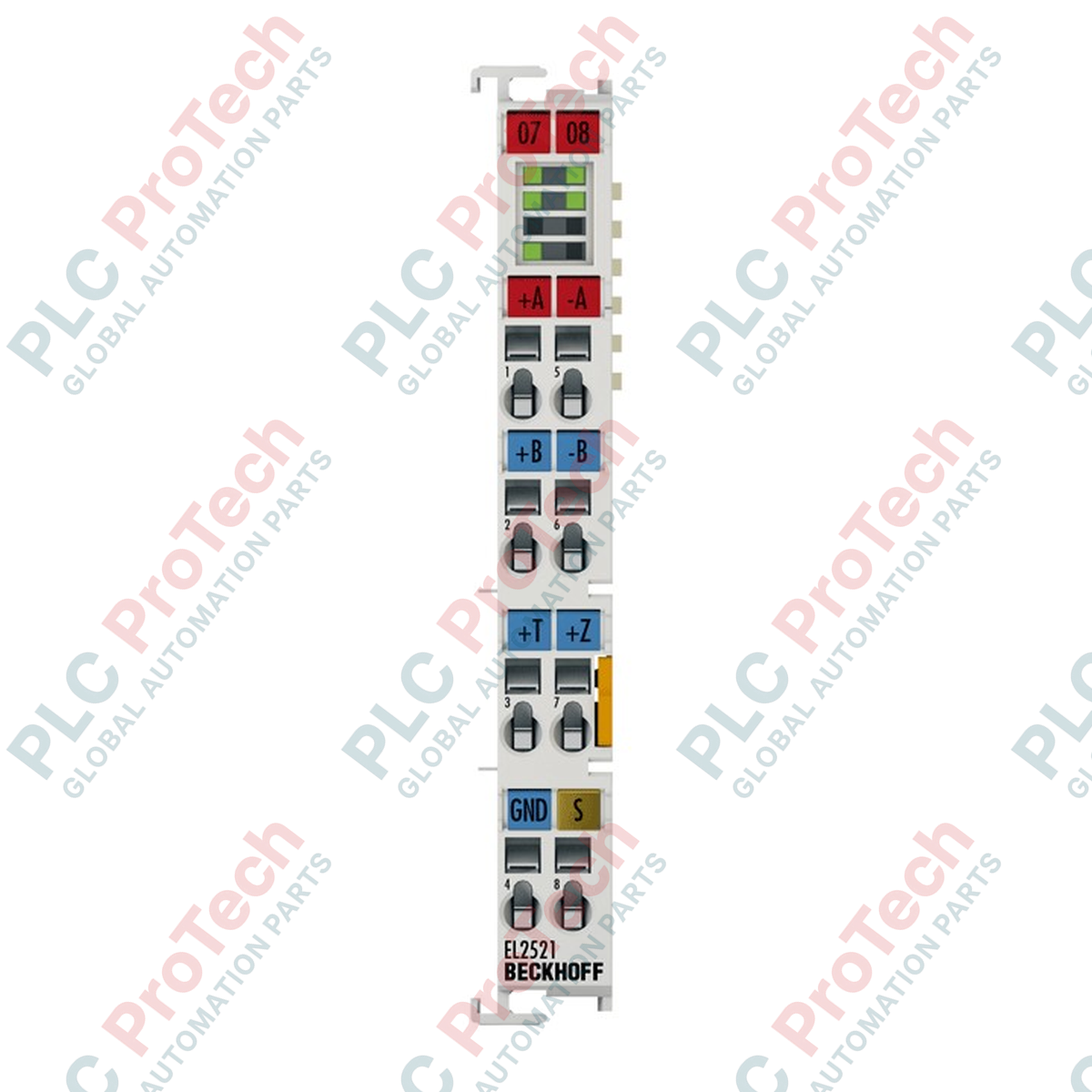

Beckhoff ES2521 EtherCAT Terminal 1-Channel Pulse Train Output Module

فقط 10 قلم کالا در انبار باقی مانده است

تولیدکننده: BECKHOFF
شماره محصول: ES2521
کشور سازنده:آلمان
نوع محصول: EtherCAT Terminals
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 500g
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

Operating as a specialized interface within the Beckhoff I/O system, the Beckhoff ES2521 EtherCAT Terminal delivers precise pulse train signals for motion control applications. This high-performance module converts 16-bit velocity values from the automation controller into a highly accurate RS422 differential frequency output. Capable of generating base frequencies from 0 to 500 kHz, it is engineered to interface directly with stepper motor drivers, servo drives, and frequency converters that accept frequency/direction or pulse train control commands. The unit features built-in distributed clocks support for precise, synchronized operation across multi-axis networks, and incorporates a pluggable wiring design that simplifies field installation and cabinet maintenance.

Features

1-Channel Pulse Train Control: Equipped with two differential RS422 outputs (Signals A and B) for high-speed pulse and direction generation.
Flexible Operating Modes: Configurable via the controller to support pulse/direction output, count pulses with frequency limits, or operate under direct frequency selection.
High-Frequency Resolution: Offers a base frequency range from 0 to 500 kHz with a fine step resolution of 10 mHz for smooth acceleration ramps.
Integrated Controller Functions: Supports autonomous ramp execution and precise travel distance control natively within the hardware profile.
Pluggable Wiring Interface: Uses the ESxxxx plug-in connector system for tool-free assembly, rapid module replacement, and secure terminal connection.
Distributed Clocks (DC): Ensures sub-microsecond synchronization with other EtherCAT devices on the segment for highly coordinated motion profiles.
Comprehensive Diagnostics: LED indicators supply real-time statuses for state transition, communication activity, and specific channel errors.

Applications

Direct speed control of stepper motor power stages accepting RS422 pulse train commands.
Interfacing with servo drives configured for pulse-and-direction positioning modes.
Commanding variable frequency drives (VFDs) requiring high-resolution frequency references.
Precision positioning tasks in packaging machinery, pick-and-place systems, and material handling systems.

Technical Specifications

Parameter	Specification Value
Manufacturer	Beckhoff
Model Number	ES2521
Connection Technology	Pulse train (frequency output) with pluggable wiring harness
Number of Channels	1 channel (consisting of 2 differential outputs: A, B)
Digital Inputs	2 inputs (+T Latch, +Z Gate)
Input Signal Voltage	24 V DC
Output Signal Specification	RS422 levels, differential
Output Current Limit	Maximum 50 mA per channel (short-circuit proof)
Base Frequency Range	0 to 500 kHz (Default configuration: 50 kHz)
Output Resolution	Max. 15 bit
Frequency Step Size	10 mHz
Process Image Width	14-byte output, 8-byte input
Current Consumption E-bus	Typically 280 mA (load-dependent)
Current Consumption Power Contacts	No current draw from external power contacts
Electrical Isolation	500 V RMS (E-bus to field potential)
Operating Temperature	0 to +55 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95% non-condensing
Protection Rating	IP20
Hazardous Location Approvals	ATEX: II 3 G Ex ec IIC T4 Gc, IECEx: Ex ec IIC T4 Gc
Net Weight	Approximately 50 g
Shipping Weight (Calculated)	2.0 kg

Connections and Interfaces

Terminal Connection Point	Signal Assignment	Description
Pin 1	Output A	Non-inverted differential output channel A (Pulse / Frequency)
Pin 5	Output /A	Inverted differential output channel A
Pin 2	Output B	Non-inverted differential output channel B (Direction)
Pin 6	Output /B	Inverted differential output channel B
Pin 3	Input +T	Latch input (24 V DC) for high-speed hardware position capture
Pin 7	Input +Z	Gate / zero input (24 V DC) for axis reference calibration
Pin 4	+24 V DC	Control power supply input for the digital logic
Pin 8	0 V DC (GND)	Reference potential for inputs and external drive circuits

Alternative Models & Compatibility

The ES2521 and the EL2521 share identical process images, register configurations, and TwinCAT device descriptions. The sole distinction lies in the physical connector style: the ES2521 features a pluggable wiring block, enabling off-terminal wire terminations and swift physical component replacement, whereas the EL2521 incorporates standard direct-in push-in termination. System integrators can seamlessly interchange the modules in TwinCAT without requiring configuration modifications, provided the plug-in connector harness is deployed.

Application Pitfalls & Engineering Notes

A key layout consideration is the high internal E-bus current consumption of the module. Consuming 280 mA typical from the communication backplane, the ES2521 is highly power-intensive. When constructing an EtherCAT segment containing multiple high-draw interfaces, the aggregate current must not exceed the maximum supply capability of the coupler (often capped at 2000 mA). If the E-bus power budget is breached, intermittent communication drops or localized terminal failures will manifest. Insert a dedicated power feed terminal (such as the EL9400 or EL9410) directly upstream of the module to resolve backplane load issues.

Commissioning & Wiring Tips

To protect signal integrity up to the full 500 kHz switching threshold, always employ shielded, twisted-pair cabling for the A/A and B/B differential lines. For optimal electromagnetic compatibility, terminate the cable shields as close as possible to the terminal entry point inside the enclosure using functional earth grounding clamps. Unshielded runs or running signal lines in parallel with motor power outputs will induce electrical noise, resulting in positioning inaccuracies or cumulative pulse count slippage over extended operational cycles.

Installation Guidelines

CRITICAL WARNING

Isolate all electrical power sources supplying the DIN rail assembly and field devices before commencing terminal installation or removal. Working under active voltage introduces short-circuit risks that can destroy the precision logic cards on the E-bus and permanently damage connected motor control inputs.

Verify that the selected terminal segment provides sufficient E-bus power capacity, accounting for the module's baseline 280 mA rating.

Securely latch the terminal housing onto the 35 mm DIN rail (EN 60715) ensuring the side E-bus slide contacts mate flush with the neighboring unit.

Pre-wire the pluggable wiring block with the appropriate conductor cross-sections (0.08 to 2.5 mm2) before snapping the connector plug firmly into the module socket.

Energize the backplane power supply and activate TwinCAT to scan for the new terminal, applying necessary axis-control parameters via the configuration tree.

Key Features:

What is the primary difference between the Beckhoff ES2521 and the standard EL2521?

The ES2521 features a pluggable wiring system that utilizes a removable terminal block. This allows for rapid module hot-swapping and off-terminal wire harness preparation. The EL2521 uses a fixed push-in terminal design. Both modules are completely software-compatible and identical in their register structure.

Can the ES2521 pulse train terminal drive single-ended (non-differential) command inputs on standard motor drives?

The ES2521 outputs comply strictly with the RS422 standard, which utilizes differential pairs (A, /A, B, /B) to reject noise. While some single-ended drives can function by connecting only the non-inverted outputs (A, B) and referencing a common ground, this configuration lacks noise immunity and is highly susceptible to step-loss at high frequencies up to 500 kHz.

How do I resolve E-bus power allocation errors with the ES2521?

The ES2521 has a high typical E-bus current consumption of 280 mA. If your existing terminal stack exceeds the current limit supplied by your bus coupler, communication dropouts will occur. Integrate an EL9400 or EL9410 power feed terminal directly to the left of the ES2521 to supply supplementary power to the E-bus segments.

What functions do the digital inputs (+T and +Z) serve?

The 24 V DC digital inputs provide critical positioning coordinates. The Latch input (+T) captures the current internal pulse position register instantly upon receiving a hardware edge, whereas the Gate input (+Z) serves as a software-configured input to enable, disable, or calibrate the position sequence based on reference switch states.
