BECKHOFF ZB7215-0100 EtherCAT P Hybrid Cable

Product Overview

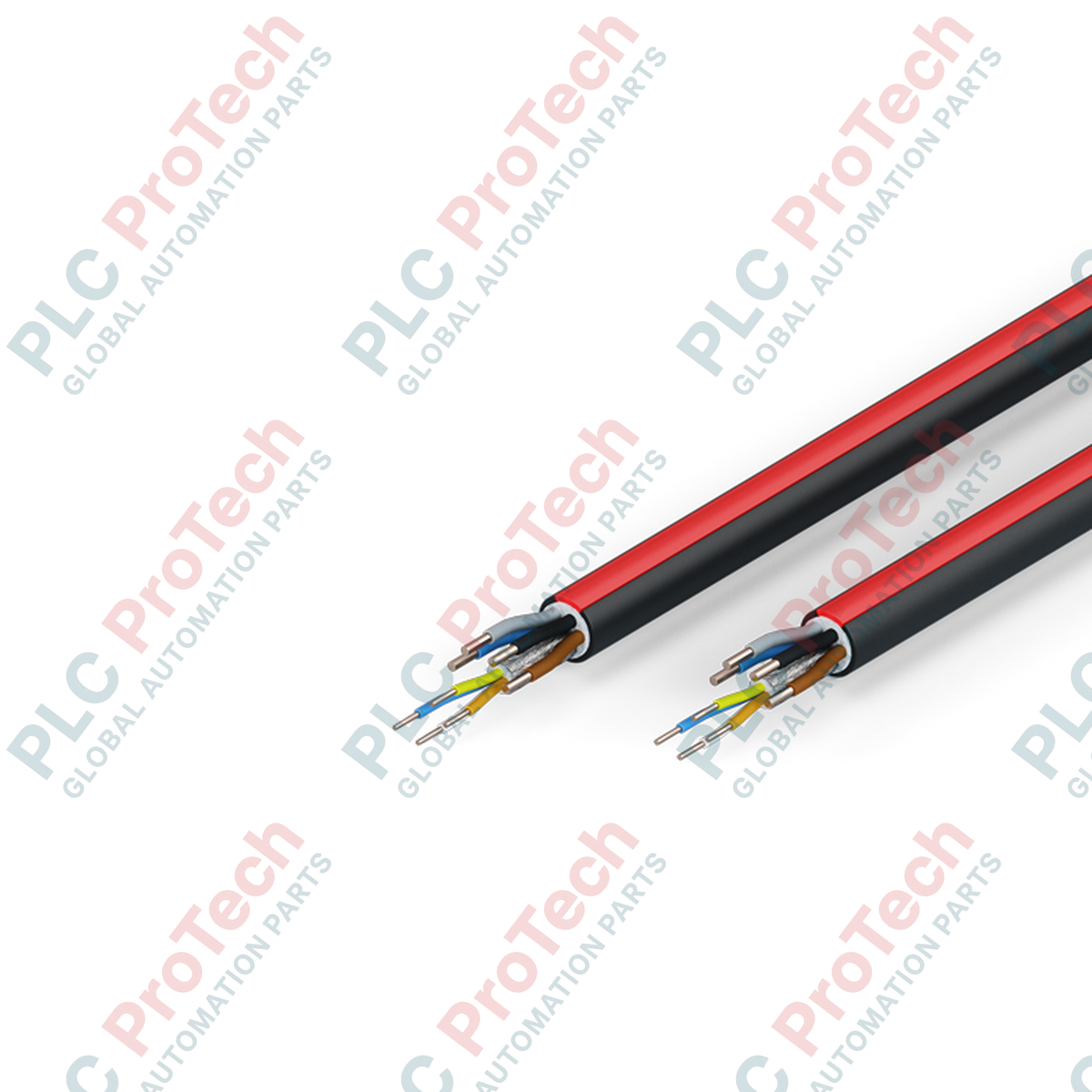

The ZB7215-0100 (ZB7215-0100) is a high-performance EtherCAT P hybrid cable, engineered for robust industrial power and data distribution. With a total length of 10.00 m, this cable integrates high-speed EtherCAT communication and substantial power delivery into a single, drag-chain-compatible assembly. Designed to meet the stringent requirements of modern automated systems, including robotic platforms, multi-axis motion control, and decentralized I/O clusters, this cable minimizes installation time and cabinet footprint while providing superior mechanical resilience in high-cycle motion environments.

Technical Configuration

The ZB7215-0100 is constructed to support both high-speed data integrity and high-current power distribution. The Ethernet component features a 4-core, 0.34 mm² (AWG 22) shielded configuration, ensuring reliable fieldbus communication even in high-EMI environments. The power delivery system utilizes four 1.5 mm² (AWG 16) conductors, facilitating higher current capacity for demanding actuators and sensors. The entire assembly is protected by a high-grade Polyurethane (PUR) jacket, which is specifically formulated to withstand continuous flexing, abrasion, and exposure to industrial oils or cooling lubricants. The cable is marked with a yellow stripe (RAL 1003) to distinguish it from other network lines, preventing incorrect connections during maintenance.

Technical Specifications

FAQs

What is the benefit of the yellow stripe on this cable?

The yellow stripe is a standardized visual identifier for Beckhoff EtherCAT P cables with higher power-carrying capacities. It allows maintenance teams to quickly distinguish this 4 x 1.5 mm² power cable from standard communication-only lines.

Is this cable suitable for extreme temperature variations?

While the PUR jacket offers excellent mechanical protection, ensure that the drag-chain operating temperature remains within the rated limits of the entire system. PUR remains flexible and resistant in various industrial temperature ranges.

Can this cable be used in non-moving applications?

Yes, while it is optimized for drag-chain (moving) applications, it is fully backward compatible with static installations. Its high-grade materials provide an exceptionally long service life in both static and dynamic settings.

Is the shielding sufficient for high-voltage motor areas?

The integrated Ethernet shielding is designed for standard industrial EMC conditions. In areas with extreme high-frequency noise from unshielded motor cables, ensure that proper cabinet-to-chassis grounding is maintained for the entire communication loop.

Installation Guidelines and Best Practices

• Drag-Chain Geometry: When installing in a drag chain, do not stretch the cable. It should lie loosely in the chain to prevent mechanical tension during the travel cycle.
• Bend Radius: Adhere to the minimum bend radius requirements for drag-chain cables (typically 10x the outer diameter). With an outer diameter of 10.8 mm, maintain a minimum bending radius of at least 110 mm for all dynamic applications.
• Strain Relief: Utilize appropriate cable clamps at the entry and exit points of the cable carrier. This ensures that the dynamic forces of the moving machine are absorbed by the cable jacket rather than the internal data/power terminals.
