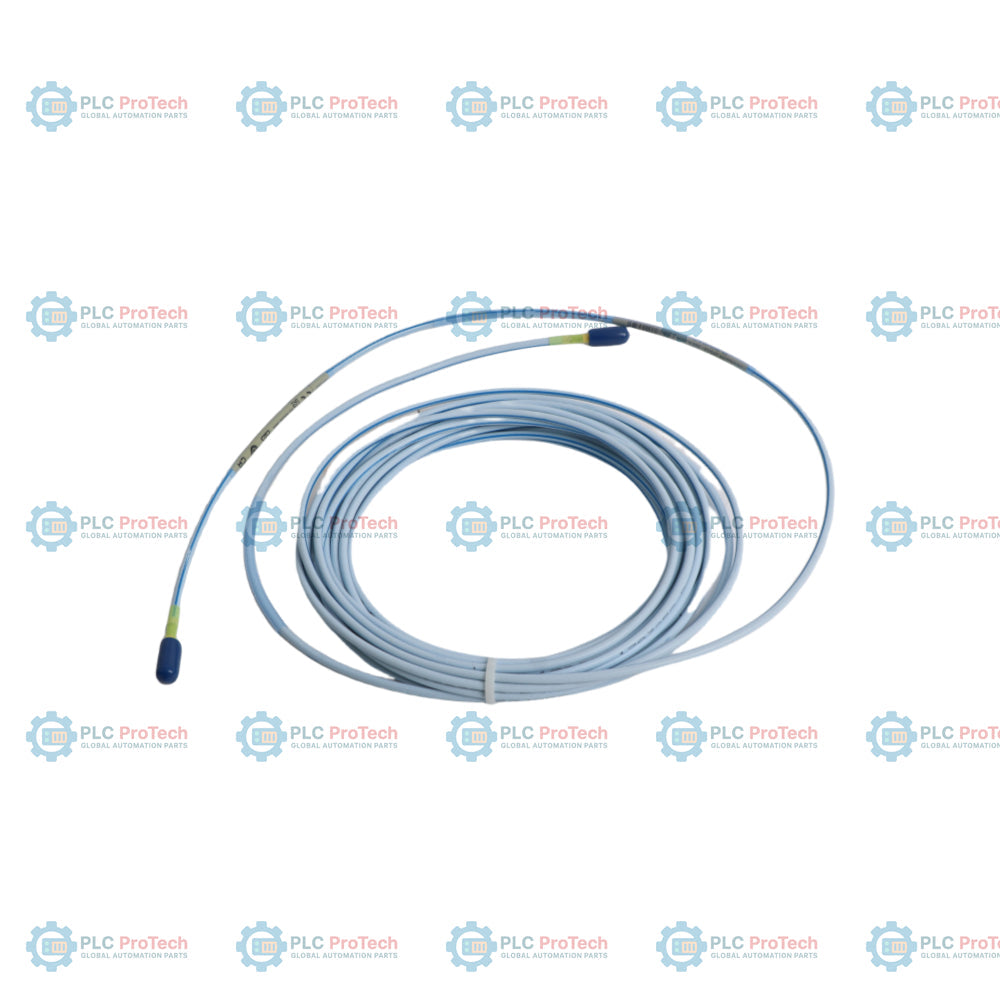

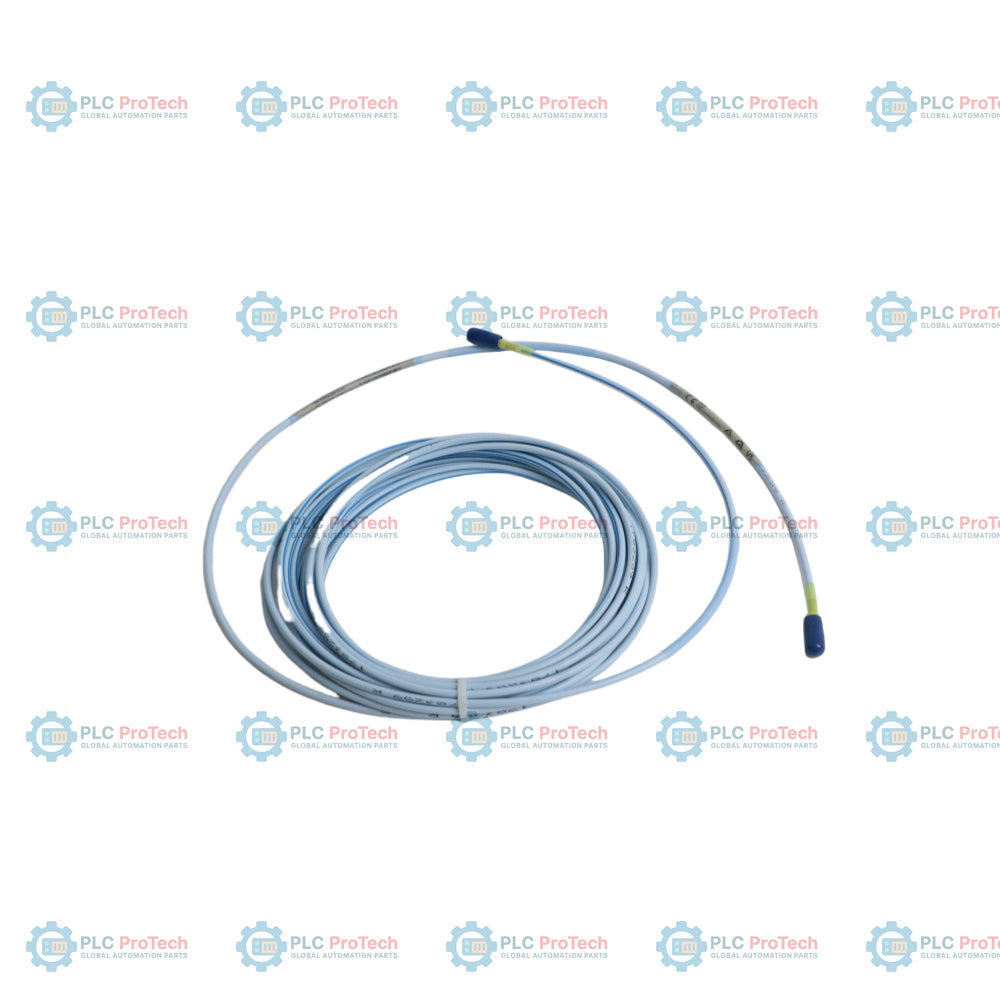

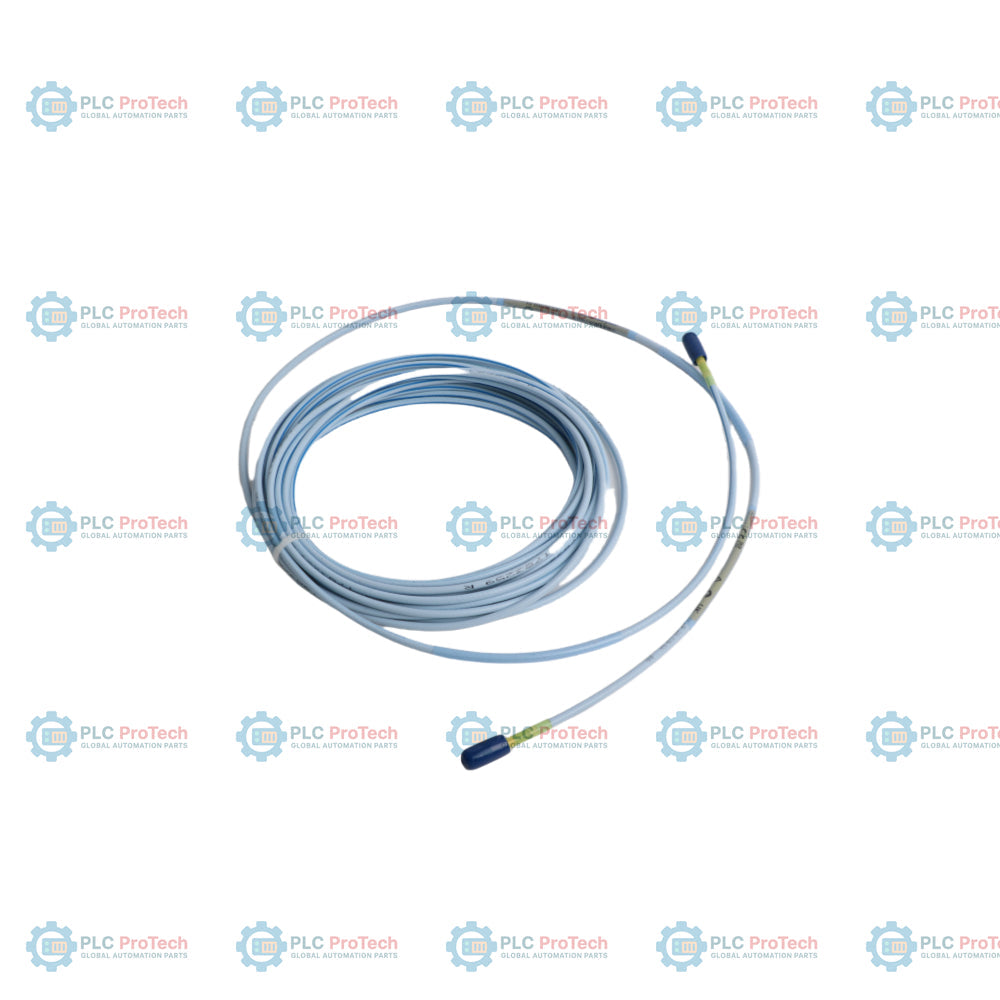

Bently Nevada 330854-080-24-00 3300 XL 25 mm Extension Cable

Description

Option 080 (8.0 m length), Option 24 (High Temperature FluidLoc cable, unarmored), and Option 00 (no agency approvals) specify this 3300 XL 25 mm Extension Cable configuration — 330854-080-24-00.

This cable acts as the electrical link between a 3300 XL 25 mm proximity probe and a 3300 XL 25 mm Proximitor sensor. Unlike variant option 25 which features stainless steel armor, this option 24 configuration uses a lightweight, unarmored 75 ohm triaxial FluidLoc cable insulated with perfluoroalkoxyethylene (PFA). The FluidLoc technology prevents moisture and process fluids from traversing the cable core, protecting the click-lock coaxial connectors from contamination.

Features

• 8.0 meter total length (Option 080) matches system calibration when combined with a 1.0 meter probe in a 9.0 meter measurement system.
• Option 24 configuration features non-armored 75 ohm triaxial FluidLoc cable insulated with perfluoroalkoxyethylene (PFA) for high-temperature service.
• FluidLoc cable design blocks fluid migration through the internal conductors of the cable assembly.
• Gold-plated brass and beryllium copper ClickLoc connectors provide stable coaxial contact under mechanical vibration.
• Option 00 indicates standard commercial construction with no hazardous area approvals.

Applications

• Large steam turbine generator differential expansion (DE) monitoring
• Mid-to-large machinery axial shaft position measurements
• Reciprocating compressor rod-drop monitoring systems
• Hydroelectric turbine shaft displacement and vibration sensing

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Coaxial shielding is isolated from the mounting bracket or panel and must be grounded at the monitor/instrumentation rack.
• Ensure the fluorosilicone connector protectors are installed over the mated ClickLoc connectors to prevent contamination from dirt and moisture.
• Maintain the minimum bend radius of 25.4 mm (1.0 inch) during routing to prevent cable strain or internal signal degradation. Avoid running the extension cable alongside high-voltage AC power wiring to prevent electromagnetic interference.
• Hand-tighten the ClickLoc connectors; do not exceed 0.565 N-m (5 in-lb) of torque.

Compliance and Certifications

• CE Mark (European Conformity)
• RoHS compliant
