پراب نزدیکی بنتلی نوادا 330910-01-08-10-01-05 3300 NSv

Description

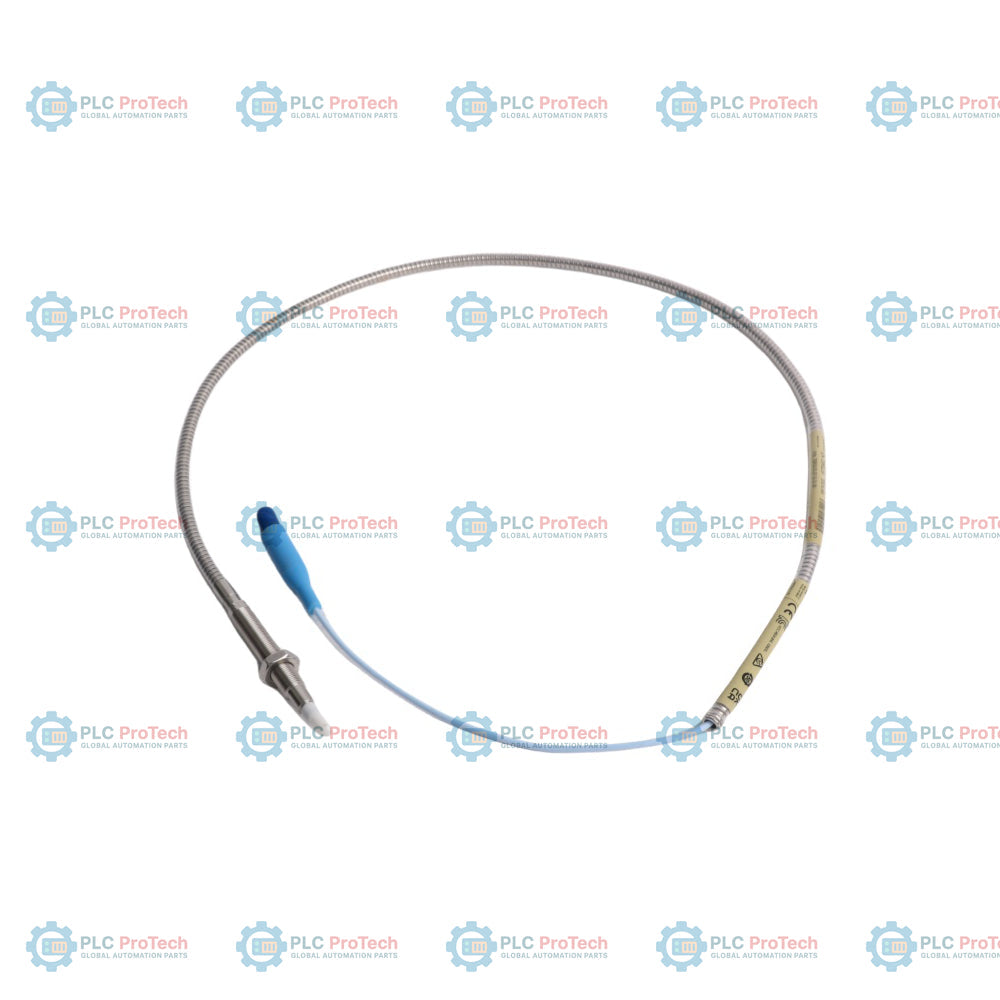

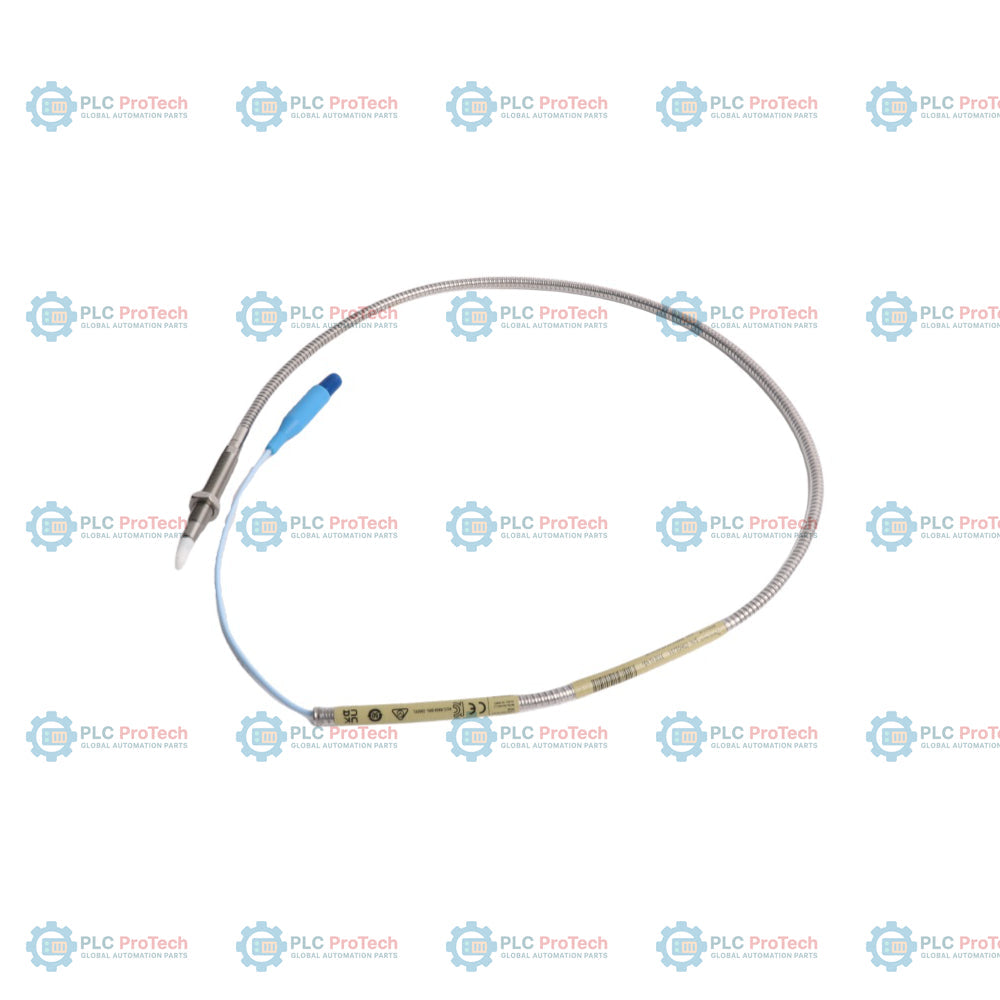

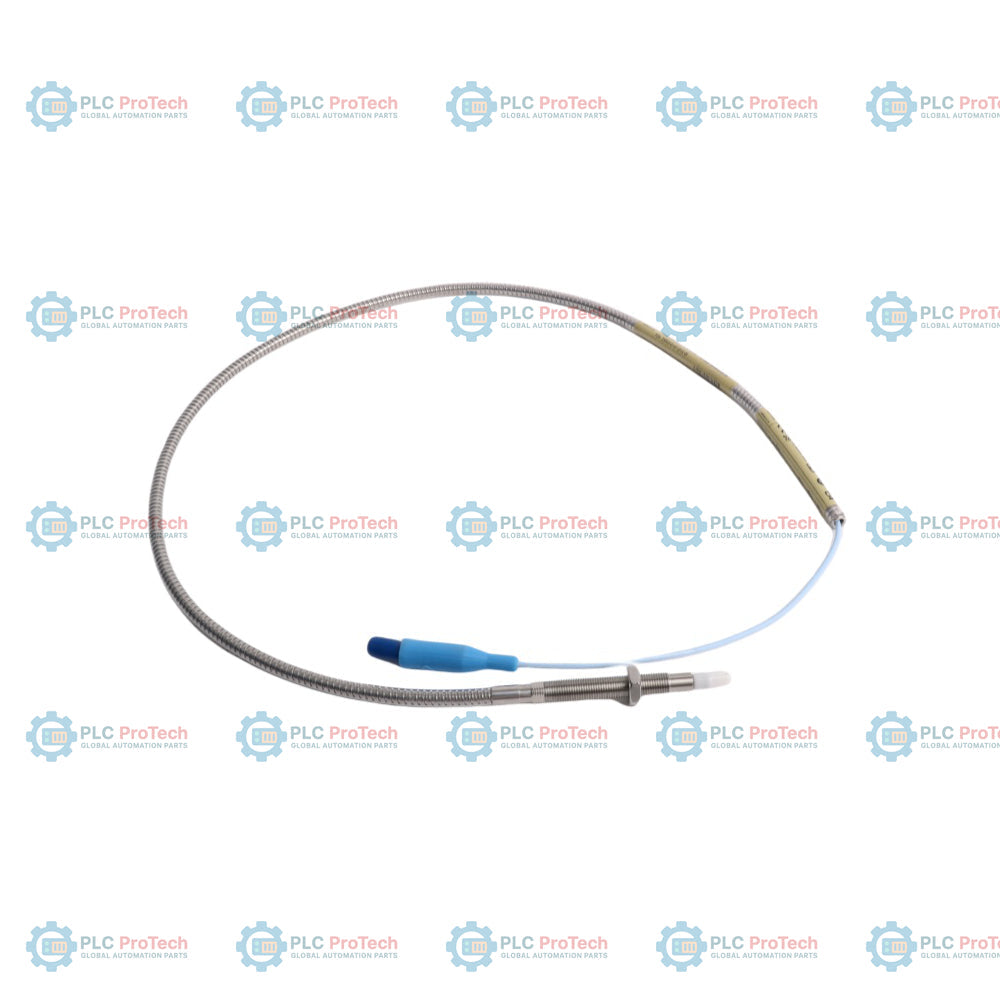

330910-01-08-10-01-05 specifies this 3300 NSv proximity probe configuration featuring an M10x1 metric thread with stainless steel armor, a 10 mm unthreaded length, an 80 mm case length, a 1.0 m total length, a ClickLoc connector with protector, and multiple agency approvals. This transducer component is used for non-contact shaft vibration and axial position measurement on high-speed equipment where mounting clearance is tightly constrained and a reduced target area is present.

This configuration incorporates flexible stainless steel armor to provide physical protection for the FEP-insulated coaxial cable in demanding machine casings, contrasting with unarmored configurations such as the 330905 probe. The inclusion of a pre-installed fluorosilicone connector protector (Option 01) seals the miniature coaxial ClickLoc connection against turbine oil, humidity, and atmospheric particulate ingress, differentiating it from standard non-protected configurations (Option 02).

Features

• Option 01 unthreaded length: Identifies a 10 mm unthreaded probe case length.
• Option 08 case length: Provides an 80 mm overall metric case length with M10x1 threads.
• Option 10 total length: Configured with a 1.0 m (39 inches) FEP-insulated coaxial probe lead.
• Option 01 connector: Features a miniature male coaxial ClickLoc connector with a pre-installed protective sleeve.
• Option 05 agency approval: Certified with multiple hazardous area approvals for zone-classified environments.
• Stainless steel armor: Features flexible AISI 302 stainless steel armor for protection against physical wear and abrasion.

Applications

This proximity probe is used in the following industrial scenarios:

• Radial vibration and axial position measurements on small shaft diameters under 20 mm (0.8 in).
• Vibration monitoring on high-speed turbomachinery and aeroderivative gas turbines.
• Small-bore machinery and process compressors with restricted internal mounting clearance.
• Hazardous-area rotating machinery installations requiring certified, armored instrumentation.

Ordering Information

Technical Specifications

Installation Guidelines

• The maximum thread engagement length for M10x1 probe threads is 15 mm. Thread engagement exceeding this limit may result in binding during installation.
• Mount the probe case using the recommended torque of 11.3 N m (100 in lb), ensuring that the torque does not exceed the maximum rated limit of 33.9 N m (300 in lb).
• Ensure the armored cable lead is routed with a bend radius of at least 25.4 mm (1.0 in) to prevent internal conductor damage.
• Verify that the total combined length of this 1.0 m probe and the mating extension cable equals the required system length of the calibrated 3300 XL NSv Proximitor (typically 5.0 m or 7.0 m).
• Utilize the pre-installed fluorosilicone connector protector to completely seal the connection interface against industrial fluids and machine oils.

Compliance and Certifications

This probe configuration carries the following hazardous area certifications under Option 05:

• CSA/NRTL/C: Class I, Zone 0, Ex ia IIC T5...T1; Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class III
• ATEX/IECEx: Ex ia IIC T5...T1 Ga; Ex ia IIIC T90 degC...T280 degC Dc
• EPL Ga and Gc, with temperature classifications specified based on local ambient installation temperature.
