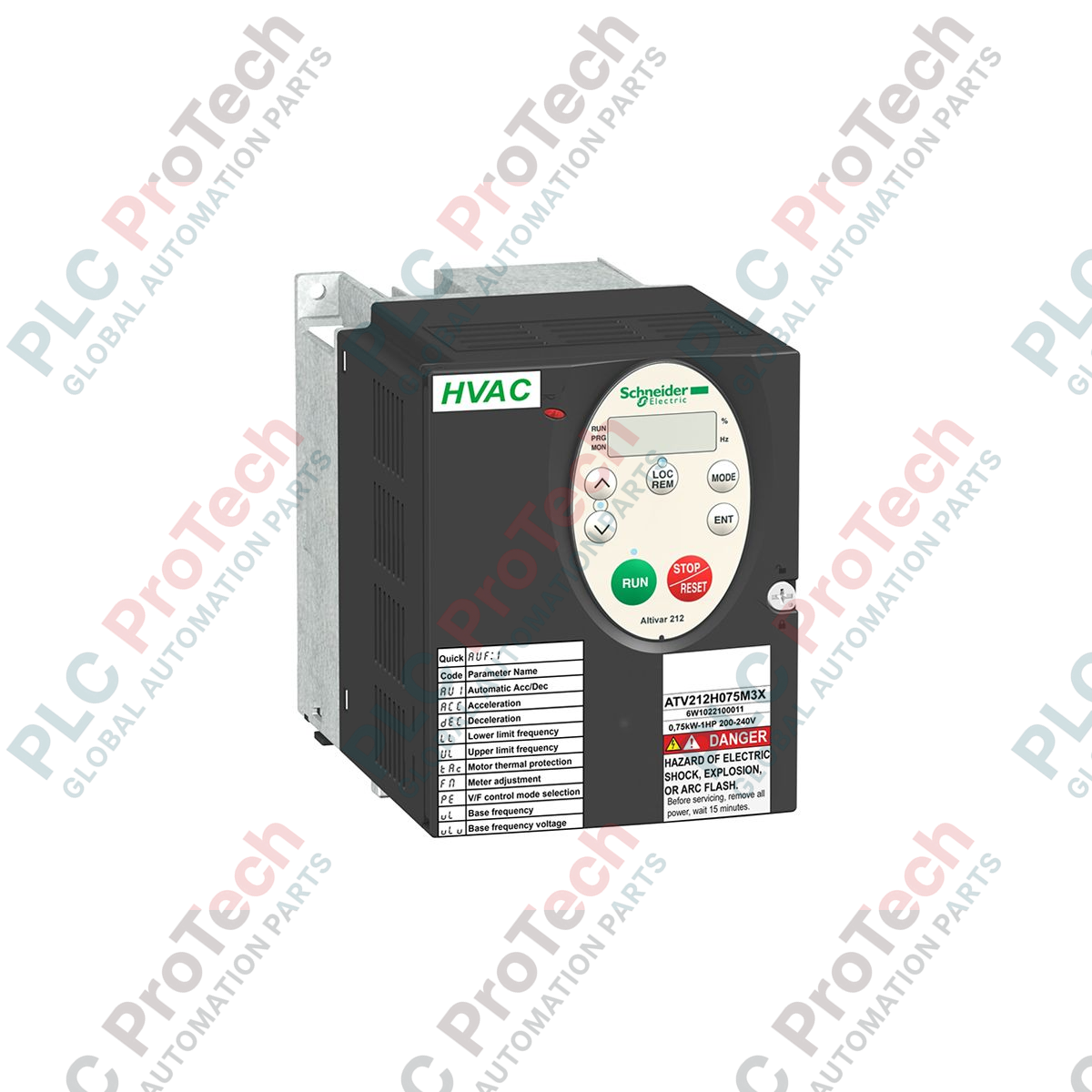

Schneider Electric ATV212H075M3X Altivar 212 Variable Frequency Drive

Description

The ATV212H075M3X is a compact Altivar 212 variable frequency drive (VFD) from Schneider Electric, optimized for building automation and pump/fan control applications. This drive provides a power rating of 0.75 kW and is designed for operation with 240 V 3-phase supply voltages. Housed in an IP21-rated enclosure, the unit is suitable for wall-mounted installation in protected industrial or building electrical areas. This model is a "without EMC filter" version, offering a streamlined solution for applications where external filtering or specific electrical noise mitigation strategies are employed.

Features

• Series: Altivar 212
• Power Rating: 0.75 kW
• Input Voltage: 240 V 3-phase
• Protection Rating: IP21
• Design: Compact footprint for space-constrained installations

Applications

• Commercial HVAC systems
• Pump and fan control for building management
• Small-scale industrial ventilation
• Process automation in non-harsh environments

Technical Specifications

Installation Guidelines

• Mounting: Install in a vertical position on a flat, rigid surface within a clean, climate-controlled environment. Ensure adequate clearance for airflow above and below the device.
• Environment: The operating area must be free of conductive dust, moisture, and corrosive gases.
• Wiring: Connect 3-phase power input and motor cables securely. Because this model lacks an integrated EMC filter, implement proper shielding and grounding practices for cables to prevent interference with other sensitive electronic equipment.
• Grounding: Maintain a secure connection to the system earth bus to ensure safe operation and reduce common-mode noise.
• Cooling: Ensure the installation area provides natural or forced ventilation to prevent thermal shutdown of the drive during peak operational loads.
