Description

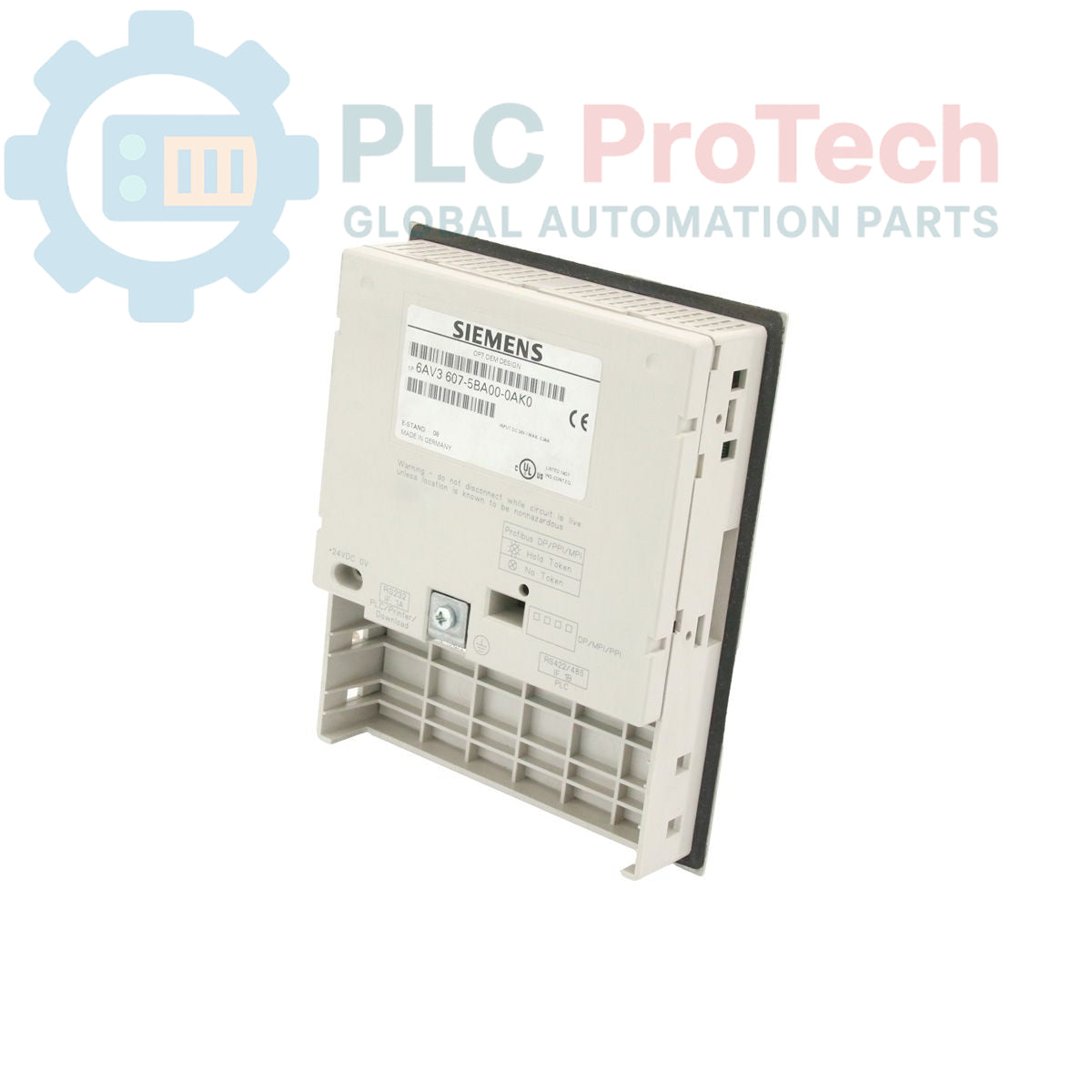

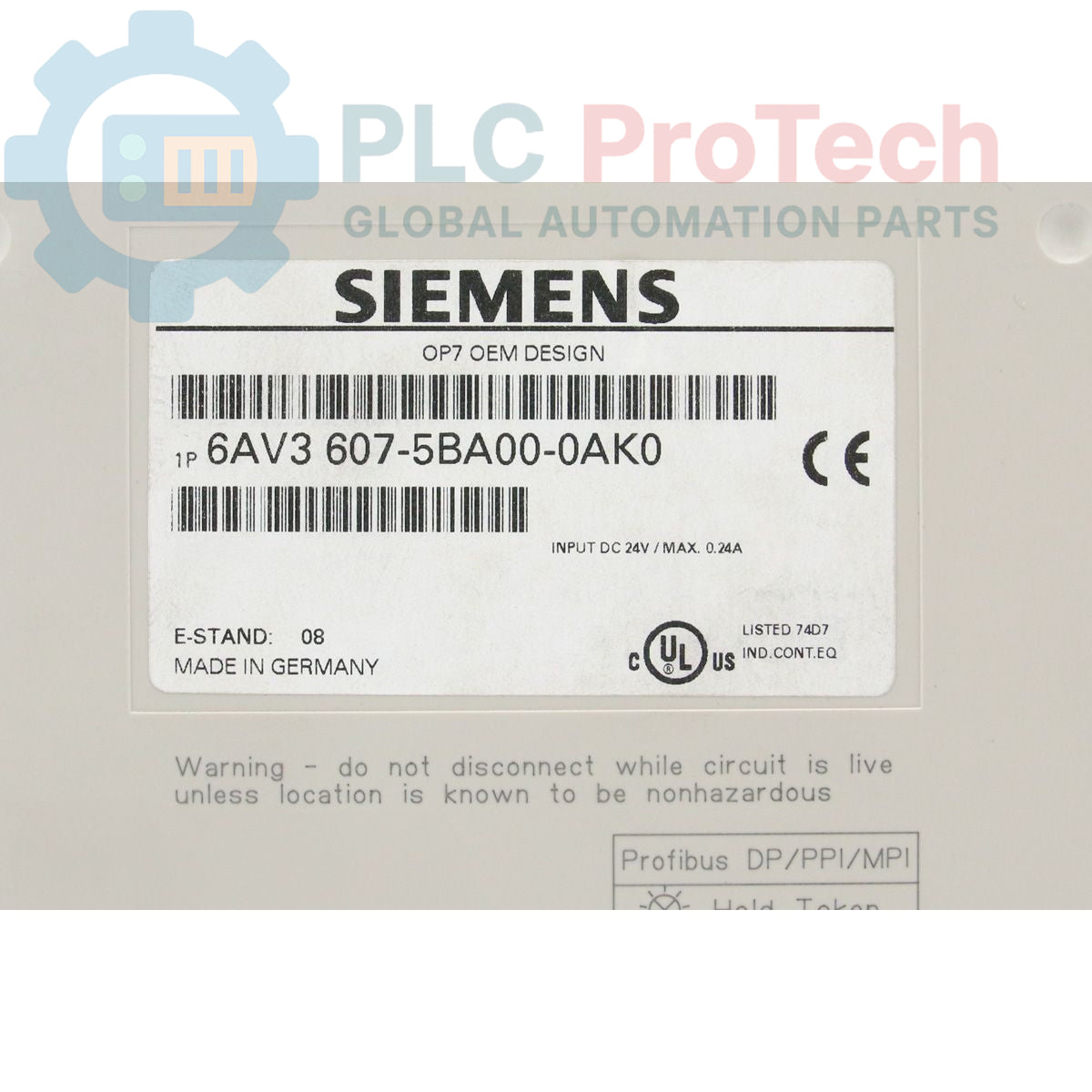

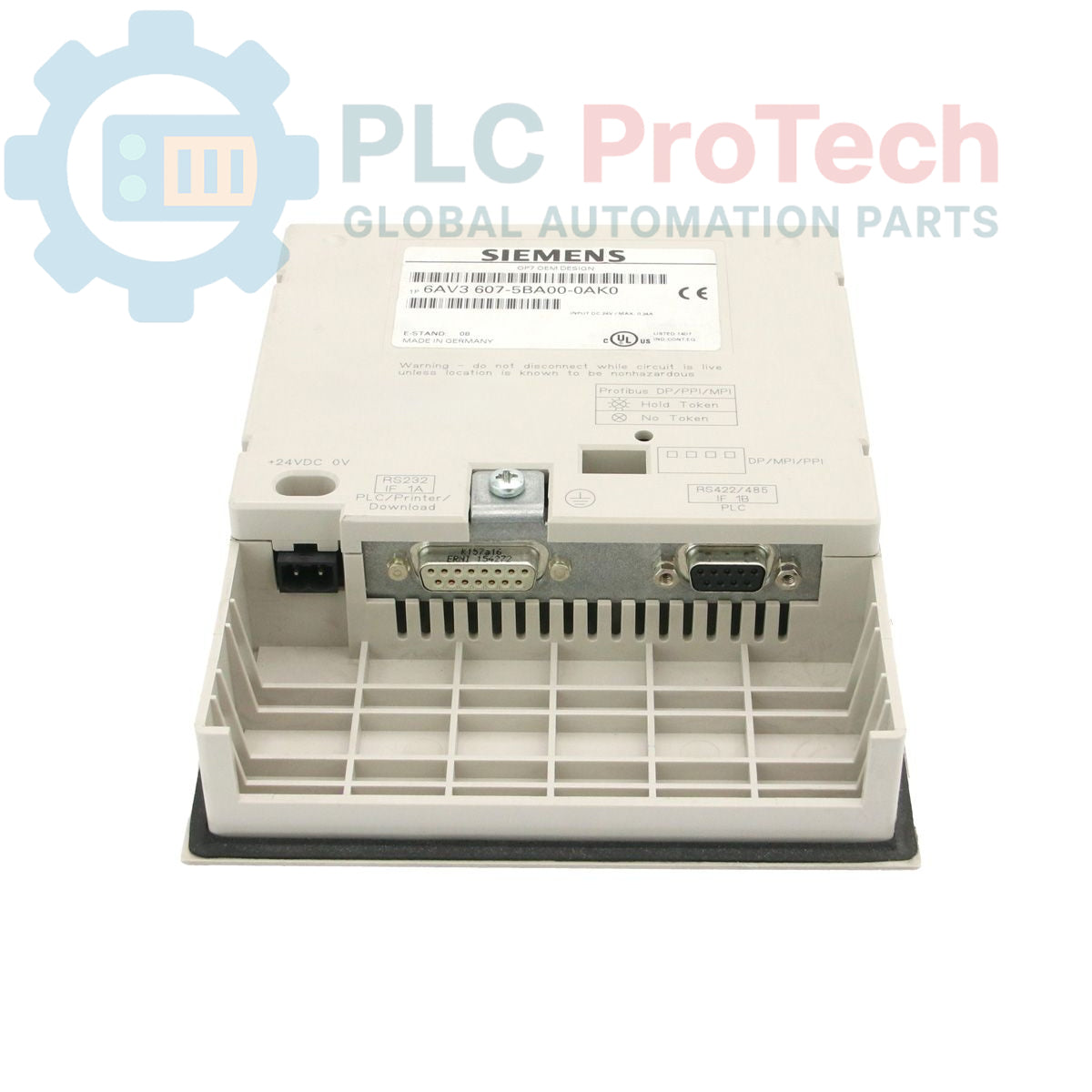

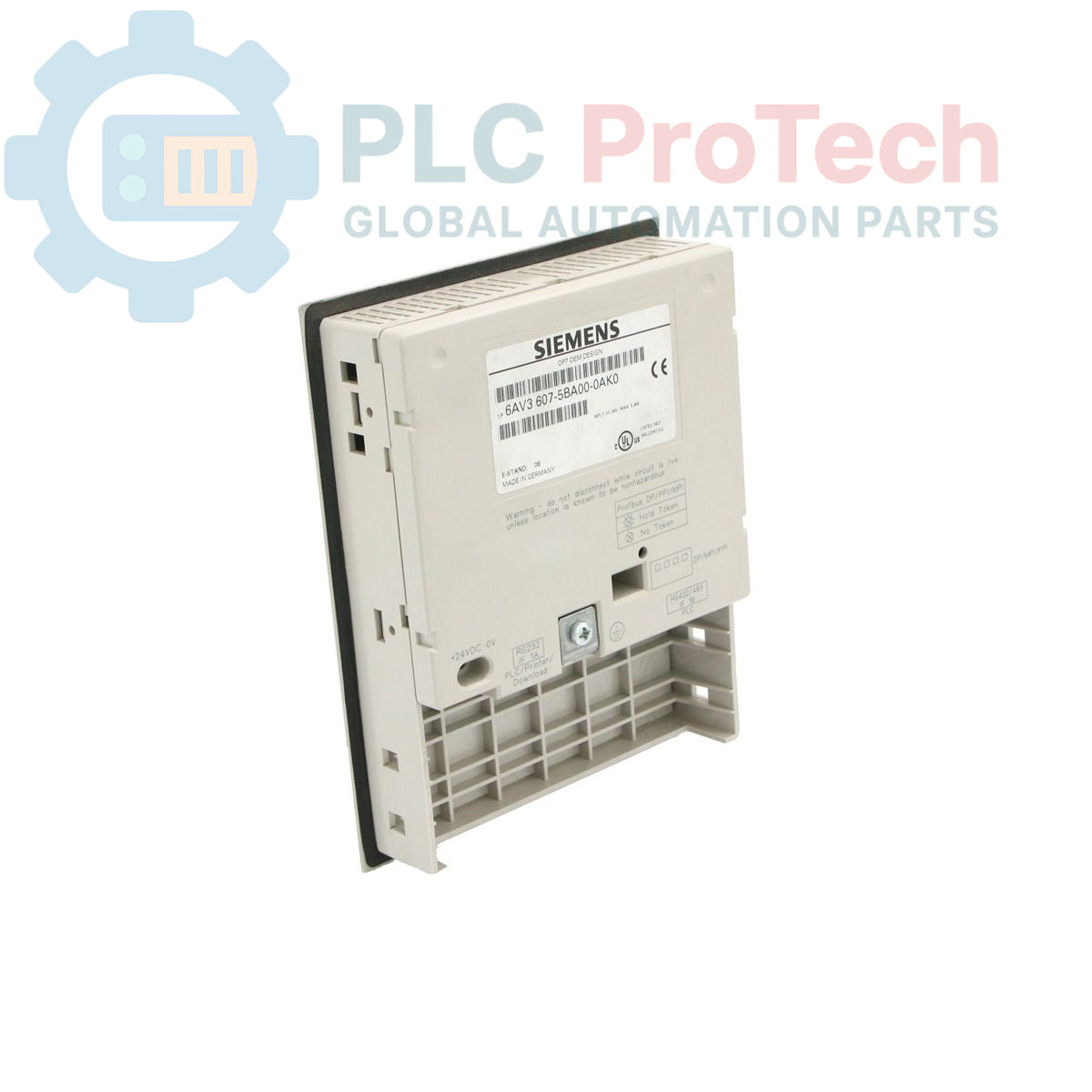

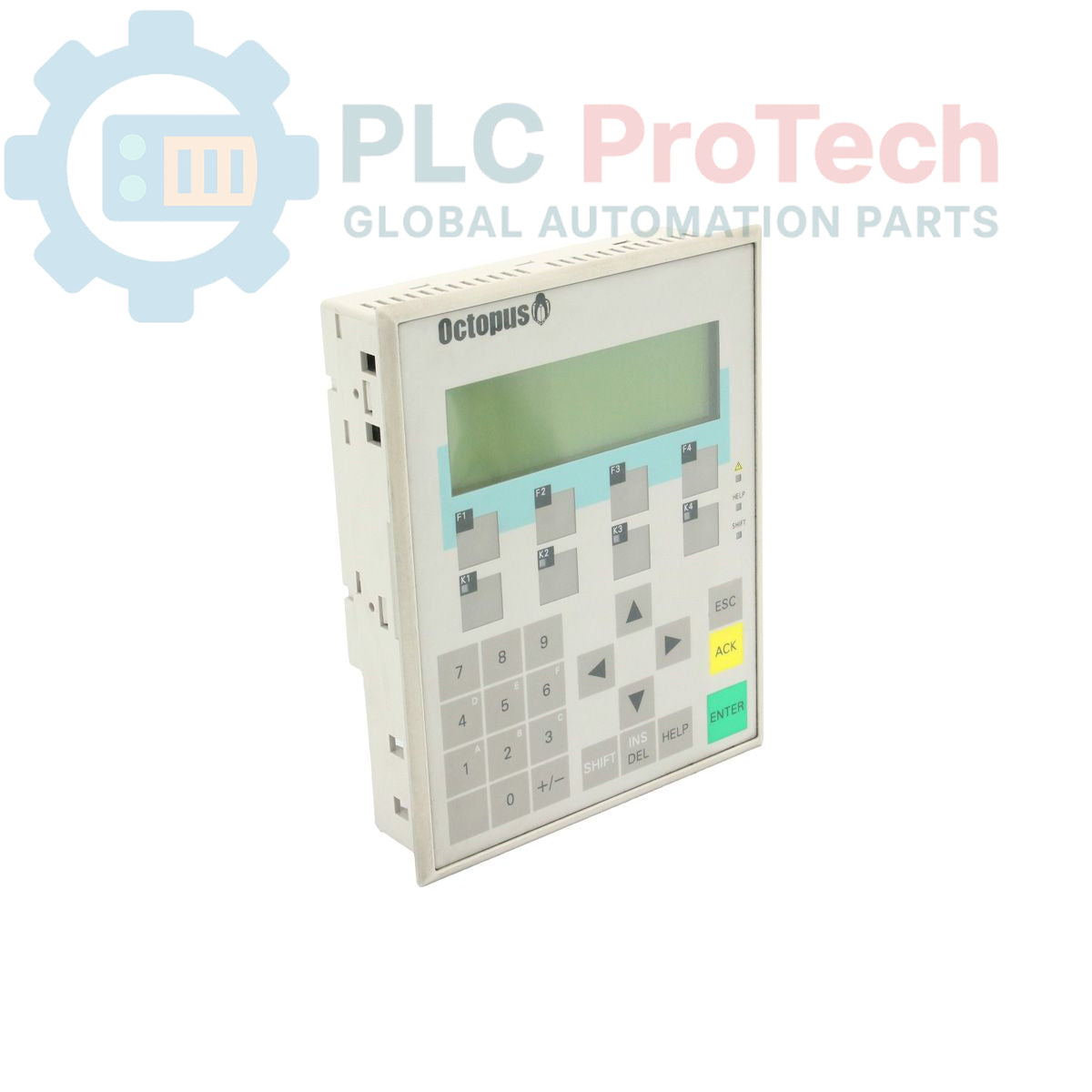

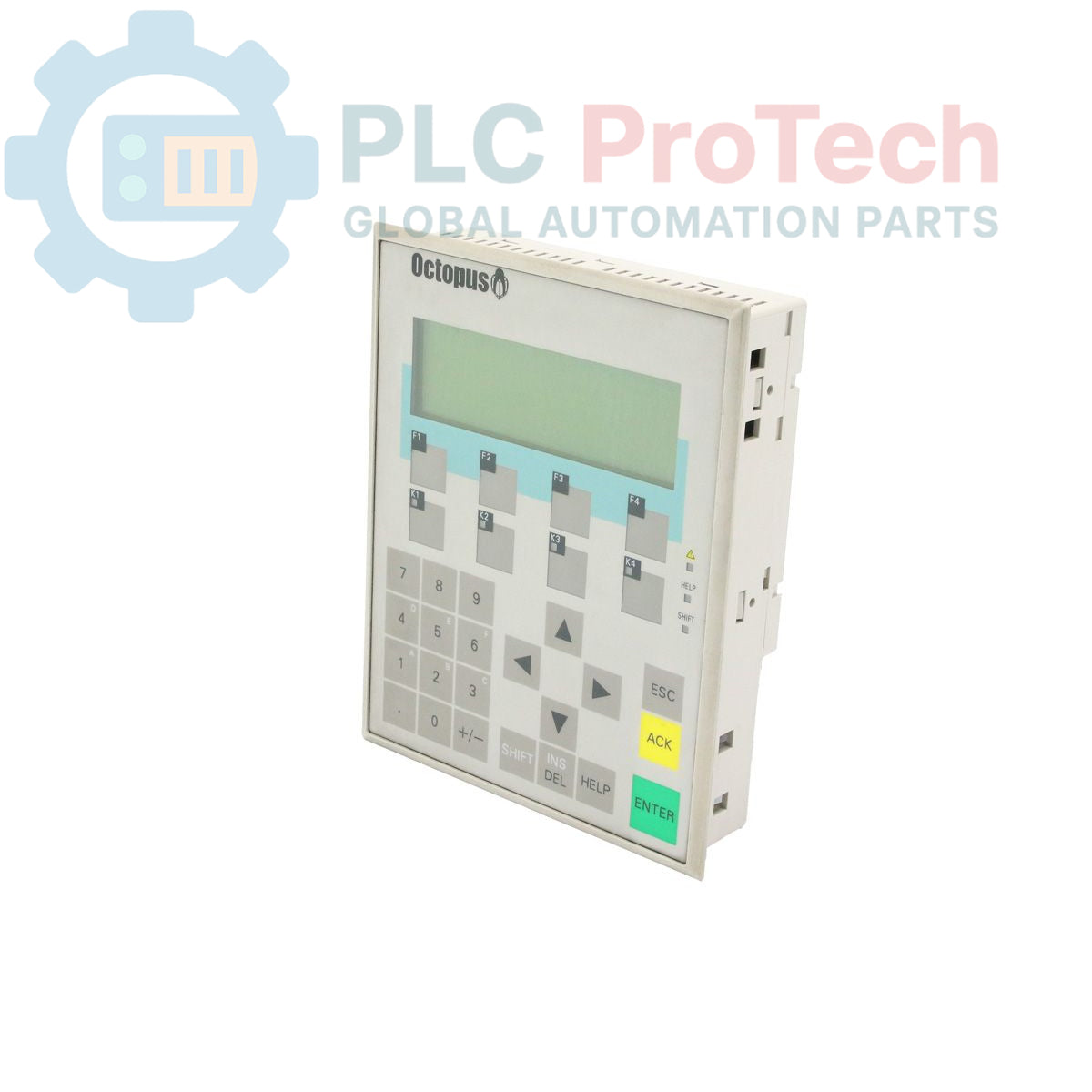

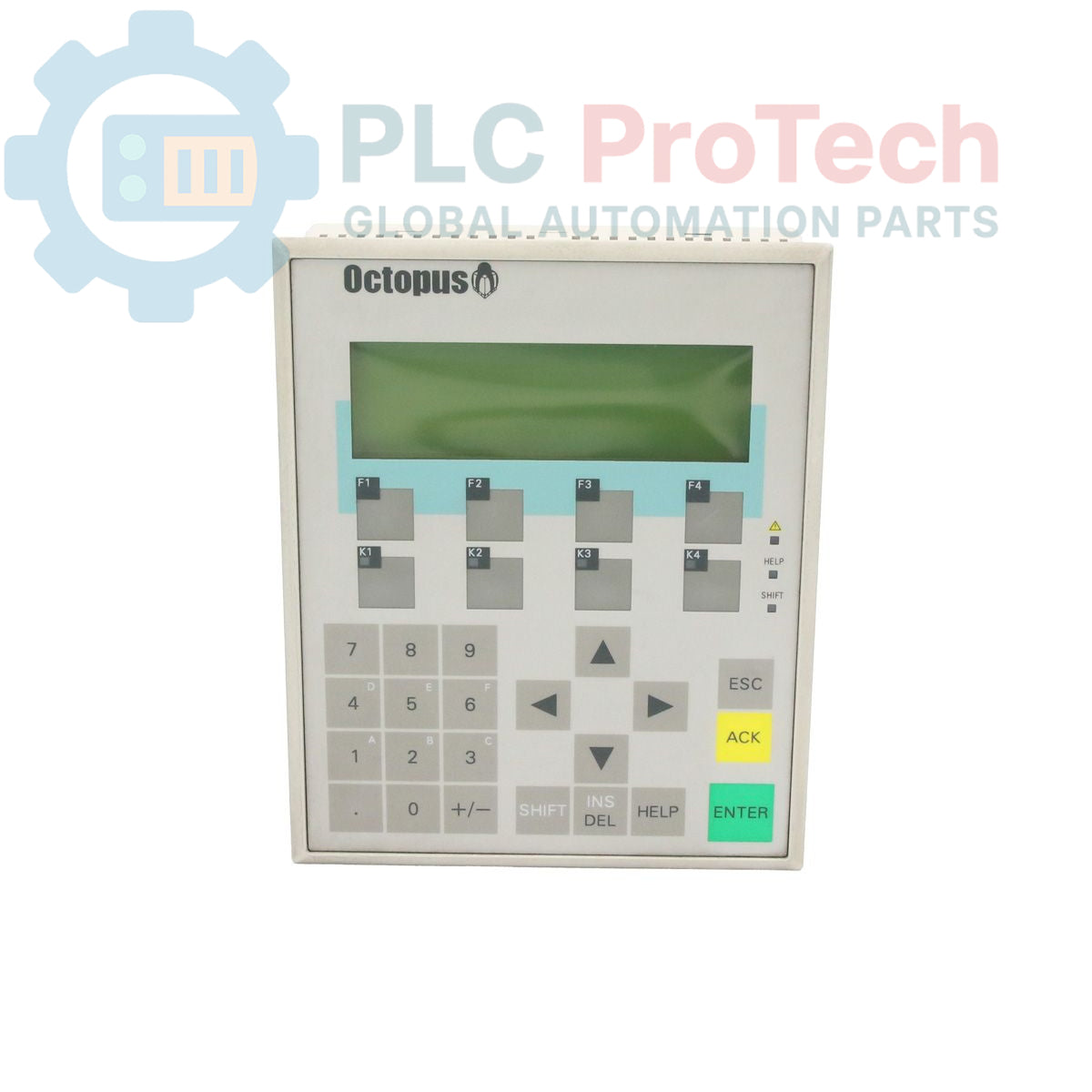

The 6AV3607-5BA00-0AK0 is a specialized SIMATIC HMI OP7/PP operator panel configured for specific machine integration. This unit is a customer-specific version, originally developed for the Haloila-Octopus system, and is supplied with a standard front interface. As part of the OP7 series, it provides essential HMI functionality for machine-level control, status monitoring, and parameter adjustment. The panel is designed to offer reliable human-machine interaction within the SIMATIC automation environment. Please note that this unit is categorized as an obsolete product.

Features

• Based on the proven OP7/PP operator panel architecture
• Features a standard front design for consistency in operation
• Engineered for specific industrial machine control (Haloila-Octopus integration)
• Compact form factor suitable for panel-mount applications
• Robust interface for process management and data entry

Applications

• Human-Machine Interface for machine control systems
• Status monitoring and alarm management
• Parameter entry and process adjustment
• Legacy system maintenance for Haloila-Octopus platforms
• Integration into Siemens SIMATIC industrial automation environments

Technical Specifications

Installation Guidelines

• Panel Cutout: Ensure the enclosure cutout dimensions are precise to allow for a secure fit and to maintain the integrity of the front seal.
• Mounting: Use the provided clamping elements to secure the panel evenly against the panel surface, preventing vibrations during machine operation.
• Electrical Connection: Verify that the power supply and communication interface pins align with the wiring requirements of your specific control system configuration.
• Cleaning: Clean the front panel membrane only with a soft, damp cloth. Avoid the use of aggressive chemical solvents that could damage the overlay.
