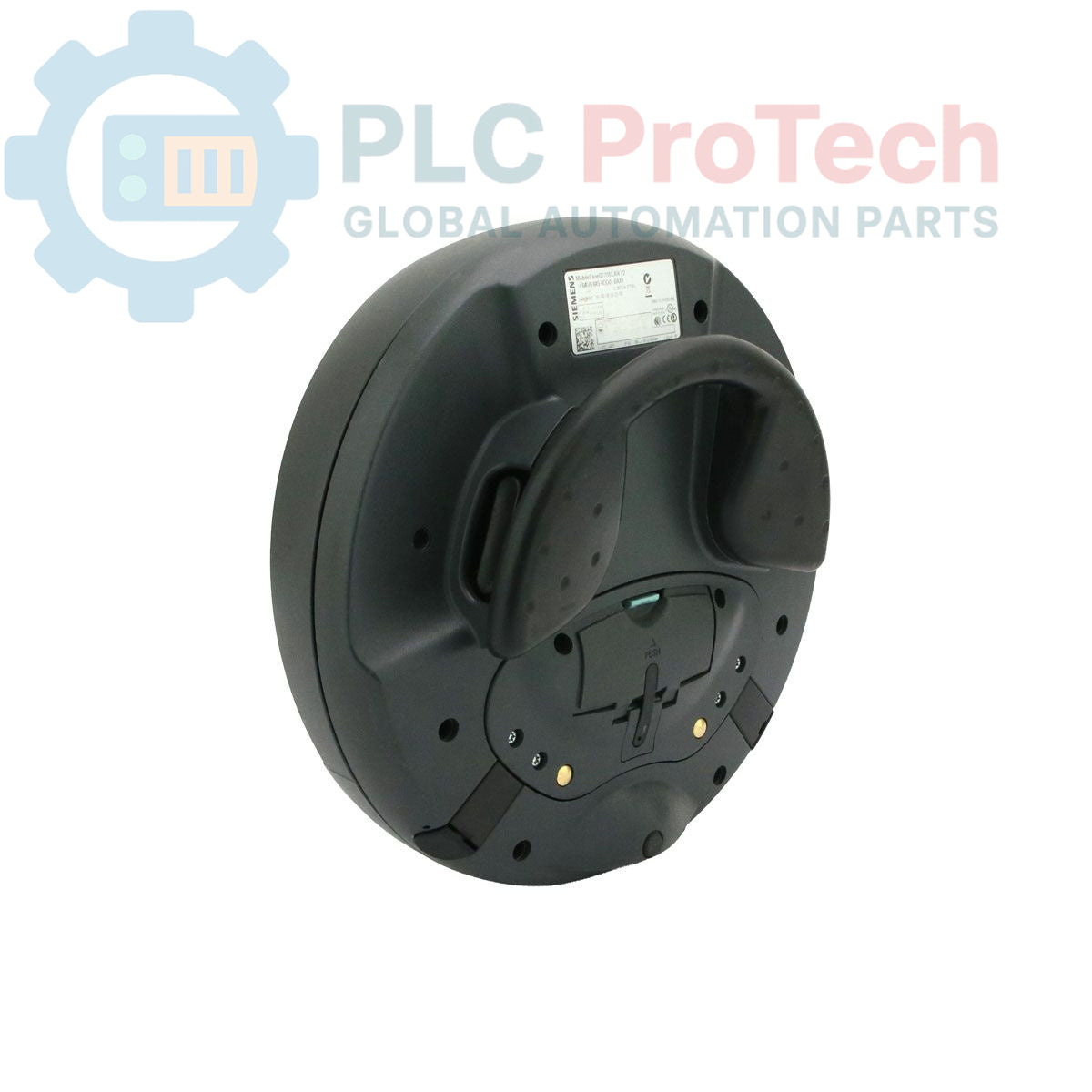

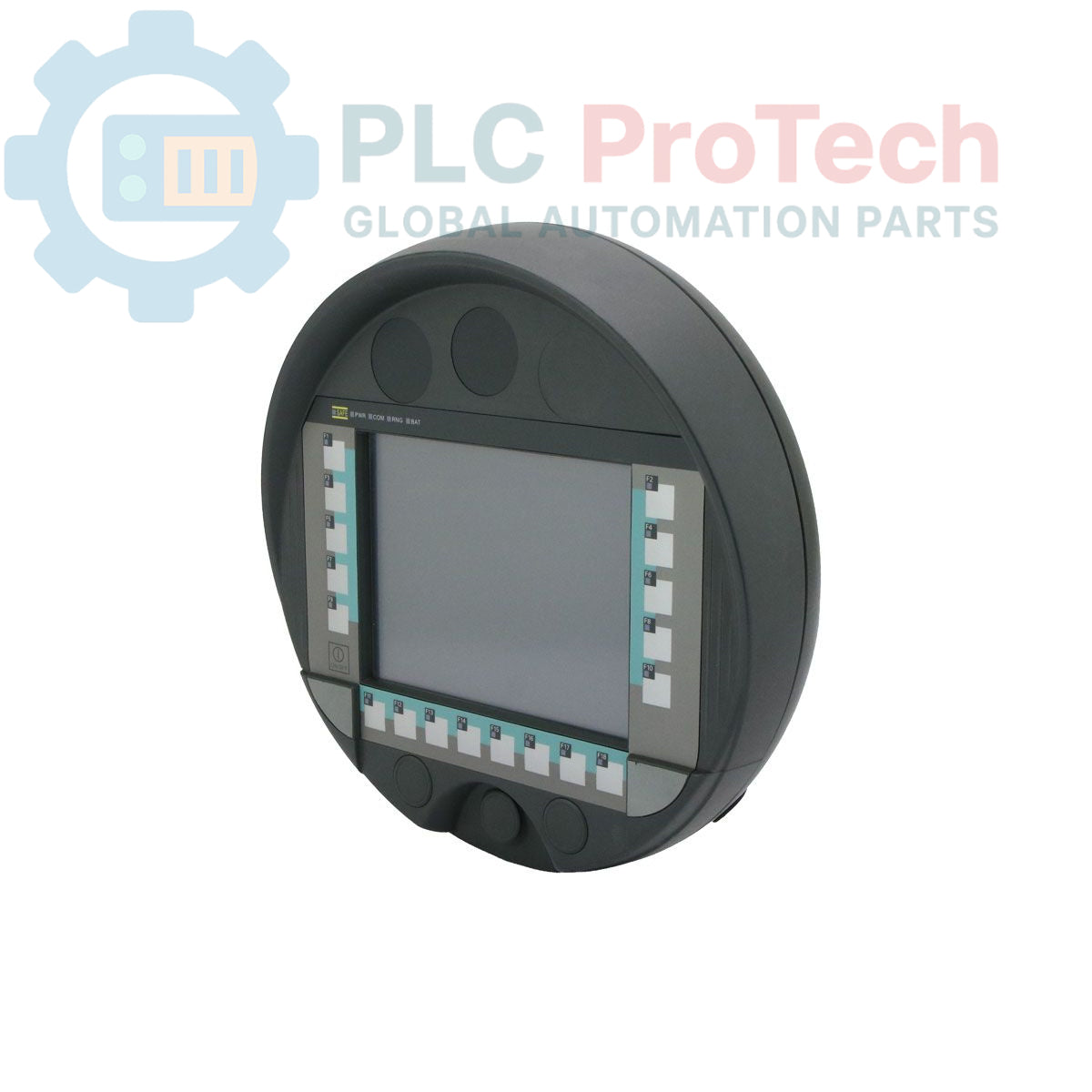

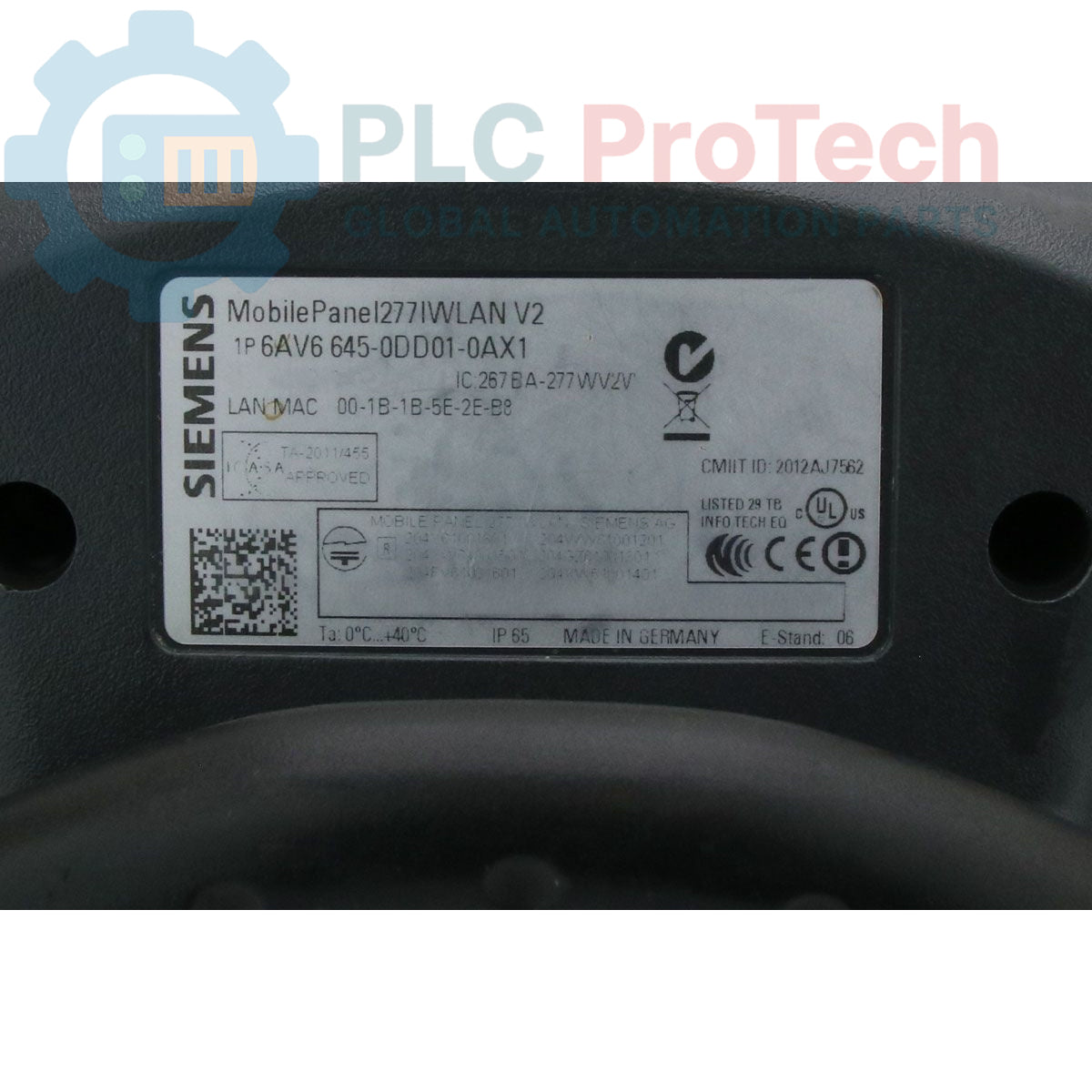

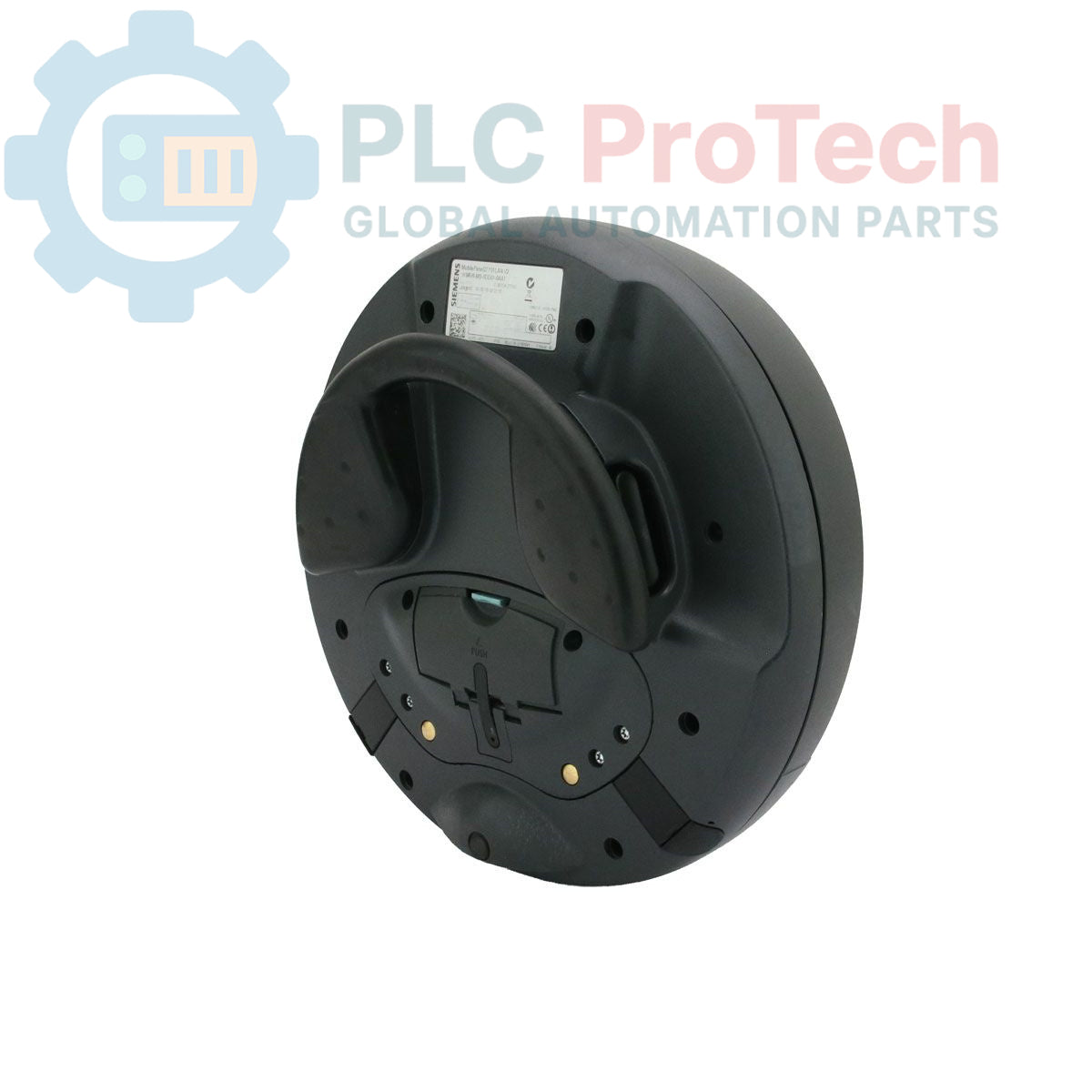

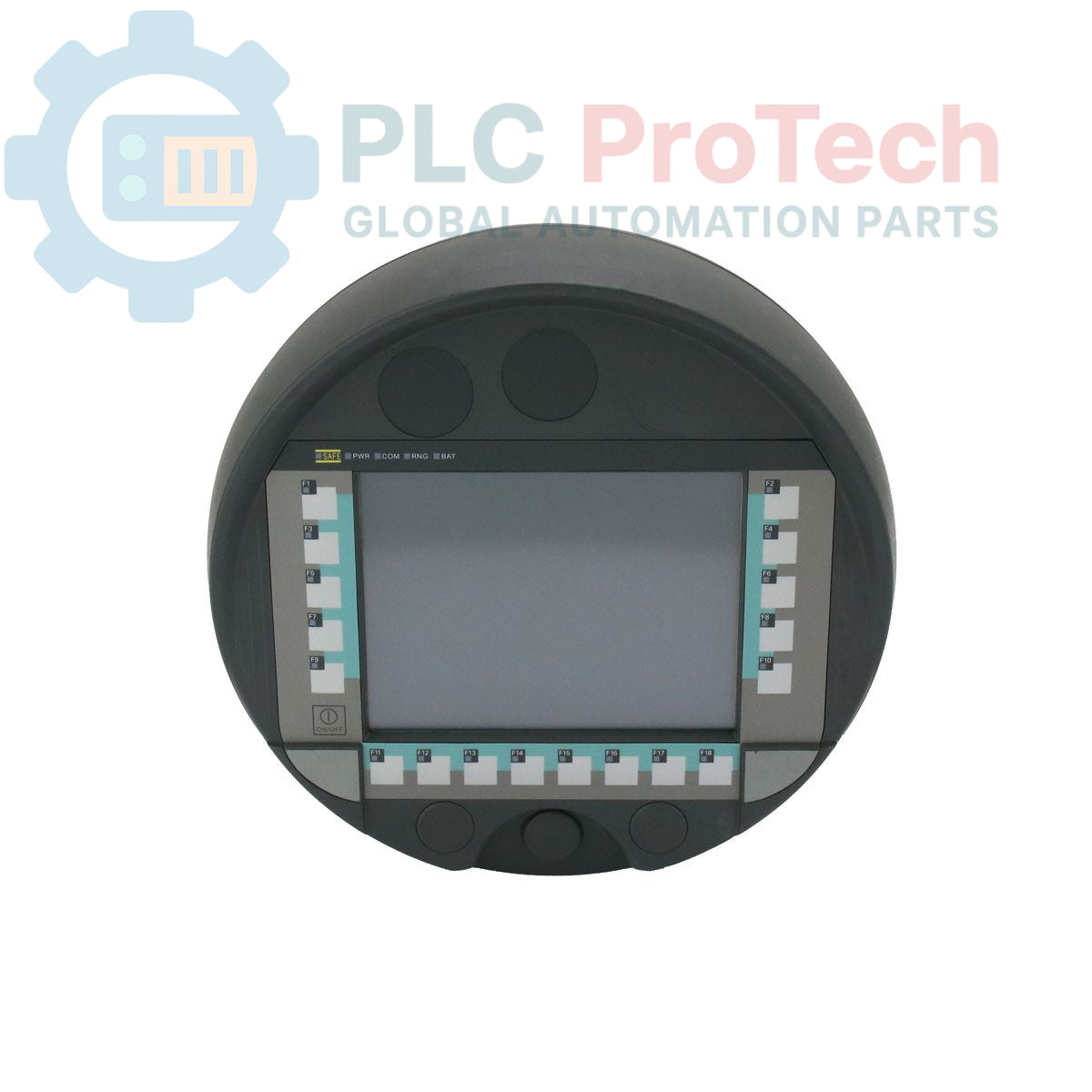

Siemens 6AV6645-0DD01-0AX1 SIMATIC HMI Mobile Panel 277 IWLAN V2

Only 4 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV6645-0DD01-0AX1
Country of origin:آلمان
Product Type: HMI Mobile Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 3300g
Dimensions: 35.6 x 33.7 x 18.0 cm
Shipping port: Xiamen
Warranty: 12 months

View full details

Description

The Siemens 6AV6645-0DD01-0AX1 is a SIMATIC Mobile Panel 277 IWLAN V2, a robust handheld Human Machine Interface (HMI) designed for flexible control and monitoring in industrial environments. This panel features a 7.5-inch TFT color display with a resolution of 640 x 480 pixels and supports both touchscreen and key-based operation. It is engineered for wireless connectivity via IWLAN and supports the PROFINET protocol for seamless integration into modern automation systems. Configuration is performed using WinCC flexible Standard Version 2008 or higher, or TIA Portal V11 SP2 or higher. This unit includes one main battery for cordless operation. Please note that the power supply and charging accessories are not included and must be ordered separately.

Features

7.5-inch TFT color display with 65,536 colors
Dual operator input via touchscreen and physical keys
Wireless communication through Industrial WLAN (IWLAN)
Supports PROFINET communication protocol
Includes one main battery for mobile use
6144 kbyte of user memory for HMI projects
Configurable with WinCC flexible 2008 or TIA Portal V11 SP2 and later versions

Applications

Mobile machine diagnostics and commissioning
Process control and monitoring on large production lines
Flexible manufacturing cells and robotics
Warehouse and material handling systems
Plant-wide operator access for maintenance tasks

Required Accessories (Order Separately)

Part Number	Description
6AV6671-5CE00-0AX1	Charging Station
6AV6671-5CN00-0AX2	Tabletop Power Supply Unit (EU/US/UK/JP)

Technical Specifications

General Information
Manufacturer	Siemens
Product Series	SIMATIC HMI
Product Family	Mobile Panels (1st generation)
Part Number	6AV6645-0DD01-0AX1
Product Lifecycle	Phase-Out
Predecessor	6AV6645-0DD01-0AX0
Display & Operation
Display Type	TFT
Screen Diagonal	7.5 inch
Resolution	640 x 480 pixels
Color Support	Yes, 65,536 colors
Operator Input	Touchscreen and Keys
System & Power
User Memory	6144 kbyte
Supply Voltage	24V DC
Supported Protocol	PROFINET
IO-Link Master	No
Logistics
Shipping Weight	3.30 kg
Package Dimensions (Calculated)	35.6 x 33.7 x 18.0 cm
Commodity Code	85371091
ECCN	5D992
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: To prevent equipment damage, fire, or personal injury, use only Siemens-specified batteries, power supplies, and charging stations designed for this model. Use of unauthorized accessories will void the warranty and may create a safety hazard.

1 Unpack and inspect the Mobile Panel and included battery for any signs of physical damage incurred during shipping. Do not use if damage is apparent.
2 Install the main battery into the rear compartment of the panel. Ensure the locking mechanism is fully engaged to secure the battery.
3 Before first use, fully charge the battery using the separately ordered charging station (6AV6671-5CE00-0AX1) or tabletop power supply (6AV6671-5CN00-0AX2).
4 Configure the device's IWLAN settings to connect to the facility's industrial wireless network according to site-specific security and network policies.
5 Download the HMI application project from the engineering station to the Mobile Panel via the configured network connection.
