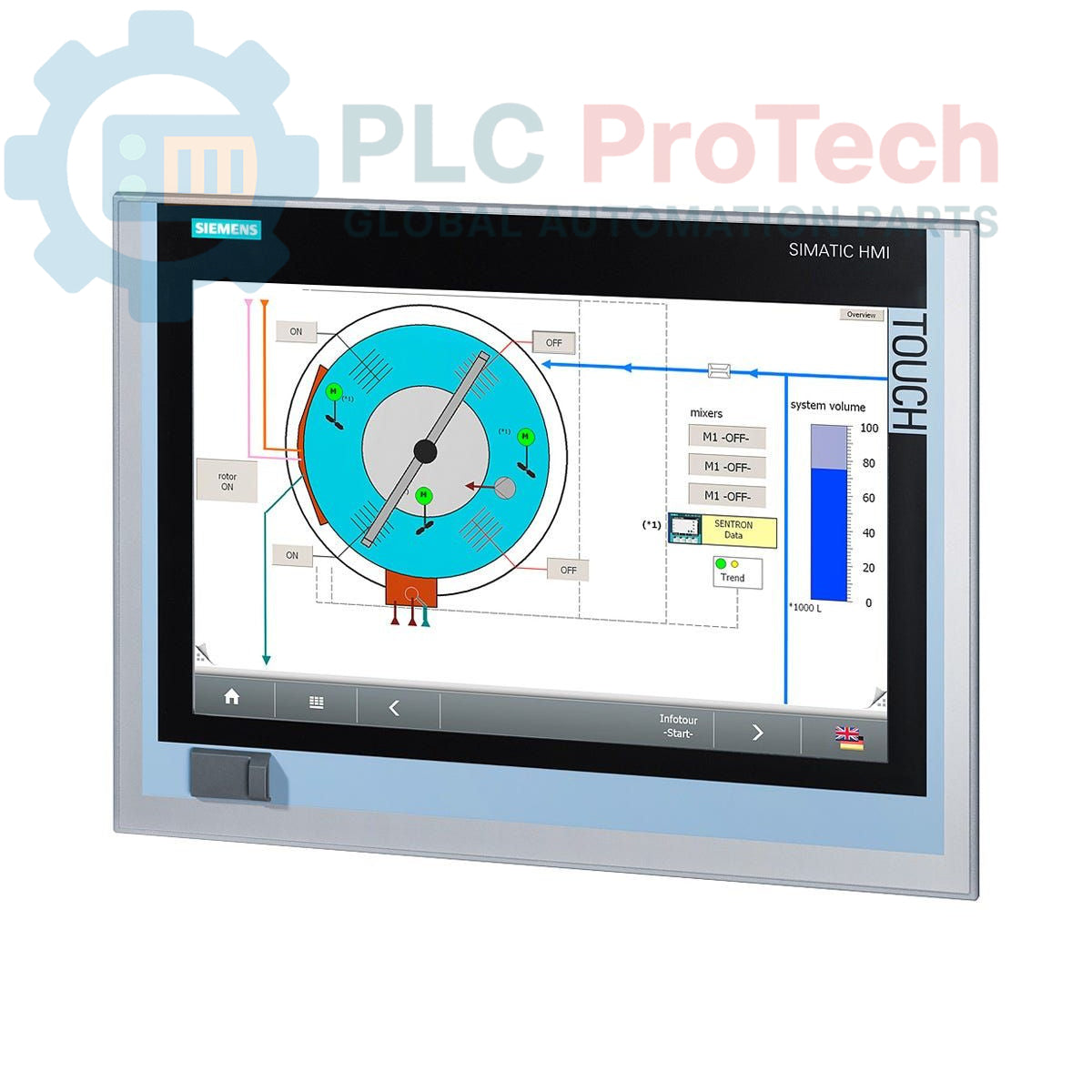

Siemens 6AV7240-3BC16-0QA0 SIMATIC IPC 477D Panel PC

فقط 4 قلم(های) کالا در انبار باقی مانده است

تولیدکننده: Siemens
شماره محصول: 6AV7240-3BC16-0QA0
کشور سازنده:آلمان
نوع محصول: Industrial Panel PC
بارکد: 84714100
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 5g
ابعاد: 43.20 x 27.90 x 12.70 cm
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

The Siemens 6AV7240-3BC16-0QA0 is a SIMATIC IPC 477D Industrial Panel PC featuring a 15-inch touch display. This robust industrial computer is equipped with an Intel Core I3-3217UE processor, 4 GB of RAM, and a 320 GB SATA HDD for reliable operation in demanding environments. It comes pre-installed with Windows 7 Ultimate (32-bit) and is designed for industrial automation applications, powered by a 24 V DC industrial power supply. The unit offers versatile connectivity with multiple USB ports, Gigabit Ethernet interfaces for Industrial Ethernet/PROFINET, an RS232 serial port, and a PCIE expansion slot.

Features

15-inch Touch Display
Intel Core I3-3217UE Processor
4 GB RAM
320 GB SATA Hard Disk Drive
Pre-installed Windows 7 Ultimate (32-bit)
Multiple USB, Ethernet, RS232, and PCIE Interfaces
24 V DC Industrial Power Supply
Replaceable without drive (storage)
Includes DVD drive

Applications

The Siemens SIMATIC IPC 477D Panel PC is suitable for a wide range of industrial applications requiring a compact, robust, and reliable human-machine interface and control platform. Typical deployments include:

Machine control and visualization
Process monitoring and data acquisition
Operator stations in manufacturing plants
Building automation systems
Logistics and material handling systems
Embedded control solutions

Technical Specifications

Manufacturer	Siemens
Range	Simatic Panel PC
Subrange	IPC
Product Type	Industrial PCs
PLM Product Phase	Phase-Out
Display Size	15-inch
Display Type	Touch
Processor	Core I3-3217UE
RAM	4 GB
Storage	320 GB HDD SATA
Operating System	Windows 7 Ultimate, 32-bit
Optical Drive	DVD
Power Supply	24 V DC industrial
Included Software	Without SIMATIC software
Replaceability	Replaceable without drive
Package Dimensions (Calculated)	43.20 x 27.90 x 12.70 cm
Shipping Weight	5.00 kg
Commodity Code	84714100
Export Control Regulations (ECCN)	5A992

Connections / Interfaces

Interface Type	Quantity / Details
USB	4 (rear), 1 (front)
Ethernet	1x 10/100/1000 Mbps, 2x Gbit Ethernet (IE/PN)
RS232	1x
PCIE	1x

Installation Guidelines

Proper installation ensures the longevity and reliable operation of the SIMATIC IPC 477D.

Power De-energization: Always ensure that the power supply to the installation area is completely de-energized and locked out before beginning any installation or maintenance work.
Mounting: Mount the Panel PC securely into a panel cutout or enclosure, ensuring adequate clearance for ventilation and cable routing.
Power Connection: Connect the 24 V DC industrial power supply to the designated terminals, observing correct polarity. Verify the power supply meets the specified voltage and current requirements.
Grounding: Ensure proper grounding of the unit to the protective earth (PE) of the control cabinet or machine frame to minimize electrical noise and ensure safety.
Interface Connections: Connect all necessary peripheral devices and network cables (Ethernet, USB, RS232) to their respective ports. Use shielded cables for communication interfaces where required by the application environment to reduce electromagnetic interference.
Cable Routing: Route power and signal cables separately to prevent interference. Secure cables to prevent strain on connectors.
Environmental Conditions: Ensure the operating environment adheres to the specified temperature, humidity, and vibration limits for industrial PCs to prevent premature failure.
Initial Power-Up: After all connections are secure, re-energize the power supply and observe the system's startup sequence.

Key Features:

#Industrial Panel PC #SIMATIC IPC 477D

What operating system is pre-installed on the 6AV7240-3BC16-0QA0?

The Panel PC comes with Windows 7 Ultimate, 32-bit pre-installed.

What type of power supply does this industrial PC require?

It requires a 24 V DC industrial power supply.

Does this unit include SIMATIC software?

No, the 6AV7240-3BC16-0QA0 is supplied without SIMATIC software.

What are the main communication interfaces available?

It features multiple USB ports (4 rear, 1 front), three Ethernet ports (including two Gbit Ethernet for IE/PN), one RS232 serial port, and one PCIE expansion slot.

Can the storage drive be replaced easily?

Yes, the unit is designed to be replaceable without needing to remove the drive, simplifying maintenance.
