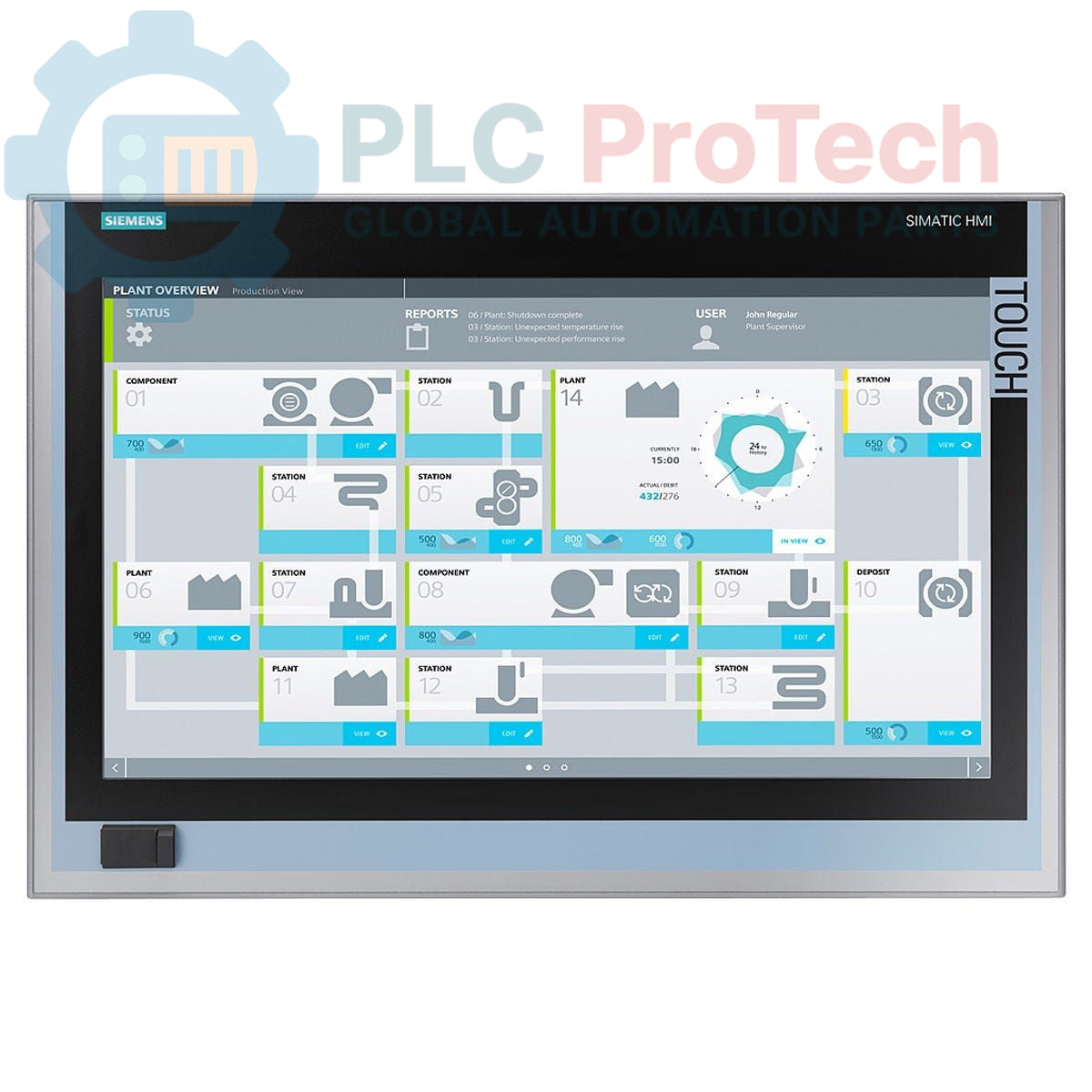

Siemens 6AV7260-0EA20-0AX0 SIMATIC IPC677D Panel PC

فقط 8 قلم(های) کالا در انبار باقی مانده است

تولیدکننده: Siemens
شماره محصول: 6AV7260-0EA20-0AX0
کشور سازنده:آلمان
نوع محصول: Industrial Panel PC
بارکد: 85371091
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 17g
ابعاد: 60.0 x 56.5 x 30.0 cm
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

This is a Siemens 6AV7260-0EA20-0AX0 SIMATIC IPC677D, an industrial panel PC designed for demanding automation, visualization, and control tasks. It integrates a 15-inch touchscreen display with a 1280x800 resolution and is powered by an Intel Core i3-4330TE processor. The system is configured with 4 GB of DDR3 RAM, a 500 GB SATA HDD, and comes pre-installed with the Windows 7 Ultimate 32-bit operating system. Connectivity options include dual Gigabit Ethernet, USB 3.0, and a PROFIBUS/MPI compatible interface. Integrated system monitoring for temperature and fan status, along with an onboard RAID controller, ensures operational reliability in industrial settings.

Features

Integrated 15-inch touchscreen display (1280x800).
Powered by an Intel Core i3-4330TE 2.4 GHz processor.
Pre-installed with Windows 7 Ultimate 32-bit SP1 (MUI).
Onboard PROFIBUS/MPI communication interface (CP 5622-compatible).
Dual Gigabit Ethernet ports for robust network connectivity.
Built-in monitoring for system temperature and fan status.
Includes an industrial AC 110/230V power supply with NAMUR compliance.

Applications

Human-Machine Interface (HMI) for process control and monitoring.
Data acquisition and logging in manufacturing environments.
SCADA system visualization and control nodes.
Industrial automation control rooms and operator stations.

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC IPC677D
Part Number	6AV7260-0EA20-0AX0
Product Type	Panel PC
Display Type	15" Touchscreen
Display Resolution	1280 x 800 pixels
CPU	Intel Core i3-4330TE (2C/4T, 2.4 GHz, 4 MB Cache, VT-x)
RAM	4 GB DDR3 1600 DIMM
Buffered SRAM	2 MB
Storage	500 GB HDD SATA
RAID Controller	Onboard
Operating System	Windows 7 Ultimate 32 bit SP1, MUI (DE, EN, FR, ES, IT)
Ethernet	2x 10/100/1000 Mbit/s
USB Ports	4x USB 3.0, 1x Front USB
Serial Port	1x COM1
Fieldbus	PROFIBUS/MPI (CP 5622-compatible)
Expansion Slots	2x PCI
System Monitoring	Watchdog, Temperature Monitoring, Fan Monitoring
Power Supply	AC 110/230V Industrial Power Supply with NAMUR
Included Cable	Power Supply Cable, Europe
Product Lifecycle Status	Phase-Out
Shipping Weight	17.00 kg
Commodity Code	85371091
ECCN	N
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	60.0 x 56.5 x 30.0 cm

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Installation must be performed by qualified personnel only. Failure to follow safety procedures can result in equipment damage, serious injury, or death. Always de-energize and apply Lockout/Tagout (LOTO) procedures before accessing electrical connections.

1 De-energize the control cabinet and verify the absence of voltage before beginning installation.
2 Verify the panel cutout dimensions match the IPC677D chassis specifications for a proper fit.
3 Mount the Panel PC into the cutout and secure it using all provided mounting clamps to ensure a stable installation and proper seal.
4 Connect the protective earth (PE) terminal to the cabinet's main grounding point using a low-impedance conductor.
5 Connect Ethernet, USB, serial, and PROFIBUS/MPI communication cables as required by the application.
6 Connect the AC 110/230V power supply cable to a properly rated and protected power source.
7 Ensure adequate ventilation clearance around the unit's heat sink and fan openings to prevent overheating.
8 Remove LOTO devices, re-energize the cabinet, and perform system boot checks to confirm functionality.

Key Features:

#Industrial Panel PC #SIMATIC IPC677D

What operating system is pre-installed on this IPC?

The 6AV7260-0EA20-0AX0 comes with Windows 7 Ultimate 32-bit Service Pack 1, with a multi-language user interface (MUI) for German, English, French, Spanish, and Italian.

What are the primary communication interfaces available?

It includes two Gigabit Ethernet ports (10/100/1000 Mbit/s), four USB 3.0 ports, one serial (COM1) port, and a PROFIBUS/MPI compatible interface.

What processor is used in this Panel PC?

This model is equipped with an Intel Core i3-4330TE processor, which has 2 cores, 4 threads, a clock speed of 2.4 GHz, and 4 MB of cache.

Does this unit support RAID configurations?

Yes, the SIMATIC IPC677D has a RAID controller integrated onboard for managing storage configurations.

What are the power supply requirements?

The unit includes an industrial power supply rated for AC 110/230V input and is supplied with a European power cable.
