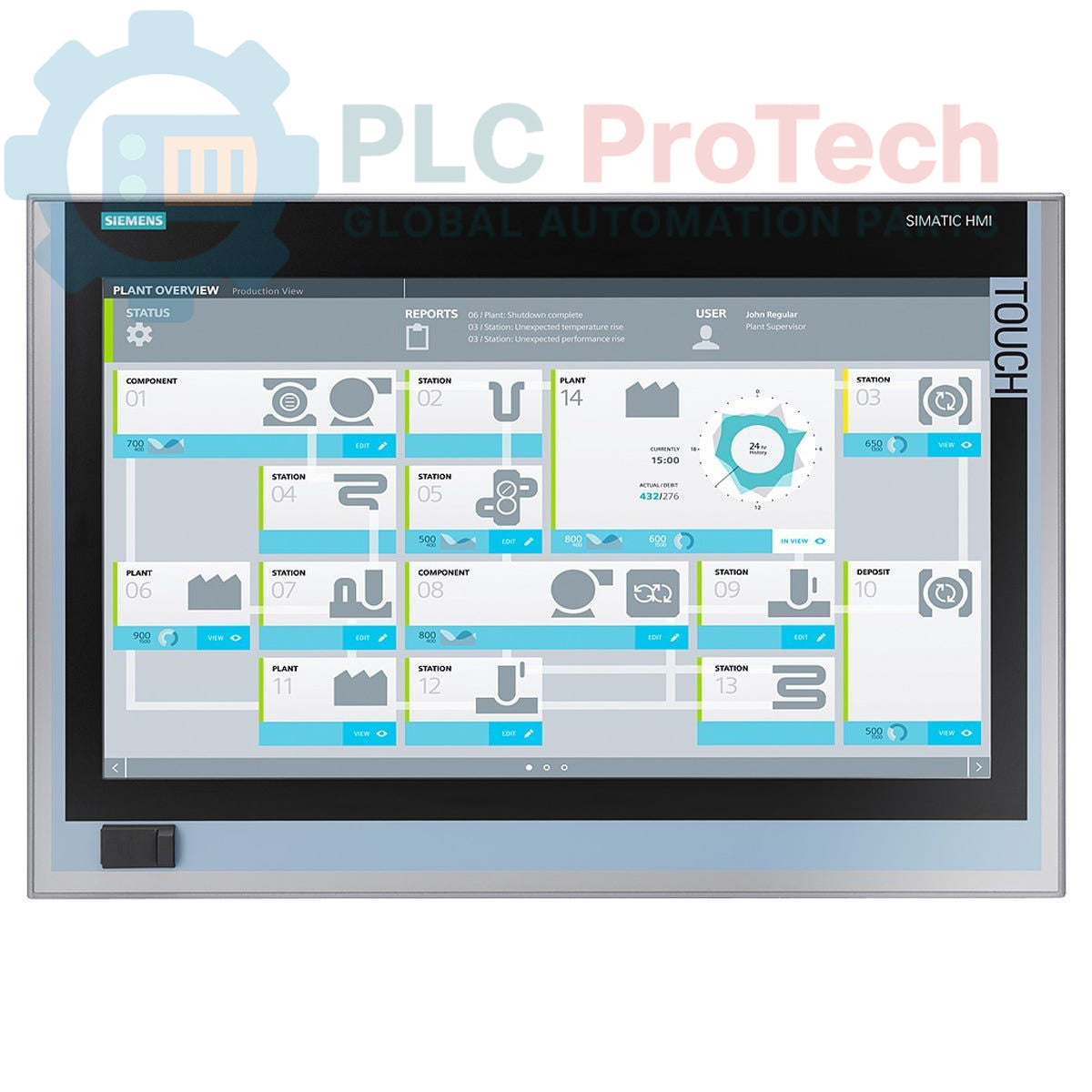

Siemens 6AV7260-1GD20-0BX0 SIMATIC IPC677D Panel PC

Only 4 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7260-1GD20-0BX0
Country of origin:آلمان
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17g
Dimensions: Corrections Applied: none
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7260-1GD20-0BX0 is a SIMATIC IPC677D Panel PC designed for industrial applications requiring robust computing and visualization capabilities. This unit features a 19-inch touch display with a resolution of 1366x768, providing an intuitive human-machine interface. It is equipped with an Intel Xeon E3-1268LV3 processor, 4 GB of DDR3 1600 DIMM RAM, and a 1 TB SATA hard drive. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V3.0 ports (including front USB), and one serial (COM1) port. The IPC677D integrates a watchdog, temperature, and fan monitoring, along with an onboard RAID controller for enhanced system reliability. It comes pre-installed with Windows 7 Ultimate 64-bit SP1 (MUI) and is powered by an AC 110/230V industrial power supply unit with NAMUR compatibility.

Features

Integrated 19-inch touch display (1366x768 resolution).
Equipped with Intel Xeon E3-1268LV3 processor (4C/8T, 2.3 (3.3) GHz, 8 MB Cache VT-D, AMT).
Includes 1 TB SATA HDD and 4 GB DDR3 1600 DIMM RAM.
Multiple communication interfaces: 2x Gigabit Ethernet, 4x USB V3.0, 1x Serial (COM1).
Onboard RAID controller for data redundancy.
Watchdog, temperature, and fan monitoring functions for system stability.
Pre-installed Windows 7 Ultimate 64-bit SP1 (MUI: DE, EN, FR, ES, IT).
Industrial power supply unit (AC 110/230V) with NAMUR compatibility.
Two PCI expansion slots (hardware without expansion).

Applications

The Siemens SIMATIC IPC677D Panel PC is suitable for a wide range of industrial automation tasks, including:

Human-Machine Interface (HMI) and visualization in manufacturing environments.
Data acquisition and processing in control rooms or on the plant floor.
Supervisory Control and Data Acquisition (SCADA) systems.
Machine control and embedded applications requiring a robust PC platform.
Industrial workstations for process monitoring and operational control.

Technical Specifications

Brand	Siemens
Manufacturer	Siemens
Range	Simatic Panel PC
Subrange	IPC
Product Type	PC panels
Model	6AV7260-1GD20-0BX0
Display Size	19 inches
Display Type	Touch
Display Resolution	1366x768
Processor	Intel Xeon E3-1268LV3 (4C/8T, 2.3 (3.3) GHz, 8 MB Cache VT-D, AMT)
RAM	4 GB DDR3 1600 DIMM
Storage	1 TB HDD SATA
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V3.0 (with front USB)
Serial Ports	1x (COM1)
Expansion Slots	2x PCI (without expansion HW)
Operating System	Windows 7 Ultimate 64 Bit SP1, MUI (DE, EN, FR, ES, IT)
Power Supply	AC 110/230V Industrial Power Supply Unit with NAMUR
Monitoring	Watchdog, Temperature and Fan Monitoring
RAID Controller	Onboard
Product Phase	Phase-Out
Shipping Weight	17.00 kg
Commodity Code	85371098

Connections / Interfaces

Interface Type	Quantity	Description
Ethernet	2	10/100/1000 Mbit/s
USB	4	V3.0 (includes front USB)
Serial	1	COM1

Installation Guidelines

Power Connection: Connect the Panel PC to an AC 110/230V power source using the provided Europe power supply cable. Ensure the power supply adheres to NAMUR standards if required for your application.
Grounding: Properly ground the Panel PC chassis to the industrial grounding system to ensure electrical safety and minimize electromagnetic interference.
Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate ventilation for heat dissipation, especially for the integrated fan monitoring.
Peripheral Connections: Connect necessary peripherals such as keyboards, mice, or external storage devices to the available USB V3.0 ports. Utilize the Ethernet ports for network integration and the serial port (COM1) for legacy device communication.
Environmental Considerations: Install the Panel PC in an environment that complies with its specified operating conditions regarding temperature, humidity, and vibration to ensure long-term reliability.
Software Configuration: After hardware installation, configure the pre-installed Windows 7 Ultimate 64-bit SP1 operating system and any required application software for your specific control or monitoring tasks.

Key Features:

#Panel PC #SIMATIC IPC677D

What is the display size and resolution of the Panel PC?

The Siemens 6AV7260-1GD20-0BX0 features a 19-inch touch display with a resolution of 1366x768.

What operating system is pre-installed on this Panel PC?

It comes with Windows 7 Ultimate 64-bit SP1, including multi-language user interface support (DE, EN, FR, ES, IT).

What type of processor does this Panel PC use?

The Panel PC is equipped with an Intel Xeon E3-1268LV3 processor, featuring 4 cores/8 threads and a base clock of 2.3 GHz (up to 3.3 GHz turbo).

What are the power supply requirements for the unit?

The unit requires an AC 110/230V industrial power supply and is compatible with NAMUR standards.

Does the Panel PC support data redundancy features?

Yes, it includes an onboard RAID controller for enhanced data redundancy and system reliability.
