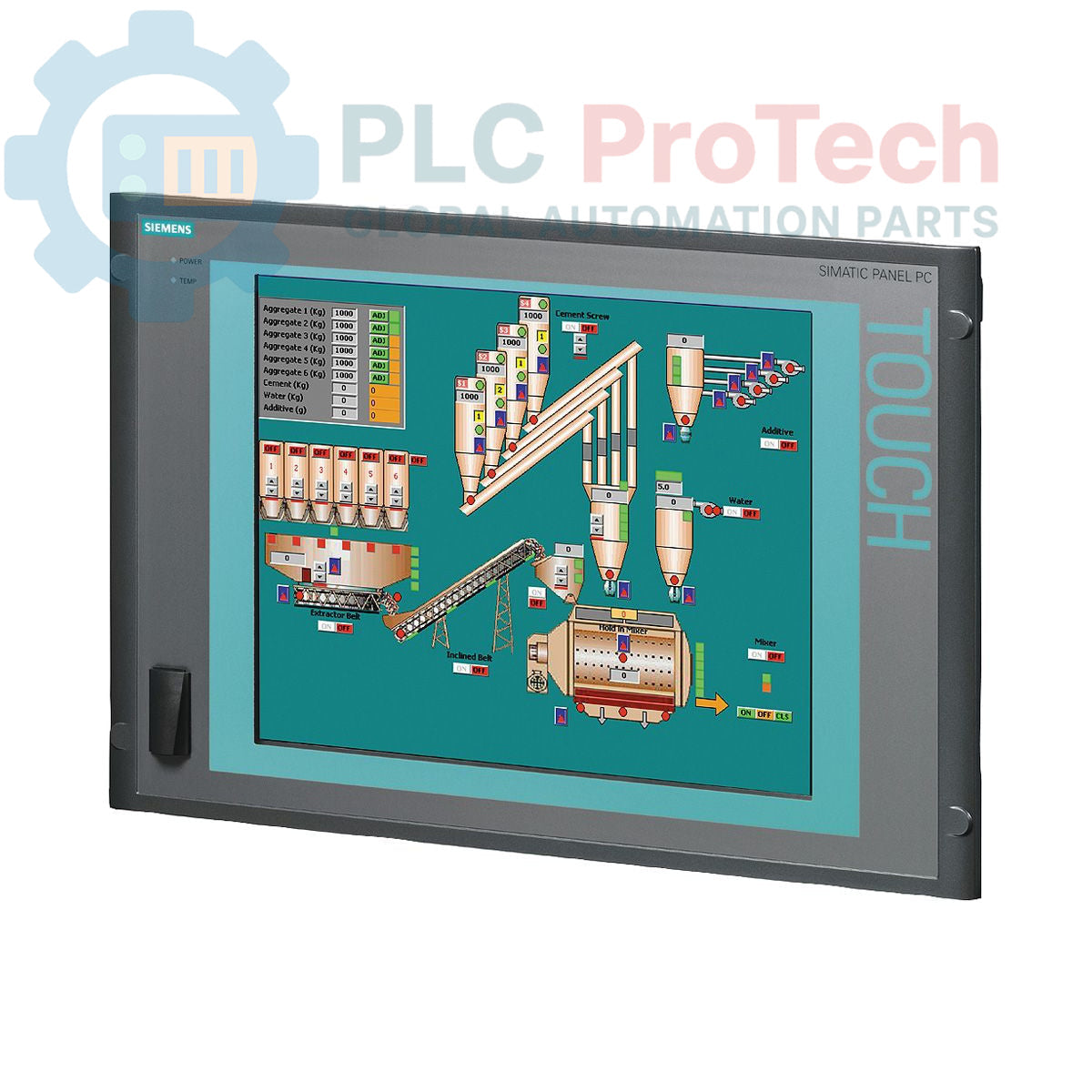

Siemens 6AV7802-0BB20-1AB0 SIMATIC Panel PC 677

فقط 5 قلم(های) کالا در انبار باقی مانده است

تولیدکننده: Siemens
شماره محصول: 6AV7802-0BB20-1AB0
کشور سازنده:آلمان
نوع محصول: Panel PC
بارکد: 85371091
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 17g
ابعاد: 67.00 x 83.00 x 11.50 cm
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

The Siemens 6AV7802-0BB20-1AB0 is a SIMATIC Panel PC 677, an industrial panel computer designed for human-machine interface (HMI) and control applications. This unit features a 15-inch touch display with a 1024x768 resolution and includes a front-side USB interface for convenient connectivity. It operates on an AC 110-230V power supply and is configured with a power cable suitable for Europe. Internally, the Panel PC is equipped with a Pentium M770 processor running at 1.6 GHz, supported by a 533 MHz Front Side Bus (FSB) and 2MB Second Level Cache (SLC). It comes with 1GB of DDR266 SDRAM (configured as 1 x 1GB) and an 80 GByte SATA hard drive (3.5 inch). An integrated DVD-ROM drive is also included. The system is pre-installed with Windows 2000 Professional Multi-User Interface (MUI), supporting multiple languages including English, German, French, Italian, Spanish, Japanese, Chinese, and Korean.

Features

15-inch Touch Display
1024x768 Resolution
Front-Side USB Interface
AC 110-230V Power Supply (Europe Power Cable)
Pentium M770 Processor (1.6 GHz, 533 MHz FSB, 2MB SLC)
1GB DDR266 SDRAM (1 x 1GB)
80 GByte SATA Hard Drive (3.5 inch)
Integrated DVD-ROM Drive
Pre-installed Windows 2000 Professional MUI (Multi-User Interface)
Multi-language support for Windows 2000 Professional

Applications

The Siemens SIMATIC Panel PC 677 is suitable for a range of industrial applications requiring robust computing and visualization, including:

Machine operation and control
Process visualization and monitoring
Data acquisition and logging
Manufacturing execution systems (MES) interfaces
Building automation and facility management

Technical Specifications

Category	Specification
Brand	Siemens
Manufacturer	Siemens
Range	SIMATIC Panel PC
Subrange	PC677
Product Type	Panel PC
Display Size	15 inch
Display Resolution	1024x768
Interface	Front-side USB
Power Supply	AC 110-230V
Power Cable Configuration	Europe
Processor	Pentium M770
Processor Speed	1.6 GHz
Front Side Bus (FSB)	533 MHz
Second Level Cache (SLC)	2MB
RAM	1GB DDR266 SDRAM (1 x 1GB)
Hard Drive	80 GByte SATA
Hard Drive Size	3.5 inch
Optical Drive	DVD-ROM
Operating System	Windows 2000 Professional MUI
Supported OS Languages	English, German, French, Italian, Spanish, Japanese, Chinese, Korean
Product Phase	Obsolete
Package Dimensions (Calculated)	67.00 x 83.00 x 11.50 cm
Shipping Weight	17.00 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Installation Guidelines

Installation of the Siemens SIMATIC Panel PC 677 should follow standard industrial practices for panel-mounted equipment:

De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
Mounting: Securely mount the Panel PC into a prepared panel cutout, ensuring adequate clearance for ventilation and cable routing. Use appropriate mounting hardware to ensure a stable and vibration-resistant installation.
Power Connection: Connect the AC 110-230V power supply to the designated power input terminals. Ensure proper grounding of the unit to the panel's protective earth. Verify correct polarity if applicable.
USB Connection: Utilize the front-side USB interface for connecting peripherals as required.
Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for industrial panel PCs to prevent premature failure. Avoid direct exposure to excessive dust, moisture, or corrosive agents.
Cable Management: Route all power and data cables neatly, ensuring they are secured and protected from mechanical stress or interference. Maintain separation between power and signal cables to minimize electromagnetic interference.
Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.

Key Features:

What is the display size and resolution of the Panel PC 677?

The Siemens 6AV7802-0BB20-1AB0 features a 15-inch touch display with a resolution of 1024x768 pixels.

What operating system is pre-installed on this Panel PC?

The unit comes with Windows 2000 Professional Multi-User Interface (MUI) pre-installed, supporting several languages.

What type of processor does the 6AV7802-0BB20-1AB0 use?

It is equipped with a Pentium M770 processor, operating at 1.6 GHz with a 533 MHz Front Side Bus.

What are the power requirements for this Panel PC?

The Panel PC operates on an AC 110-230V power supply and includes a power cable configured for Europe.

Is the Siemens 6AV7802-0BB20-1AB0 still an active product?

According to the product phase information, this specific model is classified as obsolete.
