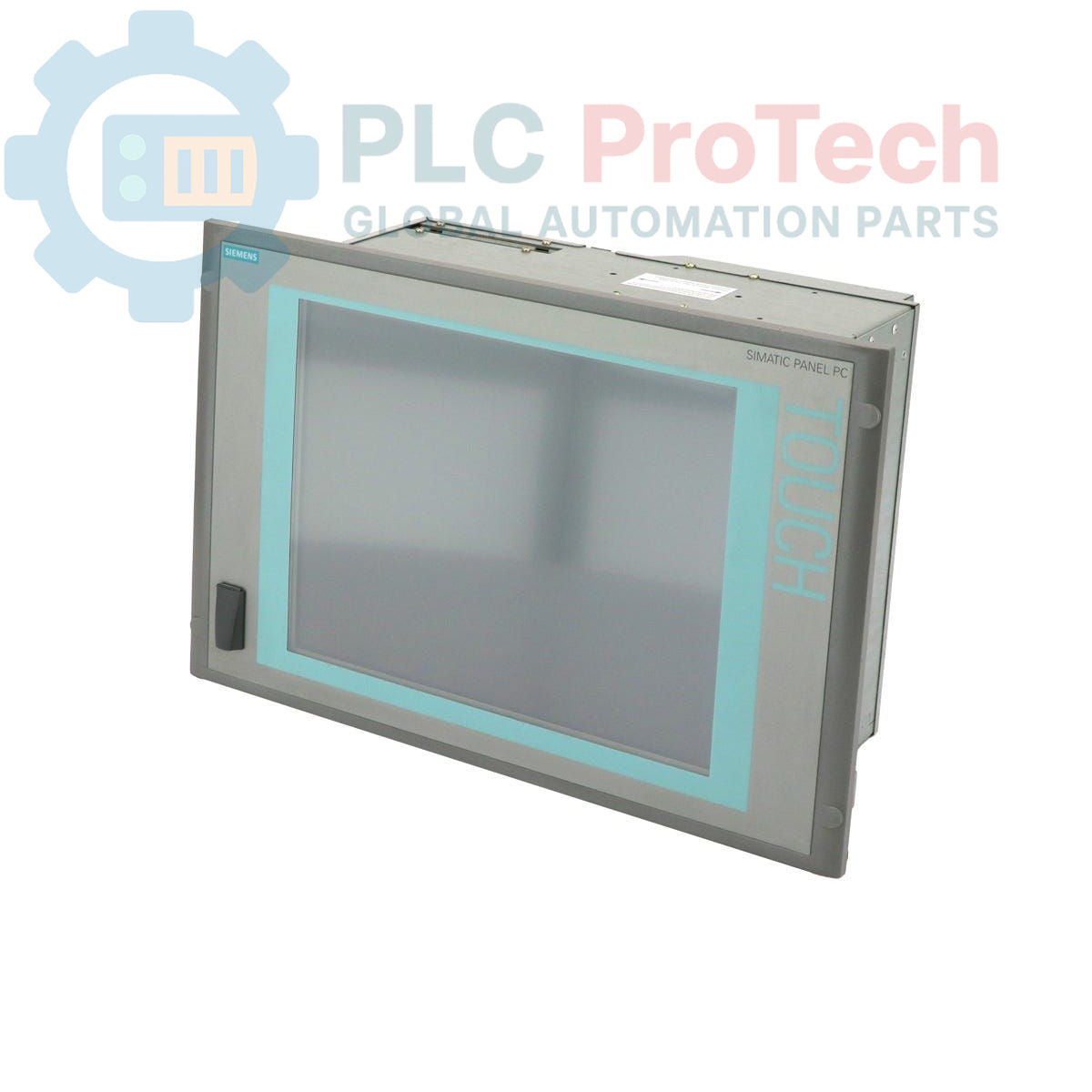

Siemens 6AV7824-0AA00-1AB0 SIMATIC Panel PC 577 Touch Display

Description

Features

• 19-inch Touch Display
• Celeron 2.0 GHz Processor
• 256 MB DDR400 SDRAM
• Integrated DVD-ROM Drive
• Pre-installed Windows 2000 SP4 Professional (MUI)

Applications

• Process visualization and control
• Machine operation and monitoring
• Data acquisition and display
• Operator interface for automation systems
• Industrial workstation for manufacturing environments

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and connected equipment is completely de-energized and locked out before beginning installation.
2. Mounting: Securely mount the Panel PC into a prepared panel cutout or enclosure using appropriate mounting hardware to ensure stability and proper sealing.
3. Power Connection: Connect the Panel PC to a stable and filtered power supply, observing correct polarity and voltage requirements. Ensure proper grounding for safety and noise reduction.
4. Peripheral Connections: Connect any required peripherals such as keyboards, mice, or external storage devices to the appropriate ports.
5. Network/Communication: Connect network cables or communication interfaces as per system design, ensuring proper shielding and routing to minimize interference.
6. Environmental Considerations: Ensure the installation environment meets the operational temperature and humidity specifications for the device to prevent premature failure.
7. System Power-Up: After all connections are verified, re-energize the system and perform functional tests to confirm correct operation.
