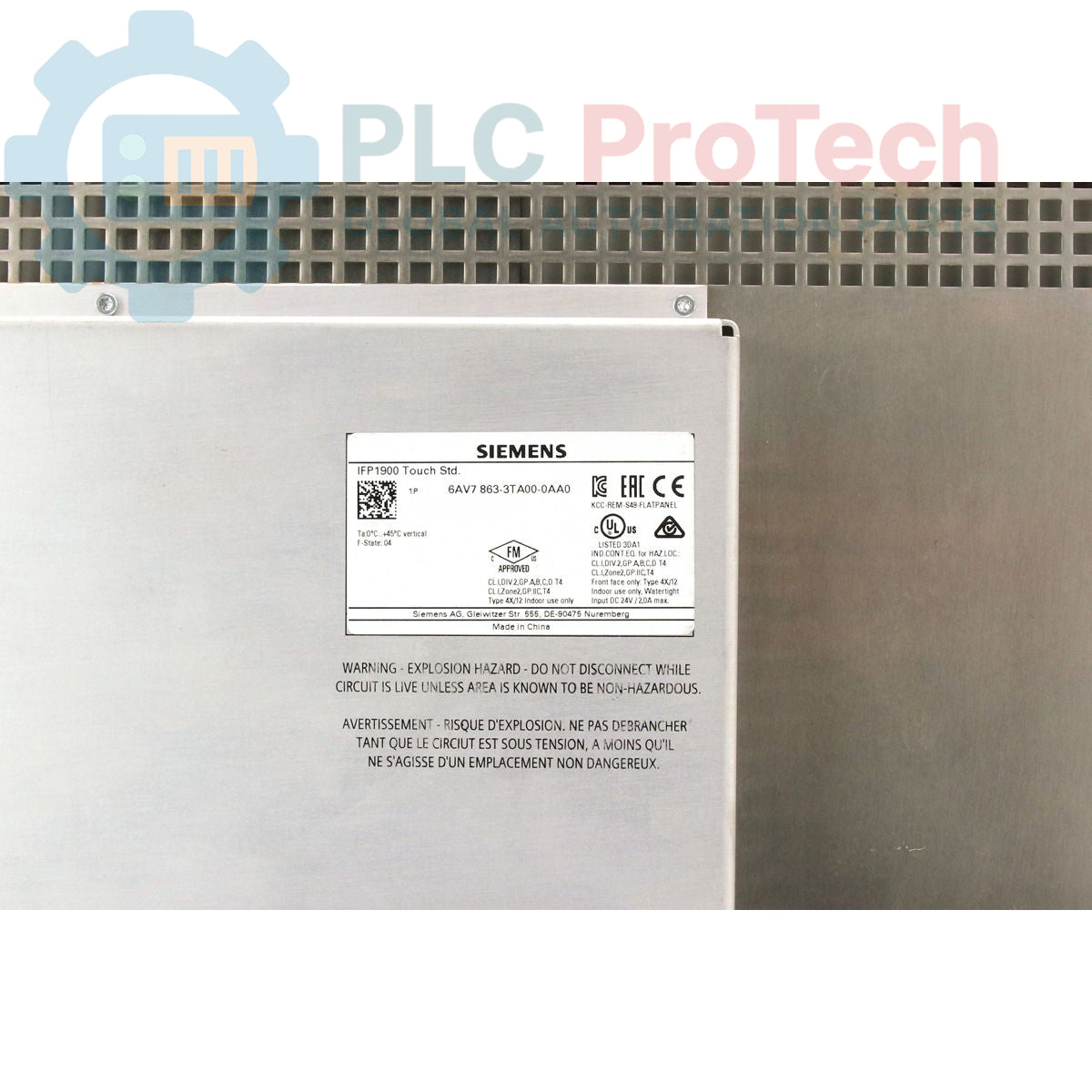

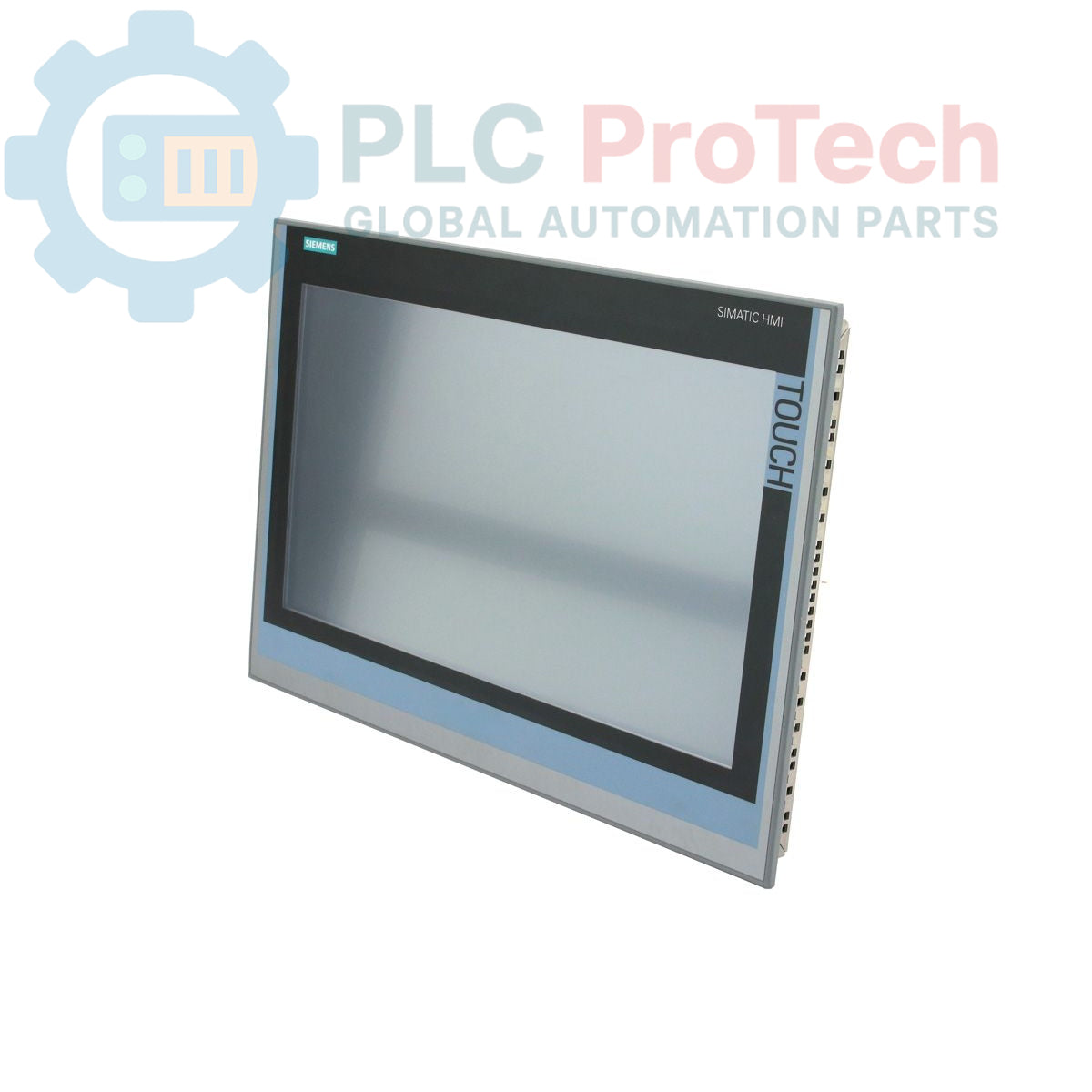

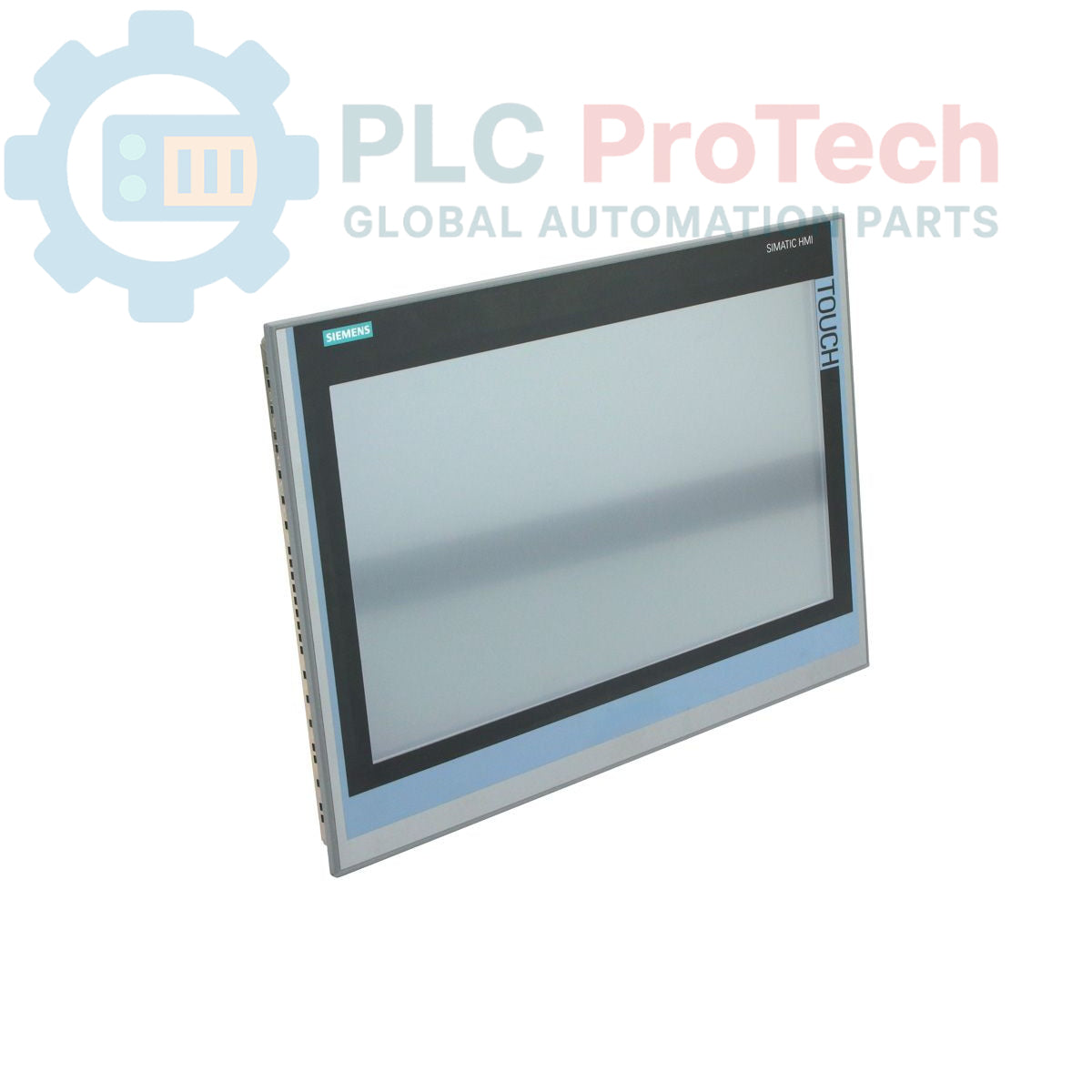

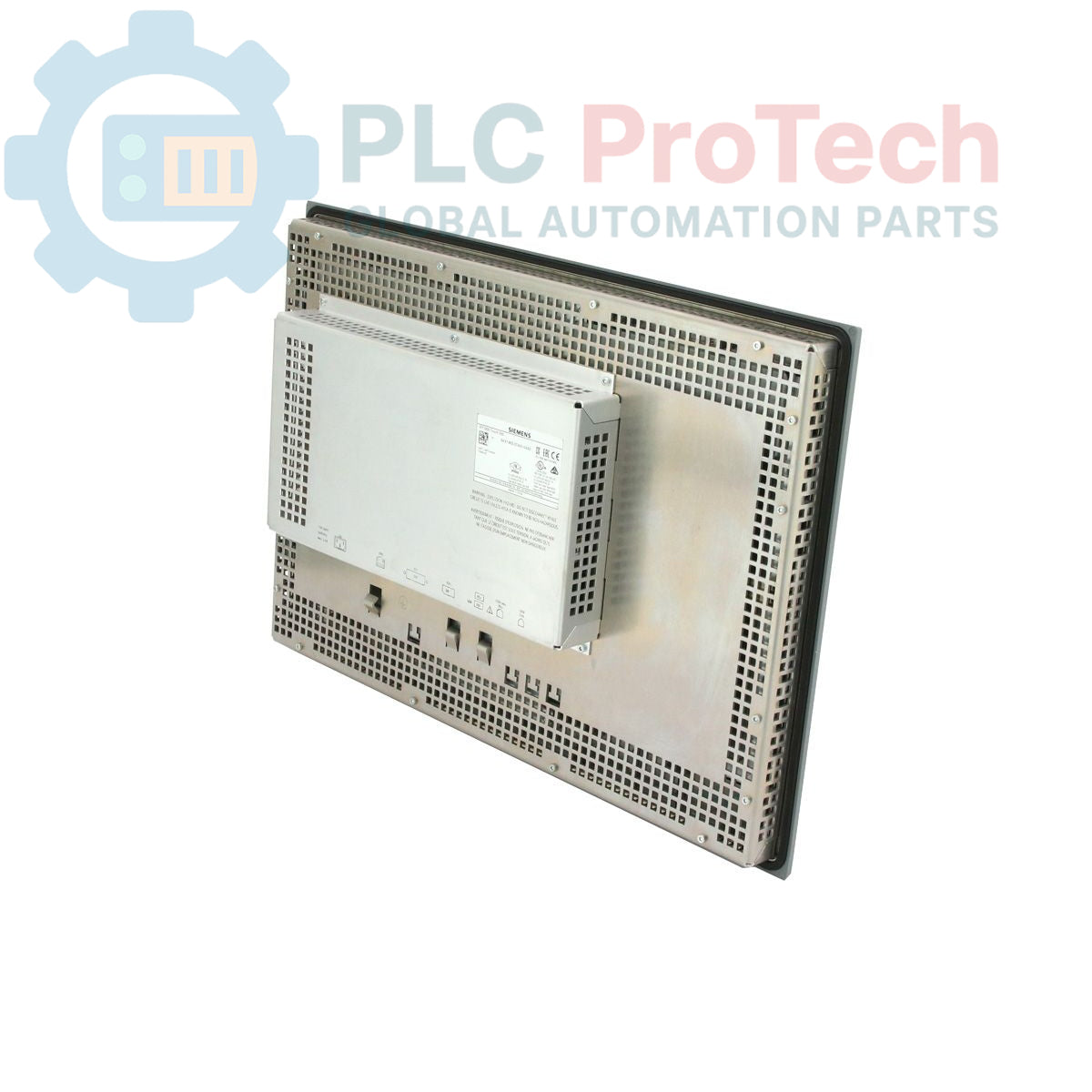

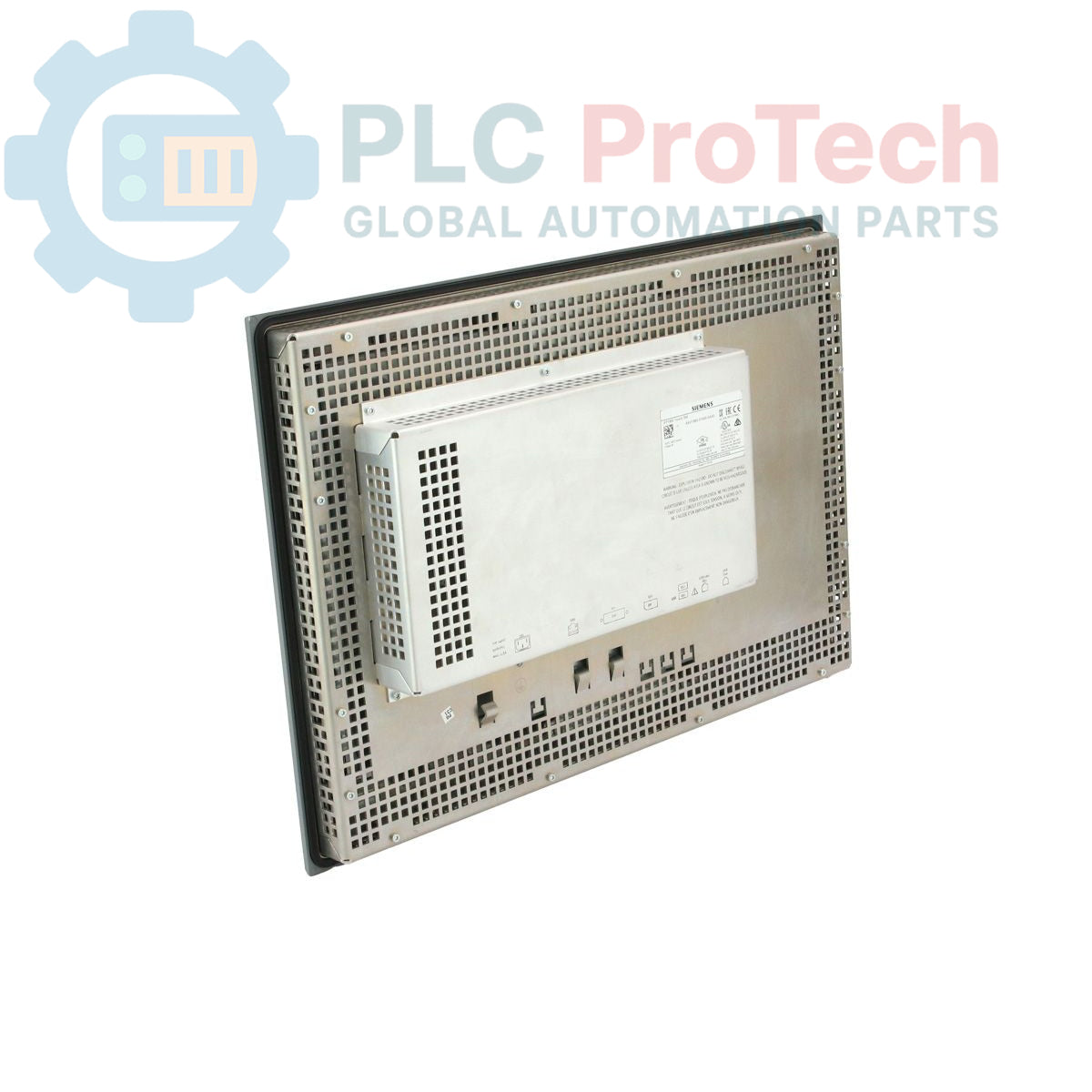

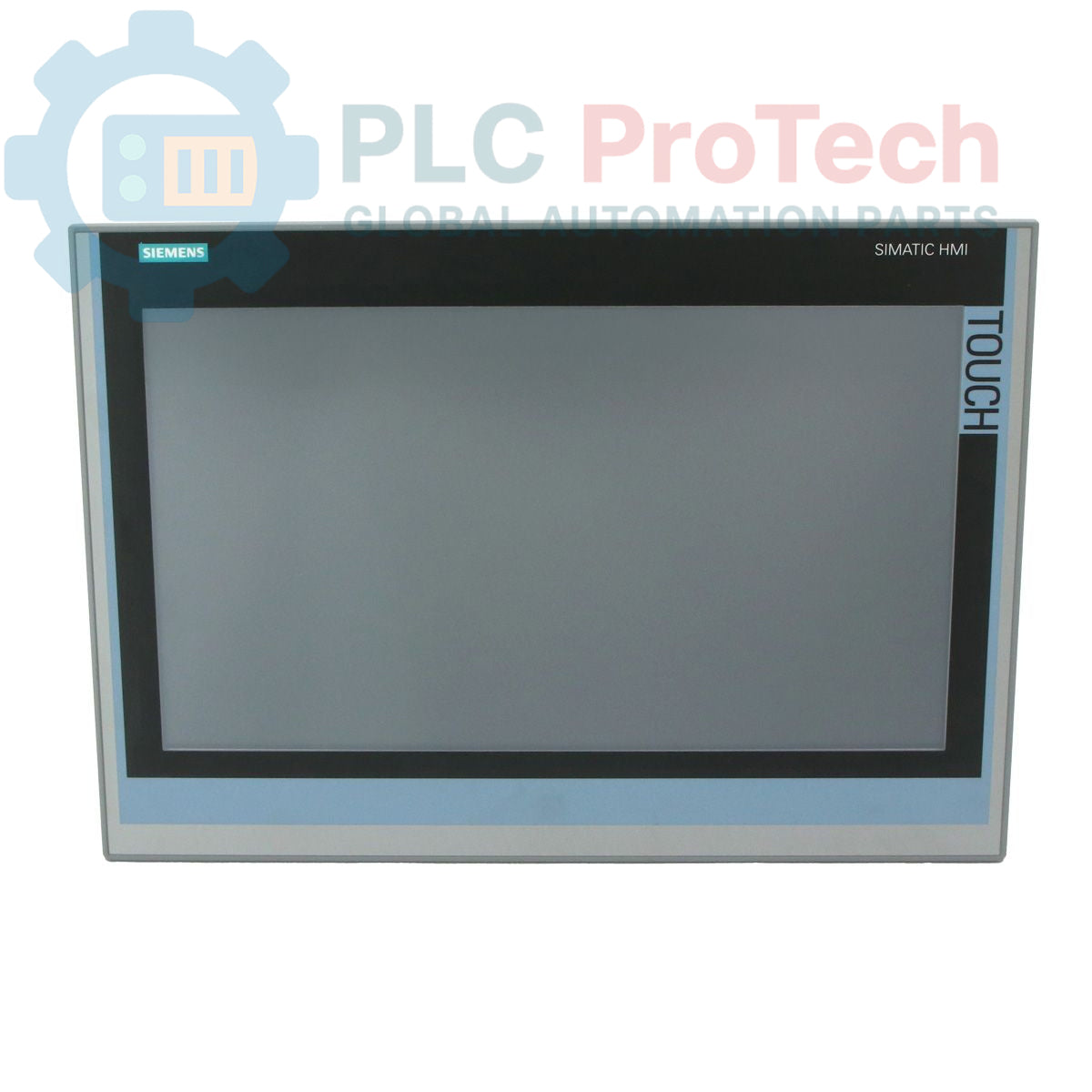

سیمنس 6AV7863-3TA00-0AA0 نمایشگر پنل تخت SIMATIC IFP1900

Description

The 6AV7863-3TA00-0AA0 is a SIMATIC IFP1900 industrial flat panel display featuring a 19-inch widescreen (16:9) interface. Engineered for robust visualization, this display offers a resolution of 1366 x 768 pixels and is equipped with a responsive touch-screen interface. It is designed to operate on 24 V DC power and supports flexible connectivity via DisplayPort and DVI interfaces. The unit includes a 1.8-meter DVI/USB cable, allowing for easy integration with industrial PCs or operator stations. Its industrial-grade construction ensures long-term reliability in demanding HMI (Human Machine Interface) applications.

Features

• Display Size: 19-inch widescreen (16:9 format).
• Resolution: 1366 x 768 pixels.
• Interface: Touch-screen capability for intuitive operation.

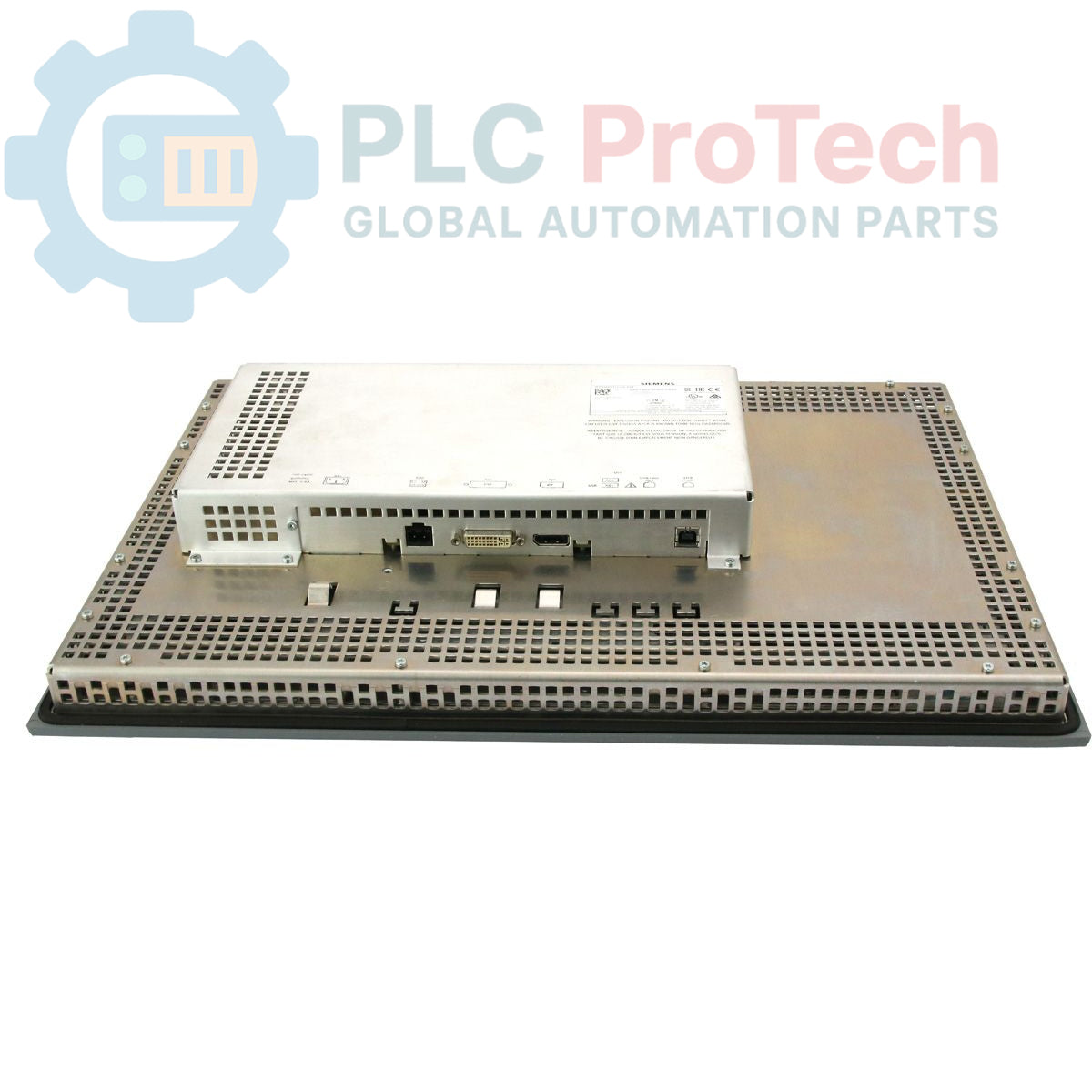

• Connectivity: Supports DisplayPort and DVI input interfaces.
• Power: Optimized for 24 V DC industrial power supplies.
• Inclusions: Comes with a 1.8 m DVI/USB cable set.

Applications

• Industrial HMI and visualization terminals.
• Process monitoring and control stations.
• Machine-level operator interface for production lines.
• Data acquisition and reporting displays in manufacturing facilities.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the display is mounted in an enclosure that provides appropriate ingress protection (IP) for the specific installation area.
• Cabling: Use the provided 1.8 m DVI/USB cables for connection; if longer distances are required, ensure the cables used are rated for industrial use to prevent signal degradation.
• Touch Calibration: Upon initial power-up, ensure the touch-screen driver is correctly configured within the operating system to calibrate touch-point accuracy.
• Cooling: Although flat panels generate less heat than standard monitors, ensure the mounting enclosure has adequate ventilation to prevent overheating during continuous operation.
• Power Supply: Connect to a stable 24 V DC industrial power source, ensuring correct polarity as indicated on the terminal blocks.
