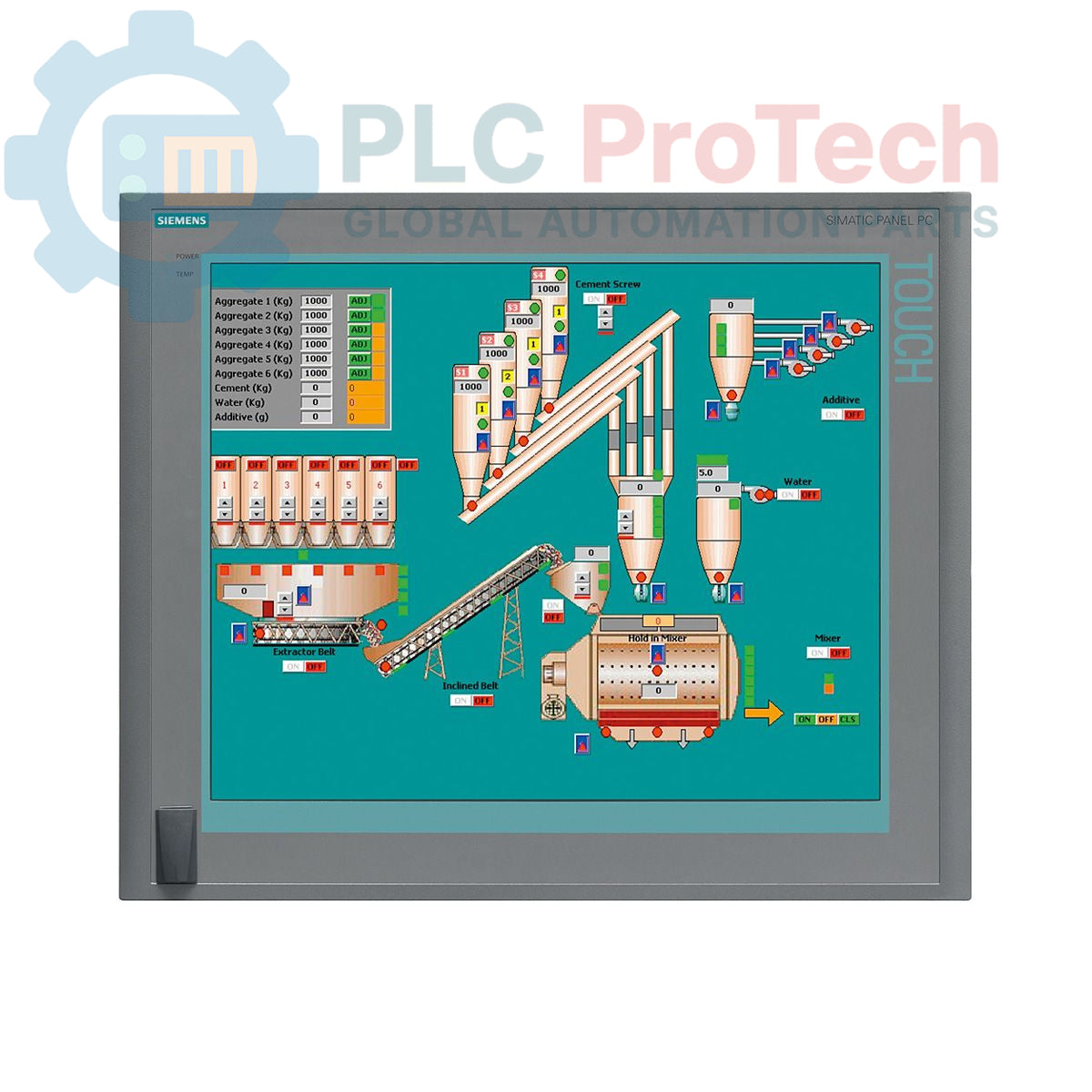

Siemens 6AV7875-0BD30-1AC0 SIMATIC Panel PC 677B

فقط 4 قلم(های) کالا در انبار باقی مانده است

تولیدکننده: Siemens
شماره محصول: 6AV7875-0BD30-1AC0
کشور سازنده:آلمان
نوع محصول: Panel PC
بارکد: 85371091
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 17g
ابعاد: 67.0 x 83.0 x 11.5 cm
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

The Siemens 6AV7875-0BD30-1AC0 is a SIMATIC Panel PC 677B designed for industrial human-machine interface (HMI) and control applications. This unit integrates a 19-inch touch display with a resolution of 1280 x 1024 pixels into a robust panel-mount chassis. It is powered by an Intel Core 2 Duo T5500 processor and is equipped with 2 GB of DDR2 RAM and a 160 GB SATA hard disk drive. Connectivity options are extensive, featuring dual Gigabit Ethernet ports, USB 2.0, a serial port, and an integrated PROFIBUS/MPI interface. The system is pre-installed with Windows XP Professional and includes an internal AC power supply.

Features

19-inch touch-sensitive color display
Intel Core 2 Duo T5500 processor at 1.66 GHz
2 GB DDR2 system memory
160 GB 3.5-inch SATA Hard Disk Drive (HDD)
Integrated DVD+/-R+/-RW optical drive
Onboard PROFIBUS/MPI communication interface with 2 MB buffered SRAM
Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
Convenient front-side USB interface
Pre-installed with Windows XP Professional Multi-Language User Interface (MUI)
Internal 110/230 V AC power supply

Applications

Process visualization and SCADA systems
Machine control and data acquisition
Manufacturing Execution Systems (MES)
Factory floor operator stations
Industrial data logging and reporting

Technical Specifications

Specification	Value
Product Type	SIMATIC Panel PC 677B
Display	19-inch Touch Display
Resolution	1280 x 1024 pixels
Processor	Intel Core 2 Duo T5500, 1.66 GHz, 2 MB SLC
Memory	2 GB DDR2 RAM
Storage	160 GB SATA HDD, 3.5-inch
Optical Drive	DVD+/-R+/-RW
Expansion Slots	1x PCIe x4, 1x PCI
Ethernet Interface	2x 10/100/1000 Mbit/s
USB Interface	4x USB 2.0 (rear), 1x USB (front)
Serial Interface	1x COM1
Fieldbus Interface	PROFIBUS/MPI, 2 MB Buffered SRAM
Power Supply	110/230 V AC with NAMUR (Europe power cable included)
Operating System	Windows XP Professional MUI (de, en, fr, es, it, ja, zh, ko)
PLM Product Phase	Obsolete
Shipping Weight	17.00 kg
Package Dimensions (Calculated)	67.0 x 83.0 x 11.5 cm
Commodity Code	85371091
ECCN	N
Country of Origin	Unknown
Manufacturer	Siemens

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Disconnect and lock out all power sources before installation or maintenance. Work must be performed by qualified personnel only. Failure to comply can result in severe injury or death.

1 Verify the panel cutout dimensions match the PC 677B chassis specifications before mounting.
2 Ensure adequate ventilation clearance around the rear of the unit for heat dissipation. Do not block vents.
3 Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps to ensure a proper seal.
4 Connect the main protective earth (PE) terminal to the cabinet's ground bus using a low-impedance conductor.
5 Connect the AC power supply cord to a properly rated and protected power source.
6 Connect all required network, fieldbus, and peripheral cables, ensuring proper strain relief.

Key Features:

What operating system is installed on the 6AV7875-0BD30-1AC0?

This Panel PC comes pre-installed with Windows XP Professional Multi-Language User Interface (MUI), supporting languages including English, German, French, Spanish, Italian, Japanese, Chinese, and Korean.

What are the primary communication interfaces available on this unit?

It is equipped with dual 10/100/1000 Mbit/s Ethernet ports, an integrated PROFIBUS/MPI interface, four rear USB 2.0 ports, one front-accessible USB port, and one serial (COM1) port.

What is the display size and resolution?

The unit features a 19-inch touch-sensitive display with a native resolution of 1280 x 1024 pixels, suitable for detailed HMI applications.

What type of processor is used in this Panel PC?

It is powered by an Intel Core 2 Duo T5500 processor, which operates at a clock speed of 1.66 GHz.

Does this model include an optical drive?

Yes, it includes an integrated DVD+/-R+/-RW drive for software installation, data backup, and other media access needs.
