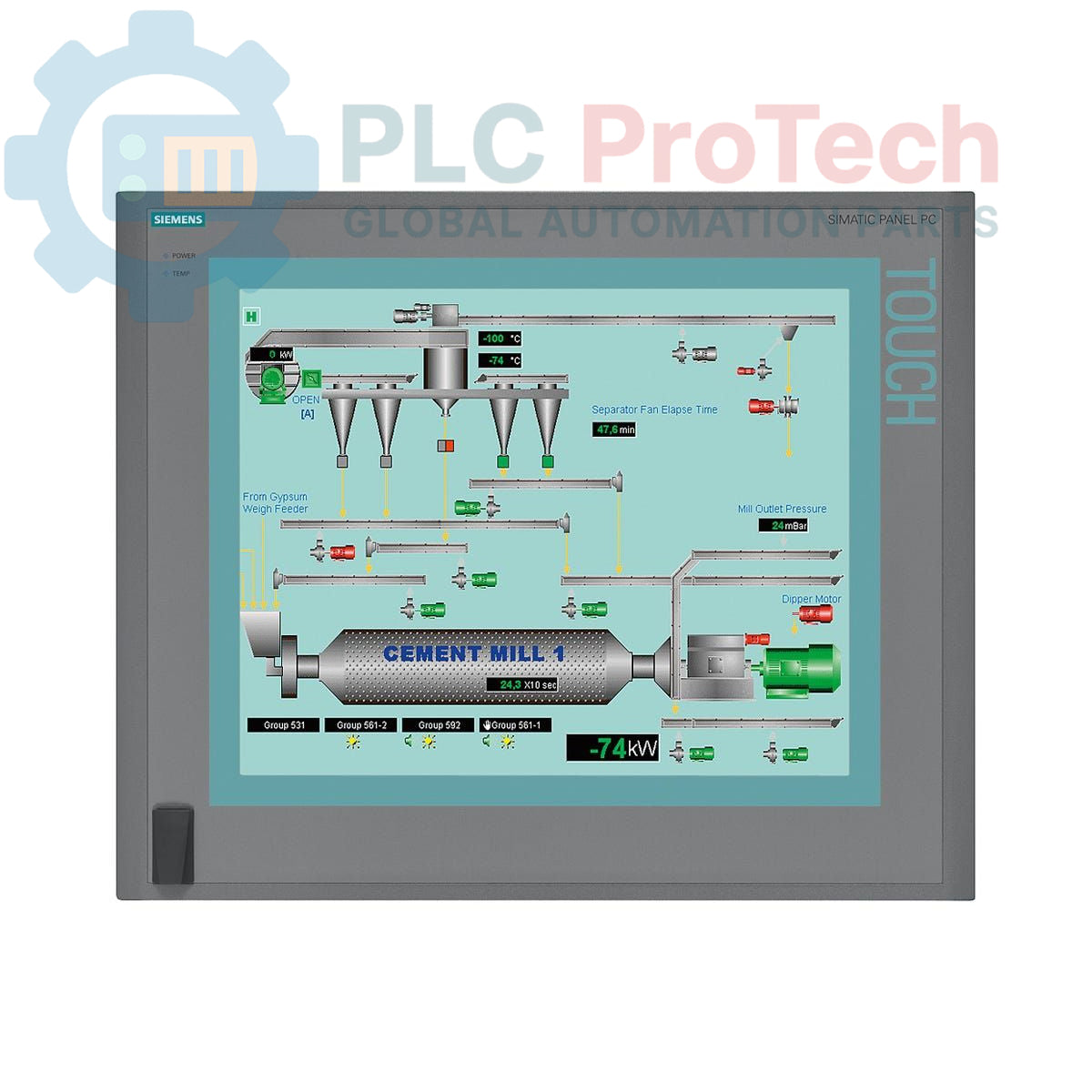

Siemens 6AV7892-0EB00-1AB0 SIMATIC IPC677C Panel PC

Only 4 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7892-0EB00-1AB0
Country of origin:آلمان
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17450g
Dimensions: 67.0 x 55.0 x 28.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This device is a Siemens 6AV7892-0EB00-1AB0, a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface and control applications. It features a 15-inch touch display with a resolution of 1024x768 and is powered by an Intel Celeron P4505 processor. The unit is equipped with 1 GB of DDR3 RAM, a 250 GB SATA HDD, and an integrated DVD drive. For connectivity, it provides dual Gigabit Ethernet ports, multiple USB 2.0 interfaces, a serial port, and a PROFIBUS/MPI interface. Integrated monitoring for watchdog, temperature, and fan status, along with an onboard RAID controller, ensures operational reliability.

Features

15-inch color touchscreen display with 1024 x 768 resolution.
Convenient front-side USB interface for easy access.
Integrated system monitoring for watchdog, temperature, and fan.
Onboard RAID controller for data redundancy.
Dual 10/100/1000 Mbit/s Ethernet ports for network communication.
PROFIBUS/MPI interface (CP 5611-A2 compatible) for field-level integration.
Pre-installed with Windows XP Professional SP3 MUI.
Two free PCI slots available for expansion cards.

Applications

Process visualization and control in manufacturing plants.
Machine-level HMI for OEM equipment.
Data acquisition and logging in industrial environments.
Supervisory control systems in assembly lines and production cells.

Technical Specifications

Specification	Value
Brand	Siemens
Model	6AV7892-0EB00-1AB0
Series	SIMATIC HMI IPC677C
Product Type	Panel PC
Display	15" Touchscreen
Resolution	1024 x 768 pixels
Processor	Celeron P4505 (2C/2T, 1.86 GHz, 2 MB Cache)
Memory (RAM)	1 GB DDR3 1066 DIMM
Buffered SRAM	2 MB
Storage	250 GB HDD SATA
Optical Drive	DVD±R/±RW
Power Supply	110/230 V AC with NAMUR
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0 (rear), 1x USB (front)
Serial Port	1x COM1
Fieldbus Interface	PROFIBUS/MPI (CP 5611-A2 compatible)
Expansion Slots	2x PCI (free)
Operating System	Windows XP Professional SP3 MUI (DE, EN, FR, ES, IT)
Product Lifecycle Status	Phase-Out
Shipping Weight	17.45 kg
Package Dimensions (Calculated)	67.0 x 55.0 x 28.0 cm
Country of Origin	Germany (Estimated)
Manufacturer	Siemens

Installation Guidelines

CRITICAL WARNING: HAZARDOUS VOLTAGE

This equipment is powered by hazardous AC voltage. All installation and maintenance procedures must be performed by qualified personnel only. Failure to de-energize and lock-out/tag-out the power source before servicing can result in severe injury or death.

1 Verify panel cutout dimensions against the device specifications to ensure a proper fit. Deburr all sharp edges on the cutout.
2 Ensure adequate ventilation clearance around the rear of the unit for heat dissipation. Do not block fan vents.
3 Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps. Tighten clamps progressively to the specified torque to ensure a proper seal.
4 Connect the protective earth (PE) terminal to the cabinet's main ground point using a low-impedance conductor. This connection must be made first.
5 Connect power, network, and I/O cables. Ensure all connectors are fully seated and secured. Use shielded cables for communication lines and ground the shields appropriately.
6 Before applying power, verify that the source voltage matches the rating specified on the unit's nameplate (110/230 V AC).

Key Features:

#Panel PC #SIMATIC IPC677C

What processor is installed in this Panel PC?

This unit is equipped with an Intel Celeron P4505 processor, which has 2 cores, 2 threads, a clock speed of 1.86 GHz, and 2 MB of cache.

What operating system is pre-installed on the 6AV7892-0EB00-1AB0?

It comes with Windows XP Professional SP3 Multi-Language User Interface (MUI), supporting German, English, French, Spanish, and Italian.

Does this unit have fieldbus connectivity?

Yes, it includes an integrated PROFIBUS/MPI interface that is compatible with the Siemens CP 5611-A2 communication processor.

What are the primary communication ports available?

The Panel PC features two Gigabit Ethernet (10/100/1000 Mbit/s) ports, four rear USB 2.0 ports, one front-accessible USB port, and one serial (COM1) port.

Is this model still in active production by Siemens?

No, the product lifecycle status for this model is listed as 'Phase-Out', indicating it is a legacy part.
