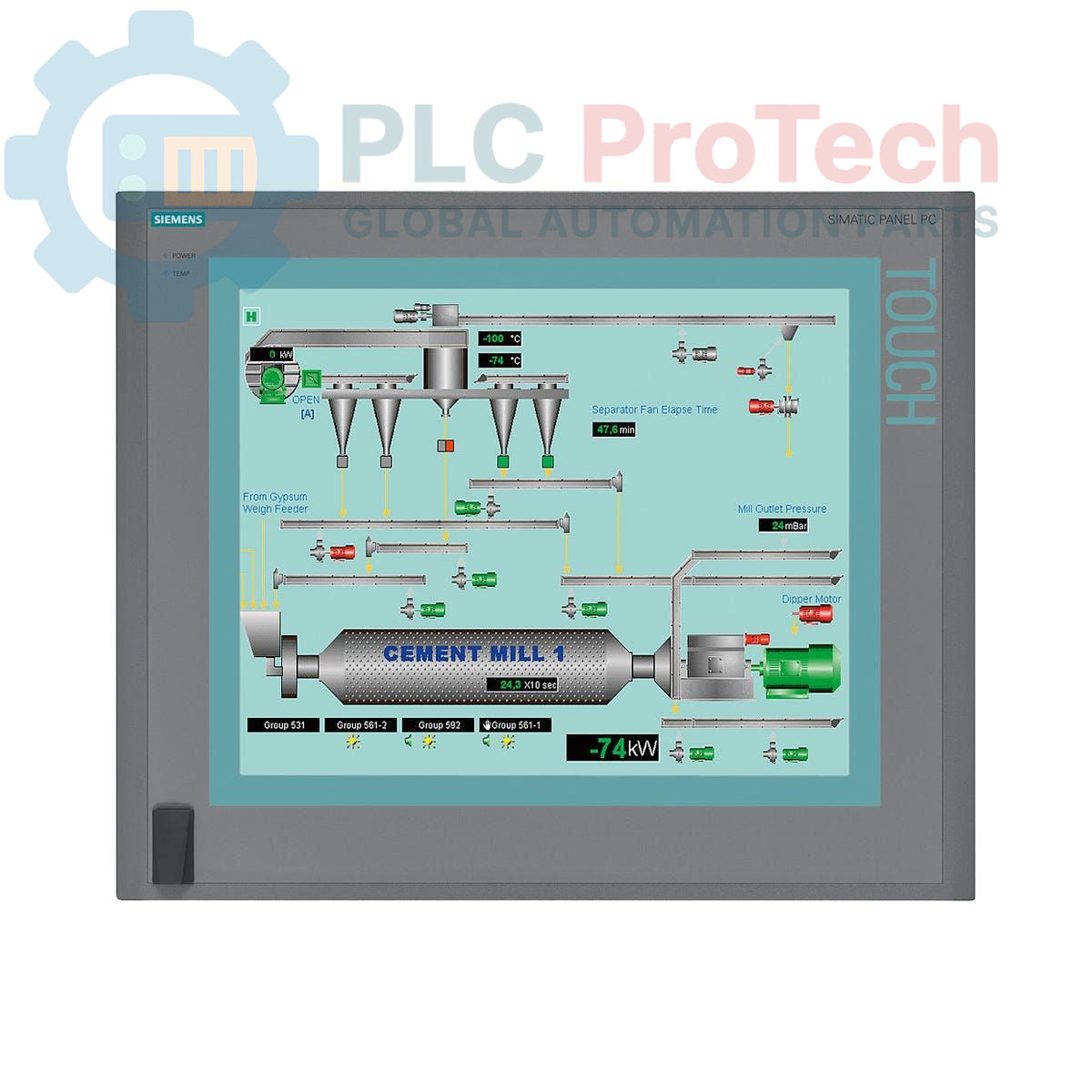

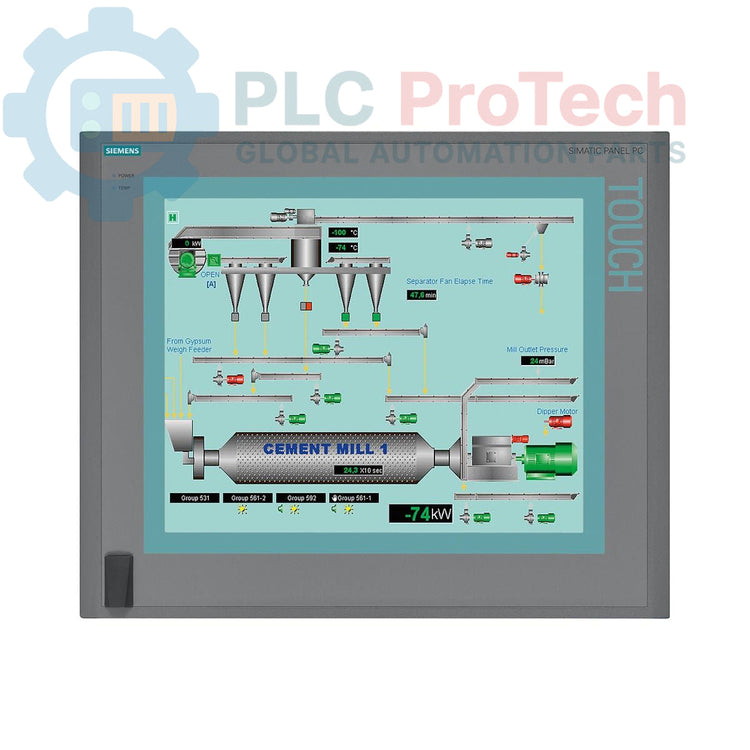

Siemens 6AV7892-0HD10-0AA0 SIMATIC IPC677C Panel PC

Only 5 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7892-0HD10-0AA0
Country of origin:آلمان
Product Type: Panel PC
Barcode: 84714100
Payment: T/T, Western Union
Weight: 17350g
Dimensions: 67.00 x 55.00 x 28.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7892-0HD10-0AA0 is a SIMATIC HMI IPC677C Panel PC, specifically designed for industrial human-machine interface (HMI) applications. This robust unit integrates a 15-inch touch display with a resolution of 1024x768 pixels and features a front-side USB interface for convenient access. Internally, it is powered by an Intel Core I3-330E processor (2 cores/4 threads, 2.13 GHz, HT, VT, 3 MB cache), complemented by 2 GB DDR3 1066 DIMM memory and a 250 GB SATA HDD for storage, without an optical drive. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, and one serial (COM1) interface. The system incorporates an onboard RAID controller, watchdog functionality, and monitoring for temperature and fan status, ensuring reliable operation in demanding industrial environments. It is supplied with a 110/230 V AC power supply unit with NAMUR support and includes two free PCI slots for future expansion, shipped without an operating system or additional expansion software. This model is currently in a Phase-Out product lifecycle stage.

Features

Industrial Panel PC for HMI applications
Integrated 15-inch Touch Display (1024x768 resolution)
Intel Core I3-330E Processor (2.13 GHz)
2 GB DDR3 1066 DIMM RAM
250 GB SATA Hard Disk Drive
Dual Gigabit Ethernet Ports (2x 10/100/1000 Mbit/s)
Multiple USB V2.0 Interfaces (4x, with front-side USB)
One Serial (COM1) Communication Port
Onboard RAID Controller
Watchdog, Temperature, and Fan Monitoring
Two Free PCI Expansion Slots
110/230 V AC Power Supply Unit with NAMUR

Applications

Industrial Human Machine Interface (HMI) systems
Process visualization and control in manufacturing plants
Machine operation and monitoring in automated production lines
Data acquisition and processing within industrial environments
Automation systems requiring integrated computing and display capabilities

Technical Specifications

Brand	Siemens
Manufacturer	Siemens
Range	Simatic Panel PC
Subrange	IPC677C
Product Type	PC panels
Model Number	6AV7892-0HD10-0AA0
Processor	Intel Core I3-330E (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
RAM	2 GB DDR3 1066 DIMM
Storage	250 GB HDD SATA (without optical drive)
Display Size	15 inches
Display Resolution	1024x768
Display Type	Touch
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0 (with front-side USB interface)
Serial Ports	1x (COM1)
Expansion Slots	2x PCI (free)
Power Supply	110/230 V AC with NAMUR
Monitoring	Watchdog, temperature, fan
RAID Controller	Onboard
Operating System	Without
Expansion Software	Without
Product Phase	Phase-Out
Package Dimensions (Calculated)	67.00 x 55.00 x 28.00 cm
Shipping Weight	17.35 kg
Commodity Code	84714100
Export Control Regulations (ECCN)	5A992

Connections / Interfaces

Connector Type	Function
Ethernet Port 1	10/100/1000 Mbit/s Network Connection
Ethernet Port 2	10/100/1000 Mbit/s Network Connection
USB V2.0 Ports (4x)	Peripheral Device Connection
Front-side USB Interface	Convenient Peripheral Connection
COM1 Port	Serial Communication Interface

Installation Guidelines

Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
Mounting: Securely mount the Panel PC into the designated panel cutout or enclosure, ensuring proper ventilation clearances as per system requirements.
Power Connection: Connect the 110/230 V AC power supply cable to the unit, observing correct polarity and ensuring a robust ground connection.
Network Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports for network integration.
Peripheral Connections: Connect USB devices to the available USB V2.0 ports and serial devices to the COM1 port as required. Utilize the front-side USB for easy access to temporary peripherals.
Cable Management: Route all cables to prevent strain, interference, and damage, ensuring they do not obstruct cooling airflow.
Initial Power-Up: After verifying all connections, re-energize the system and observe the Panel PC's boot sequence.

Key Features:

#Panel PC #SIMATIC IPC677C

What is the primary function of the 6AV7892-0HD10-0AA0?

It serves as an industrial Human Machine Interface (HMI) Panel PC for visualization, operation, and control in automation systems.

Does this Panel PC include an operating system?

No, the unit is shipped without an operating system, allowing users to install their preferred industrial OS.

What type of display does the IPC677C feature?

It features a 15-inch touch display with a resolution of 1024x768 pixels.

Can additional expansion cards be installed?

Yes, the unit includes two free PCI slots for further expansion.

What is the product phase of this model?

The 6AV7892-0HD10-0AA0 is currently in the Phase-Out product lifecycle stage.
