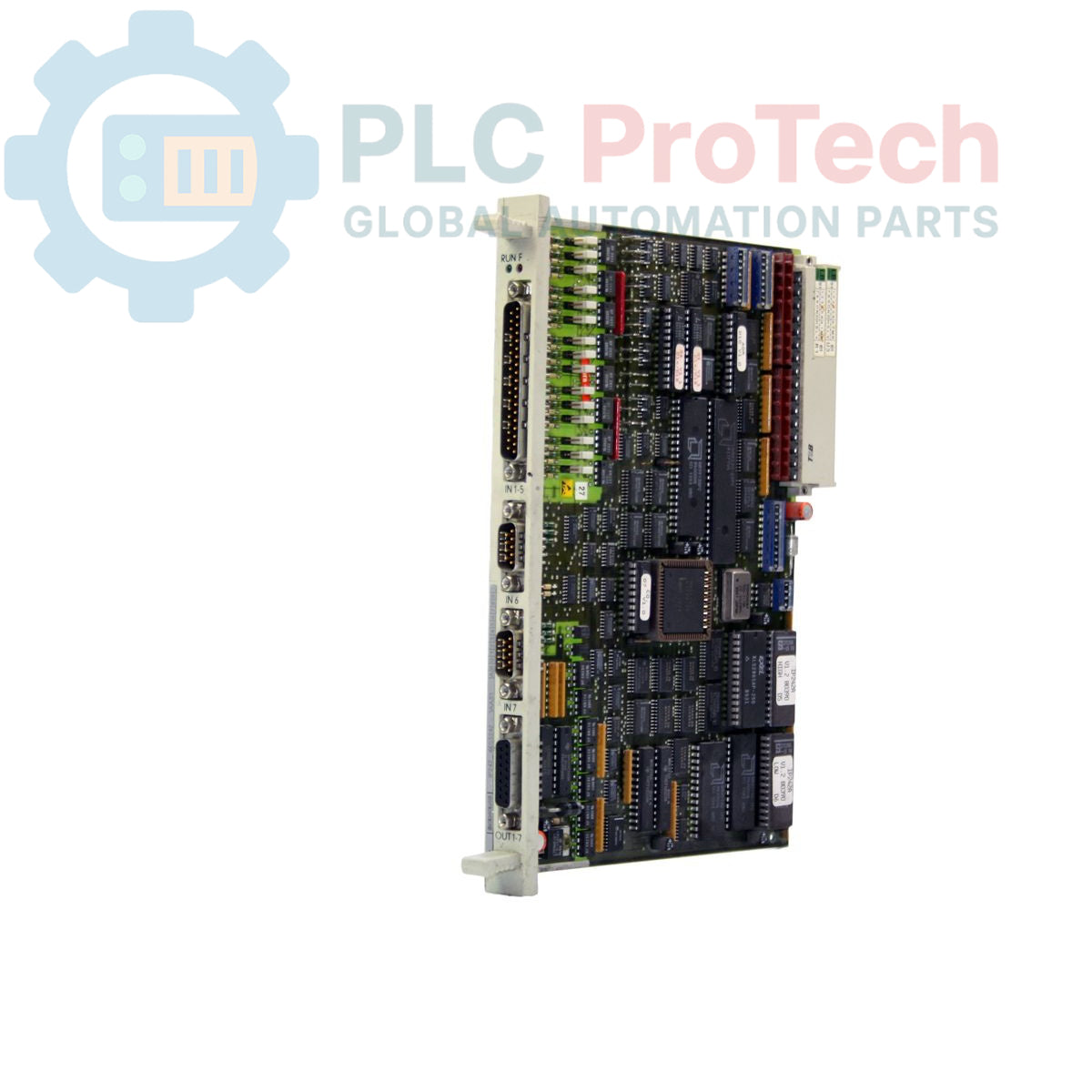

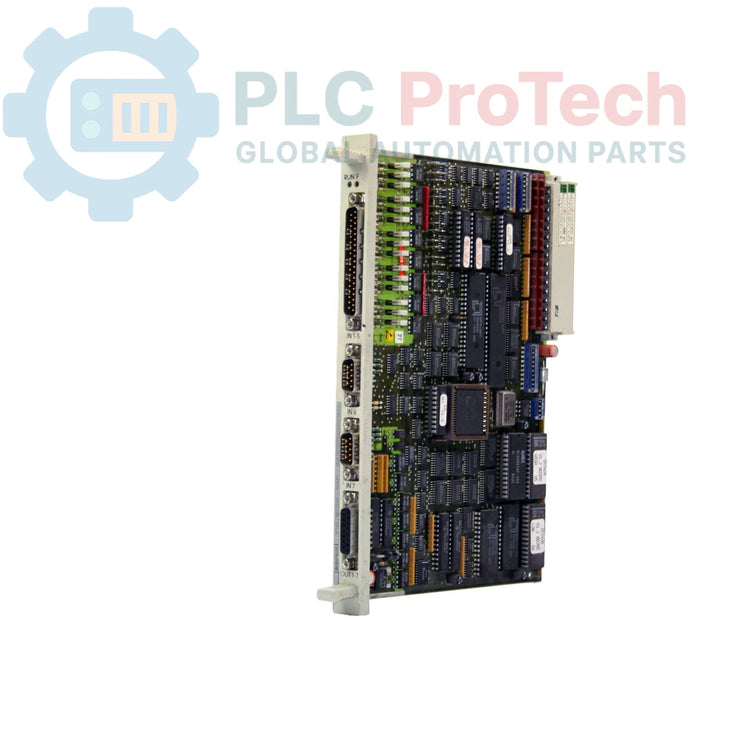

Siemens 6ES5242-1AA31 SIMATIC S5 Counter Module

Description

The Siemens 6ES5242-1AA31 is a counter module, model IP 242A, designed for the SIMATIC S5 automation platform. This module provides dedicated counting functionality for various industrial control applications within an S5 PLC system. As a component of the legacy SIMATIC S5 series, this module is classified with a product lifecycle phase of Obsolete, making it a critical spare part for maintaining existing installations.

Features

• Provides dedicated counting functions for industrial processes.
• Designed for seamless integration within the Siemens SIMATIC S5 PLC system.
• Compact form factor for efficient use of rack space.

Applications

This module is typically used in legacy systems for applications requiring precise event or pulse counting, such as:

• Automated manufacturing and assembly lines
• Conveyor systems and material handling
• Packaging and bottling operations
• Process control and batching

Technical Specifications

Installation Guidelines

1. 1 De-energize System: Verify that the SIMATIC S5 rack is completely powered down. Use a multimeter to confirm zero voltage at the power supply terminals.
2. 2 Handle with ESD Precautions: Use a grounded wrist strap and handle the module by its edges to prevent electrostatic discharge damage to sensitive electronic components.
3. 3 Install Module: Align the module with the backplane connector in the designated slot of the S5 rack. Apply firm, even pressure to seat the module securely until the retaining clips engage.
4. 4 Connect Field Wiring: If applicable, connect the front connector and terminate field wiring according to the system's wiring diagrams. Ensure proper wire gauge, shielding, and grounding practices are followed.
5. 5 System Verification: After removing LOTO and re-energizing the system, verify module status indicators and confirm proper communication and functionality within the PLC program.
