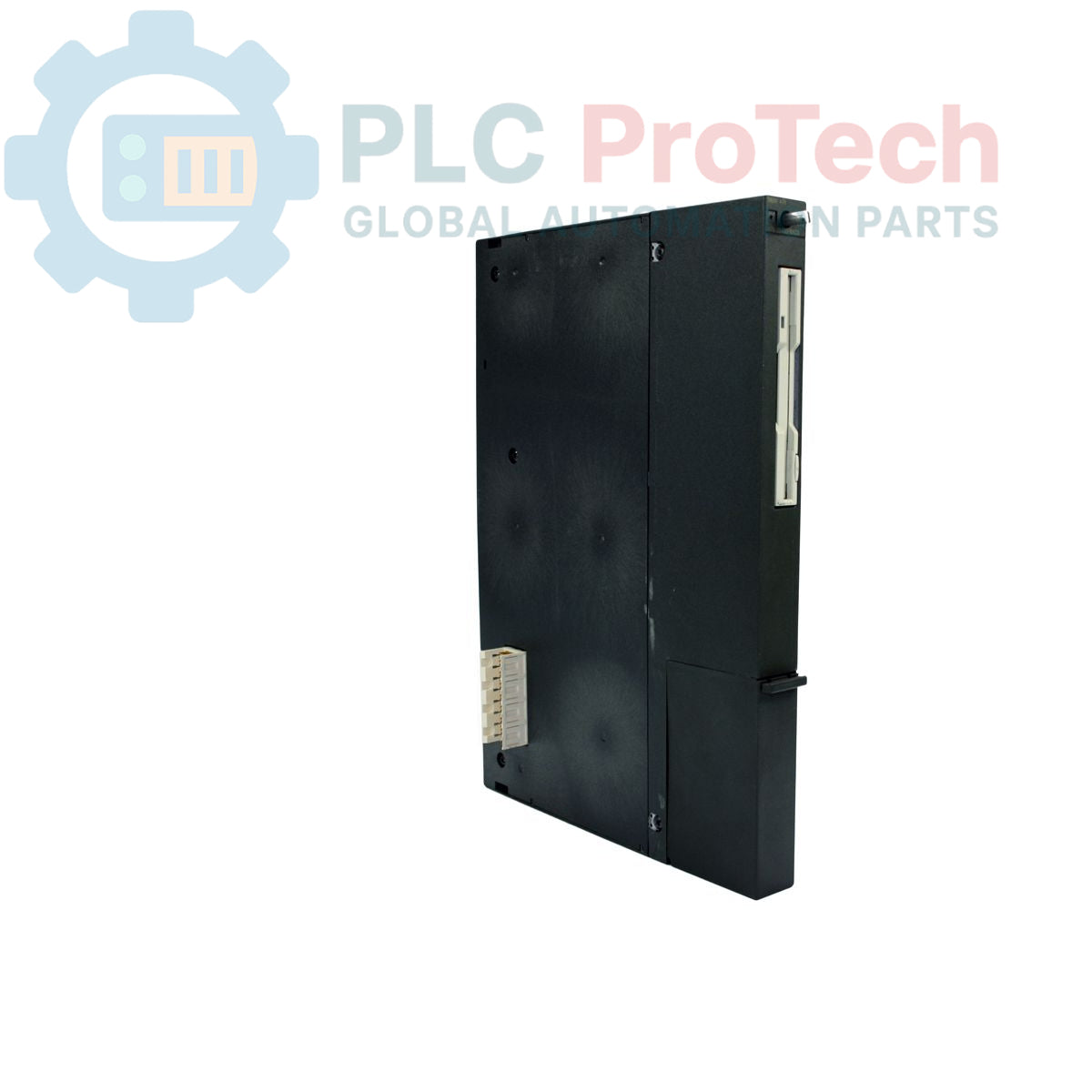

Siemens 6ES7478-2BA00-0AC0 SIMATIC M7-400 MSM478 Expansion Module

Description

The Siemens 6ES7478-2BA00-0AC0 is an MSM478 expansion module designed for seamless integration with the SIMATIC M7-400 automation system. This module enhances system capabilities by featuring a built-in hard disk drive with a storage capacity exceeding 500 MB, providing substantial space for process data and critical applications. Additionally, it incorporates a 3.5-inch floppy disk drive with a capacity of 1.44 MB, offering reliable support for legacy data transfer and backup tasks. The 6ES7478-2BA00-0AC0 is engineered for durability, ensuring stable performance in demanding industrial environments. Its robust construction and compatibility with Siemens systems make it a practical solution for expanding storage and data management within production lines or automated processes.

Features

• Integrated Hard Disk Drive with >500 MB storage capacity
• Built-in 3.5-inch Floppy Disk Drive with 1.44 MB capacity
• Designed for SIMATIC M7-400 automation systems
• Robust construction for industrial environments
• Supports legacy data transfer and backup operations

Applications

• Expanding local data storage in industrial automation systems.
• Data management and archiving within production lines.
• Automated processes requiring integrated hard disk and floppy disk capabilities.
• Systems needing support for legacy data transfer or backup via floppy disk.

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure that the SIMATIC M7-400 system and associated power supplies are completely de-energized to prevent electric shock or damage to components.
2. Mounting: Securely mount the expansion module into the designated slot or rack position within the SIMATIC M7-400 system. Ensure all mechanical fasteners are tightened appropriately.
3. Cable Connections: Connect any necessary data or interface cables to the module. Verify correct polarity and secure connections to prevent signal loss or intermittent operation.
4. Grounding: Ensure proper grounding of the module and the overall system to minimize electromagnetic interference (EMI) and ensure safe operation.
5. Power-Up and Verification: After all connections are secure, re-energize the system. Monitor system indicators and perform functional tests to confirm the module is recognized and operating correctly.
6. Data Transfer: If utilizing the floppy disk drive, ensure proper media insertion and follow system procedures for data transfer or backup.
