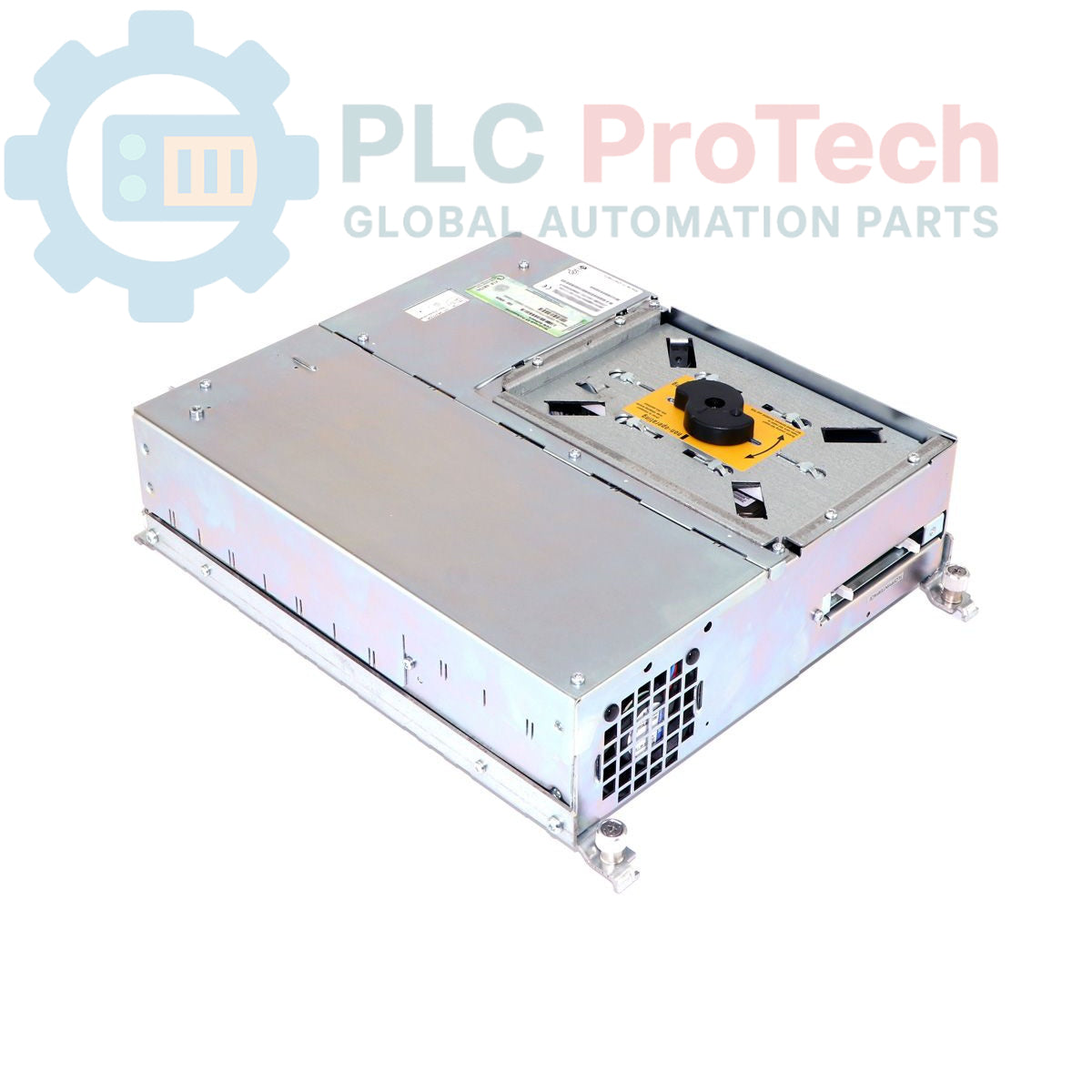

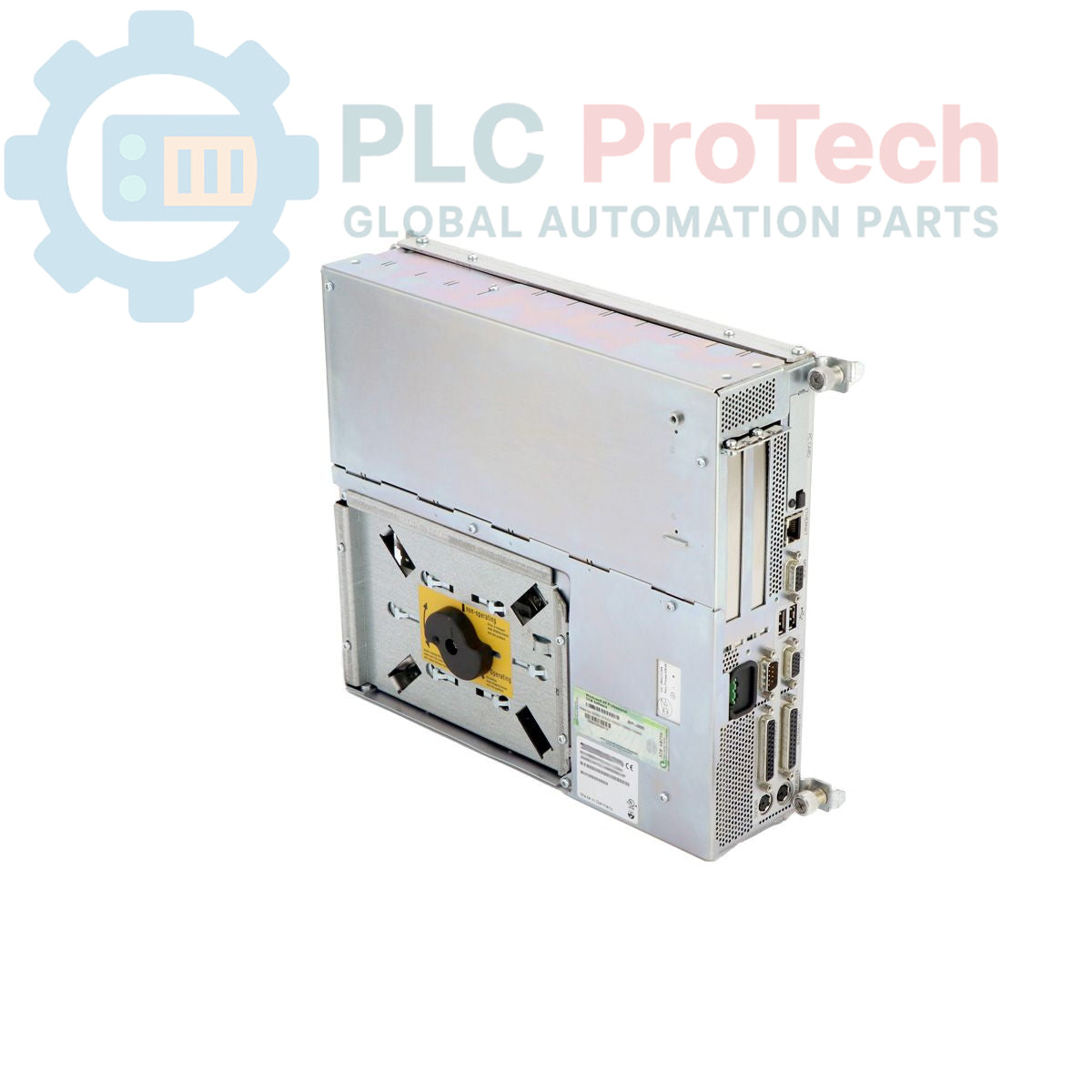

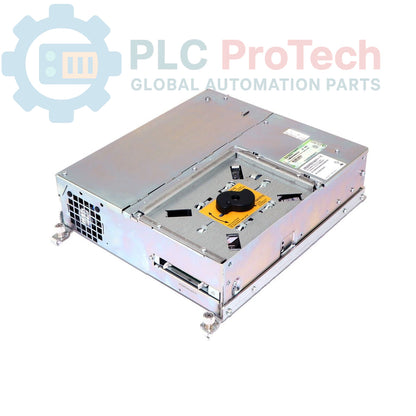

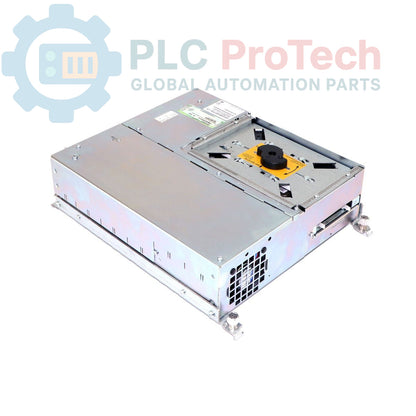

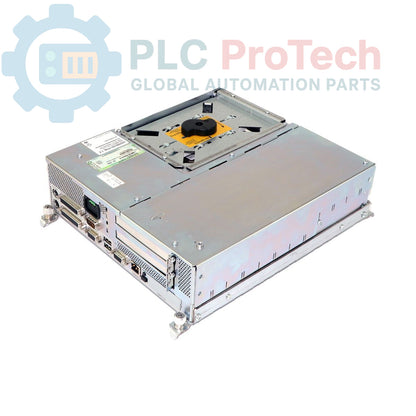

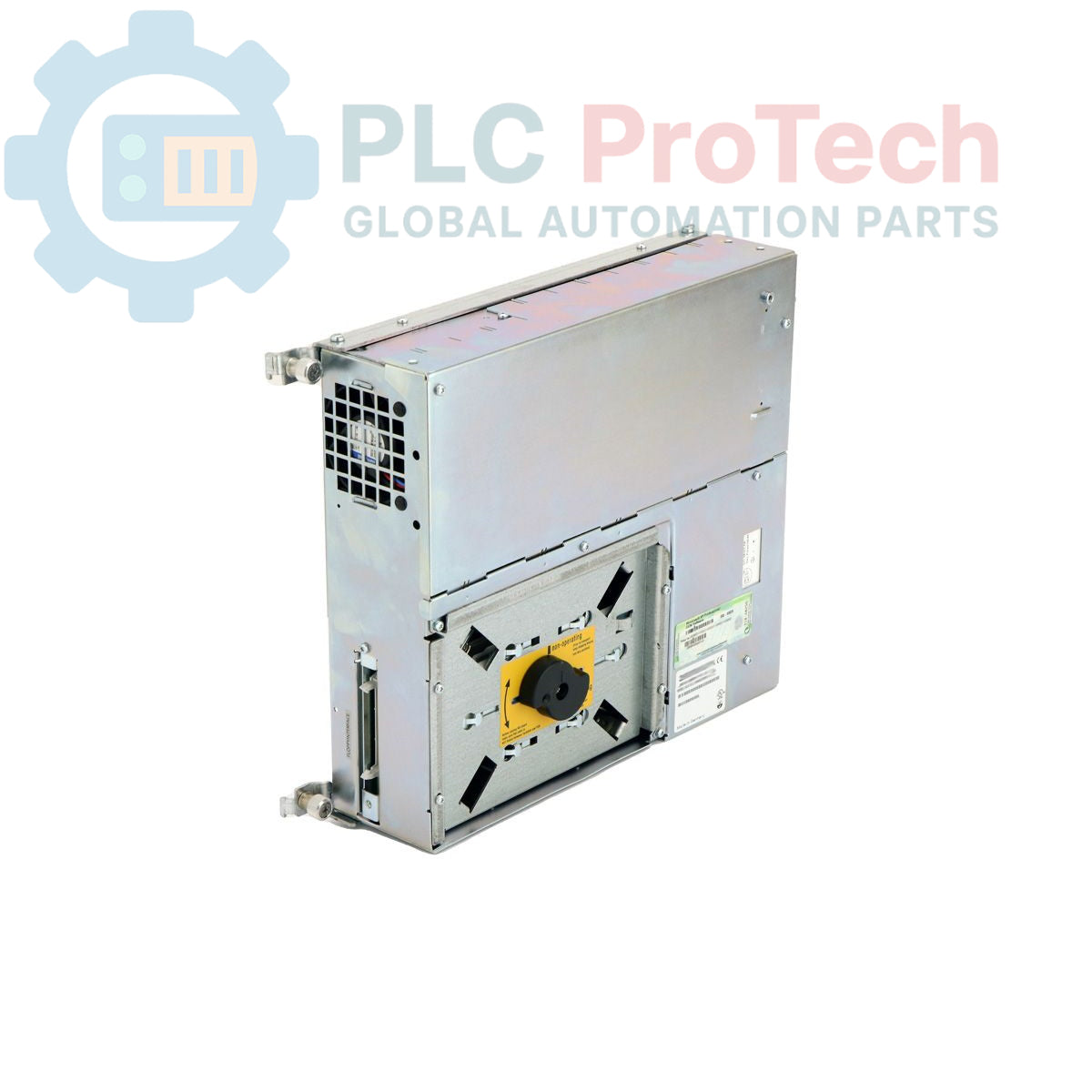

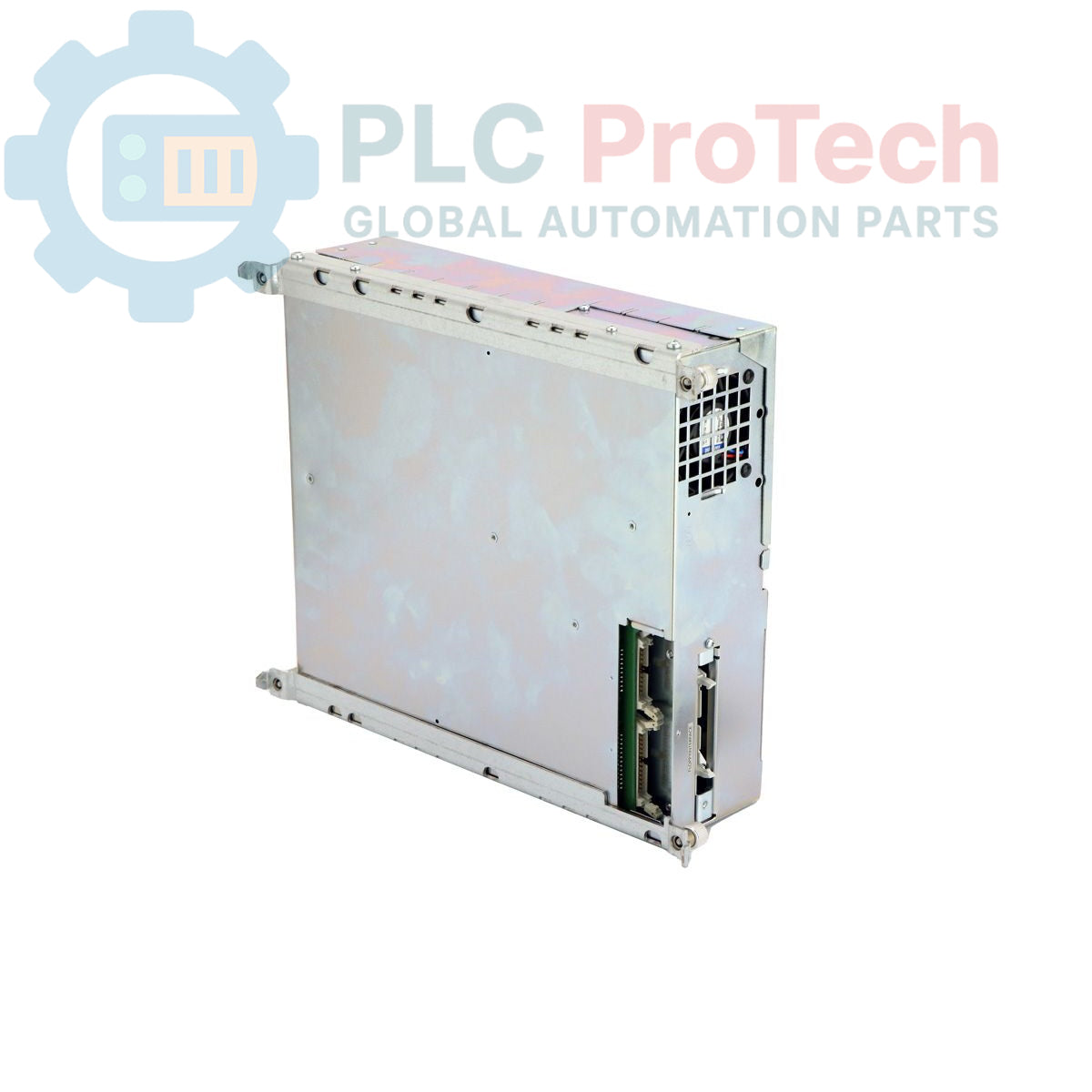

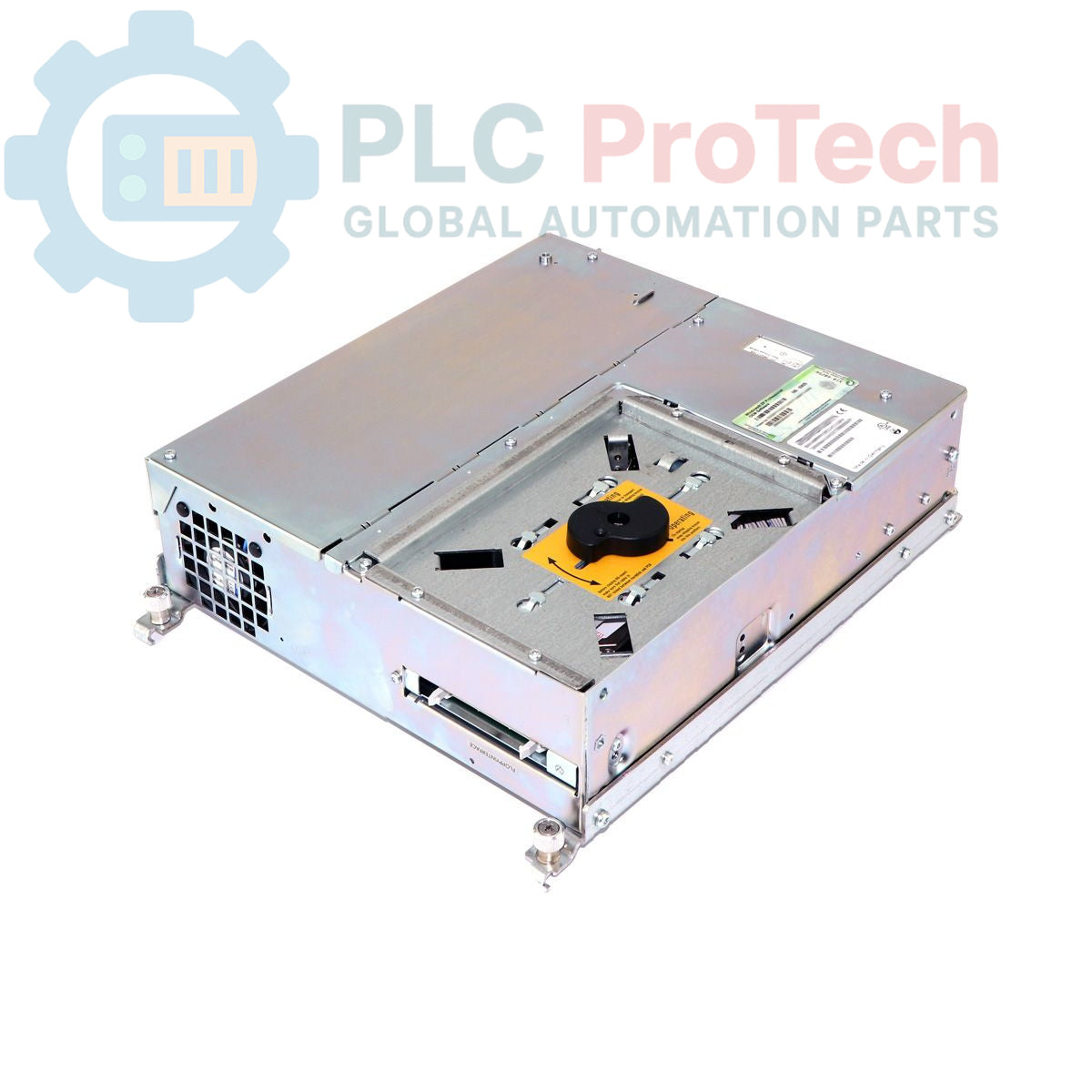

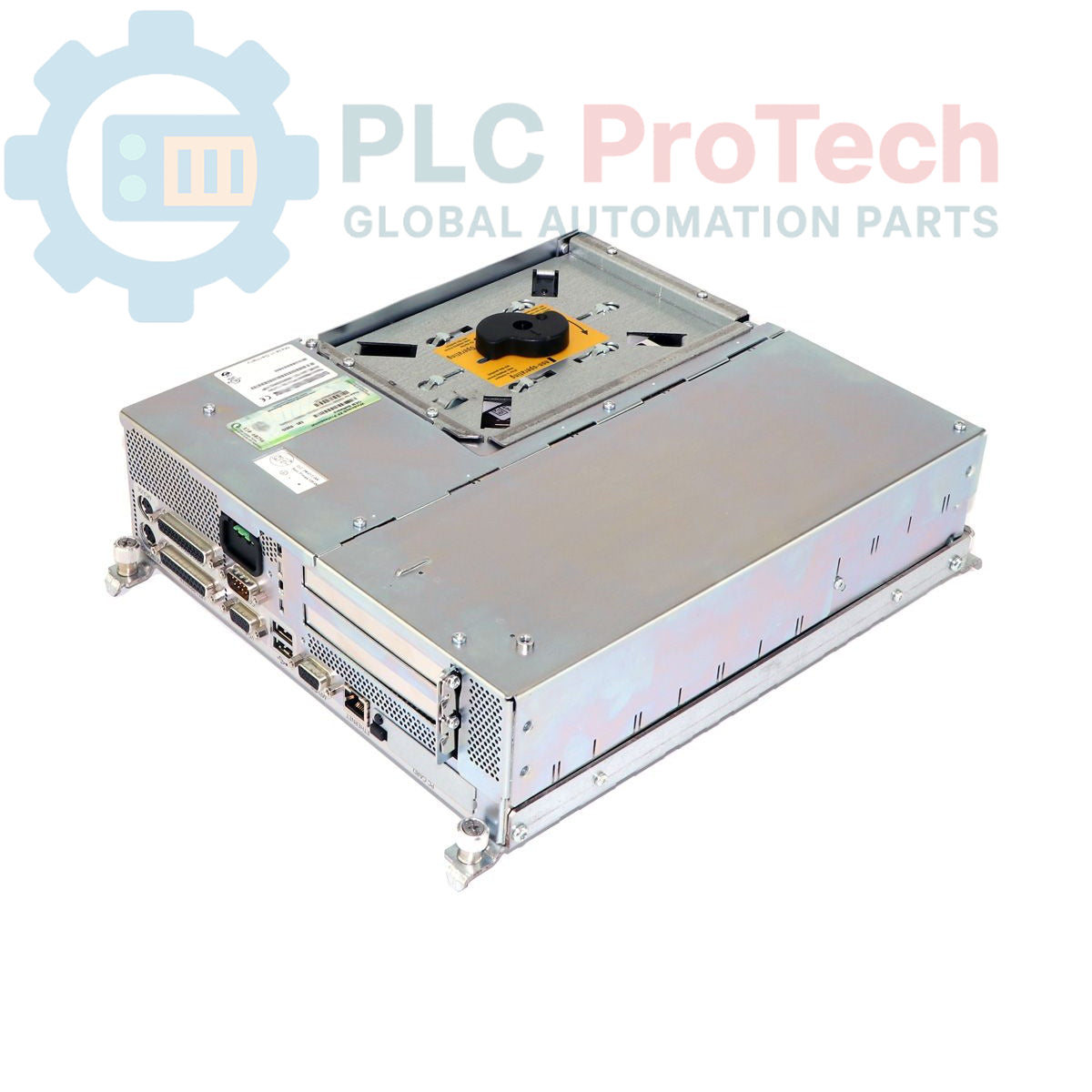

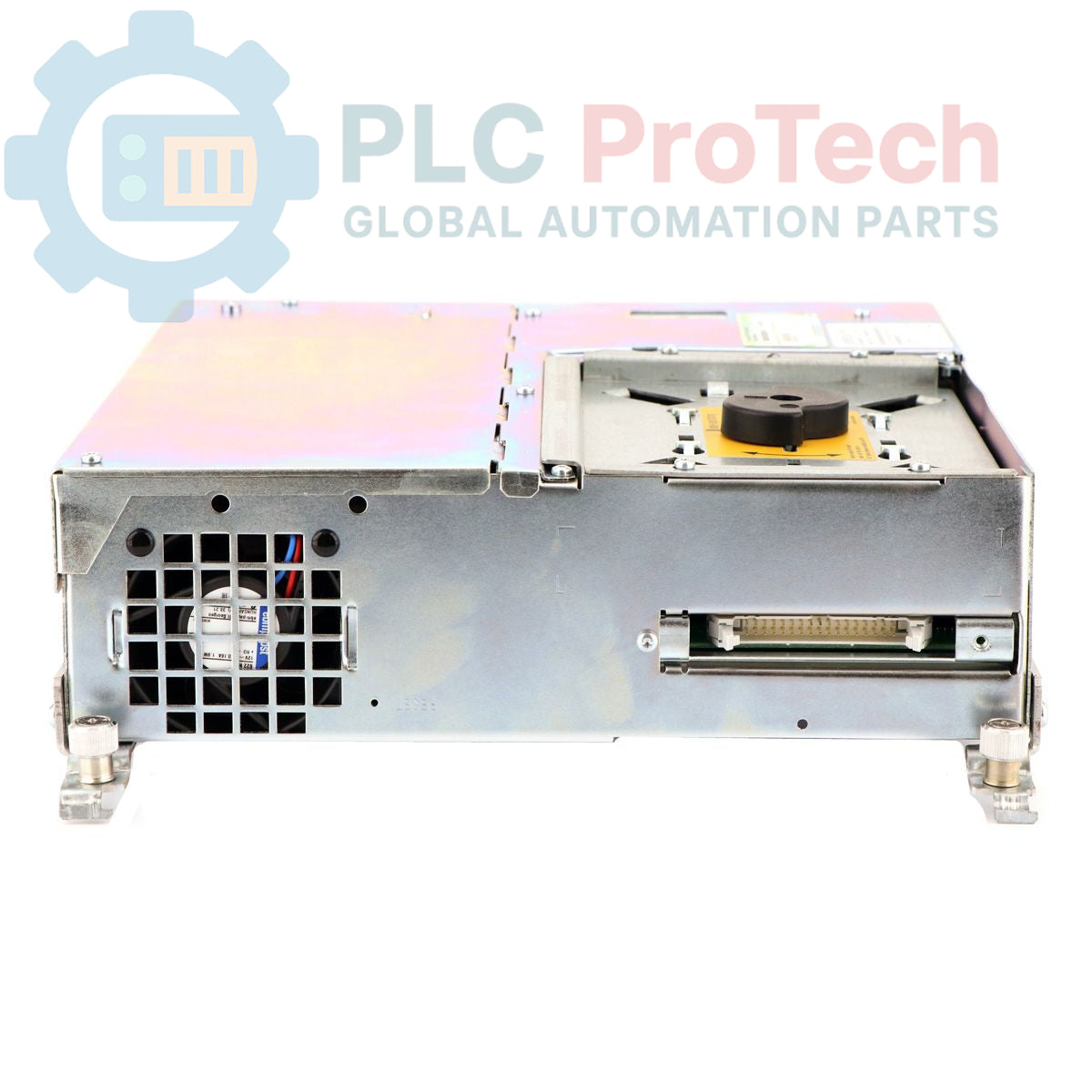

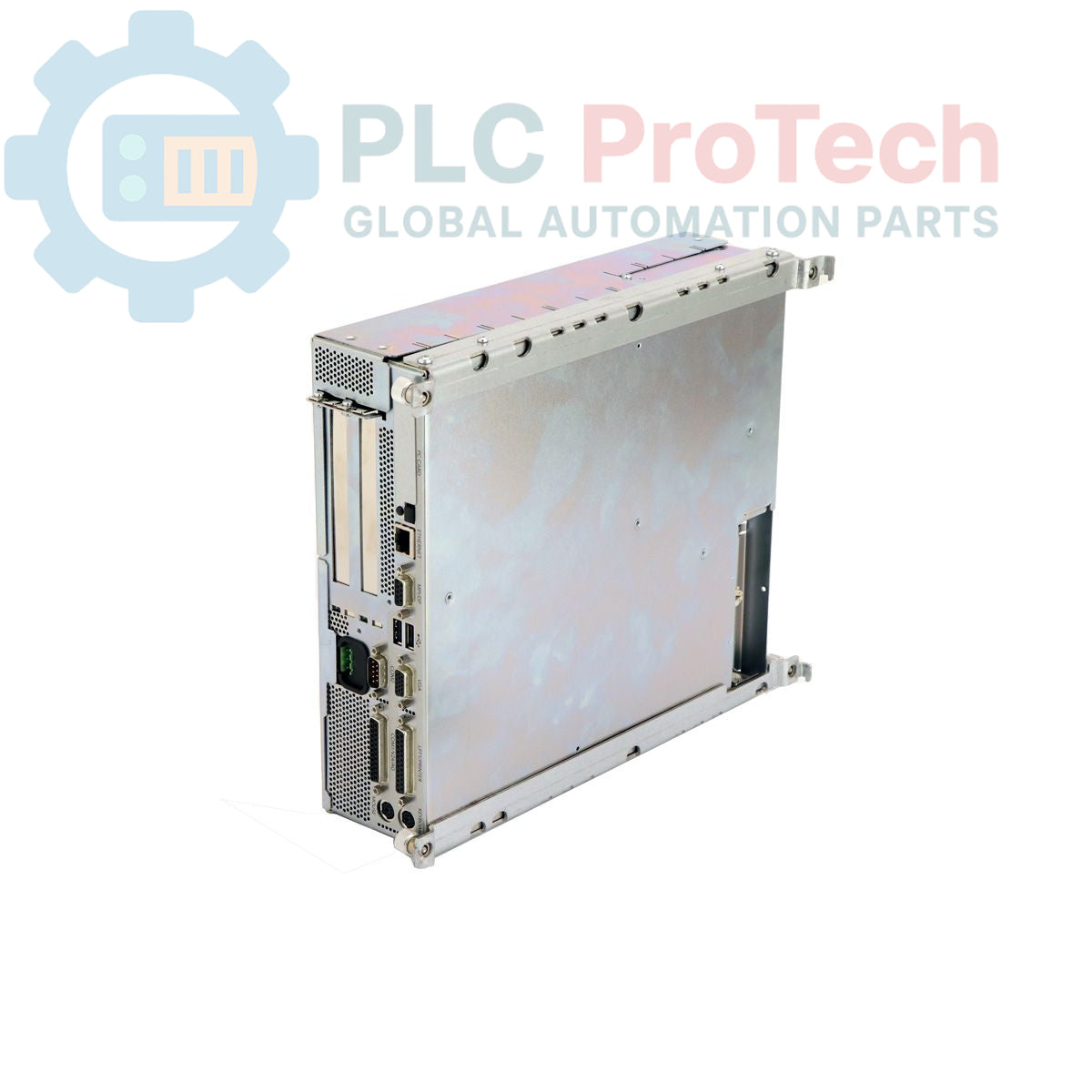

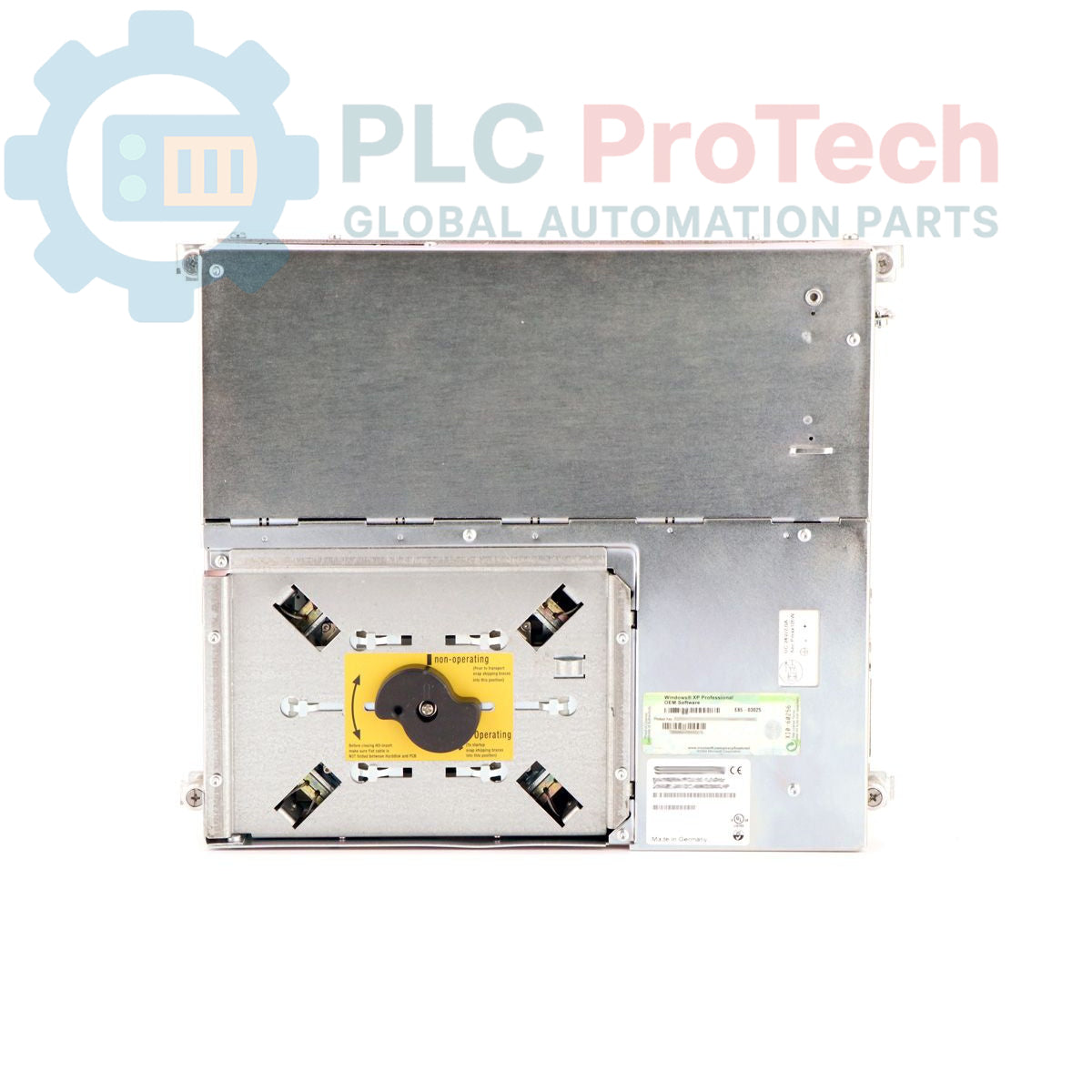

Siemens 6ES7647-5GE30-0KX0 SIMATIC BOX PC 620 Industrial PC

Description

The Siemens 6ES7647-5GE30-0KX0 is an industrial computer from the SIMATIC BOX PC 620 series. This unit is configured with a Pentium III 1.26 GHz processor, 512 MB SDRAM, and a 40 GB EIDE hard drive. It features onboard AGP graphics, a 10/100 Mbit/s Ethernet port, and an integrated PROFIBUS/MPI interface for industrial communication and control system integration. The system includes a DVD-ROM drive, a 3.5" floppy drive, and is powered by a 110/230V AC industrial power supply with NAMUR compliance. This model comes pre-installed with Windows XP Professional (Multilanguage) and includes integrated watchdog and temperature monitoring functions for enhanced reliability in industrial environments.

Features

• Processor: Pentium III 1.26 GHz with 133 MHz FSB and 512 KB SLC
• Memory: 512 MB SDRAM-133
• Storage: 40 GB EIDE Hard Disk Drive
• Optical Drive: DVD-ROM
• Removable Media: 1.44 MB, 3.5" Floppy Drive
• Graphics: Onboard AGP, configurable (8/16/32 MB)
• Networking: 10/100 Mbit/s Ethernet (RJ45)
• Industrial Comms: Integrated PROFIBUS/MPI interface
• Expansion: 1x PCI slot, 1x shared ISA/PCI slot, 1x PC Card (PCMCIA Type 3) slot
• I/O Ports: 2x USB, 1x TTY
• System Monitoring: Integrated watchdog and temperature monitoring
• Power Supply: 110/230V AC industrial power pack with NAMUR compliance
• Operating System: Windows XP Professional (Multilanguage, SP2 included)

Applications

• Human-Machine Interface (HMI) stations
• SCADA nodes and data concentrators
• Industrial data logging and archiving
• Gateway between plant floor networks and enterprise systems
• PC-based control and automation tasks

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Before installation, ensure the control cabinet and all related power sources are completely de-energized and locked out/tagged out (LOTO). Verify zero energy state with a calibrated multimeter.
2. 2 Mount Securely: Install the Box PC on a stable, vibration-free surface within the control cabinet using all designated mounting points. Ensure adequate clearance for airflow around all vents to prevent overheating.
3. 3 Establish Ground Connection: Connect the chassis grounding terminal directly to the main cabinet ground bus using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
4. 4 Connect Peripherals and Networks: Connect all required cables, including power, Ethernet, PROFIBUS, USB, and video. Ensure all connectors are fully seated and secured. Route communication cables separately from high-voltage power lines.
5. 5 Power-Up and Configuration: After verifying all connections, remove LOTO and apply power. Access the BIOS to check system settings and boot order. Proceed with operating system and application software installation as required.
