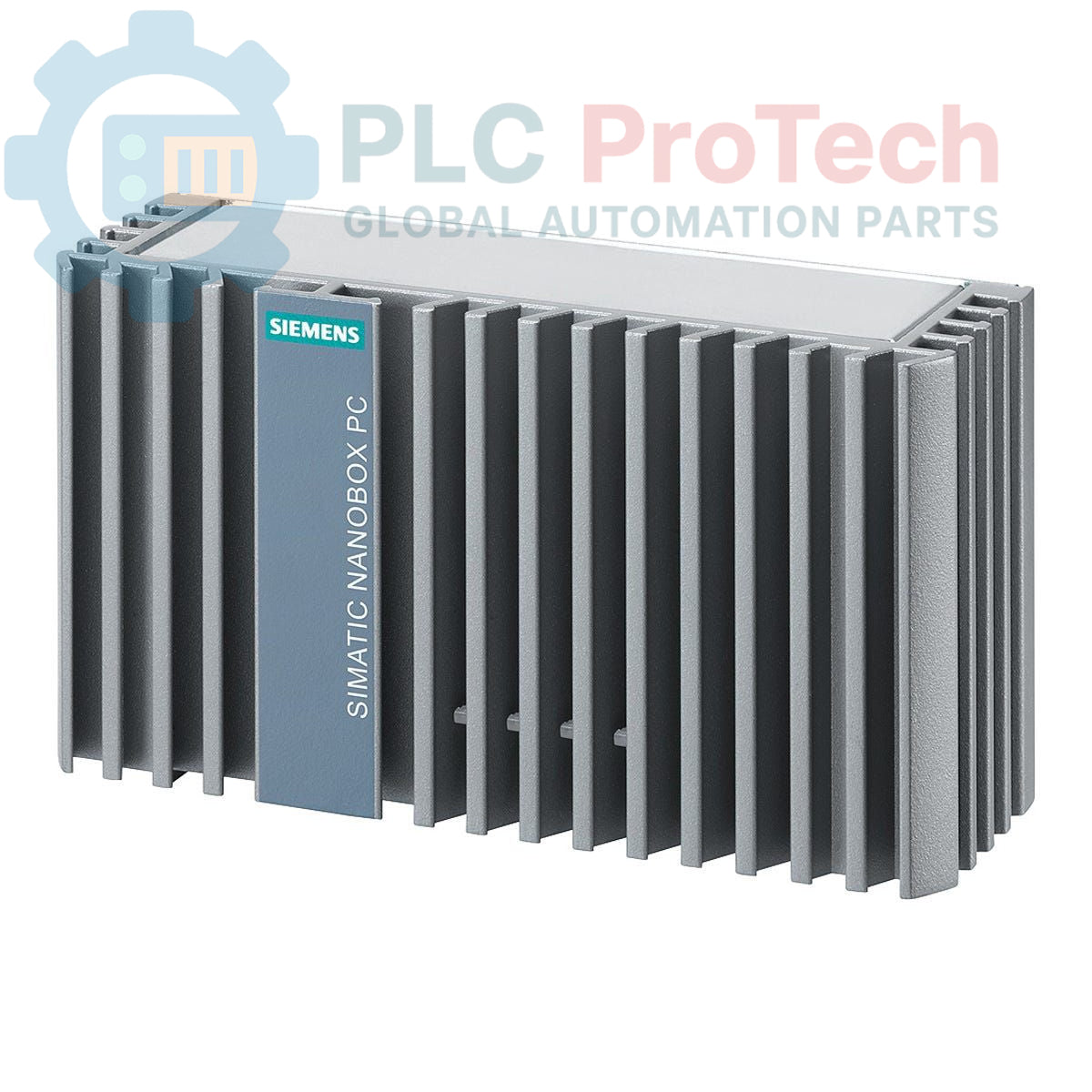

کامپیوتر نانوباکس IPC227E سیماتیک زیمنس 6ES7647-8BA21-1BA1

Description

The 6ES7647-8BA21-1BA1 is a SIMATIC IPC227E Nanobox PC, designed as a compact and ruggedized computing platform for industrial automation tasks. Equipped with a dual-core Intel Celeron N2807 processor and 4 GB of RAM, this unit provides reliable performance for basic visualization, control, and data acquisition applications in constrained industrial spaces.

The device features a versatile set of connectivity options, including two Gigabit Ethernet ports, one USB 3.0 port, and three USB 2.0 ports. It also includes a DisplayPort interface for external monitor connection and a CFast slot for removable storage. Designed for 24 V DC industrial power environments, this Nanobox PC is configured for DIN rail mounting, facilitating seamless installation within standard control cabinets.

Features

• SIMATIC IPC227E Nanobox PC architecture
• Intel Celeron N2807 processor (2-core/2-thread)
• 4 GB RAM and 80 GB SSD storage
• Connectivity: 2x 10/100/1000 Mbit/s Ethernet, 1x USB 3.0, 3x USB 2.0
• 1x DisplayPort for external video output
• Integrated CFast slot
• Compact, fanless design for DIN rail mounting
• Industrial 24 V DC power supply

Applications

• Machine-level HMI and visualization
• Data logging and process monitoring
• Industrial gateway and protocol conversion
• Compact edge computing and control tasks

Technical Specifications

Installation Guidelines

• Mounting: Designed for vertical or horizontal DIN rail mounting. Ensure the installation orientation aligns with the air convection requirements for the fanless cooling system.
• Clearance: Maintain minimum spacing around the chassis as defined in the product manual to allow for passive heat dissipation.
• Grounding: Connect the functional ground terminal on the chassis to the cabinet earth busbar to minimize noise and improve system stability.
• Power: Ensure the 24 V DC power source is stable and protected from transients. Use wire cross-sections appropriate for the power supply's current requirements.
• Storage Media: When utilizing the CFast slot, ensure the card is inserted fully and locked, and the system is powered off if swapping media in non-hot-swappable configurations.
