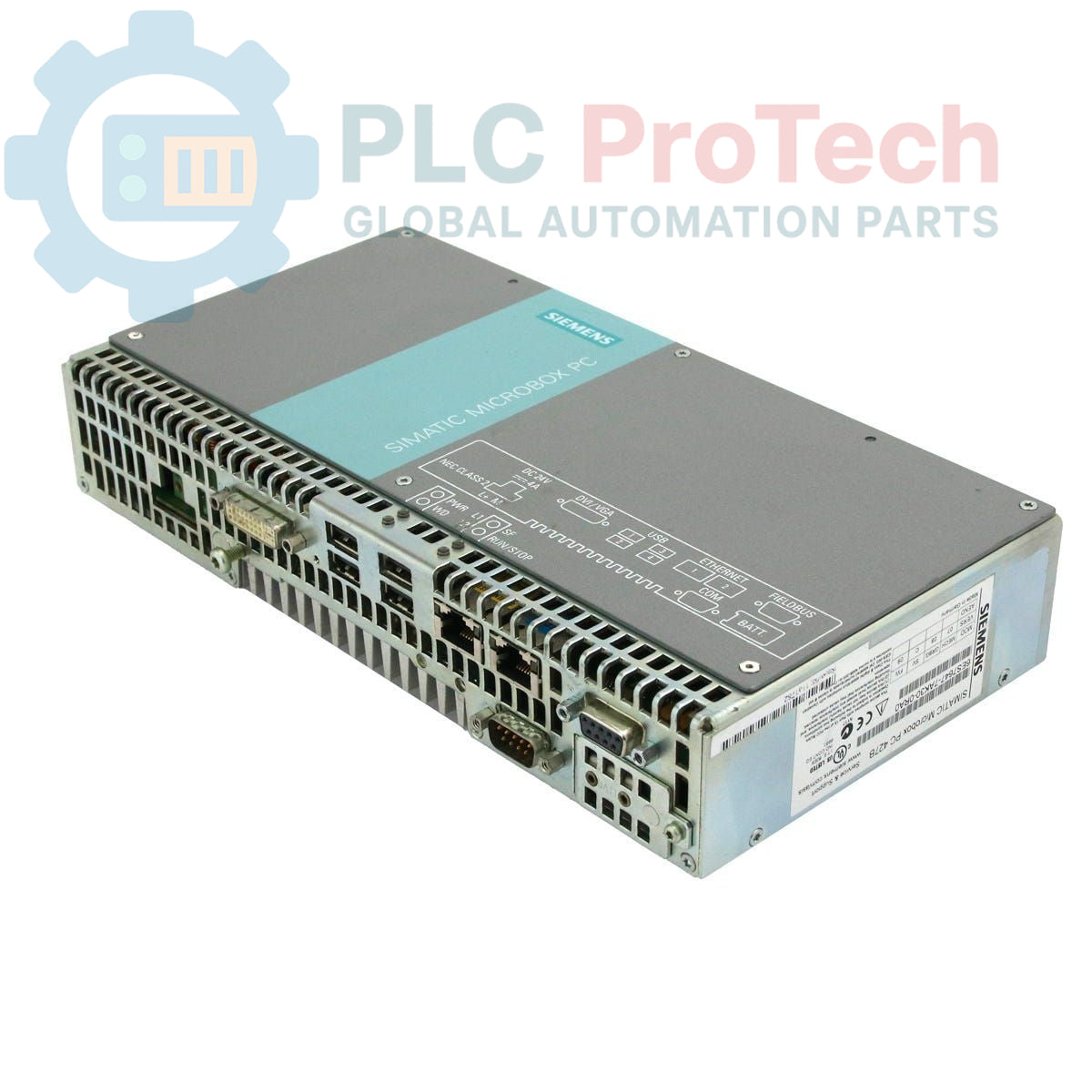

Siemens 6ES7675-1CK30-0CE0 SIMATIC Microbox 427B-HMI Box PC

Only 7 item(s) left in stock

Manufacturer: Siemens
Product No.: 6ES7675-1CK30-0CE0
Country of origin:آلمان
Product Type: Industrial Box PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 2600g
Dimensions: 40.5 x 22.0 x 26.4 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7675-1CK30-0CE0 is a SIMATIC Microbox 427B-HMI, a compact and robust industrial PC designed for human-machine interface (HMI) and control applications. This unit is powered by an Intel Pentium M 1.4 GHz processor and is equipped with 1 GB of DDR2 RAM. It includes a 2 GB CompactFlash card which comes pre-installed with a suite of software including the Windows XP Embedded operating system, WinCC flexible 2008 RT for visualization, and SOFTNET-S7 LEAN for communication. Its extensive connectivity options, including PROFIBUS DP, dual Ethernet, and multiple USB ports, make it a versatile component for integrated automation systems.

Features

Intel Pentium M processor operating at 1.4 GHz.
1 GB of installed DDR2 RAM.
Includes a 2 GB CompactFlash card for storage.
Pre-installed with Windows XP Embedded operating system.
Pre-loaded with WinCC flexible 2008 RT (2048 PowerTags).
Features an integrated PROFIBUS DP interface.
Equipped with dual 10/100 Mbit/s Ethernet ports.

Applications

Operator control and monitoring (HMI).
Data acquisition and logging in industrial environments.
Small-scale process control and automation tasks.
Gateway applications between different fieldbus networks.

Technical Specifications

Specification	Value
General
Manufacturer	Siemens
Product Series	SIMATIC Microbox 427B-HMI
Part Number	6ES7675-1CK30-0CE0
Product Type	Industrial Box PC
Product Lifecycle Status	Obsolete
Performance
Processor	Intel Pentium M
Processor Clock Speed	1.4 GHz
Memory (RAM)	1 GB DDR2
Storage
Storage Type	CompactFlash Card
Storage Capacity	2 GB
Software (Pre-installed)
Operating System	Windows XP Embedded
HMI/SCADA	WinCC flexible 2008 RT 2048PT
Communication	SOFTNET-S7 LEAN 2007
Interfaces
PROFIBUS	1 x PROFIBUS DP
Ethernet	2 x 10/100 Mbit/s RJ45
USB	6 x USB
Serial	1 x COM1
Logistics
Shipping Weight	2.60 kg
Package Dimensions (Calculated)	40.5 x 22.0 x 26.4 cm
Commodity Code	85371091
ECCN	5D002
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Installation must be performed by qualified personnel only. Failure to comply with safety procedures, including Lockout/Tagout (LOTO), can result in severe injury or equipment damage. Always handle electronic components in an ESD-safe environment.

::before Verify that the part number 6ES7675-1CK30-0CE0 matches the project requirements before unboxing.
::before De-energize the control cabinet and apply LOTO procedures. Verify the absence of voltage before proceeding.
::before Mount the Microbox PC securely within the enclosure, ensuring adequate ventilation and clearance around the unit for heat dissipation.
::before Connect the chassis to the main protective earth (PE) busbar using a low-impedance conductor of the appropriate gauge.
::before Connect the DC power supply to the designated terminals, observing correct polarity.
::before Connect all required communication cables (Ethernet, PROFIBUS, Serial) and peripherals (USB devices, display). Ensure proper shielding and grounding practices are followed for all signal cables.
::before Perform a final inspection of all connections before removing LOTO devices and re-energizing the cabinet.

Key Features:

#Industrial Box PC #SIMATIC Microbox

What software is pre-installed on this device?

The 6ES7675-1CK30-0CE0 comes with Windows XP Embedded, WinCC flexible 2008 RT (2048 PowerTags), and SOFTNET-S7 LEAN 2007 pre-installed on the CompactFlash card.

What are the primary communication interfaces available?

The unit includes one PROFIBUS DP port, two 10/100 Mbit/s Ethernet ports, six USB ports, and one serial (COM1) port.

What are the processor and memory specifications?

This Microbox PC is equipped with an Intel Pentium M 1.4 GHz processor and 1 GB of DDR2 RAM.

What is the storage medium and its capacity?

The device uses a 2 GB CompactFlash card for its operating system, software, and data storage.

Is this product a current or obsolete model?

The Siemens 6ES7675-1CK30-0CE0 is classified as an obsolete product, typically used for maintenance, repair, and operations (MRO) of existing systems.
