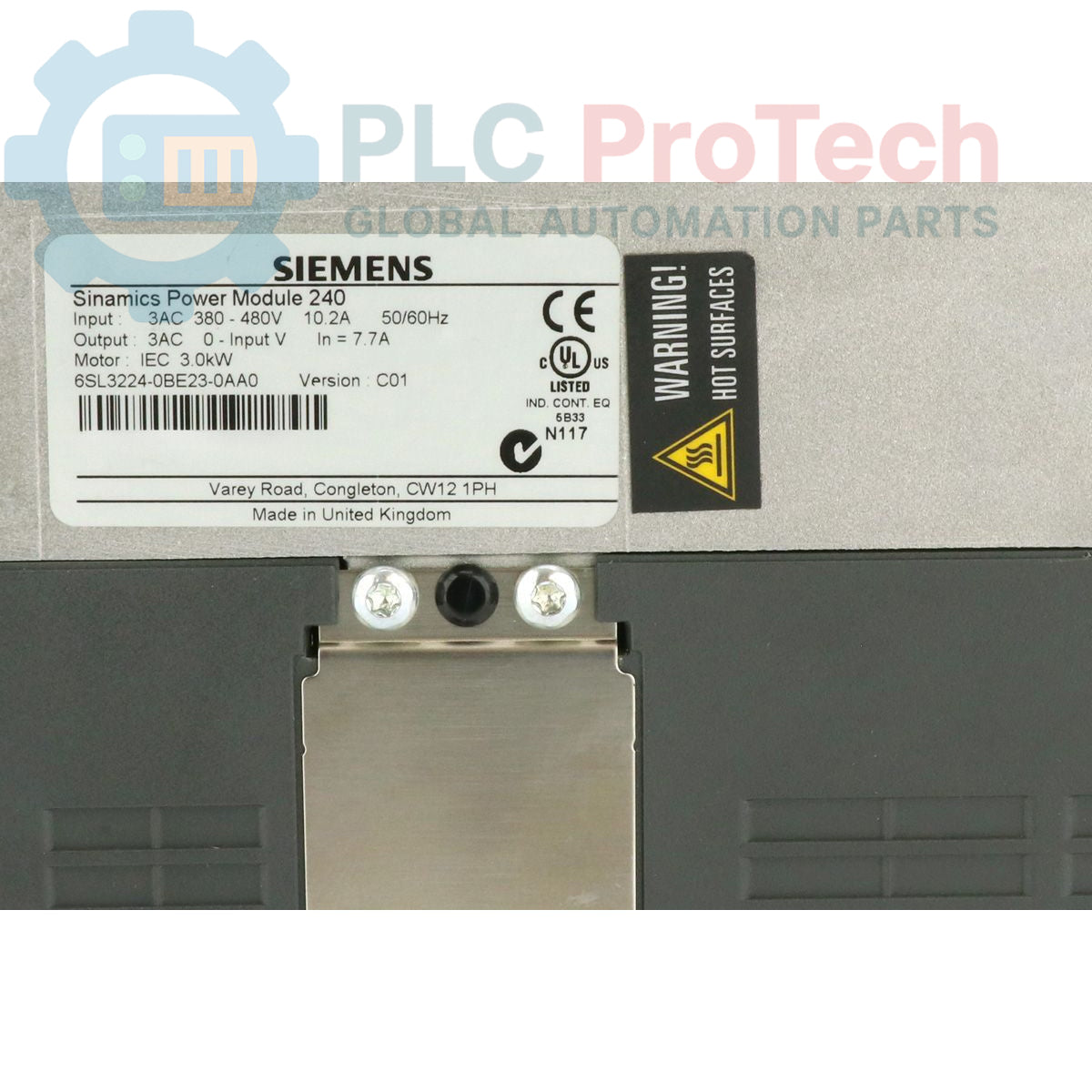

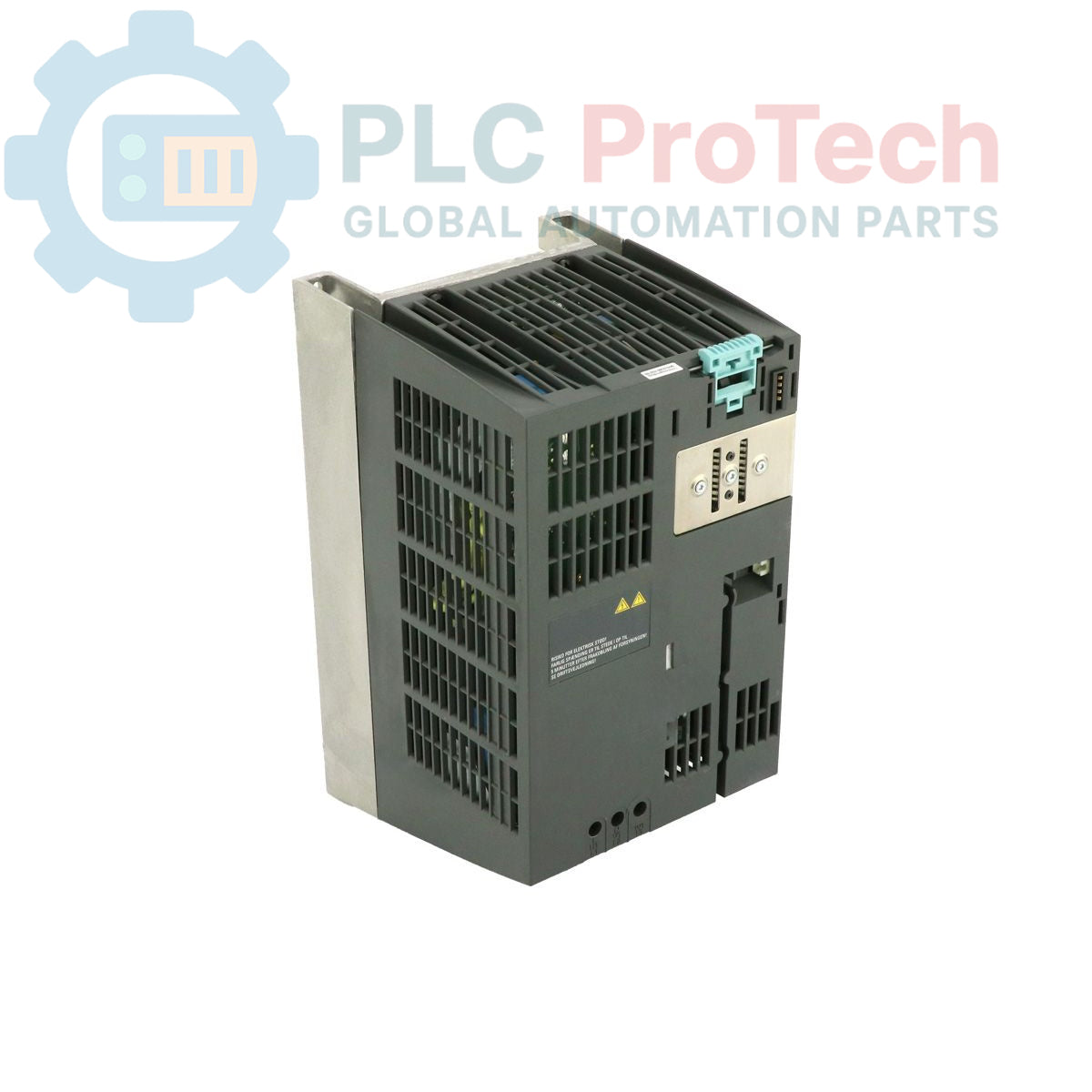

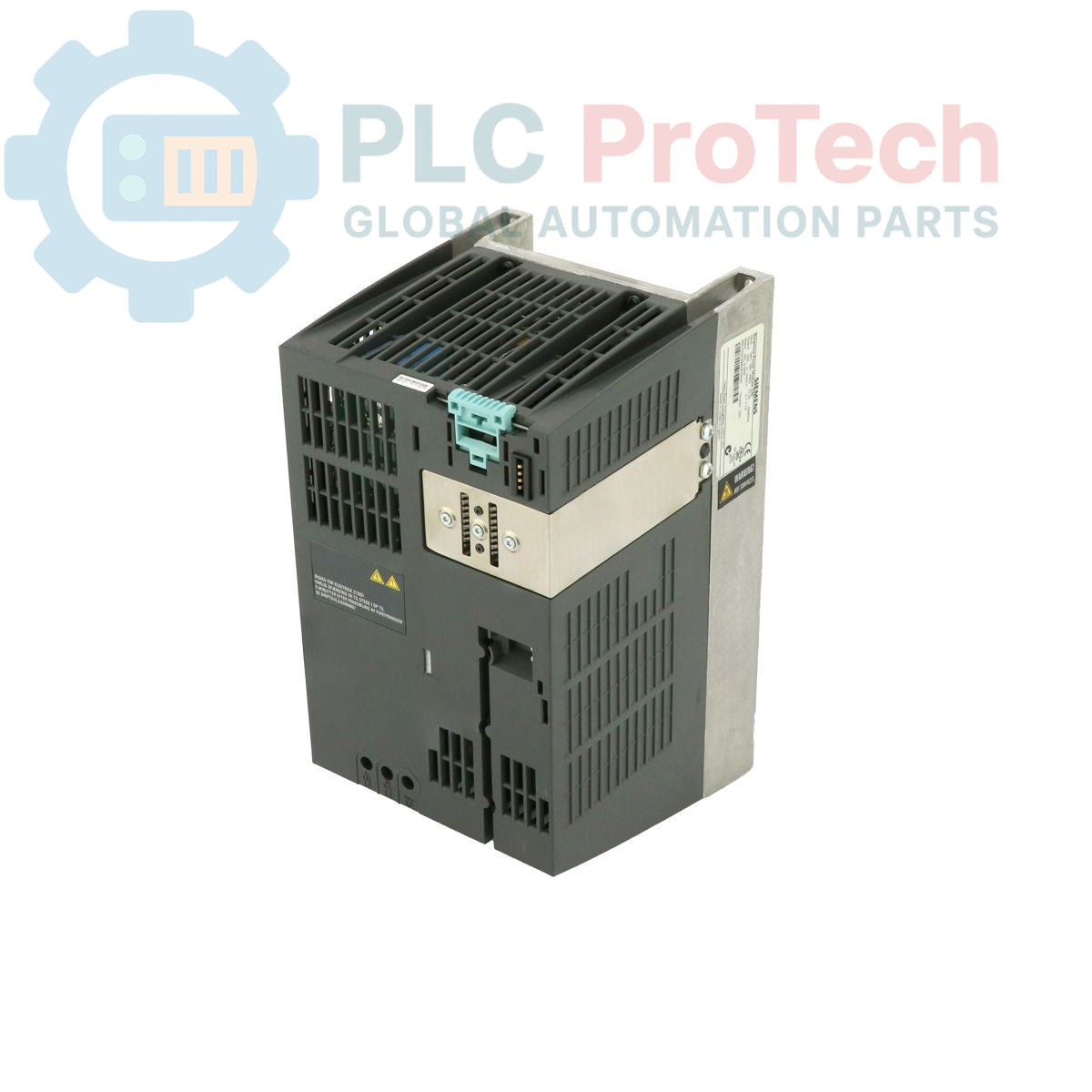

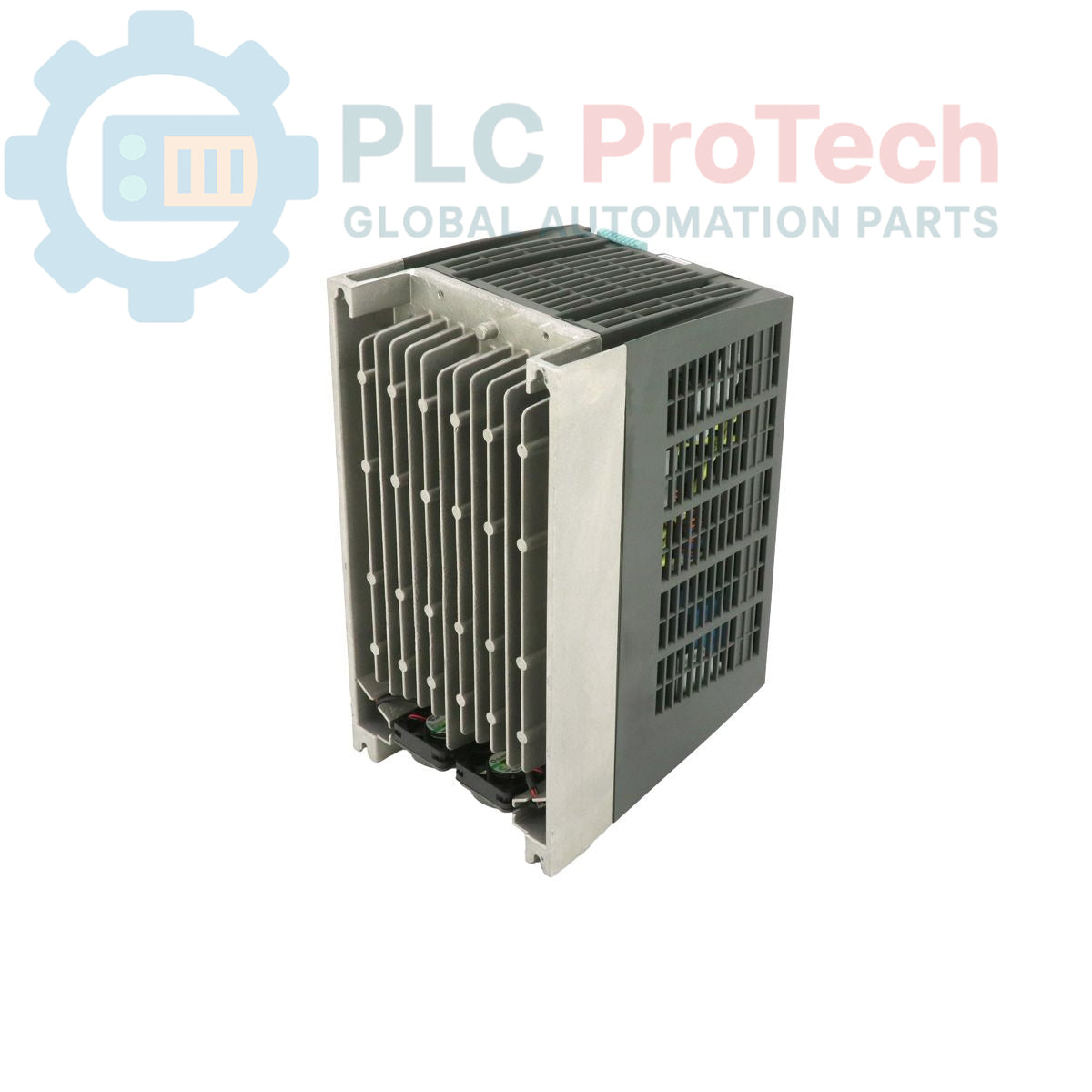

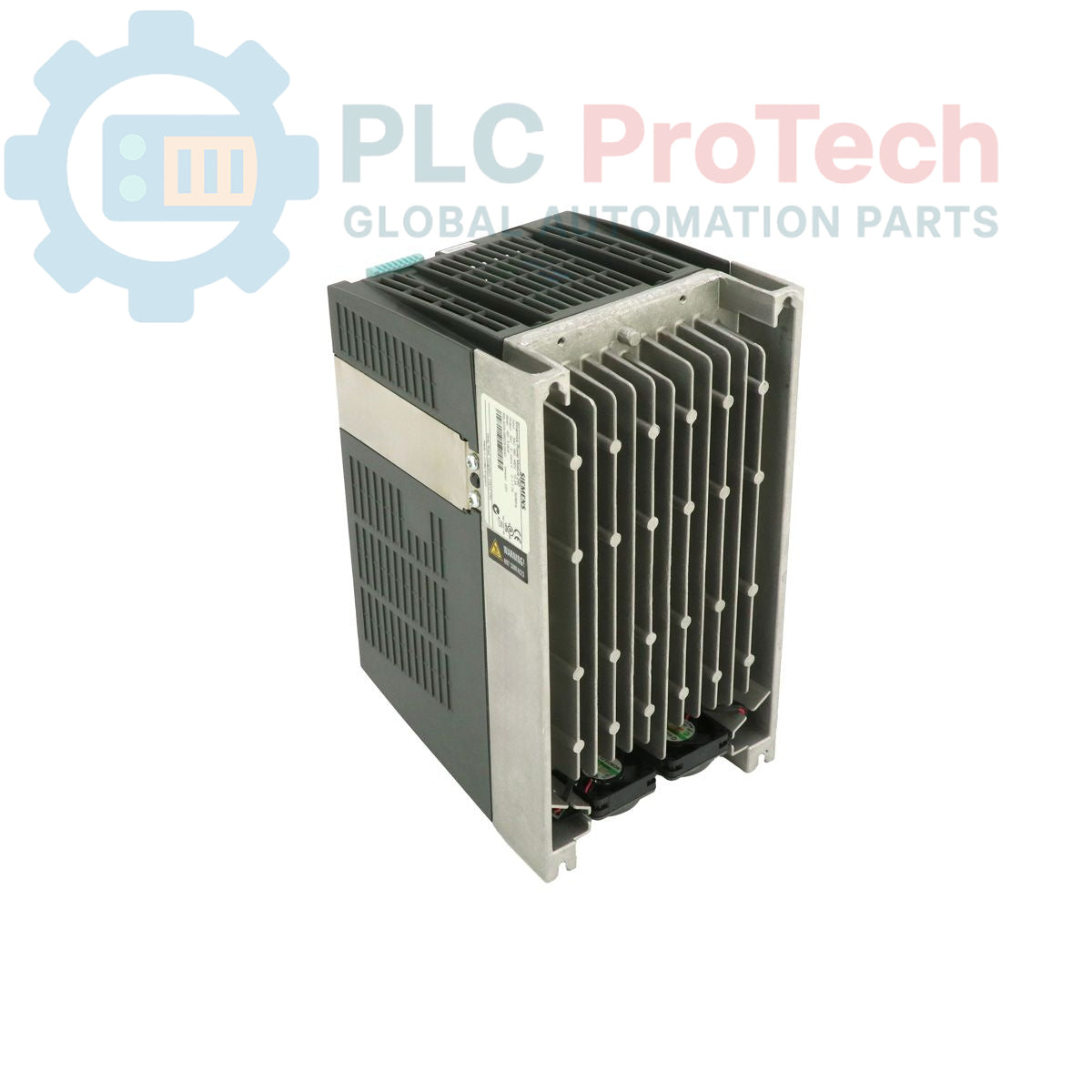

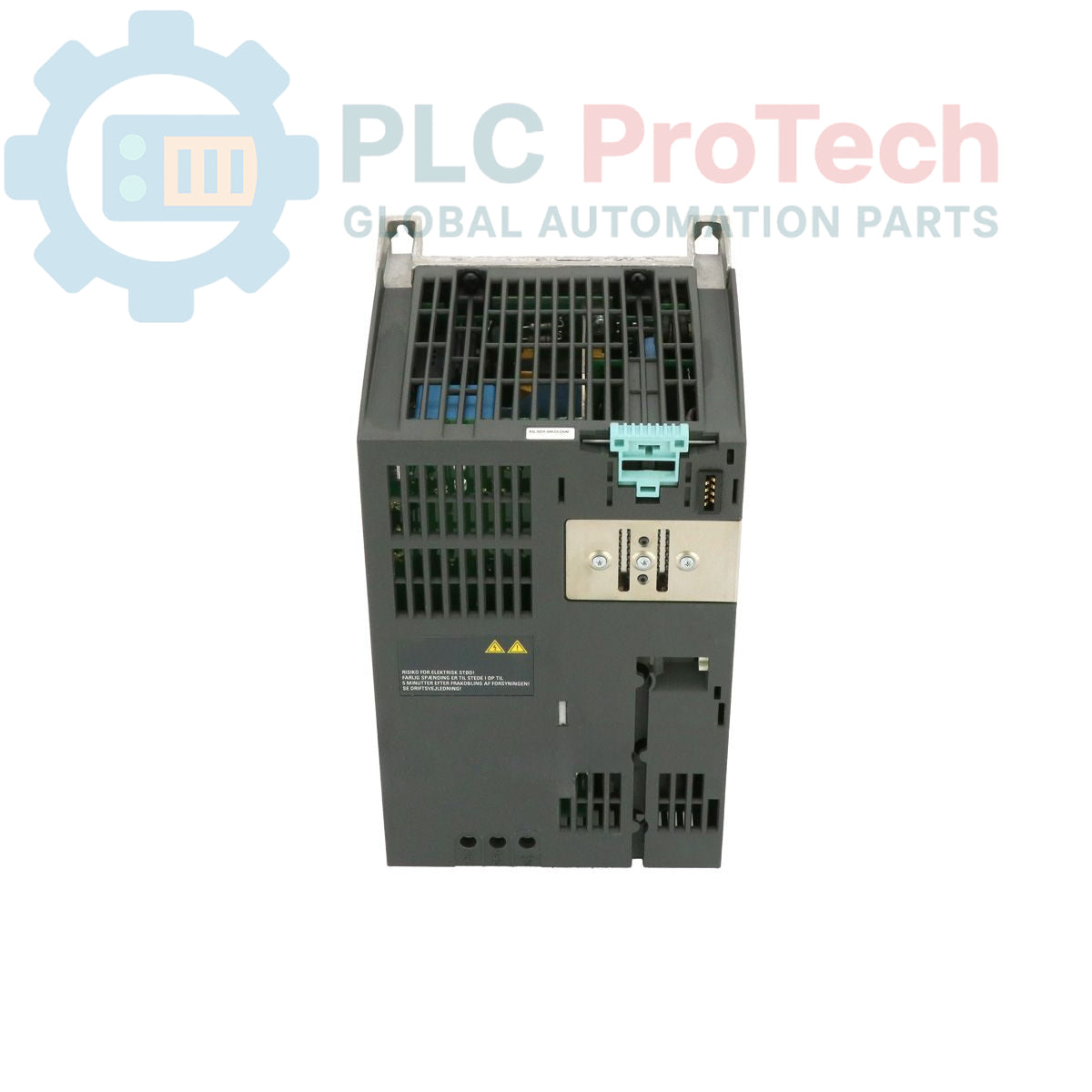

ماژول قدرت PM240 SINAMICS G120 زیمنس 6SL3224-0BE23-0AA0

Description

The 6SL3224-0BE23-0AA0 is a SINAMICS G120 PM240 Power Module designed for high-performance motor control in industrial automation. This unit features an integrated class A line filter and a built-in braking chopper, providing an efficient solution for applications requiring regenerative energy management. It operates on a 3-phase 380-480V AC supply and is rated for a nominal power of 3.0 kW. The PM240 is optimized for high-overload conditions, capable of sustaining 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. Its compact FSB frame size, with an IP20 protection rating, allows for effective thermal management within control cabinets. Please note that this Power Module requires a compatible Control Unit and operator panel (BOP) to function, which are not included.

Features

• Integrated Hardware: Includes class A filter and braking chopper.
• High Overload Capability: Engineered for 200% peak current during start-up or transient loads.
• Robust Input: Compatible with 380-480V 3-phase power grids.
• Compact Design: FSB frame size (270 x 153 x 165 mm) for space-saving mounting.
• Environmental Tolerance: Rated for operation in ambient temperatures ranging from -10 to +50 degC.
• Modularity: Designed to be paired with modular G120 Control Units.

Applications

• Material handling and conveyor systems
• Centrifugal pumps and fan control
• Industrial mixer and agitator drives
• Packaging machinery
• General purpose variable speed motor control applications

Technical Specifications

Installation Guidelines

• Mounting: Install the module vertically on a flat surface within an enclosure to facilitate natural convection cooling through the heat sink.
• Clearance: Maintain minimum clearances above and below the module as specified in the technical manual to ensure proper airflow.
• Grounding: Connect the protective earth (PE) terminal to the common cabinet ground bus to ensure system safety and EMC compliance.
• Cabling: Utilize shielded motor cables to minimize electromagnetic interference. Ensure that the braking resistor (if used) is connected to the appropriate chopper terminals.
• Commissioning: The module must be fitted with a compatible G120 Control Unit to initiate parameterization and drive control via fieldbus or digital I/O.
