سیمنس 7MH5101-4PD00 سل بار SIWAREX R

Description

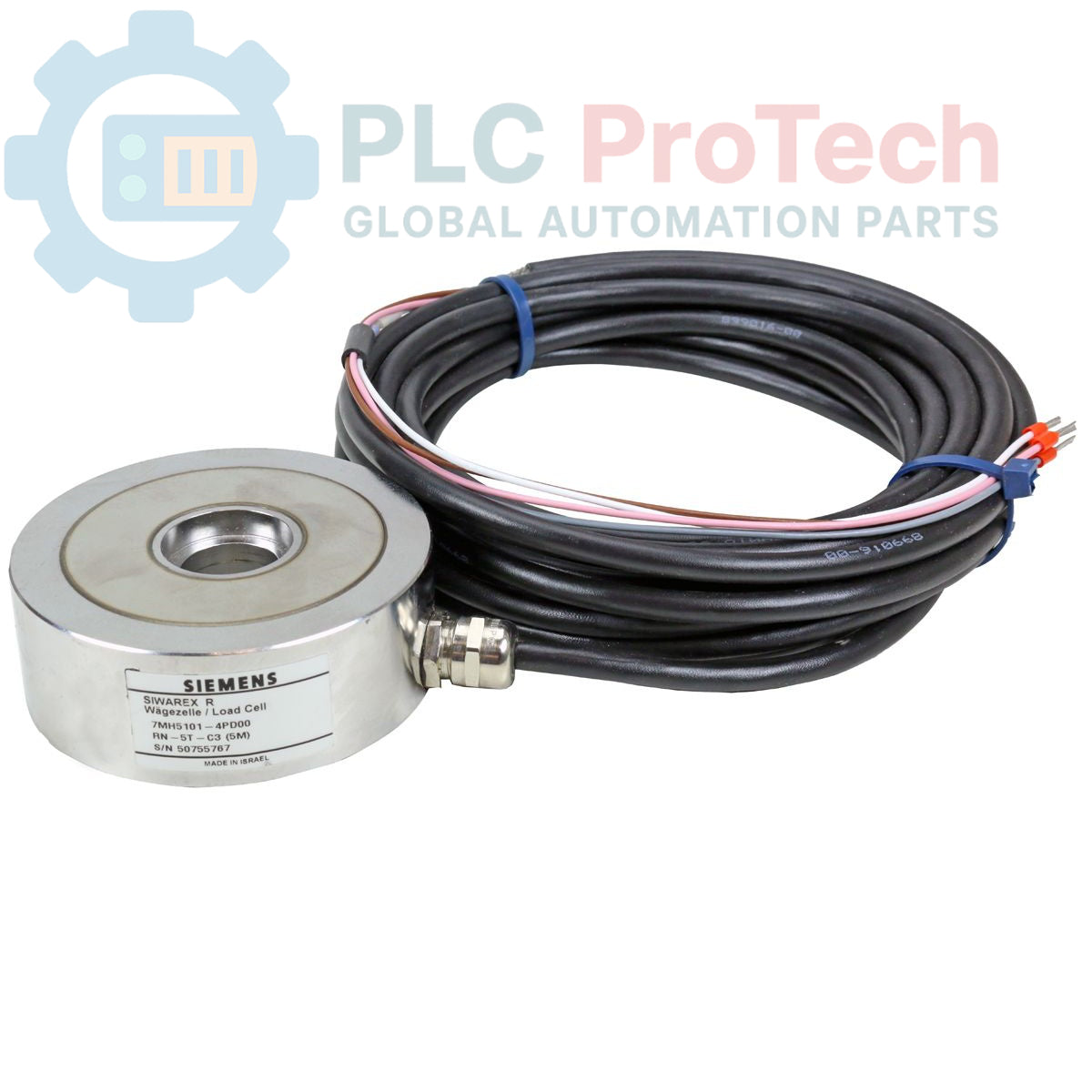

The 7MH5101-4PD00 is a precision SIWAREX R Load Cell (Series RN) designed for accurate weight measurement in industrial weighing applications. With a rated load capacity of 5 tons, this load cell is engineered for high-precision tasks, supporting up to 3,000 scaling intervals, making it compliant for use in Class 3 commercial scales. The unit is factory-equipped with a 5-meter connecting cable (+/- 0.1 m tolerance), providing the necessary reach for flexible installation in various industrial configurations such as hopper scales, platform scales, or vessel weighing systems.

Features

• Load Capacity: 5 tons rated load.
• Accuracy: Supports up to 3,000 scaling intervals (Class 3 commercial scale compliant).
• Integrated Cabling: Pre-installed 5-meter connecting cable for immediate installation.
• Series: SIWAREX R (Series RN).
• Industrial Durability: Robust design suitable for heavy-duty weighing environments.

Applications

• Industrial platform scales and vessel weighing.
• Hopper and silo weight monitoring.
• High-accuracy commercial weighing systems.
• Production line process control and material tracking.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the load cell is mounted on a perfectly level, rigid surface to prevent mechanical torsion or side-loading, which can compromise measurement accuracy.
• Cabling: The pre-installed 5-meter cable is shielded; ensure that the cable route avoids high-voltage power lines to prevent electromagnetic interference (EMI) that can disrupt low-level millivolt signals.
• Environment: While designed for industrial settings, protect the load cell from direct impact, severe vibrations, and extreme temperature fluctuations.
• Calibration: Perform a formal calibration using test weights upon installation to ensure the system meets accuracy requirements for its intended class.
• Overload Protection: Ensure that the mechanical structure limits the load to prevent exceeding the rated capacity of the 5-ton sensor.
