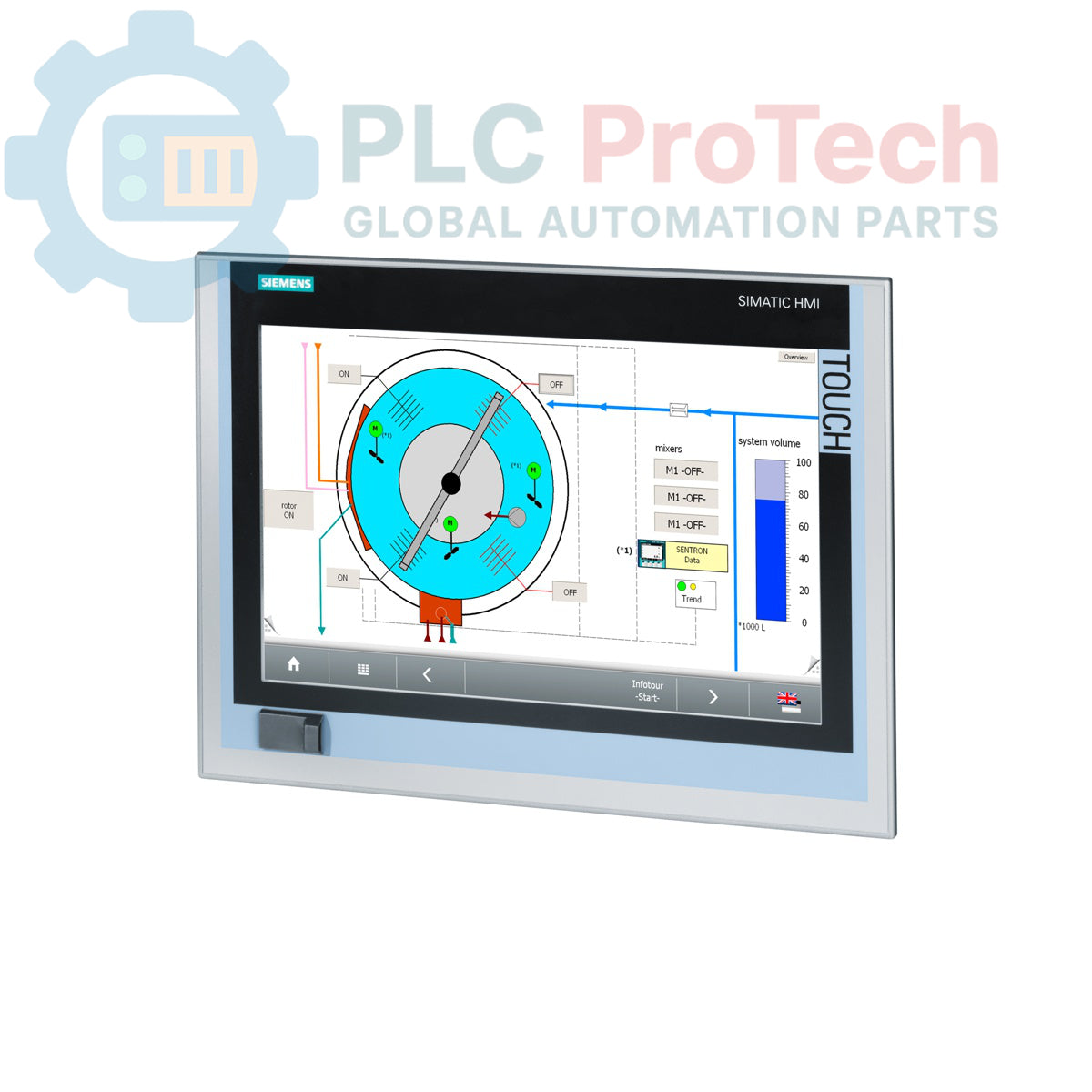

Siemens SIMATIC IPC277E 6AV7882-0DA20-5CA0 Nanopanel PC

Description

This is a Siemens SIMATIC IPC277E Nanopanel PC, model 6AV7882-0DA20-5CA0, designed for embedded industrial applications. It features a 15-inch TFT touch display and is powered by an Intel Celeron N2807 processor with 4 GB of RAM. The unit includes a 240 GB Solid-State Drive (SSD) and operates on a 24 V DC power supply. Connectivity is provided through dual Gigabit Ethernet ports, multiple USB interfaces, and a serial port. This model comes pre-installed with Windows 7 Ultimate SP1 (32-bit) but does not include SIMATIC software, allowing for custom application deployment.

Features

• ■15-inch TFT touch-sensitive display for operator interaction.
• ■Intel Celeron N2807 dual-core processor.
• ■Equipped with 4 GB of RAM and a 240 GB SSD.
• ■Dual 10/100/1000 Mbps Ethernet ports for network redundancy or separation.
• ■Standard 24 V DC power input for industrial environments.
• ■Includes Windows 7 Ultimate SP1 (32-bit) with multi-language support.
• ■Features a CFast slot for removable storage.

Applications

• ■Human-Machine Interface (HMI) for machine control.
• ■Process visualization and data acquisition terminals.
• ■Small-scale SCADA nodes and gateways.
• ■Industrial data logging and reporting stations.

Technical Specifications

Installation Guidelines

1. 1 Panel Preparation: Prepare the mounting cutout in the enclosure panel according to the device's mechanical drawings. Ensure the mounting surface is clean, flat, and free of debris to achieve a proper seal.
2. 2 Mounting: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a cross pattern to ensure uniform pressure on the gasket.
3. 3 Grounding: Connect the functional earth (FE) terminal on the device chassis to the enclosure's main ground point using a low-impedance conductor. Proper grounding is essential for noise immunity and safety.
4. 4 Power Connection: Connect the 24 V DC power supply to the designated power input terminals. Verify correct polarity (+/-) before energizing the circuit. Use appropriately sized wiring for the current draw.
5. 5 Interface Cabling: Connect Ethernet, USB, serial, and DisplayPort cables as required. Route cables away from high-voltage lines and sources of electromagnetic interference. Ensure all connectors are fully seated.
