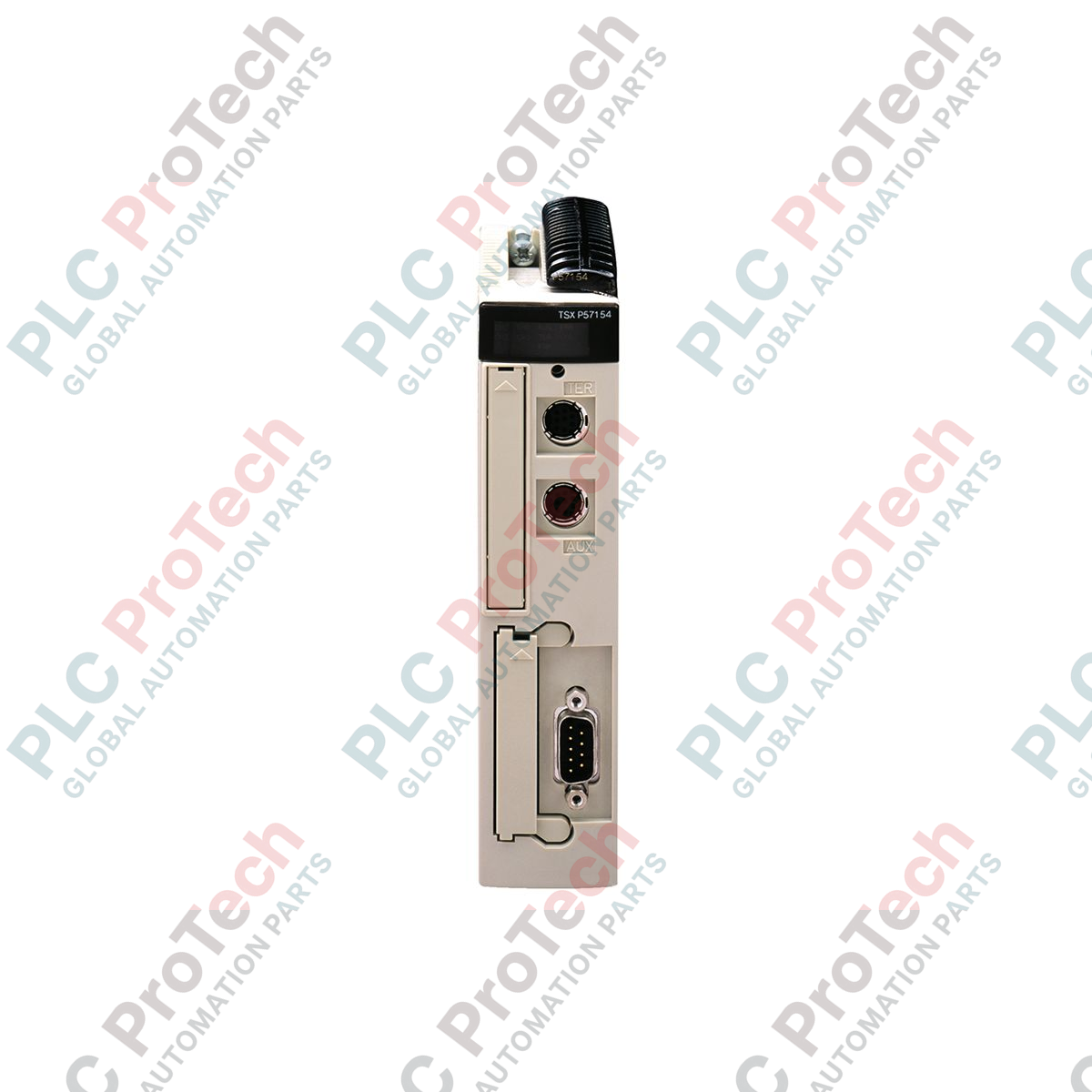

TSXP57153MC Schneider Electric Modicon Premium PL7 Processor

Product Overview

The TSXP57153MC  is a high-performance, single-format processor belonging to the Schneider Electric Modicon Premium range. Engineered for high-speed industrial logic, this CPU is optimized for the PL7 programming environment, providing a robust solution for medium-to-large scale automation tasks. Operating with a current consumption of 530 mA at 5 V DC, the TSXP57153MC delivers the deterministic control required for synchronized manufacturing lines, material handling systems, and complex process regulation. Its single-slot format allows for high-density configuration within the Premium rack, maximizing the efficiency of your control cabinet footprint. As a phase-out component, this processor is a critical legacy asset for maintenance teams tasked with sustaining existing infrastructure and ensuring operational continuity without the immediate need for a total system migration.

Technical Configuration

The TSXP57153MC is designed to function as the central intelligence of a modular automation system:

• Processor Logic: Specifically tuned for PL7 software (Junior/Pro), supporting a wide array of functional blocks, PID control, and floating-point arithmetic.

• Power Efficiency: Optimized internal circuitry drawing 530 mA from the rack's 5 V DC backplane, ensuring low thermal dissipation and stable operation.

• Communication Flexibility: Features integrated ports for Ter/Aux communication and is compatible with various PCMCIA cards for Modbus, FIPway, or Ethernet connectivity.

• I/O Management: Capable of managing thousands of discrete and analog I/O points across local and remote racks (via X-Bus or FIPIO).

• Rugged Construction: Built to withstand industrial vibration and electromagnetic interference, weighing a solid 0.61 kg to ensure mechanical stability within the rack.

Technical Specifications

Technical FAQs

Is the TSXP57153MC compatible with Unity Pro (EcoStruxure Control Expert)?

The "MC" designation and its lineage are primarily associated with the PL7 software environment. While some Premium processors can be migrated to Unity Pro, the TSXP57153MC is best utilized as a direct replacement for existing PL7-programmed systems to ensure 100% logic and communication compatibility.

Does this processor include internal memory, or do I need a PCMCIA card?

This unit includes internal RAM for execution, but for non-volatile application storage and backup, a compatible PCMCIA memory card (such as a TSXMRPC or TSXMFPP series) is highly recommended.

How do I troubleshoot a "HALT" light on the front panel?

A "HALT" LED typically indicates a blocking system error or a watchdog timeout. This can be caused by a software loop error, hardware incompatibility, or a failed I/O module on the bus. Connecting with PL7 software is required to read the system diagnostic buffer for the specific error code.

Engineering & Installation Guide

Rack Installation and Grounding

When inserting the TSXP57153MC into a TSXRKY series rack, ensure the power supply is switched off. The single-slot module must be fully seated into the backplane connector before the top and bottom securing screws are tightened. Ensure the rack's grounding terminal is connected to a low-impedance earth bus to protect the 530 mA internal circuitry from high-frequency noise and transients.

Memory and Battery Maintenance

The TSXP57153MC relies on an internal battery (typically located in the power supply module or the CPU itself depending on the version) to maintain the RAM contents during power-off periods. Since this is a legacy phase-out product, we recommend replacing the battery every 2 years and maintaining a current "Golden Copy" of the PL7 application on an external Flash PCMCIA card to prevent data loss.

Communication Port Safety

The Ter and Aux ports utilize non-isolated RS485 signals. When connecting a PC for programming or an HMI, always use the recommended Schneider Electric shielded cables (e.g., TSXPCX1031). Avoid "hot-plugging" communication cables in environments with high potential differences between equipment grounds to prevent damage to the CPU's communication driver.
