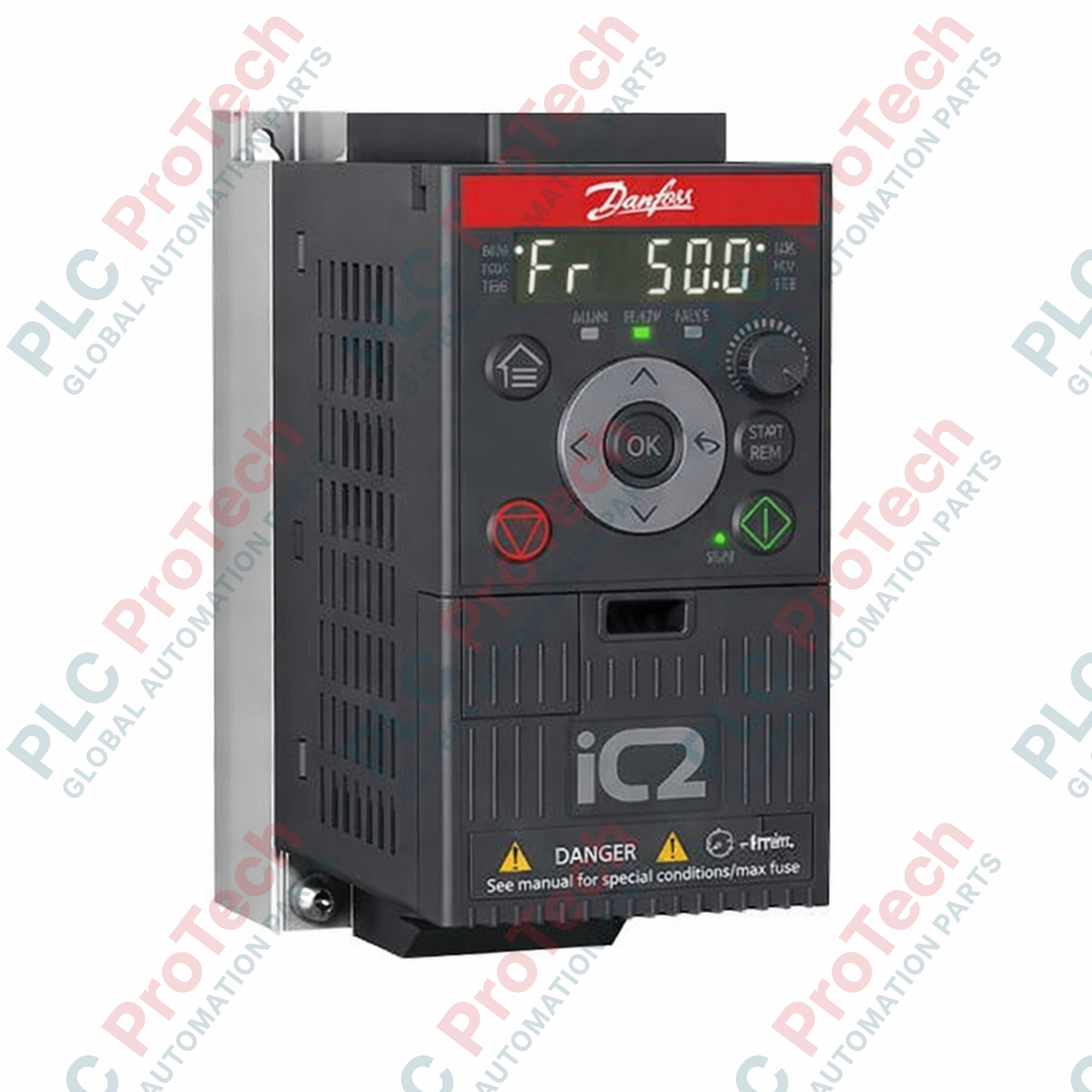

132L6105 Convertisseur de fréquence Danfoss iC2-30 refroidi par air

Product Overview

The 132L6105 (132L6105) is a compact and efficient iC2-30 Frequency Converter specifically engineered for single-phase low-voltage motor control applications. Operating within a 100-120 V AC range, this air-cooled drive provides precise speed and torque regulation for essential machinery in food and beverage processing, packaging, and commercial HVAC systems. The 132L6105 is designed to replace traditional fixed-speed starters, significantly reducing energy consumption and mechanical wear on drive-train components. Its IP20/Open type enclosure and optimized thermal management make it a reliable choice for cabinet-mounted industrial automation where space and airflow efficiency are critical performance factors.

Suffix Breakdown

The model code IC2-30FA1N01-04A8E20F4+ACXX represents a specific hardware configuration tailored for North American and Japanese power standards:

• IC2-30: Series identifier for the iC2-30 micro drive platform.

• FA: Product category indicating Frequency converter with Air-cooled heat dissipation.

• 1N: Input phase configuration (Single-phase).

• 01: Mains voltage rating (100-120 V AC).

• 04A8: Output current rating of 4.8 A, optimized for small fractional horsepower motors.

• E20: IP20 / Chassis mounting protection rating.

• F4: EMC filter category C4.

• +ACXX: Configuration suffix confirming no integrated brake chopper is installed.

Technical Specifications

Technical FAQs

Can the 132L6105 drive a 3-phase motor from a 1-phase supply?

Yes, this frequency converter is specifically designed to take a single-phase 100-120 V AC input and provide a balanced three-phase output to control standard induction motors.

What is the minimum clearance required for air cooling?

For optimal airflow, maintain a minimum vertical clearance of 100 mm above and below the unit. Since it is IP20 rated, ensure the installation environment is free from conductive dust and dripping liquids.

Does this model support external braking resistors?

No, as indicated by the +ACXX suffix, this specific variant does not include an integrated brake chopper. If your application involves high-inertia loads requiring dynamic braking, a different model suffix with an integrated chopper must be selected.

Engineering & Installation Guide

Thermal Management & Side-by-Side Mounting: The iC2-30 series supports side-by-side mounting to save cabinet space. However, when operating at full load in ambient temperatures exceeding 40 deg C, ensure a minimum horizontal gap of 5 mm between units or apply current derating to prevent thermal tripping.

Wiring and EMI Mitigation: To comply with C4 EMC standards, use shielded motor cables and ensure the shield is connected to the decoupling plate with a metal clamp. Keep control wiring and high-voltage power cables separated by at least 200 mm to prevent inductive coupling and signal interference.

Voltage Doubler Logic: Note that for 100-120 V input models, the drive internally manages voltage levels to support standard motor windings. Always verify that the motor insulation is rated for inverter duty to prevent premature winding failure caused by high dV/dt peaks.
