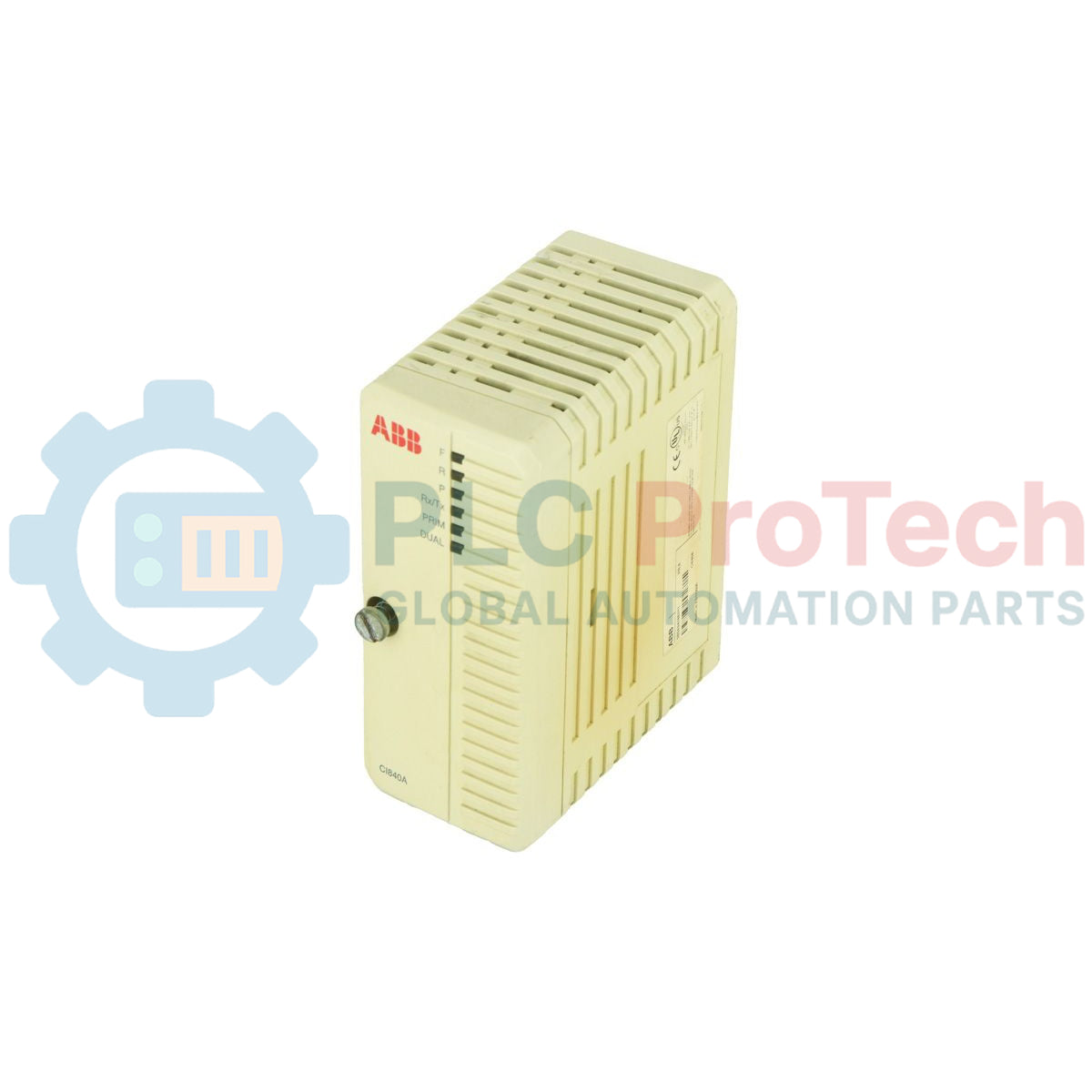

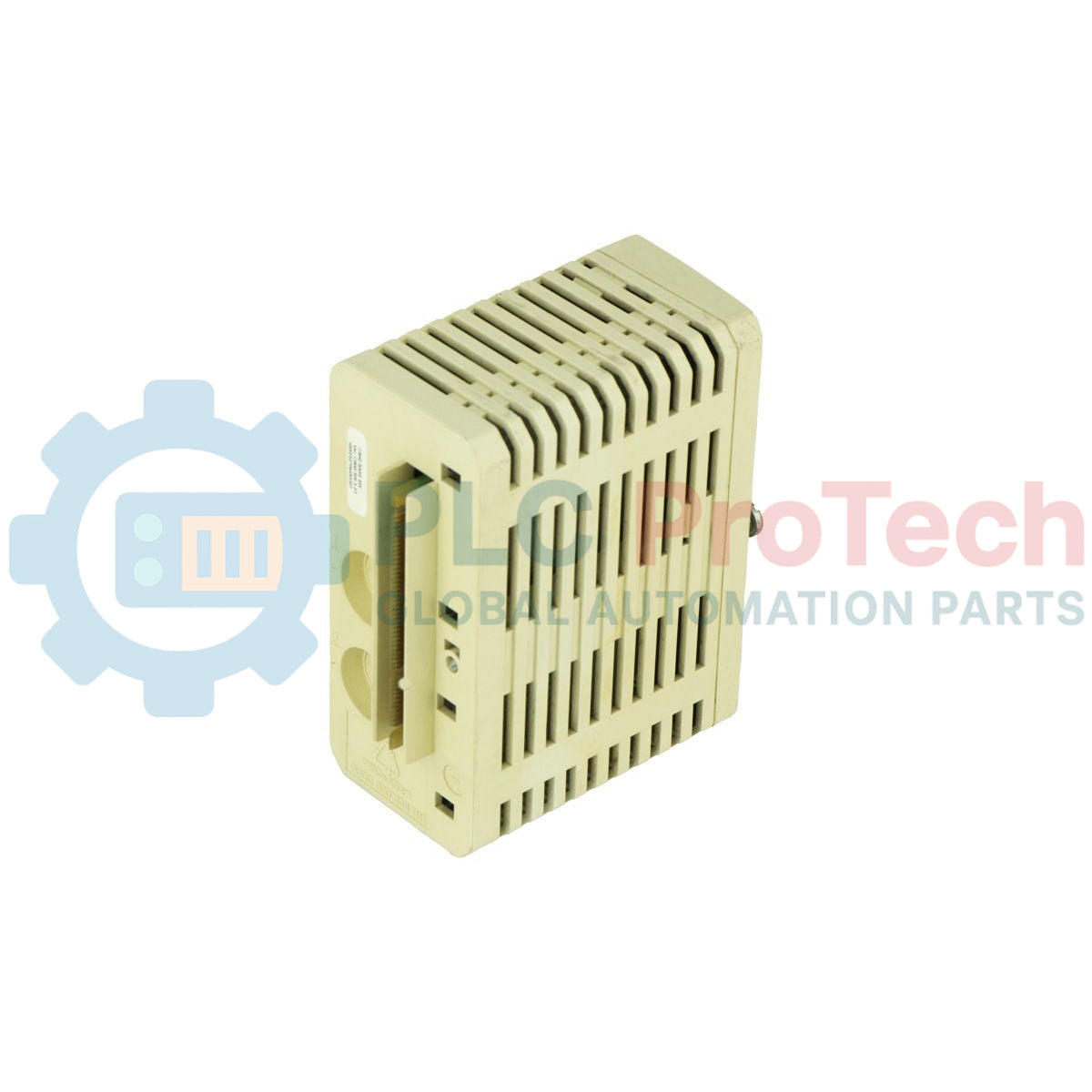

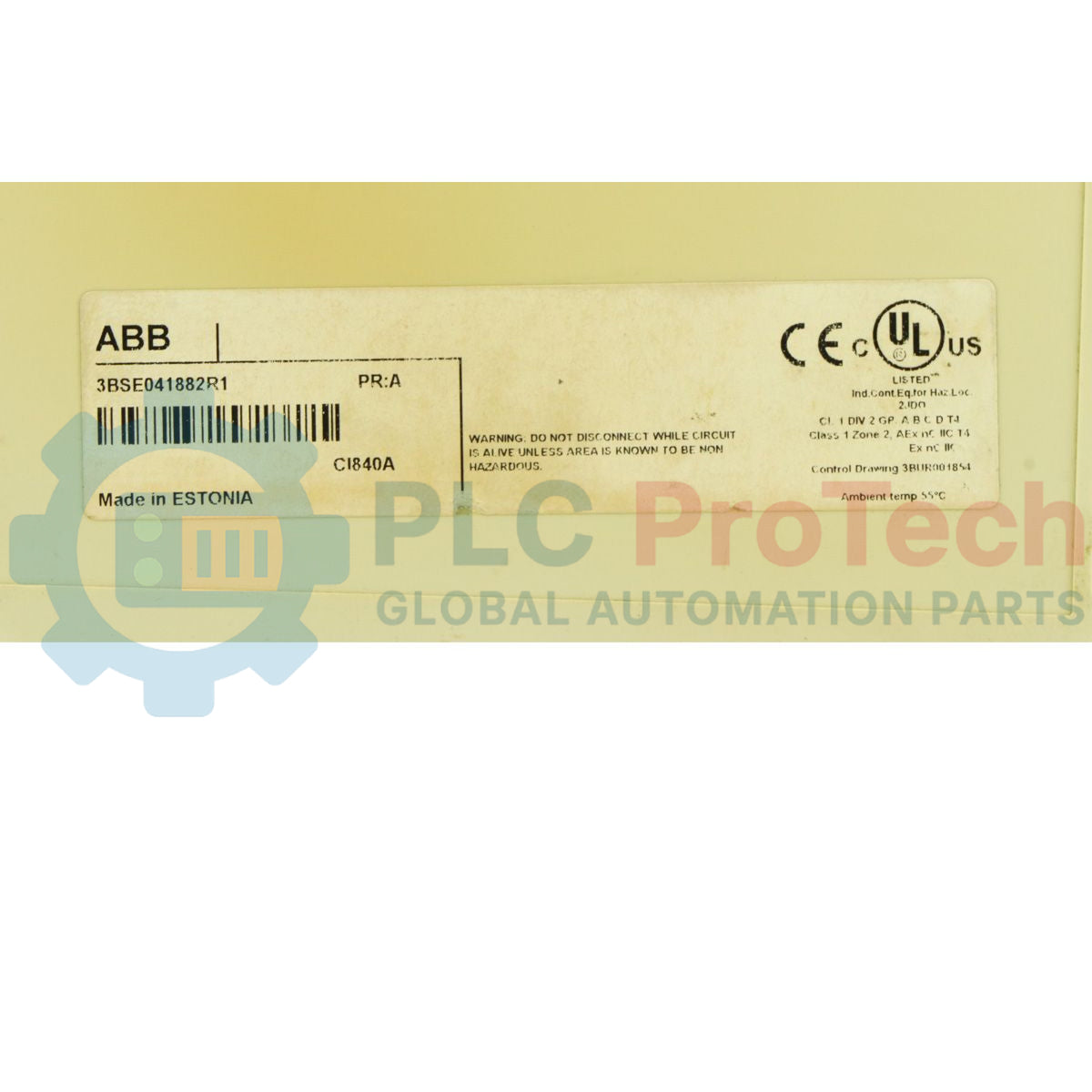

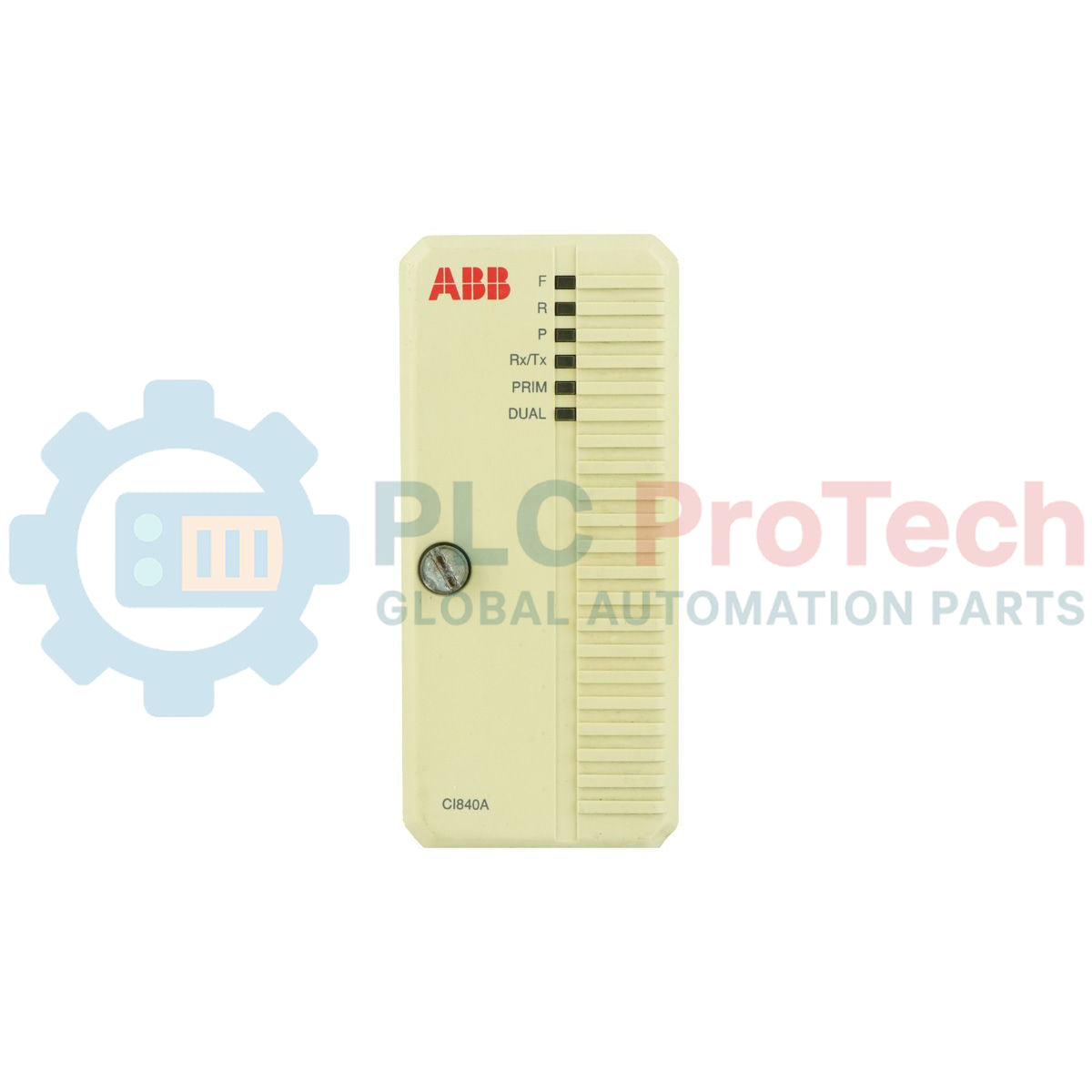

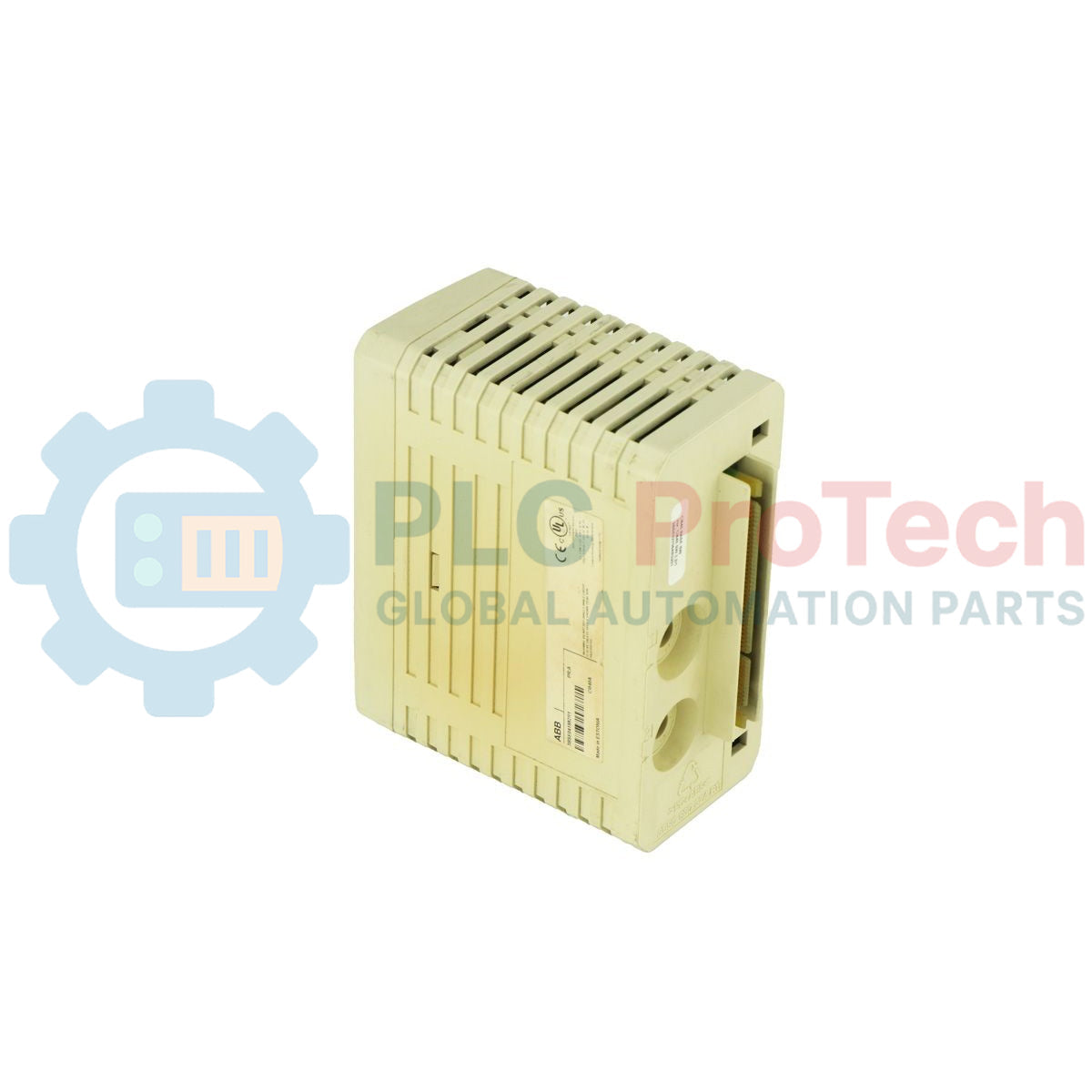

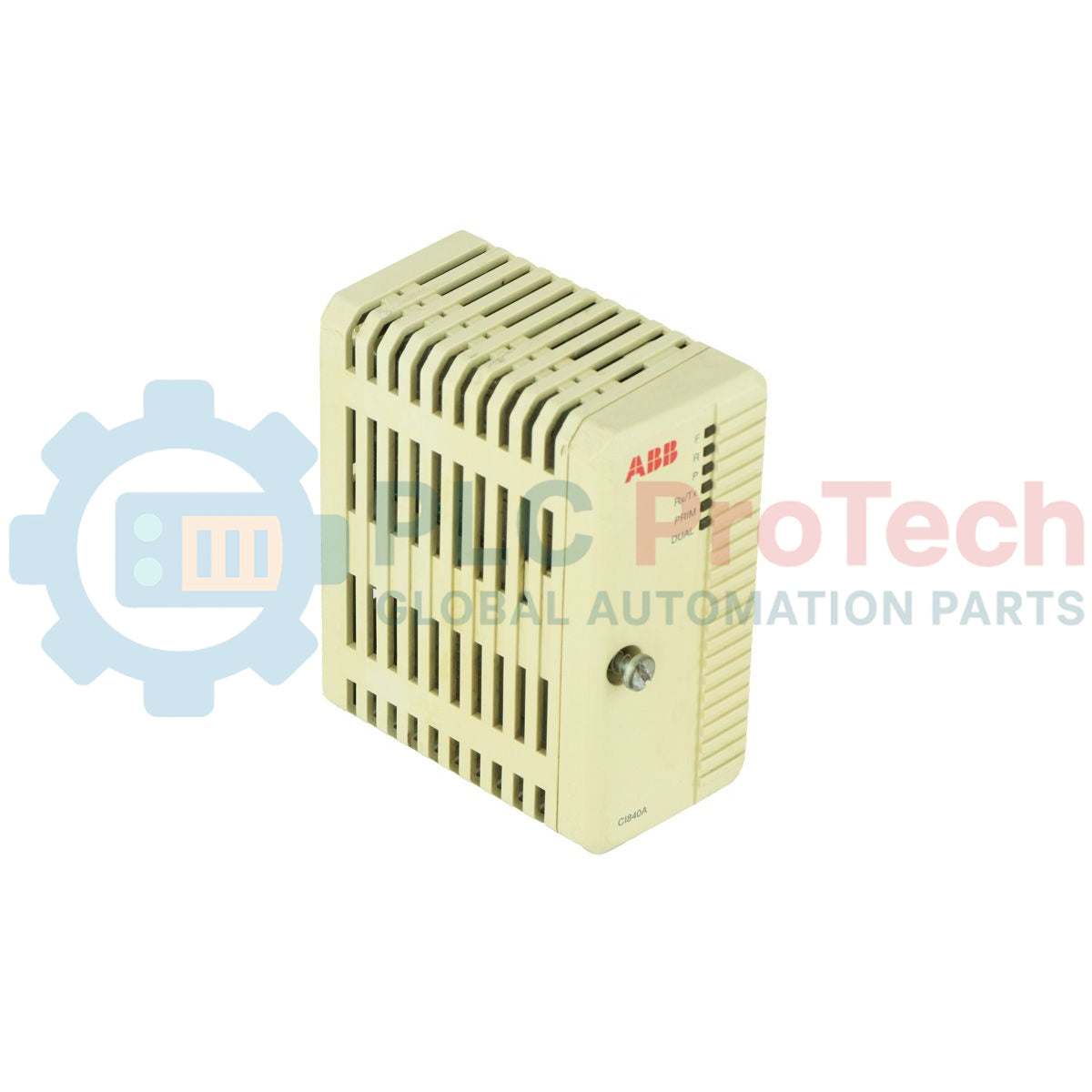

ABB CI840A Interface PROFIBUS DP-V1 – 3BSE041882R1

Description

Managing cyclic and acyclic fieldbus communications within distributed automation topologies, the ABB CI840A 3BSE041882R1 serves as a high-speed PROFIBUS DP-V1 master/slave link module for the S800 I/O system. This module facilitates continuous data exchange between the host controller and remote I/O devices, translating protocols with deterministic accuracy. When paired with a compatible Module Termination Unit (MTU), it supports full 1+1 media and hardware redundancy, making it highly suitable for mission-critical industrial processes. The compact design mounts directly onto standard DIN rails via the termination unit, allowing easy integration into existing System 800xA and Compact Product Suite infrastructures.

Features

• PROFIBUS DP-V1 Connectivity: Handles cyclic process data alongside acyclic parameter, diagnostic, and alarm information.
• Hardware Redundancy Support: Enables dual-line, hot-standby redundancy setups when combined with TU846 or TU847 terminal blocks.
• Hot-Swappable Operation: Modules can be replaced under power without interrupting active communication bus traffic (when in redundant configuration).
• No Internal Batteries Required: Minimizes routine maintenance tasks and environmental footprint.
• RoHS & Environmental Compliance: Meets strict European standards for hazardous materials reduction.

Applications

• S800 distributed I/O systems in process control architectures.
• System 800xA and Compact Product Suite control networks.
• High-availability systems such as petrochemical plants, power generation facilities, and water treatment operations.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The CI840A (3BSE041882R1) acts as a direct form-factor replacement for the legacy CI840 module. However, when configured in redundant pairs on a TU847 Module Termination Unit, both modules must run identical firmware and hardware revisions. Mixing a legacy CI840 and a newer CI840A in the same redundant base will cause failover configuration mismatch errors, preventing the secondary unit from taking control during a primary unit fault.

Application Pitfalls & Engineering Notes

Ensure that the PROFIBUS networks are terminated correctly at the extreme ends of the physical trunks. In redundant setups, activating internal active termination on intermediate nodes or on a non-terminal TU847 block will severely degrade signal integrity, causing intermittent communication dropouts and CRC errors. Additionally, check the module power distribution; sudden voltage dips on the auxiliary 24V DC feed below 19.2V DC will trigger an automatic module reset.

Commissioning & Wiring Tips

The station address for the PROFIBUS interface must be selected using the hardware rotary switches located on the front of the module housing. This address is only read during the initial power-on boot sequence. If you adjust the rotary switches while the module is powered, the change will not take effect until the module is fully power-cycled or soft-rebooted via the controller software.
