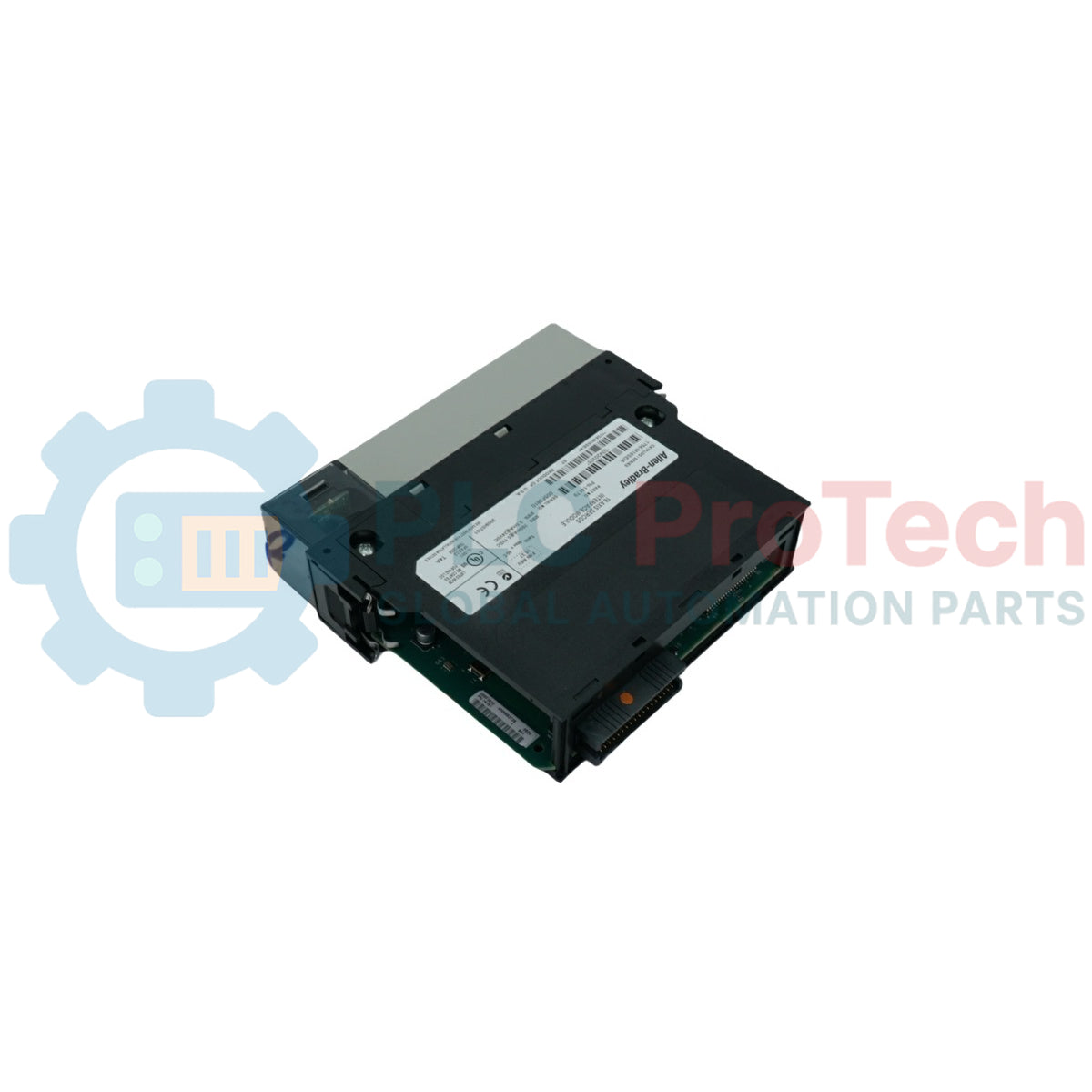

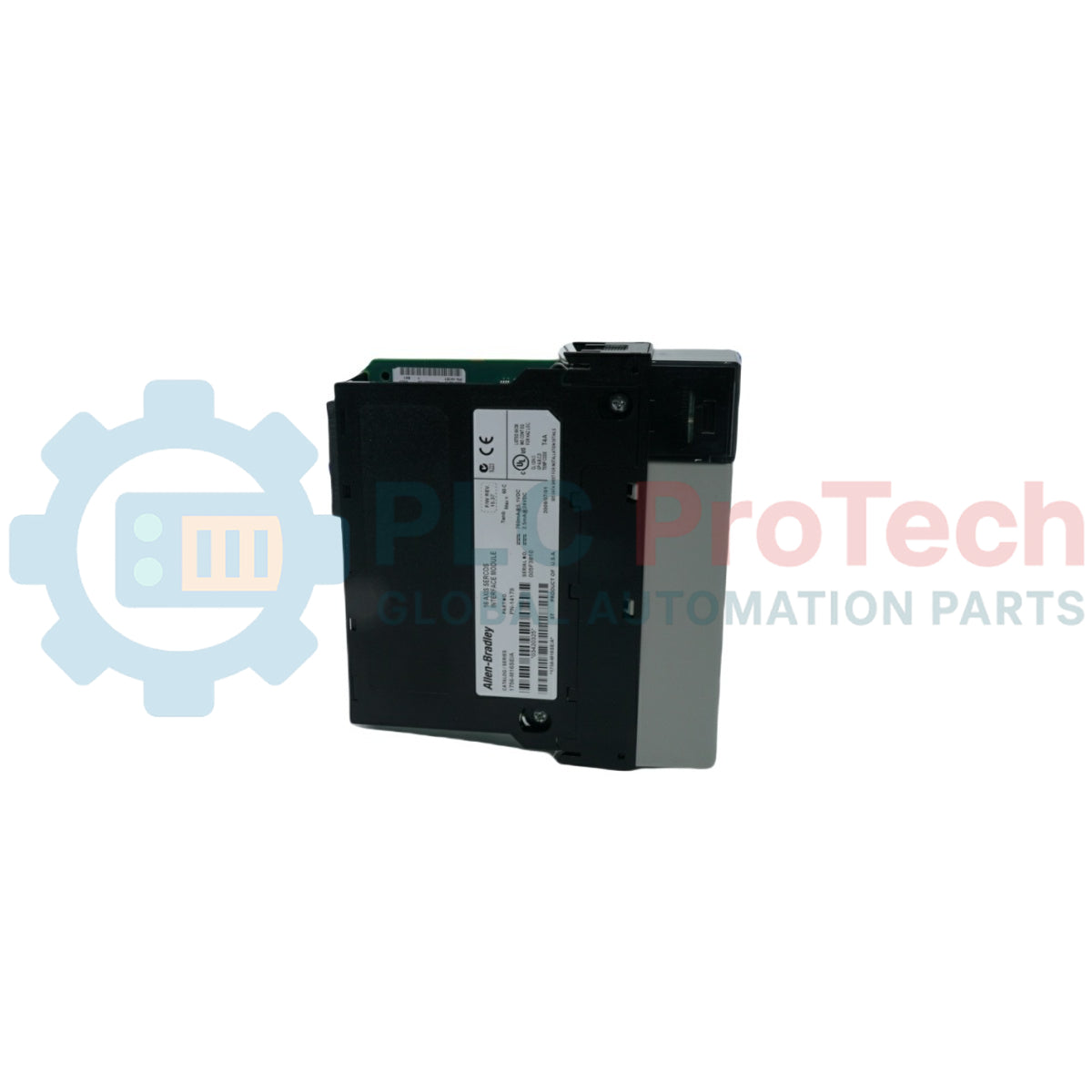

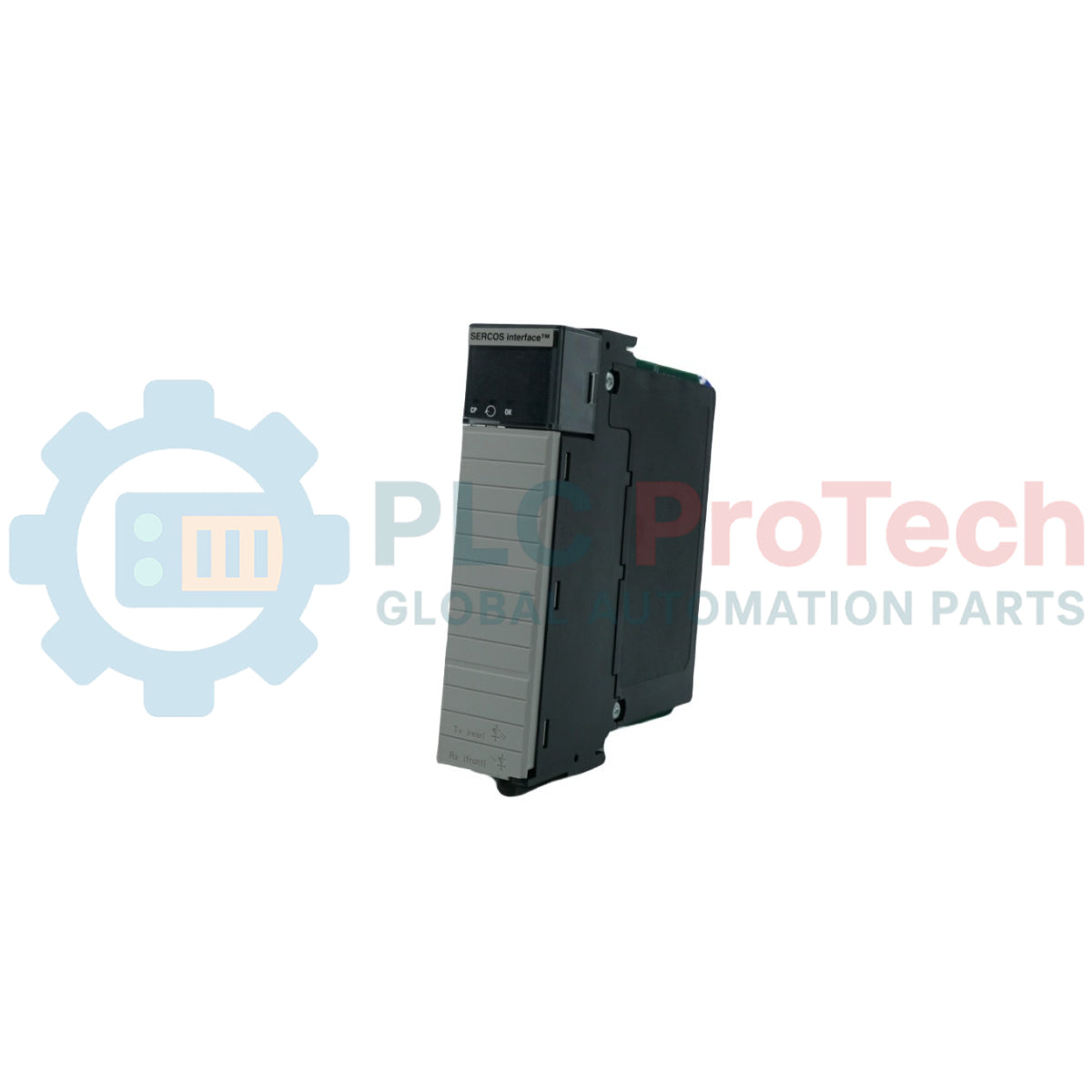

Module d'interface SERCOS Allen-Bradley 1756-M16SE ControlLogix

The 1756-M16SE is a chassis-based motion control module that enables multi-axis closed-loop servo synchronization through a centralized network setup. This interface hardware links software execution tracks inside a central processing host directly to distributed smart drives by establishing a single digital fiber-optic medium connection, eliminating up to 18 traditional discrete signal wires for every single active axis. The device supports real-time transmission vectors across SERCOS interface parameters, delivering bidirectional cyclic communication loops to update position command points and upload diagnostic telemetry arrays simultaneously. Architected to operate within standard system racks, the module plugs directly into any available linear slot to control up to 16 independent servo drives under strict position, velocity, or torque loops.

Features

• Single Link Optoelectronic Port: Employs a digital fiber-optic communication terminal to replace complex multi-wire discrete physical bundles per axis.
• High-Density Synchronized Control: Manages closed-loop operational variables for up to 16 independent servo drive units simultaneously from one slot.
• Dynamic Drive Operating Modes: Supports flexible control switching profiles including real-time position, velocity, and torque regulation loops.
• Chassis Slot Agility: Mounts directly into any standard system rack position to match custom configuration blueprints.
• Extended Cyclic Diagnostics: Maintains a continuous double-sided feedback stream between controller and drive for tracking fault states.

Applications

• Multi-axis coordinated packaging lines and sorting conveyor systems.
• High-precision positioning tables and material handling pick-and-place systems.
• Synchronized winding machinery, textile production, and continuous web handling.
• Closed-loop servo feed control in automotive and heavy assembly machinery.

Technical Specifications

Installation Guidelines

• Chassis Alignment: Ensure the keying tabs match the target rack slot before inserting the hardware to prevent twisting the inner connector path.
• Fiber-Optic Cable Radius Constraints: Maintain the official minimal bend boundaries when pulling the core plastic or glass fiber lines to prevent high optical loss profiles.
• Ventilation Passages: Verify that surrounding cable trays do not block upper or lower chassis slots, preserving natural convective cooling across the module.
• Power Supply Sizing Requirements: Sum the combined 5.1 VDC and 24 VDC backplane current draws before initializing startup routines to prevent overcurrent trips.

Compliance and Certifications

• c-UL-us: UL Listed Industrial Control Equipment, certified for US and Canada (See UL File E65584); UL Listed for Class I, Division 2 Group A, B, C, D Hazardous Locations.
• CE: European Union 2004/108/IEC EMC Directive, compliant with EN 61326-1 (Meas./Control/Lab., Industrial Requirements), EN 61000-6-2 (Industrial Immunity), EN 61000-6-4 (Industrial Emissions), and EN 61136-2 (Programmable Controllers Clause 8, Zone A & B).
• C-Tick: Australian Radiocommunications Act, compliant with AS/NZS CISPR 11 (Industrial Emissions).

FAQ

Q: What is the maximum number of servo axes this specific model can handle simultaneously?

A: This module can handle a maximum of 16 drives or motion axes across the optical loop configuration.

Q: Can this interface link transmit torque control commands directly to a compatible servo drive?

A: Yes, it inherently supports full position, velocity, and torque regulation modes across the real-time communication ring.

Q: What type of fiber-optic cables can be applied to link the module to field drives?

A: It supports specified 2090 series cables, including non-jacketed CPE, standard PVC, nylon-jacketed plastic options, and standard PVC glass fiber lines.
